| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_022T01_9000005540_40493cztM0_level2.fits | modeM0/AS1A12_022T01_9000005540_40493cztM0_level2_quad_clean.evt |
| Size (bytes) | 310,775,040 | 88,269,120 |
| Size | 296.4 MB | 84.2 MB |
| Events in quadrant A | 2,806,413 | 602,862 |
| Events in quadrant B | 2,769,284 | 608,144 |
| Events in quadrant C | 2,502,547 | 584,443 |
| Events in quadrant D | 2,998,567 | 493,937 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11862 | 3 |
| B | 0 | 12062 | 2 |
| C | 0 | 11047 | 2 |
| D | 0 | 12904 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5469 | 10 | 0.182849% |
| B | 5469 | 83 | 1.517645% |
| C | 5469 | 3 | 0.054855% |
| D | 5469 | 555 | 10.148108% |

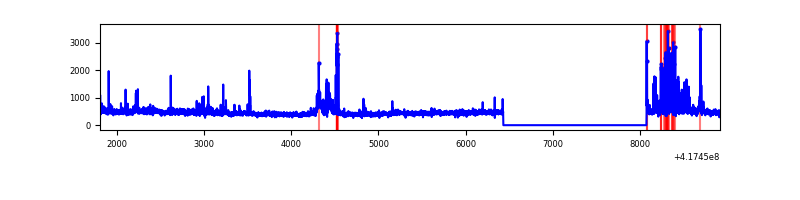

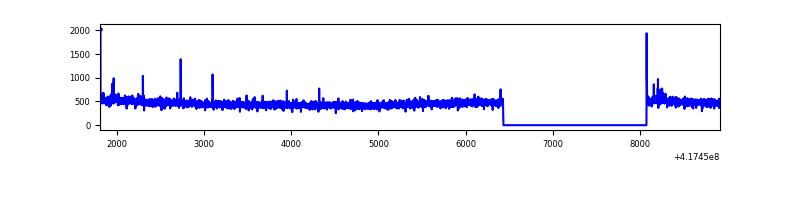

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

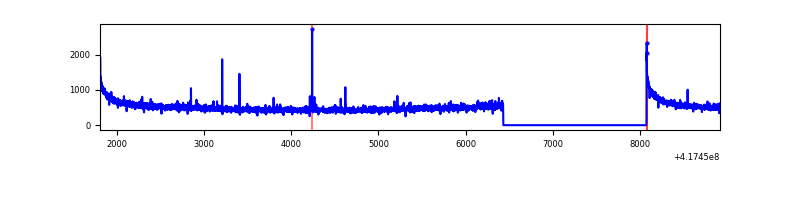

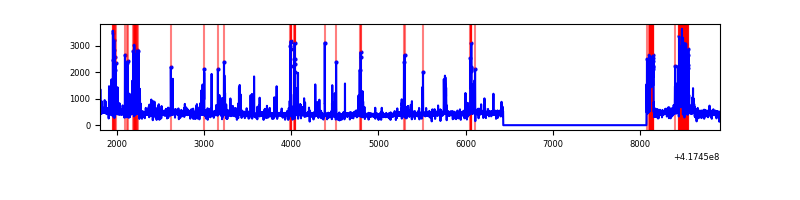

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7113 | 5470 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7113 | 5470 | 34 | 34 | 0.48% | 0.62% |  |
| C | 7113 | 5470 | 2 | 2 | 0.03% | 0.04% |  |
| D | 7113 | 5470 | 126 | 126 | 1.77% | 2.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 497056 | 4164.81 | 583 | 571 | 119.2 |
| A | 12 | 189 | 16888 | 136.88 | 583 | 571 | 119.2 |
| A | 2 | 79 | 15035 | 121.33 | 583 | 571 | 119.2 |
| B | 4 | 170 | 369401 | 3322.85 | 577 | 561 | 111.0 |
| B | 3 | 112 | 80566 | 720.76 | 577 | 561 | 111.0 |
| B | 0 | 230 | 39055 | 346.79 | 577 | 561 | 111.0 |
| C | 15 | 214 | 238962 | 1787.51 | 571 | 573 | 133.4 |
| C | 3 | 233 | 12406 | 88.73 | 571 | 573 | 133.4 |
| C | 14 | 254 | 10514 | 74.54 | 571 | 573 | 133.4 |
| D | 9 | 19 | 205203 | 1512.1 | 543 | 527 | 135.4 |
| D | 2 | 250 | 188824 | 1391.1 | 543 | 527 | 135.4 |
| D | 12 | 227 | 172670 | 1271.76 | 543 | 527 | 135.4 |

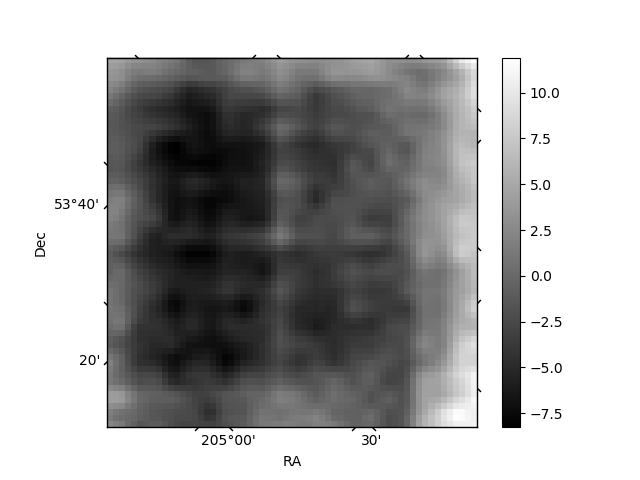

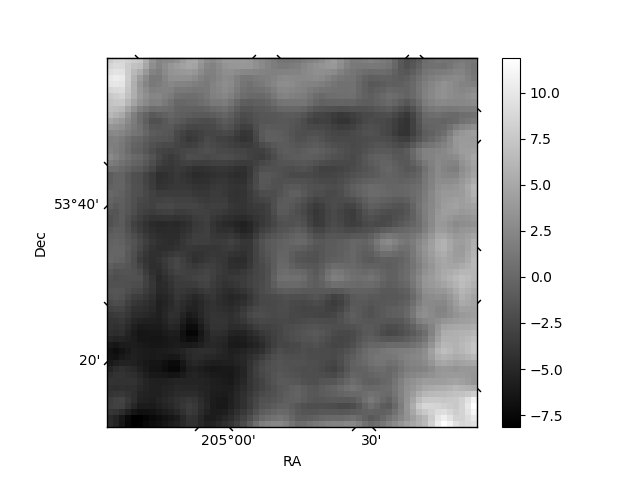

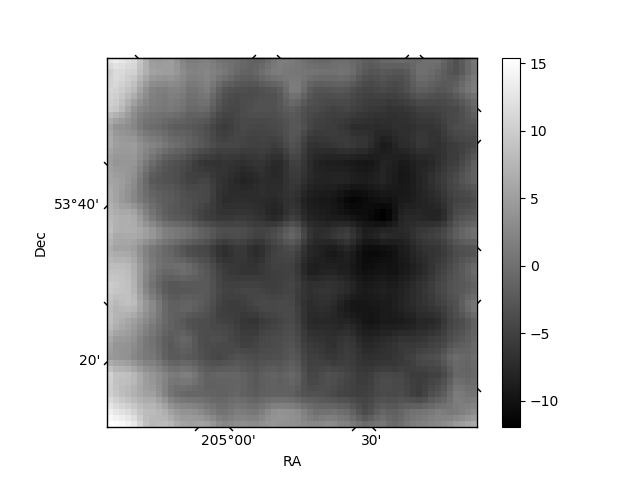

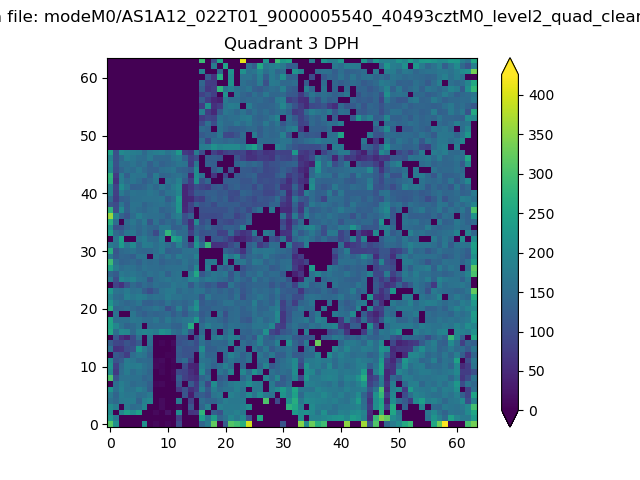

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

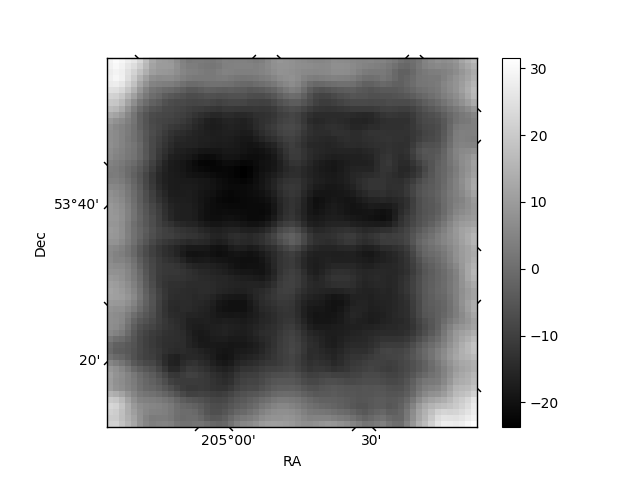

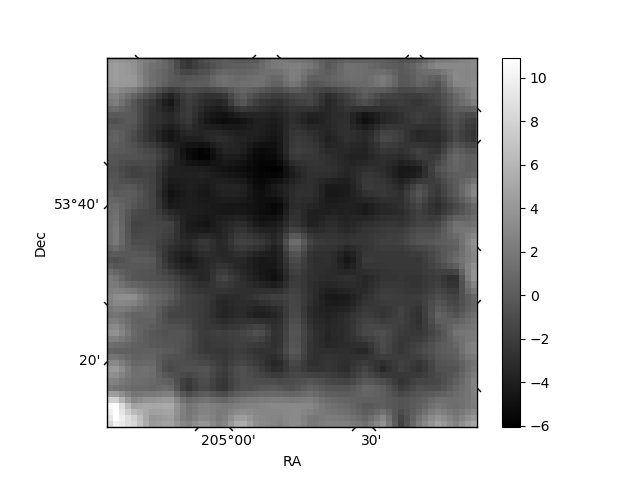

| Plot type | Count rate plots | Images |
|---|---|---|

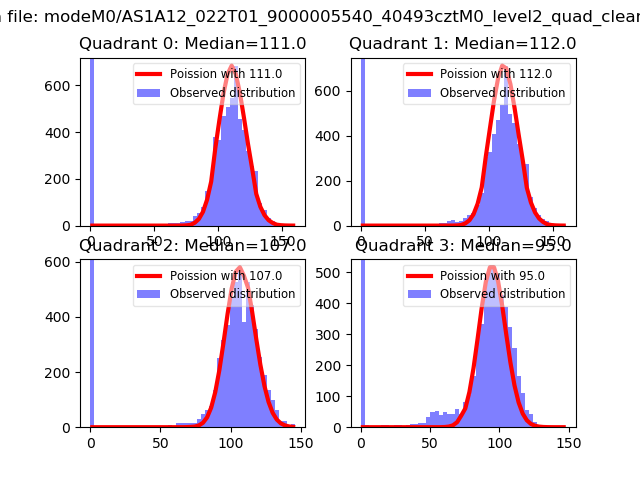

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

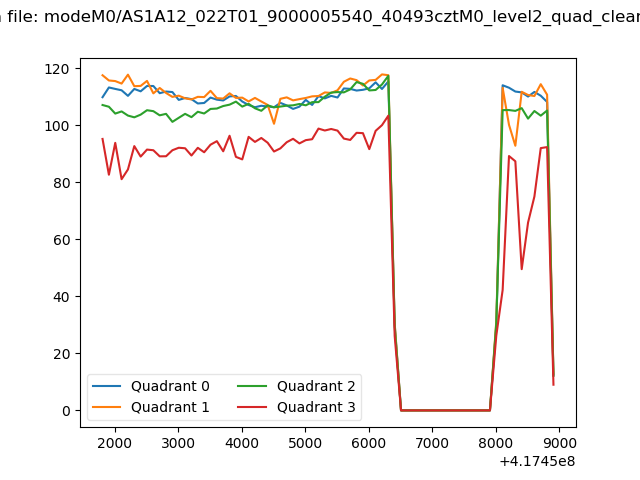

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

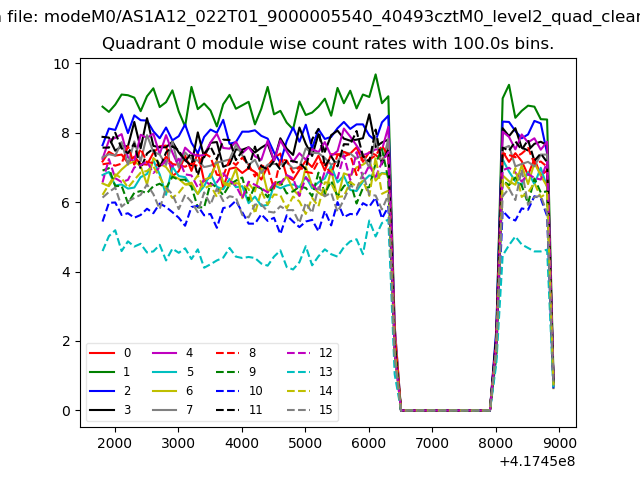

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

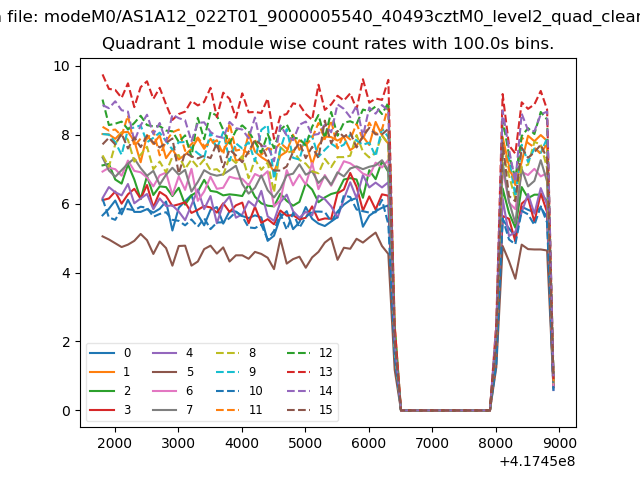

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

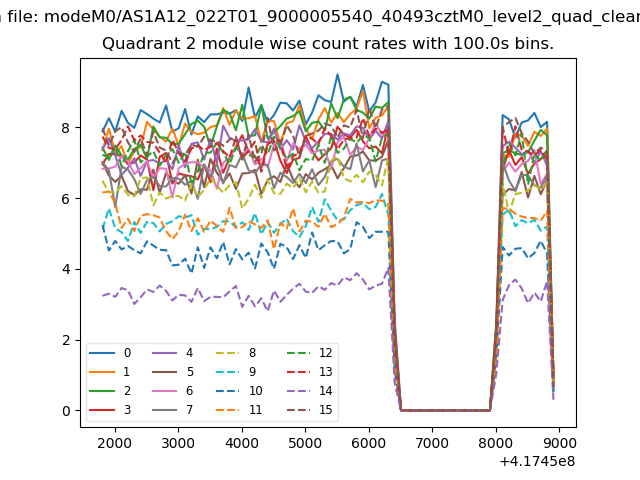

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

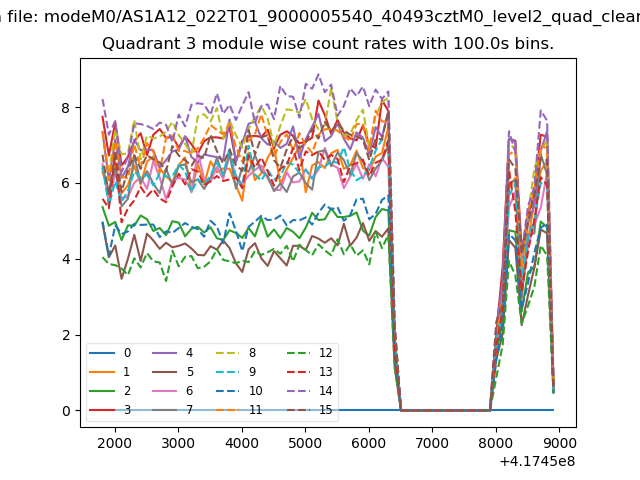

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

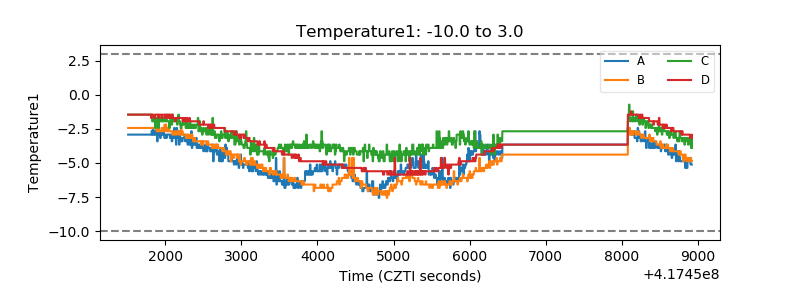

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

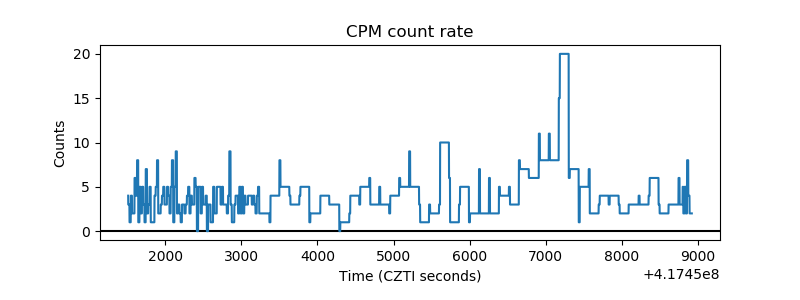

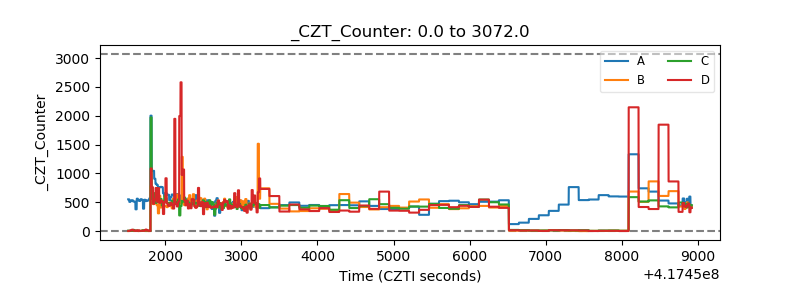

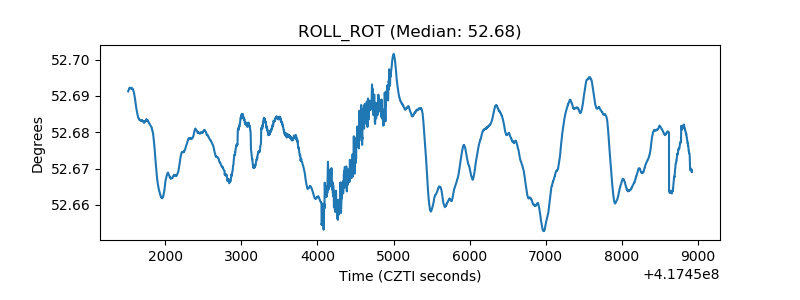

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

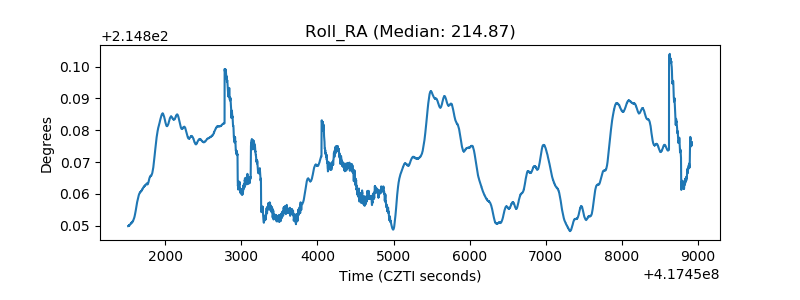

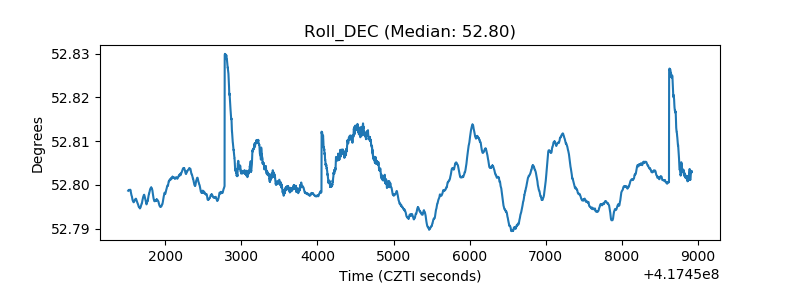

| _Roll_DEC |  |
| _Roll_RA |  |

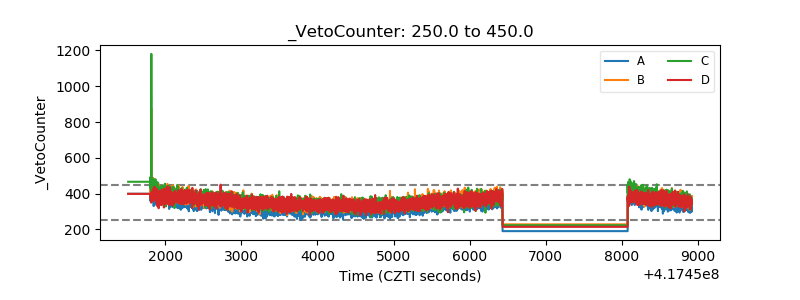

| Veto Counter |  |
