| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_097T02_9000005542_40506cztM0_level2.fits | modeM0/AS1A12_097T02_9000005542_40506cztM0_level2_quad_clean.evt |
| Size (bytes) | 69,315,840 | 18,636,480 |
| Size | 66.1 MB | 17.8 MB |
| Events in quadrant A | 685,705 | 129,108 |
| Events in quadrant B | 524,468 | 132,462 |
| Events in quadrant C | 553,929 | 125,625 |
| Events in quadrant D | 713,019 | 93,650 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2705 | 2 |
| B | 0 | 2254 | 1 |
| C | 0 | 2272 | 1 |
| D | 0 | 2822 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1096 | 3 | 0.273723% |
| B | 1096 | 5 | 0.456204% |
| C | 1096 | 6 | 0.547445% |
| D | 1096 | 273 | 24.908759% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3160 | 1097 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3160 | 1097 | 2 | 2 | 0.06% | 0.18% |  |
| C | 3160 | 1097 | 4 | 4 | 0.13% | 0.36% |  |
| D | 3159 | 1096 | 35 | 35 | 1.11% | 3.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 167255 | 5861.67 | 128 | 126 | 28.5 |
| A | 12 | 189 | 15925 | 554.11 | 128 | 126 | 28.5 |
| A | 13 | 6 | 3038 | 102.13 | 128 | 126 | 28.5 |
| B | 4 | 67 | 9245 | 339.32 | 126 | 122 | 26.9 |
| B | 5 | 16 | 3814 | 137.32 | 126 | 122 | 26.9 |
| B | 5 | 255 | 3106 | 110.99 | 126 | 122 | 26.9 |
| C | 15 | 214 | 51206 | 1699.32 | 122 | 123 | 30.1 |
| C | 9 | 146 | 13053 | 430.13 | 122 | 123 | 30.1 |
| C | 0 | 10 | 8276 | 271.22 | 122 | 123 | 30.1 |
| D | 12 | 227 | 140579 | 4761.4 | 110 | 107 | 29.5 |
| D | 12 | 191 | 55873 | 1890.23 | 110 | 107 | 29.5 |
| D | 10 | 34 | 31696 | 1070.73 | 110 | 107 | 29.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

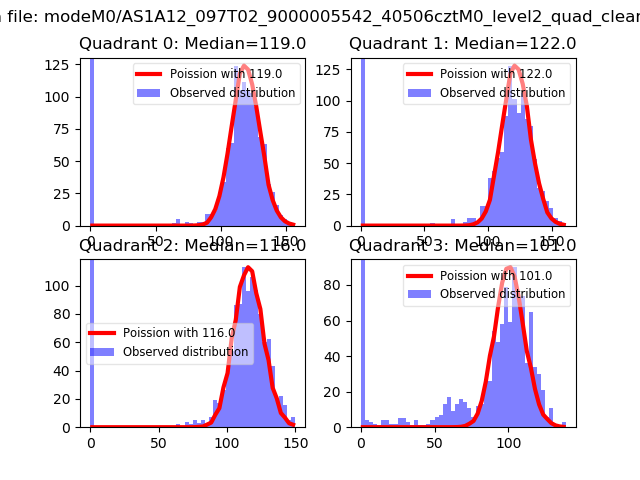

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

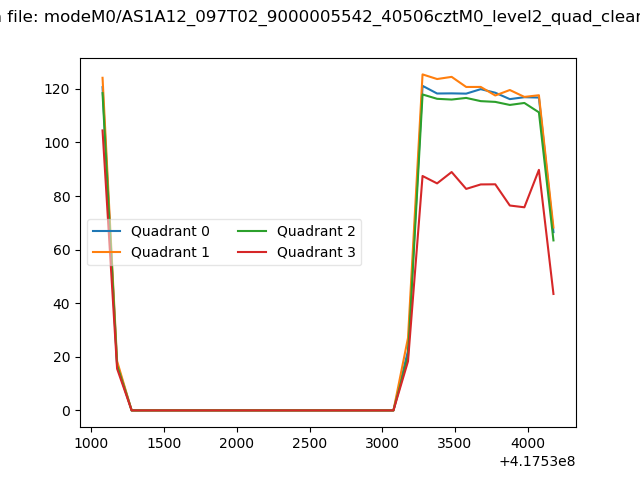

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

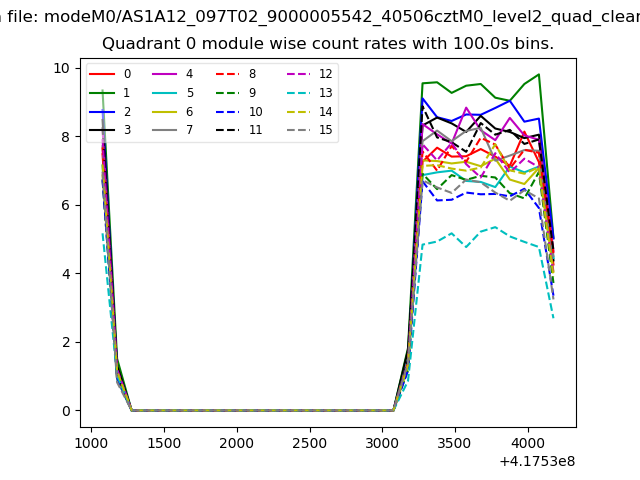

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

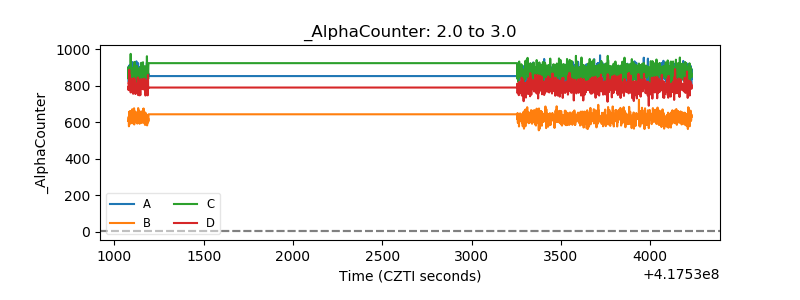

| Alpha Counter |  |

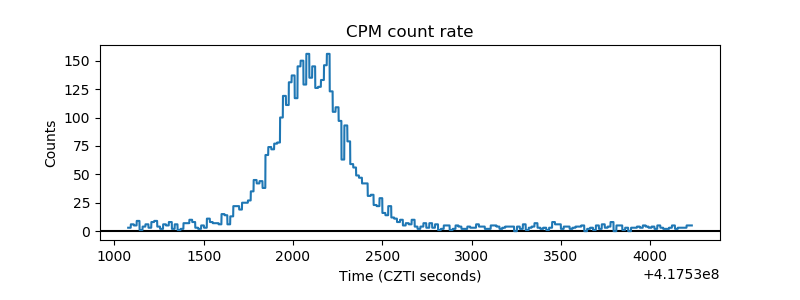

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

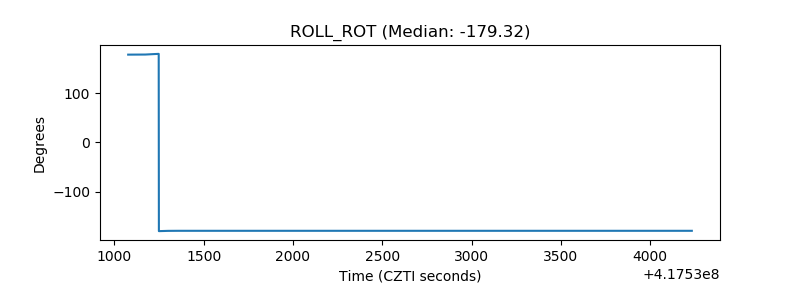

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
