| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_097T02_9000005542_40513cztM0_level2.fits | modeM0/AS1A12_097T02_9000005542_40513cztM0_level2_quad_clean.evt |
| Size (bytes) | 471,211,200 | 113,160,960 |
| Size | 449.4 MB | 107.9 MB |
| Events in quadrant A | 3,850,495 | 779,857 |
| Events in quadrant B | 3,650,832 | 805,769 |
| Events in quadrant C | 3,402,978 | 772,400 |
| Events in quadrant D | 5,985,333 | 573,649 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15530 | 3 |
| B | 0 | 15546 | 2 |
| C | 0 | 14341 | 2 |
| D | 0 | 22633 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31 | 0 |
| B | 0 | 31 | 0 |
| C | 0 | 31 | 0 |
| D | 0 | 31 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7106 | 11 | 0.154799% |
| B | 7106 | 60 | 0.844357% |
| C | 7106 | 4 | 0.056290% |
| D | 7106 | 1554 | 21.868843% |

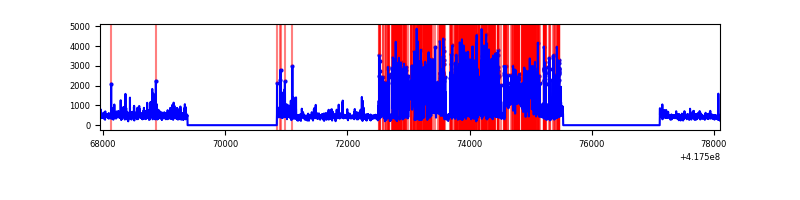

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

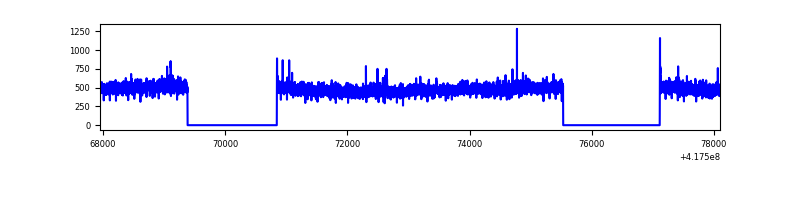

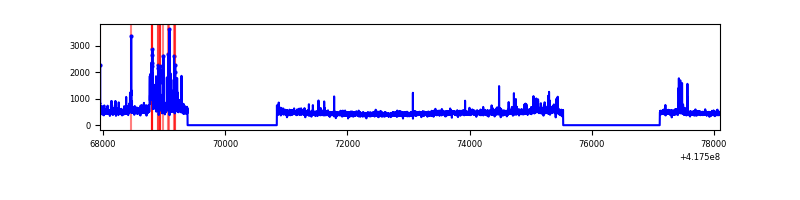

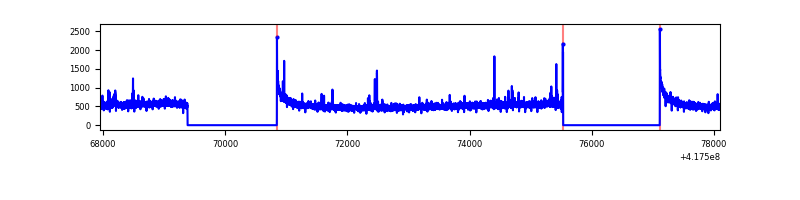

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 10152 | 7108 | 3 | 3 | 0.03% | 0.04% |  |
| B | 10152 | 7108 | 17 | 17 | 0.17% | 0.24% |  |
| C | 10152 | 7108 | 0 | 0 | 0.00% | 0.00% |  |
| D | 10152 | 7108 | 761 | 761 | 7.50% | 10.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 623457 | 3785.18 | 803 | 788 | 164.5 |
| A | 2 | 79 | 53132 | 318.2 | 803 | 788 | 164.5 |
| A | 12 | 189 | 42961 | 256.37 | 803 | 788 | 164.5 |
| B | 0 | 183 | 156557 | 997.47 | 797 | 776 | 156.2 |
| B | 3 | 112 | 140586 | 895.21 | 797 | 776 | 156.2 |
| B | 5 | 255 | 81585 | 517.42 | 797 | 776 | 156.2 |
| C | 15 | 214 | 309317 | 1666.61 | 784 | 790 | 185.1 |
| C | 9 | 187 | 12354 | 62.47 | 784 | 790 | 185.1 |
| C | 10 | 20 | 10863 | 54.41 | 784 | 790 | 185.1 |
| D | 12 | 227 | 2810524 | 15916.75 | 707 | 687 | 176.5 |
| D | 12 | 191 | 202401 | 1142.64 | 707 | 687 | 176.5 |
| D | 2 | 250 | 107727 | 606.34 | 707 | 687 | 176.5 |

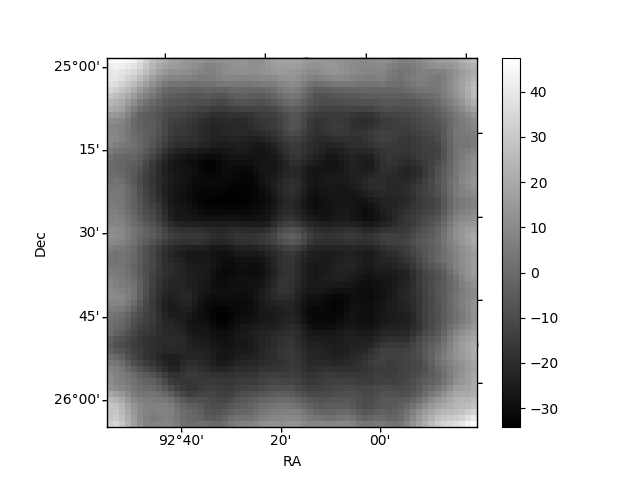

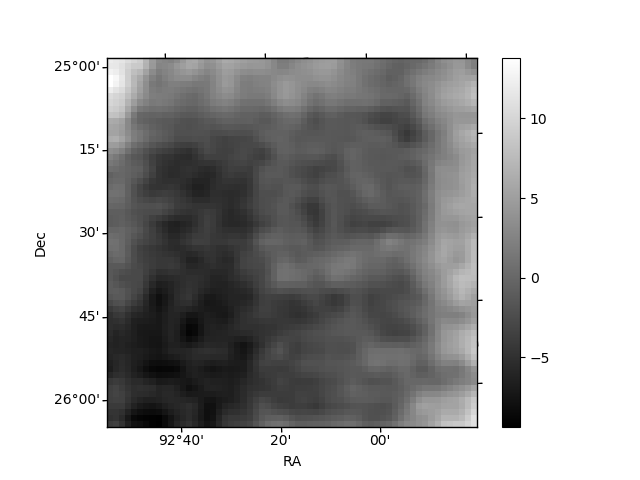

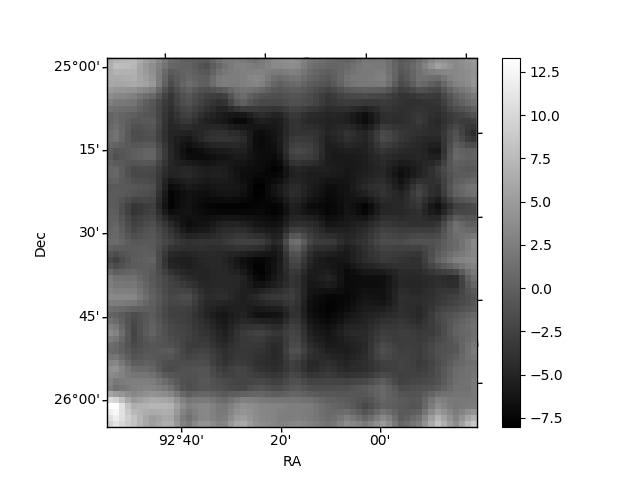

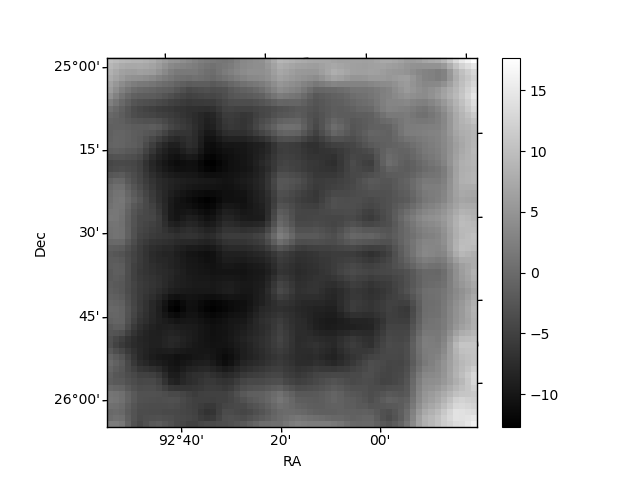

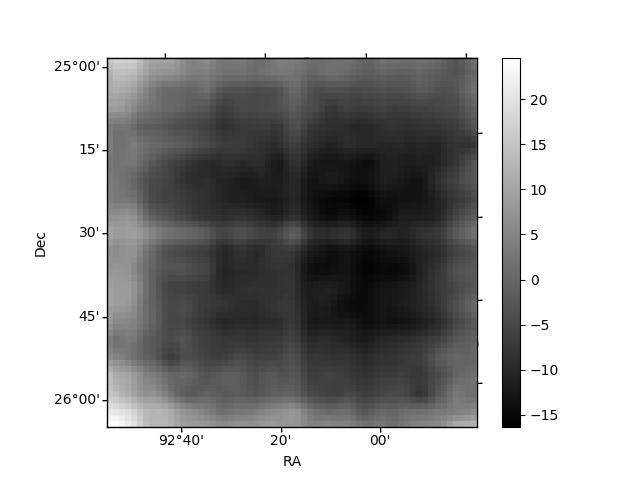

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

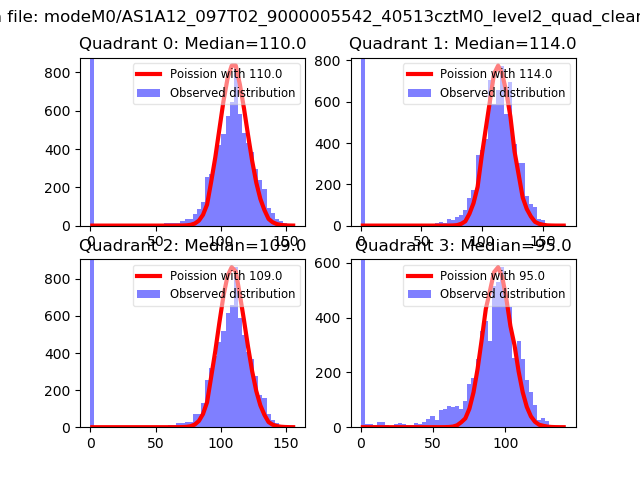

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

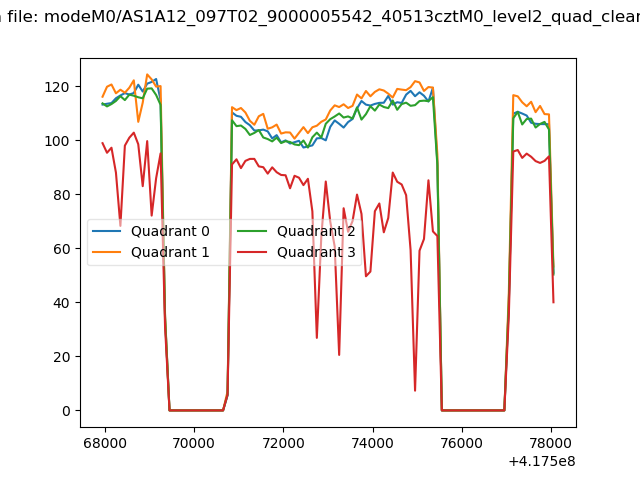

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

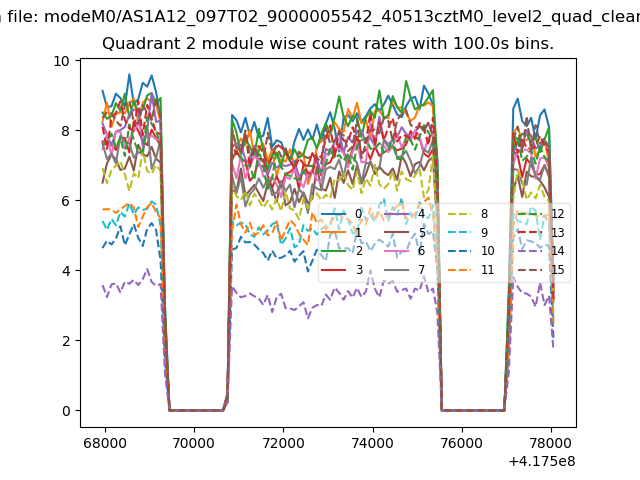

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

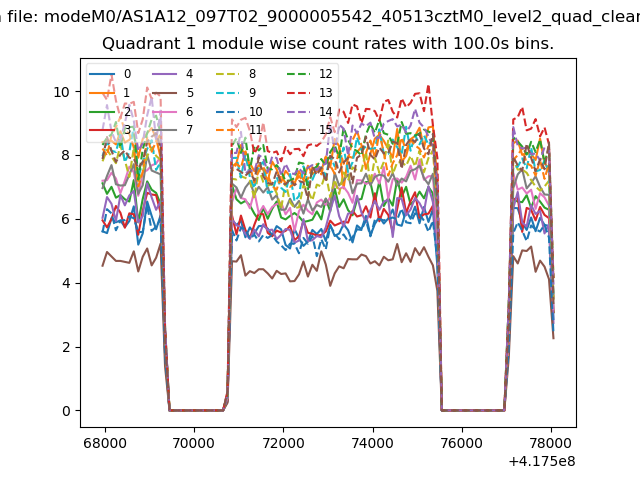

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

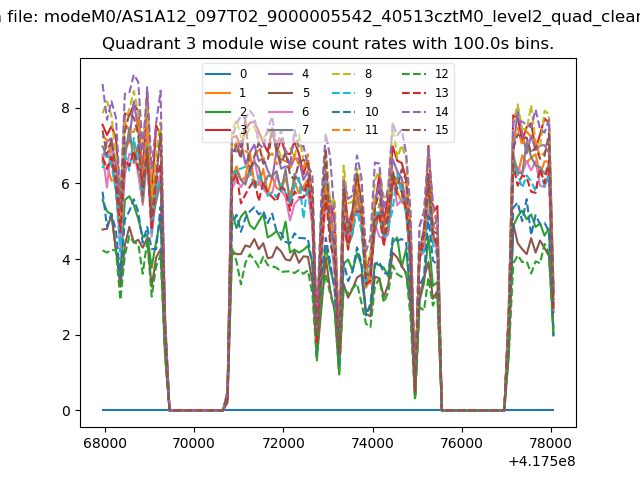

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

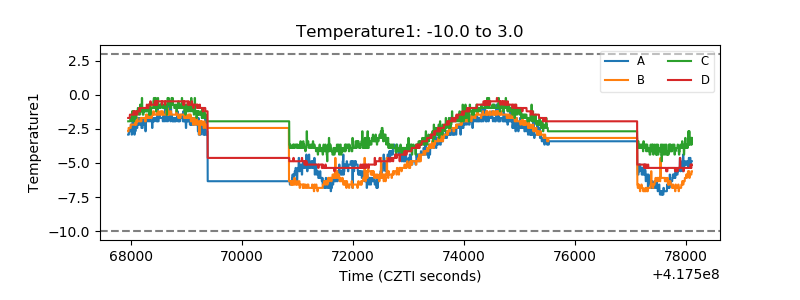

| Temperature 1 |  |

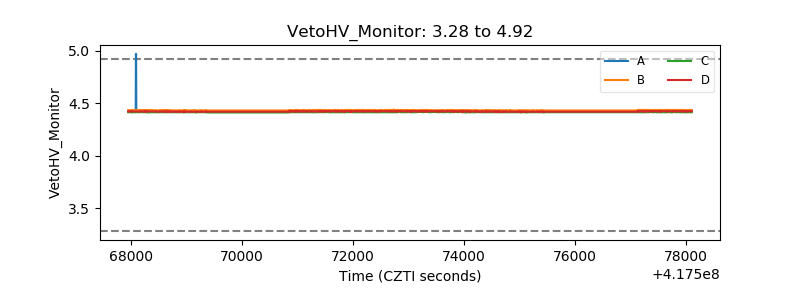

| Veto HV Monitor |  |
| Veto LLD |  |

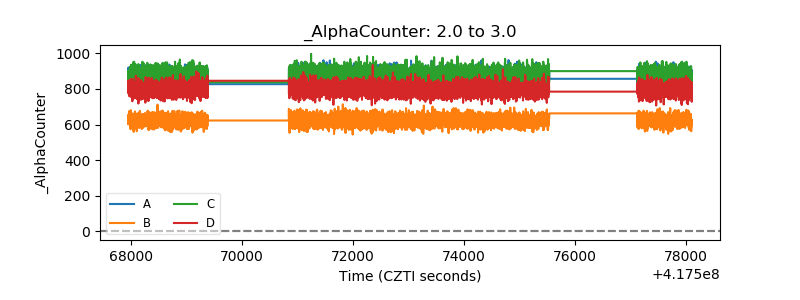

| Alpha Counter |  |

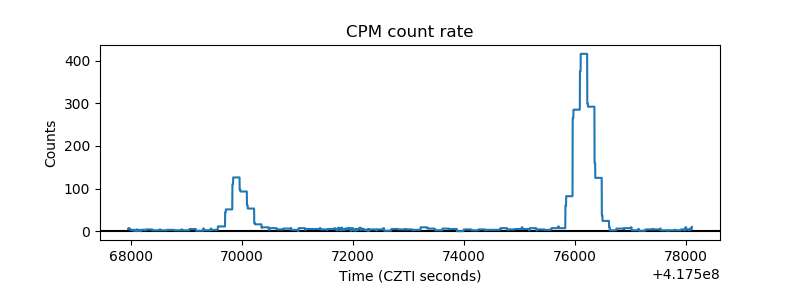

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

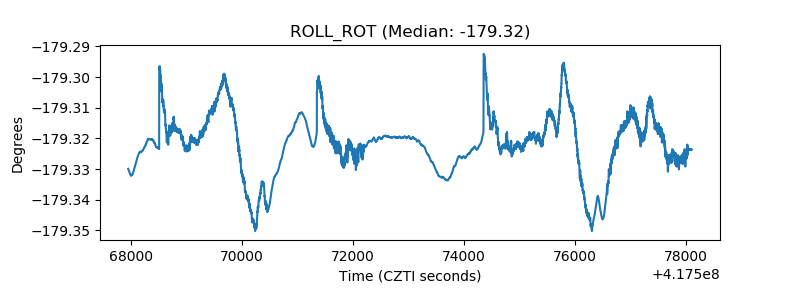

| _ROLL_ROT |  |
| _Roll_DEC |  |

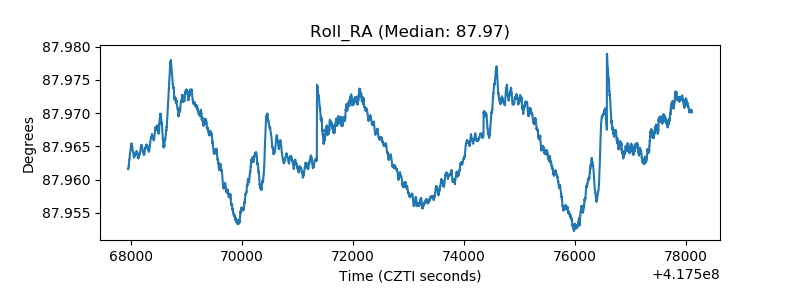

| _Roll_RA |  |

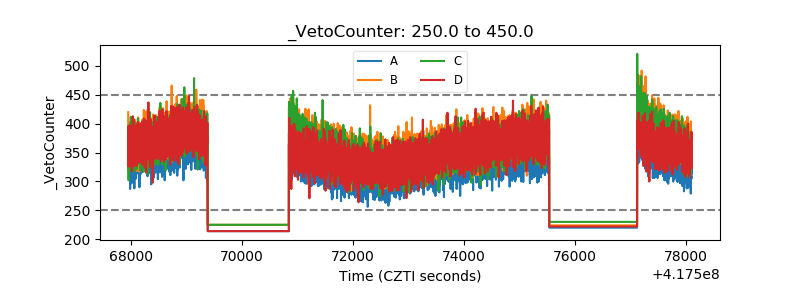

| Veto Counter |  |
