| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_011T26_9000005548_40545cztM0_level2.fits | modeM0/AS1A12_011T26_9000005548_40545cztM0_level2_quad_clean.evt |
| Size (bytes) | 344,992,320 | 83,701,440 |
| Size | 329.0 MB | 79.8 MB |
| Events in quadrant A | 2,785,767 | 582,074 |
| Events in quadrant B | 2,413,245 | 598,662 |
| Events in quadrant C | 2,700,103 | 566,878 |
| Events in quadrant D | 4,466,167 | 422,959 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11452 | 3 |
| B | 0 | 10536 | 2 |
| C | 0 | 11266 | 2 |
| D | 0 | 16818 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 29 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5192 | 10 | 0.192604% |
| B | 5192 | 7 | 0.134823% |
| C | 5192 | 47 | 0.905239% |
| D | 5192 | 1131 | 21.783513% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7015 | 5193 | 2 | 2 | 0.03% | 0.04% |  |
| B | 7015 | 5193 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7015 | 5193 | 46 | 46 | 0.66% | 0.89% |  |
| D | 7015 | 5193 | 418 | 418 | 5.96% | 8.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 467798 | 3996.9 | 572 | 561 | 116.9 |
| A | 12 | 189 | 80331 | 682.38 | 572 | 561 | 116.9 |
| A | 6 | 10 | 14589 | 120.0 | 572 | 561 | 116.9 |
| B | 3 | 112 | 101602 | 911.31 | 568 | 552 | 110.9 |
| B | 0 | 230 | 29066 | 257.15 | 568 | 552 | 110.9 |
| B | 7 | 202 | 25415 | 224.22 | 568 | 552 | 110.9 |
| C | 14 | 254 | 253691 | 1943.09 | 552 | 555 | 130.3 |
| C | 15 | 214 | 229030 | 1753.79 | 552 | 555 | 130.3 |
| C | 0 | 10 | 24045 | 180.31 | 552 | 555 | 130.3 |
| D | 12 | 227 | 2096114 | 16893.67 | 497 | 484 | 124.0 |
| D | 2 | 250 | 188597 | 1516.45 | 497 | 484 | 124.0 |
| D | 12 | 191 | 164295 | 1320.54 | 497 | 484 | 124.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

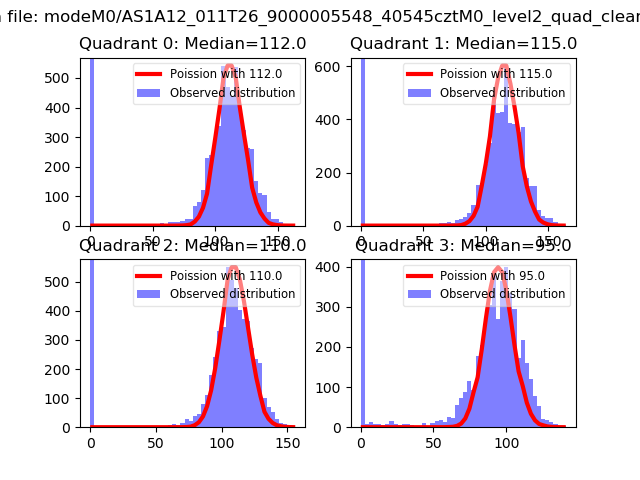

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

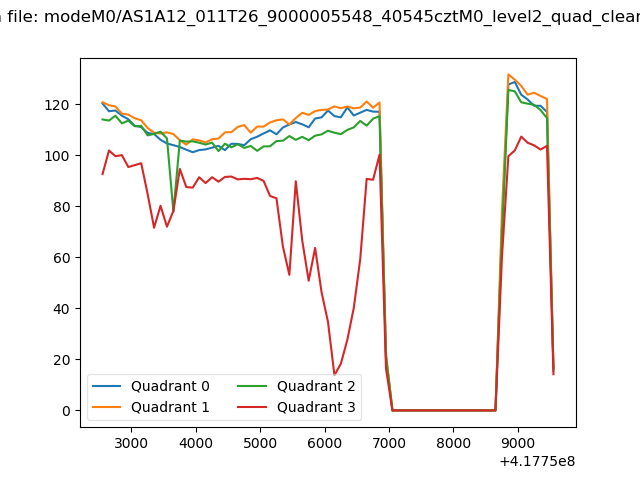

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

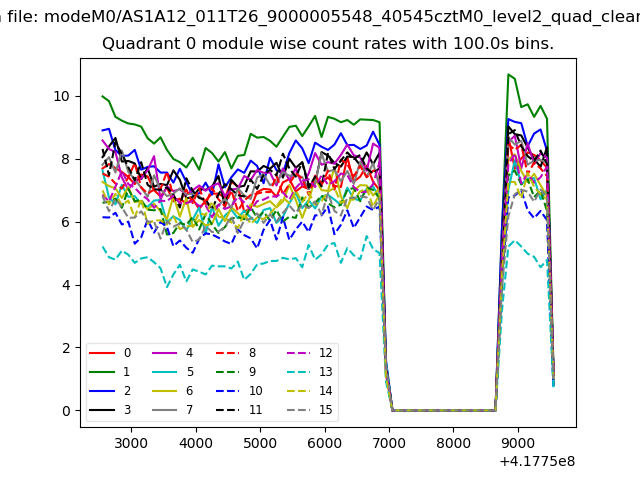

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

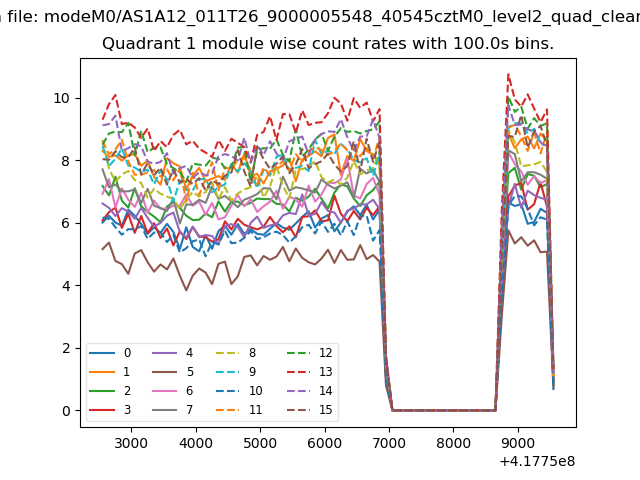

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

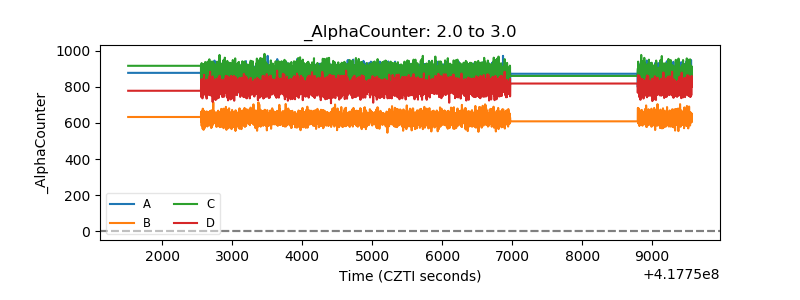

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

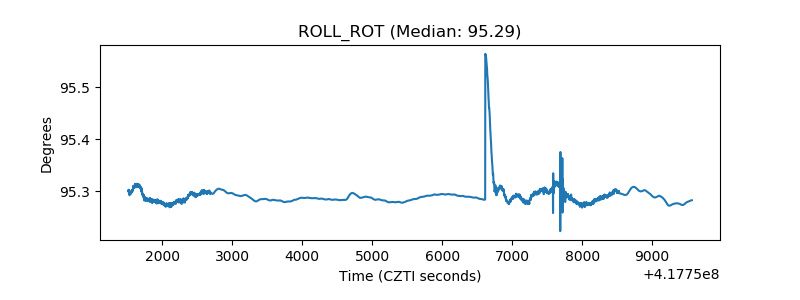

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

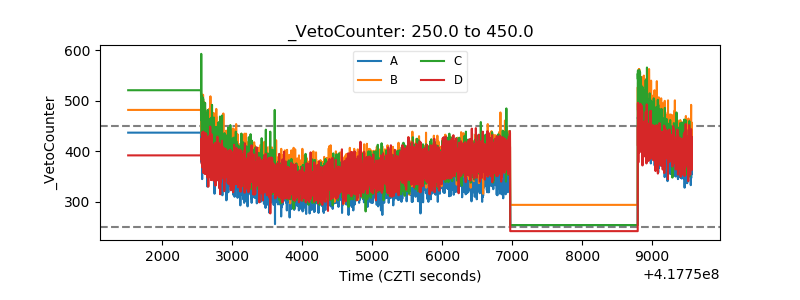

| Veto Counter |  |
