| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_054T02_9000005550_40580cztM0_level2.fits | modeM0/AS1A12_054T02_9000005550_40580cztM0_level2_quad_clean.evt |
| Size (bytes) | 327,548,160 | 90,144,000 |
| Size | 312.4 MB | 86.0 MB |
| Events in quadrant A | 3,017,908 | 627,759 |
| Events in quadrant B | 3,114,873 | 632,930 |
| Events in quadrant C | 2,670,159 | 599,310 |
| Events in quadrant D | 2,880,636 | 473,754 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12431 | 3 |
| B | 0 | 13040 | 2 |
| C | 0 | 11642 | 2 |
| D | 0 | 12410 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5650 | 11 | 0.194690% |
| B | 5650 | 75 | 1.327434% |
| C | 5650 | 30 | 0.530973% |
| D | 5650 | 954 | 16.884956% |

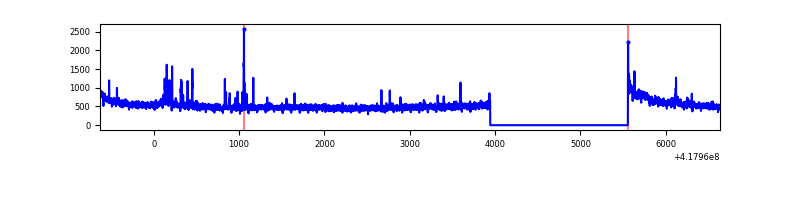

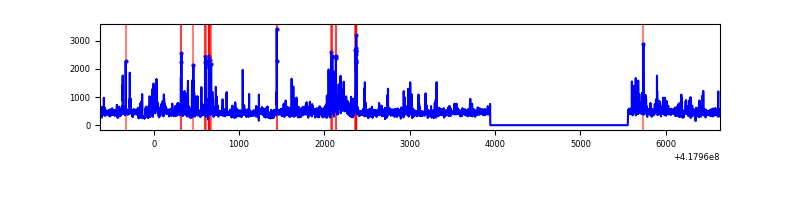

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7263 | 5651 | 2 | 2 | 0.03% | 0.04% |  |
| B | 7263 | 5651 | 49 | 49 | 0.67% | 0.87% |  |
| C | 7263 | 5651 | 23 | 23 | 0.32% | 0.41% |  |
| D | 7263 | 5651 | 31 | 31 | 0.43% | 0.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 499871 | 3990.08 | 610 | 597 | 125.1 |
| A | 15 | 191 | 85817 | 681.06 | 610 | 597 | 125.1 |
| A | 2 | 79 | 57999 | 458.74 | 610 | 597 | 125.1 |
| B | 0 | 190 | 381490 | 3301.1 | 601 | 584 | 115.4 |
| B | 5 | 255 | 183484 | 1585.09 | 601 | 584 | 115.4 |
| B | 3 | 112 | 74638 | 641.79 | 601 | 584 | 115.4 |
| C | 15 | 214 | 245851 | 1769.02 | 592 | 595 | 138.6 |
| C | 14 | 254 | 99883 | 716.16 | 592 | 595 | 138.6 |
| C | 0 | 10 | 11849 | 81.17 | 592 | 595 | 138.6 |
| D | 12 | 191 | 261734 | 1925.38 | 542 | 526 | 135.7 |
| D | 12 | 227 | 144537 | 1061.51 | 542 | 526 | 135.7 |
| D | 2 | 250 | 100474 | 736.72 | 542 | 526 | 135.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

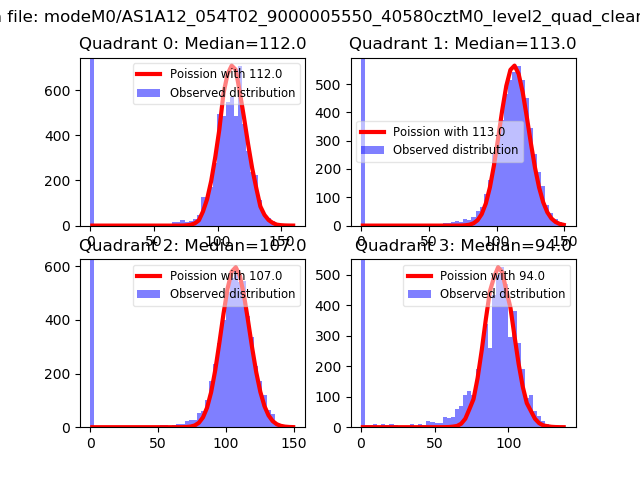

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

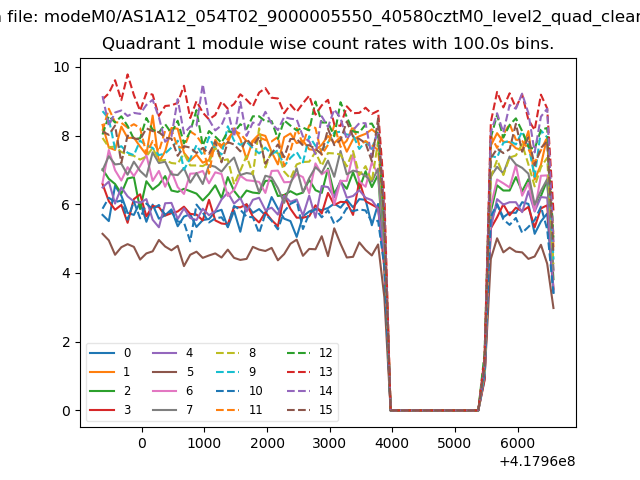

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

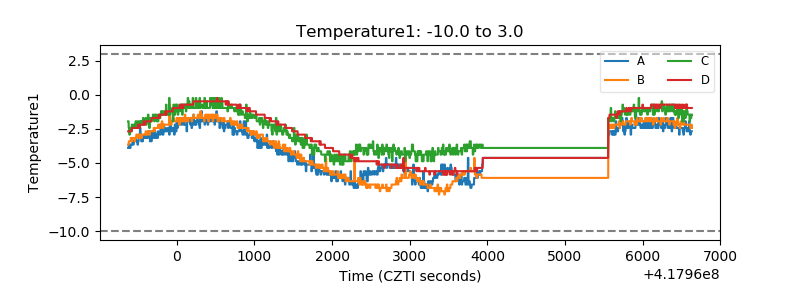

| Temperature 1 |  |

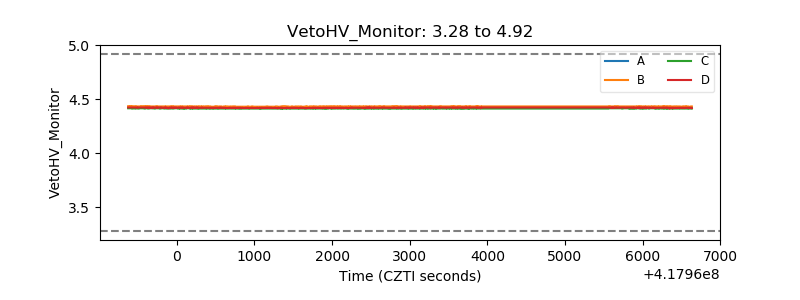

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

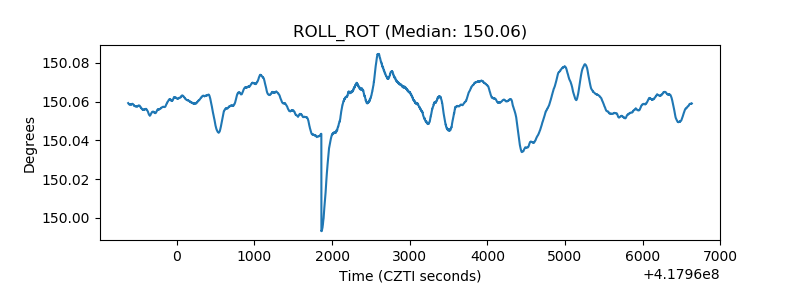

| _ROLL_ROT |  |
| _Roll_DEC |  |

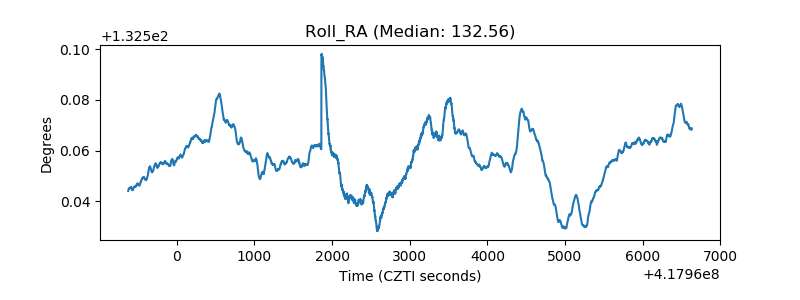

| _Roll_RA |  |
| Veto Counter |  |
