| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_029T01_9000005556_40654cztM0_level2.fits | modeM0/AS1A12_029T01_9000005556_40654cztM0_level2_quad_clean.evt |
| Size (bytes) | 388,313,280 | 105,932,160 |
| Size | 370.3 MB | 101.0 MB |
| Events in quadrant A | 3,374,919 | 723,939 |
| Events in quadrant B | 3,858,596 | 735,441 |
| Events in quadrant C | 3,118,878 | 696,732 |
| Events in quadrant D | 3,508,618 | 592,204 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14023 | 3 |
| B | 0 | 15734 | 2 |
| C | 0 | 13362 | 2 |
| D | 0 | 14823 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 28 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6587 | 14 | 0.212540% |
| B | 6587 | 92 | 1.396690% |
| C | 6587 | 6 | 0.091089% |
| D | 6587 | 650 | 9.867922% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9332 | 6589 | 3 | 3 | 0.03% | 0.05% |  |
| B | 9332 | 6589 | 49 | 49 | 0.53% | 0.74% |  |
| C | 9332 | 6589 | 5 | 5 | 0.05% | 0.08% |  |
| D | 9332 | 6589 | 65 | 65 | 0.70% | 0.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 535915 | 3530.59 | 732 | 716 | 151.6 |
| A | 3 | 137 | 8494 | 51.31 | 732 | 716 | 151.6 |
| A | 13 | 254 | 8364 | 50.45 | 732 | 716 | 151.6 |
| B | 0 | 190 | 474182 | 3354.05 | 724 | 704 | 141.2 |
| B | 0 | 229 | 424492 | 3002.05 | 724 | 704 | 141.2 |
| B | 5 | 255 | 86594 | 608.43 | 724 | 704 | 141.2 |
| C | 15 | 214 | 288954 | 1724.45 | 711 | 714 | 167.1 |
| C | 0 | 10 | 20270 | 117.0 | 711 | 714 | 167.1 |
| C | 14 | 254 | 18672 | 107.44 | 711 | 714 | 167.1 |
| D | 12 | 227 | 322649 | 1922.31 | 673 | 655 | 167.5 |
| D | 12 | 191 | 193238 | 1149.72 | 673 | 655 | 167.5 |
| D | 2 | 250 | 184622 | 1098.29 | 673 | 655 | 167.5 |

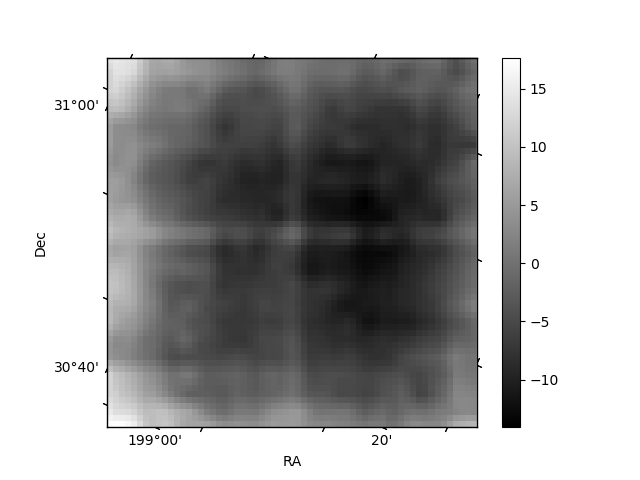

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

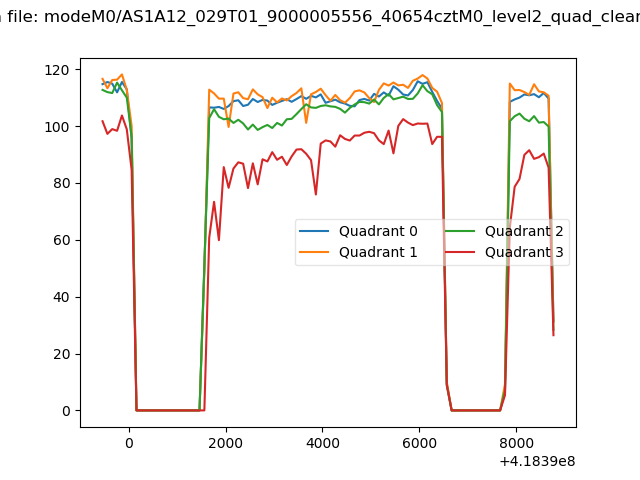

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

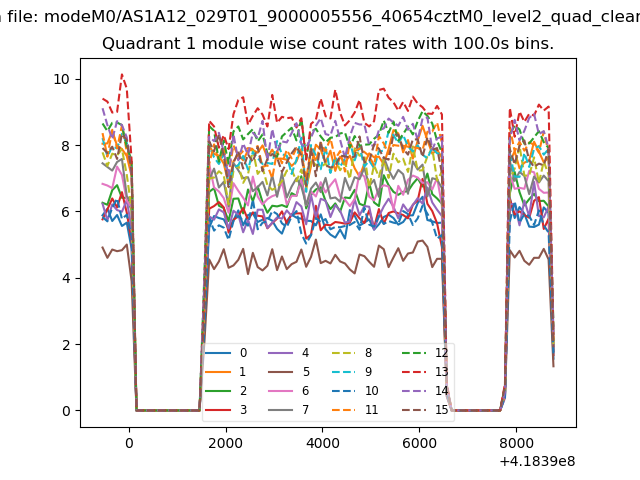

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

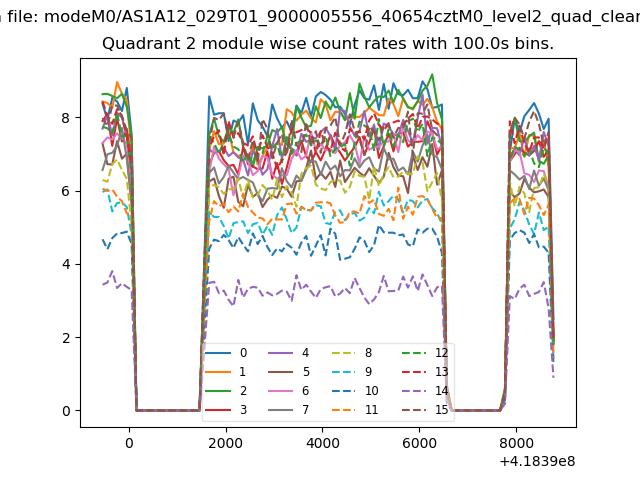

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

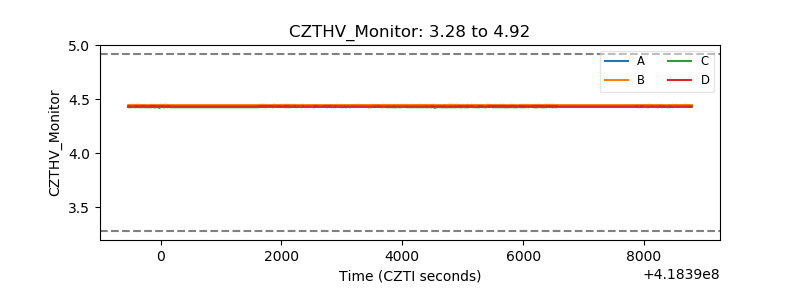

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

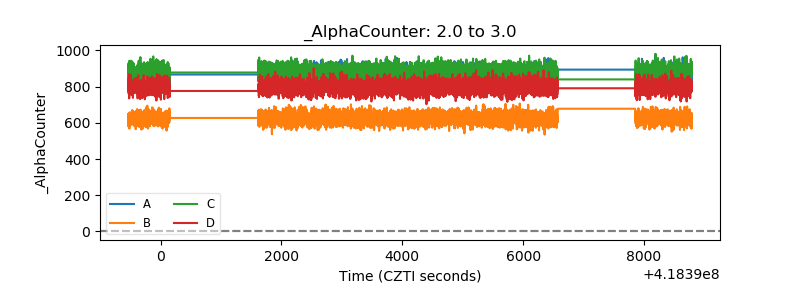

| Alpha Counter |  |

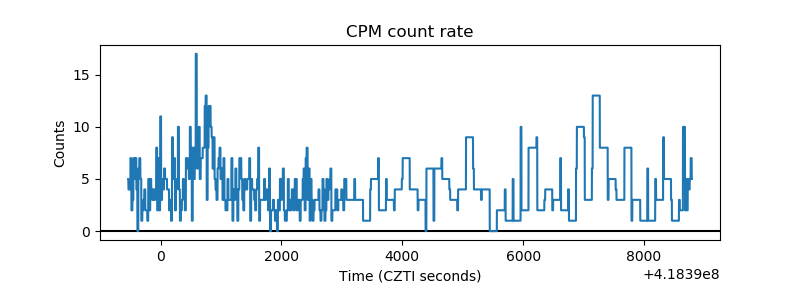

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

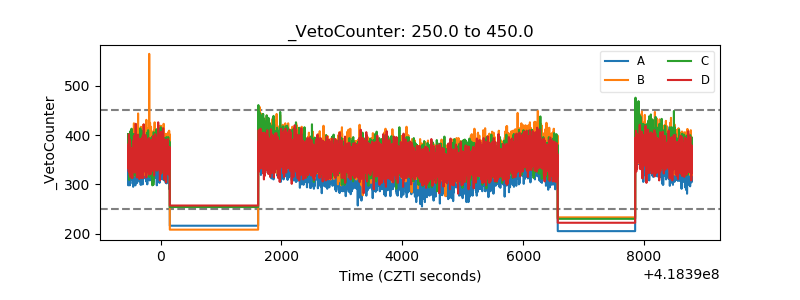

| Veto Counter |  |
