| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_029T02_9000005558_40690cztM0_level2.fits | modeM0/AS1A12_029T02_9000005558_40690cztM0_level2_quad_clean.evt |
| Size (bytes) | 369,509,760 | 93,939,840 |
| Size | 352.4 MB | 89.6 MB |
| Events in quadrant A | 2,924,272 | 640,625 |
| Events in quadrant B | 3,215,696 | 659,270 |
| Events in quadrant C | 3,866,805 | 629,462 |
| Events in quadrant D | 3,237,495 | 526,018 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12106 | 3 |
| B | 0 | 13205 | 2 |
| C | 0 | 15080 | 2 |
| D | 0 | 13502 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36 | 0 |
| B | 0 | 36 | 0 |
| C | 0 | 36 | 0 |
| D | 0 | 36 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5565 | 14 | 0.251572% |
| B | 5565 | 120 | 2.156334% |
| C | 5565 | 170 | 3.054807% |
| D | 5565 | 676 | 12.147350% |

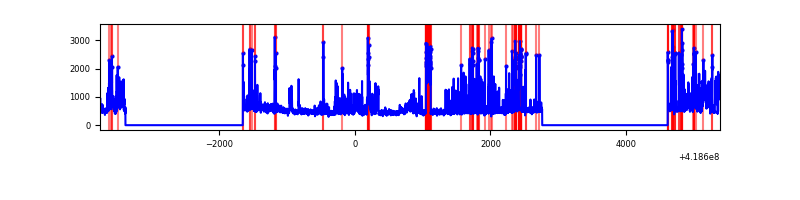

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9149 | 5567 | 4 | 4 | 0.04% | 0.07% |  |
| B | 9149 | 5567 | 80 | 80 | 0.87% | 1.44% |  |
| C | 9149 | 5567 | 178 | 178 | 1.95% | 3.20% |  |
| D | 9149 | 5566 | 74 | 74 | 0.81% | 1.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 497443 | 3892.88 | 624 | 612 | 127.6 |
| A | 2 | 79 | 9475 | 69.45 | 624 | 612 | 127.6 |
| A | 3 | 137 | 6925 | 49.46 | 624 | 612 | 127.6 |
| B | 0 | 229 | 375478 | 3150.57 | 621 | 605 | 119.0 |
| B | 5 | 255 | 179213 | 1501.09 | 621 | 605 | 119.0 |
| B | 0 | 190 | 77667 | 647.66 | 621 | 605 | 119.0 |
| C | 9 | 187 | 1172779 | 8252.2 | 609 | 613 | 142.0 |
| C | 15 | 214 | 242838 | 1705.29 | 609 | 613 | 142.0 |
| C | 12 | 249 | 37655 | 260.78 | 609 | 613 | 142.0 |
| D | 12 | 227 | 338553 | 2385.59 | 571 | 555 | 141.7 |
| D | 2 | 250 | 226431 | 1594.23 | 571 | 555 | 141.7 |
| D | 12 | 191 | 178518 | 1256.06 | 571 | 555 | 141.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

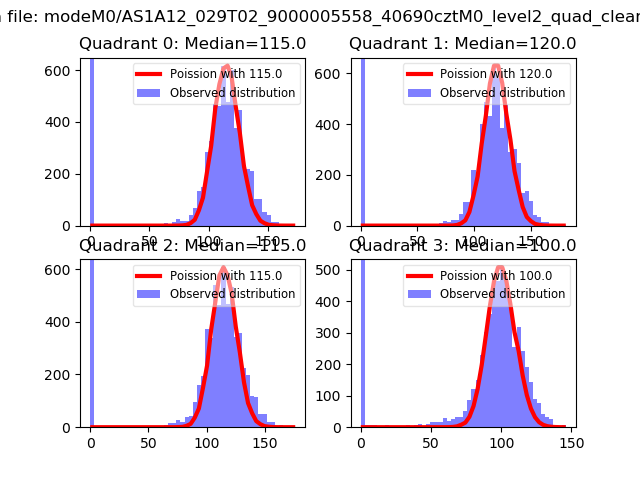

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

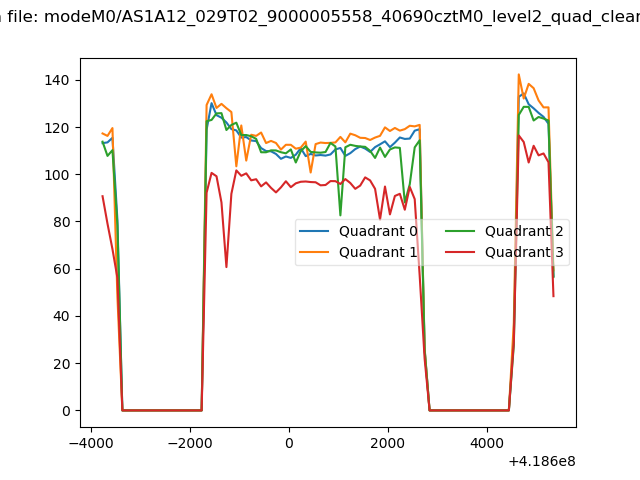

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

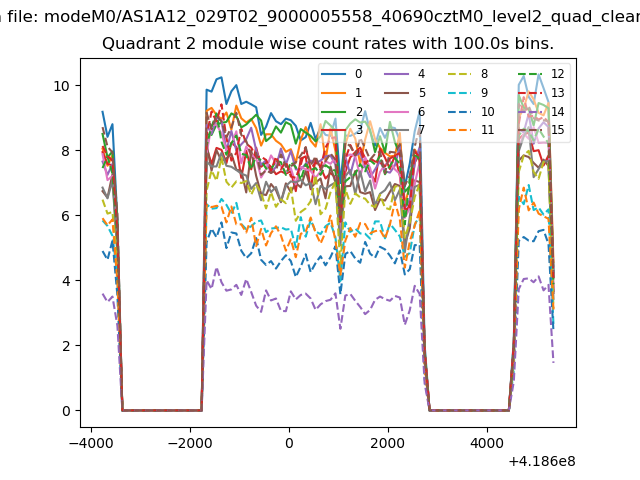

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

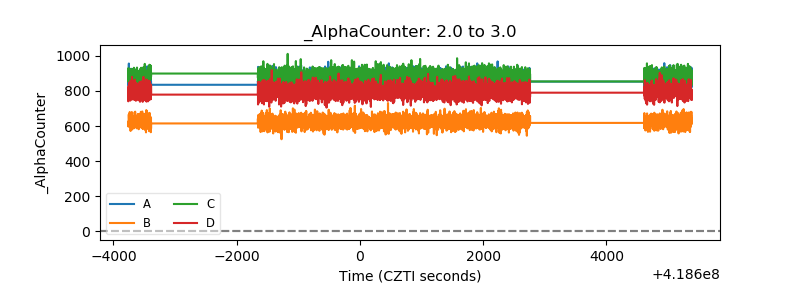

| Alpha Counter |  |

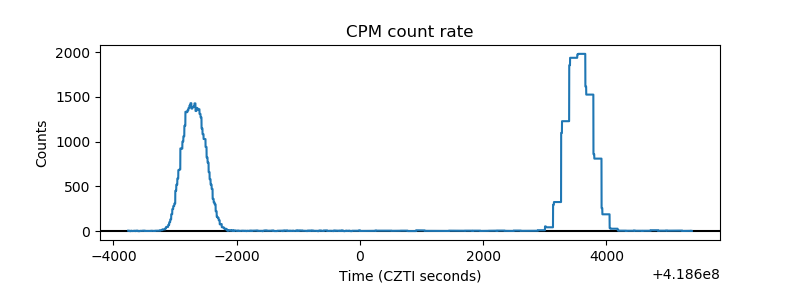

| _CPM_Rate |  |
| CZT Counter |  |

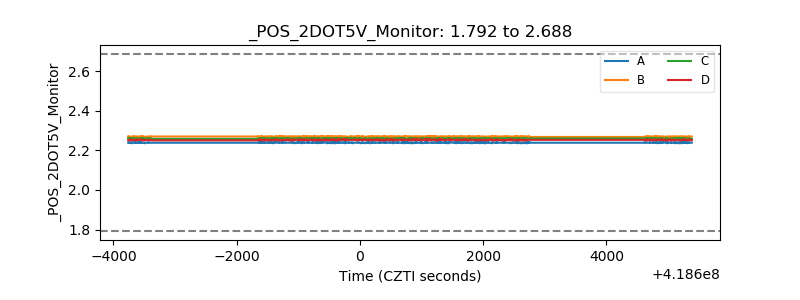

| +2.5 Volts monitor |  |

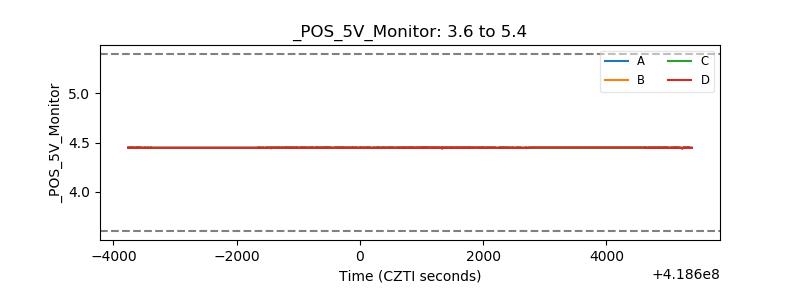

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
