| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_029T02_9000005558_40707cztM0_level2.fits | modeM0/AS1A12_029T02_9000005558_40707cztM0_level2_quad_clean.evt |
| Size (bytes) | 342,671,040 | 85,913,280 |
| Size | 326.8 MB | 81.9 MB |
| Events in quadrant A | 2,858,009 | 590,186 |
| Events in quadrant B | 2,692,825 | 613,375 |
| Events in quadrant C | 4,128,164 | 555,239 |
| Events in quadrant D | 2,622,283 | 497,202 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11467 | 3 |
| B | 0 | 11239 | 2 |
| C | 0 | 15476 | 2 |
| D | 0 | 11257 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33 | 0 |
| B | 0 | 33 | 0 |
| C | 0 | 33 | 0 |
| D | 0 | 34 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4918 | 25 | 0.508337% |
| B | 4918 | 49 | 0.996340% |
| C | 4918 | 328 | 6.669378% |
| D | 4918 | 338 | 6.872712% |

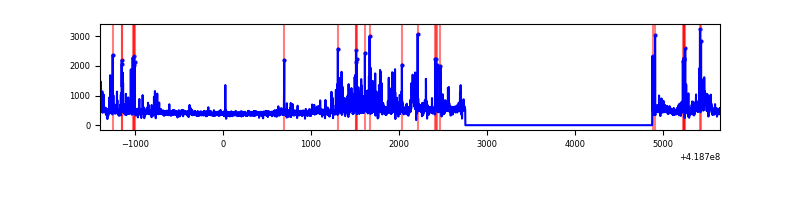

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7040 | 4919 | 21 | 21 | 0.30% | 0.43% |  |
| B | 7040 | 4919 | 32 | 32 | 0.45% | 0.65% |  |
| C | 7040 | 4919 | 291 | 291 | 4.13% | 5.92% |  |
| D | 7040 | 4919 | 29 | 29 | 0.41% | 0.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 464708 | 4049.67 | 559 | 549 | 114.6 |
| A | 2 | 79 | 166920 | 1451.54 | 559 | 549 | 114.6 |
| A | 12 | 189 | 47884 | 412.99 | 559 | 549 | 114.6 |
| B | 0 | 229 | 218516 | 2006.19 | 562 | 547 | 108.6 |
| B | 0 | 190 | 115613 | 1059.07 | 562 | 547 | 108.6 |
| B | 5 | 255 | 69253 | 632.37 | 562 | 547 | 108.6 |
| C | 9 | 187 | 1790038 | 14402.98 | 533 | 535 | 124.2 |
| C | 15 | 214 | 210372 | 1688.89 | 533 | 535 | 124.2 |
| C | 12 | 249 | 29674 | 234.53 | 533 | 535 | 124.2 |
| D | 2 | 250 | 157678 | 1218.22 | 517 | 501 | 129.0 |
| D | 12 | 191 | 129088 | 996.63 | 517 | 501 | 129.0 |
| D | 2 | 249 | 127031 | 980.68 | 517 | 501 | 129.0 |

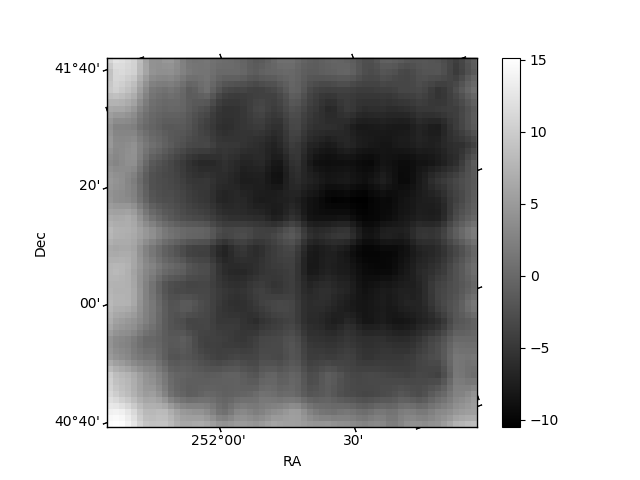

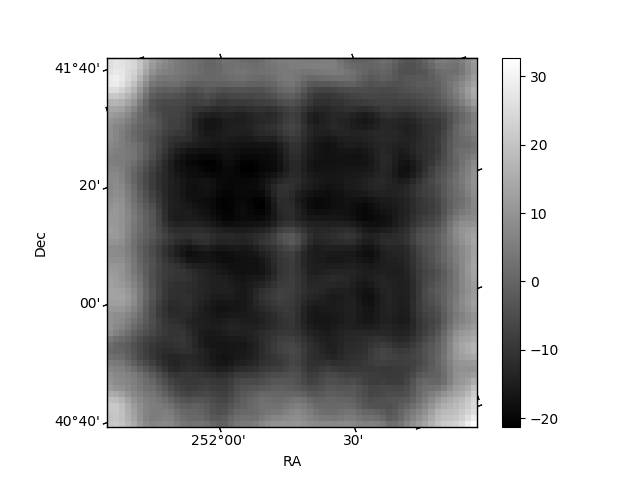

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

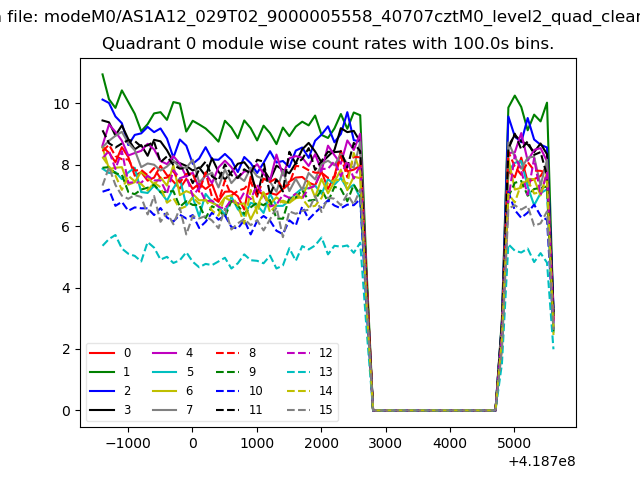

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

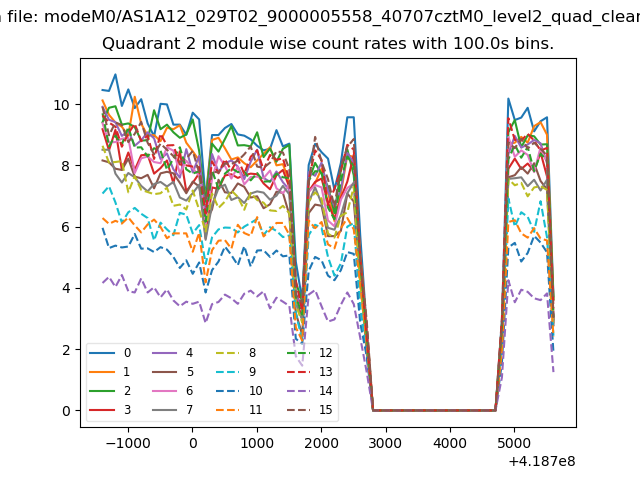

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

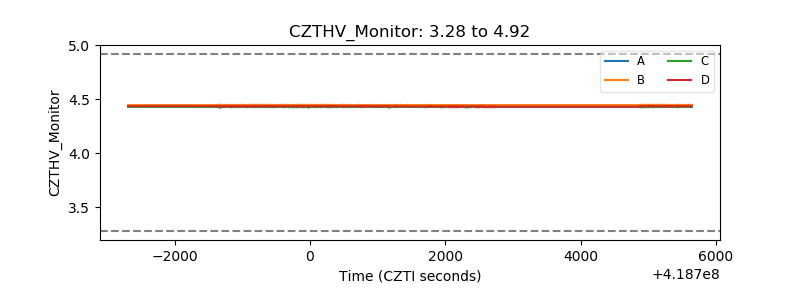

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

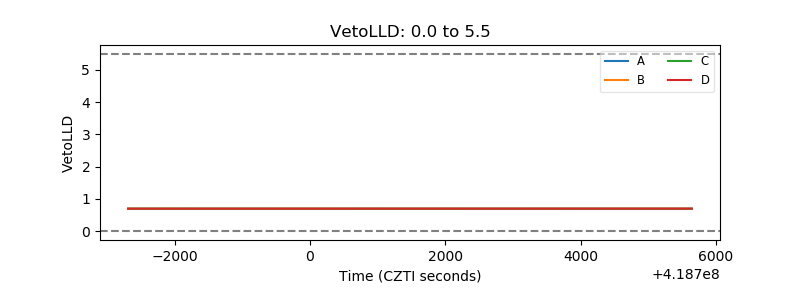

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

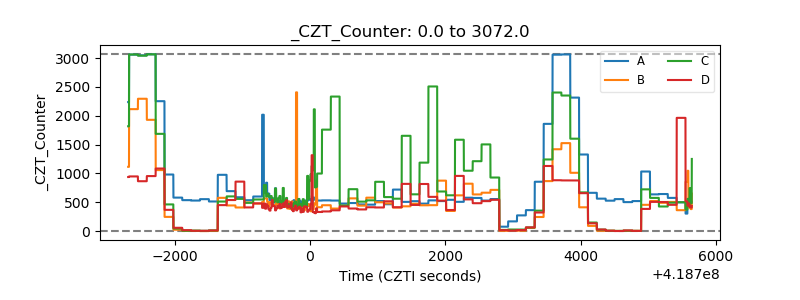

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
