| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_029T02_9000005558_40715cztM0_level2.fits | modeM0/AS1A12_029T02_9000005558_40715cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,312,162,560 | 232,225,920 |
| Size | 1.2 GB | 221.5 MB |
| Events in quadrant A | 8,116,828 | 1,677,699 |
| Events in quadrant B | 7,554,437 | 1,717,954 |
| Events in quadrant C | 21,129,567 | 1,279,648 |
| Events in quadrant D | 10,569,779 | 1,283,866 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33504 | 5 |
| B | 0 | 33041 | 4 |
| C | 0 | 73371 | 4 |
| D | 0 | 41889 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 50 | 0 |
| B | 0 | 50 | 0 |
| C | 0 | 50 | 0 |
| D | 0 | 51 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 318 | 0 |
| B | 0 | 318 | 0 |
| C | 0 | 318 | 0 |
| D | 0 | 318 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15517 | 32 | 0.206225% |
| B | 15517 | 147 | 0.947348% |
| C | 15517 | 4040 | 26.035961% |
| D | 15517 | 2657 | 17.123155% |

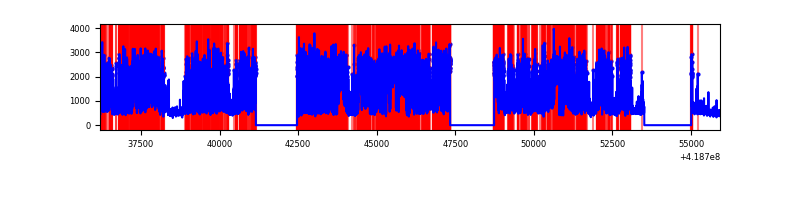

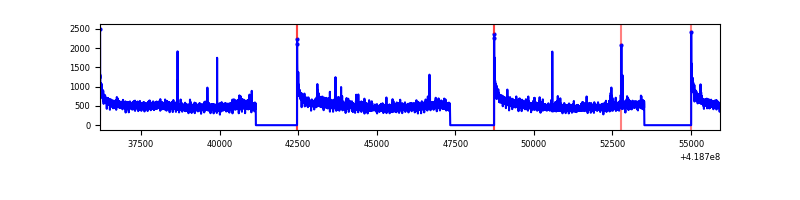

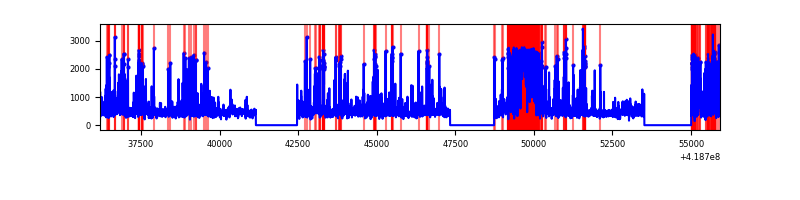

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19727 | 15520 | 7 | 7 | 0.04% | 0.05% |  |
| B | 19727 | 15520 | 82 | 82 | 0.42% | 0.53% |  |
| C | 19727 | 15519 | 3874 | 3874 | 19.64% | 24.96% |  |
| D | 19727 | 15520 | 920 | 920 | 4.66% | 5.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1285361 | 3646.94 | 1726 | 1691 | 352.0 |
| A | 12 | 189 | 89080 | 248.27 | 1726 | 1691 | 352.0 |
| A | 6 | 10 | 35528 | 96.13 | 1726 | 1691 | 352.0 |
| B | 0 | 190 | 568229 | 1707.01 | 1718 | 1667 | 331.9 |
| B | 4 | 170 | 111414 | 330.66 | 1718 | 1667 | 331.9 |
| B | 12 | 111 | 43484 | 125.99 | 1718 | 1667 | 331.9 |
| C | 9 | 187 | 14427627 | 40963.95 | 1514 | 1521 | 352.2 |
| C | 15 | 214 | 598801 | 1696.02 | 1514 | 1521 | 352.2 |
| C | 14 | 254 | 155425 | 437.02 | 1514 | 1521 | 352.2 |
| D | 2 | 249 | 2558875 | 6841.04 | 1515 | 1471 | 373.8 |
| D | 2 | 250 | 629000 | 1678.64 | 1515 | 1471 | 373.8 |
| D | 12 | 191 | 457448 | 1219.74 | 1515 | 1471 | 373.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

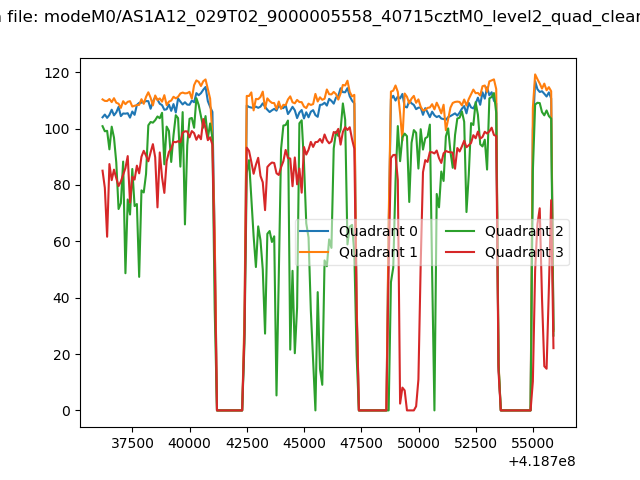

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

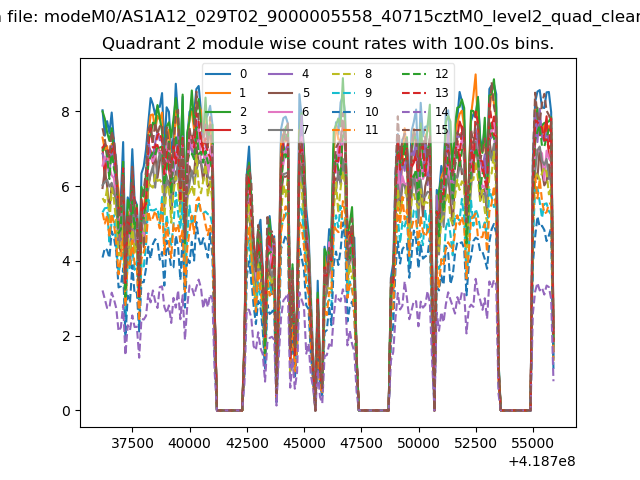

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

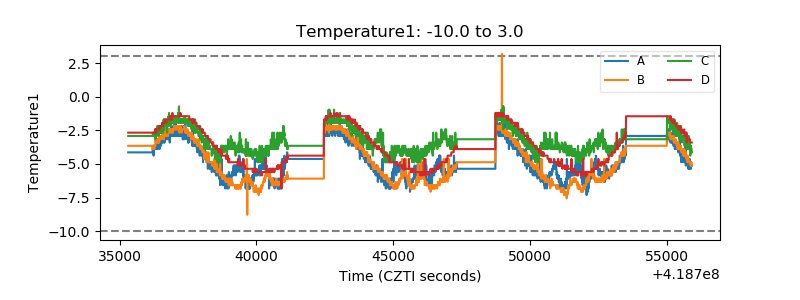

| Temperature 1 |  |
| Veto HV Monitor |  |

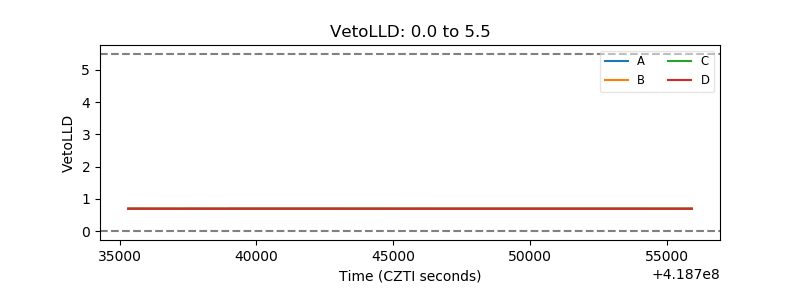

| Veto LLD |  |
| Alpha Counter |  |

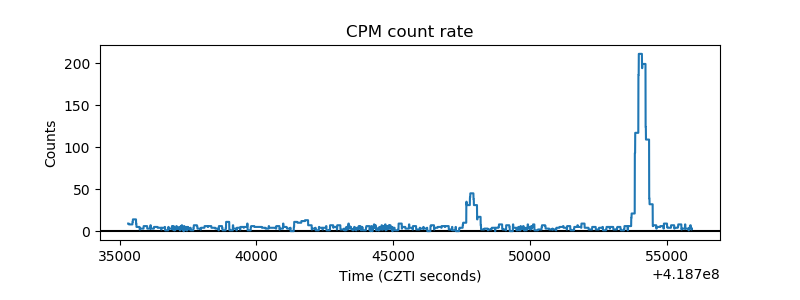

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
