| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_095T02_9000005568_40791cztM0_level2.fits | modeM0/AS1A12_095T02_9000005568_40791cztM0_level2_quad_clean.evt |
| Size (bytes) | 333,941,760 | 86,662,080 |
| Size | 318.5 MB | 82.6 MB |
| Events in quadrant A | 2,785,184 | 587,562 |
| Events in quadrant B | 3,284,513 | 591,387 |
| Events in quadrant C | 2,615,815 | 571,902 |
| Events in quadrant D | 3,269,016 | 507,095 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 22 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11556 | 3 |
| B | 0 | 13220 | 2 |
| C | 0 | 11126 | 2 |
| D | 0 | 13604 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5219 | 11 | 0.210768% |
| B | 5219 | 211 | 4.042920% |
| C | 5219 | 68 | 1.302932% |
| D | 5219 | 286 | 5.479977% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7041 | 5220 | 7 | 7 | 0.10% | 0.13% |  |
| B | 7040 | 5218 | 155 | 155 | 2.20% | 2.97% |  |
| C | 7040 | 5218 | 67 | 67 | 0.95% | 1.28% |  |
| D | 7041 | 5220 | 261 | 261 | 3.71% | 5.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 502879 | 4326.17 | 570 | 559 | 116.1 |
| A | 12 | 189 | 23919 | 201.19 | 570 | 559 | 116.1 |
| A | 13 | 248 | 19297 | 161.38 | 570 | 559 | 116.1 |
| B | 12 | 18 | 726172 | 6743.42 | 562 | 547 | 107.6 |
| B | 5 | 255 | 127999 | 1184.44 | 562 | 547 | 107.6 |
| B | 7 | 202 | 78655 | 725.88 | 562 | 547 | 107.6 |
| C | 15 | 214 | 222044 | 1683.26 | 560 | 562 | 131.6 |
| C | 0 | 10 | 190302 | 1442.02 | 560 | 562 | 131.6 |
| C | 14 | 254 | 15909 | 116.64 | 560 | 562 | 131.6 |
| D | 2 | 153 | 374535 | 2833.81 | 541 | 525 | 132.0 |
| D | 2 | 249 | 363128 | 2747.38 | 541 | 525 | 132.0 |
| D | 12 | 233 | 228488 | 1727.24 | 541 | 525 | 132.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

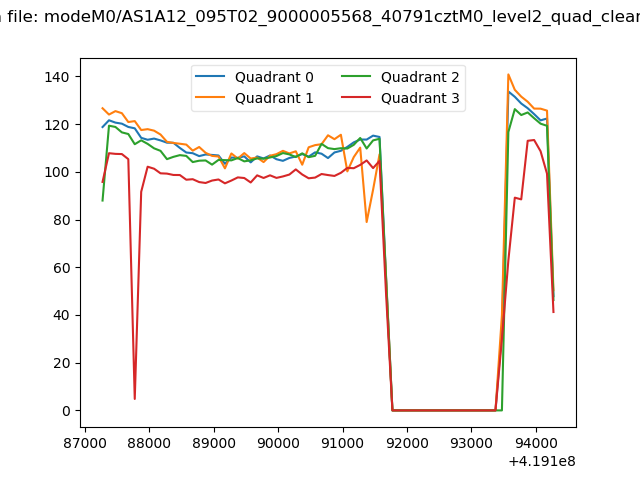

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

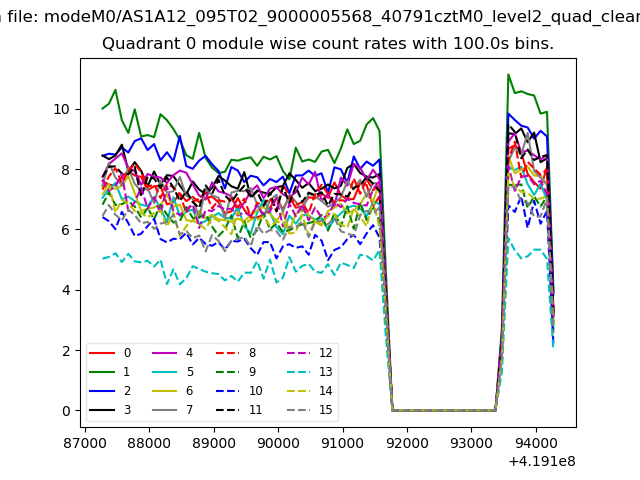

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

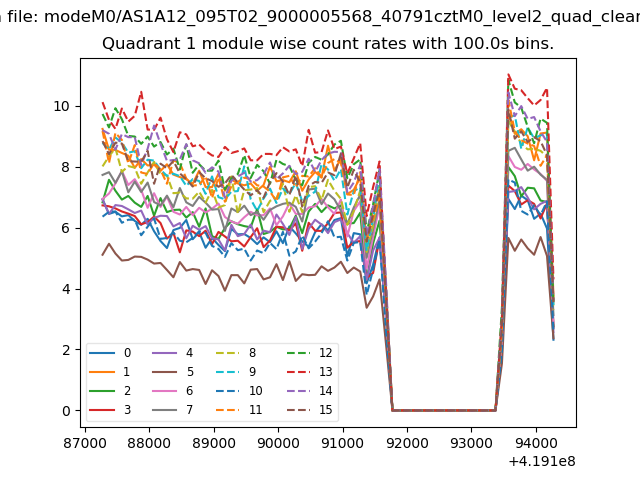

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

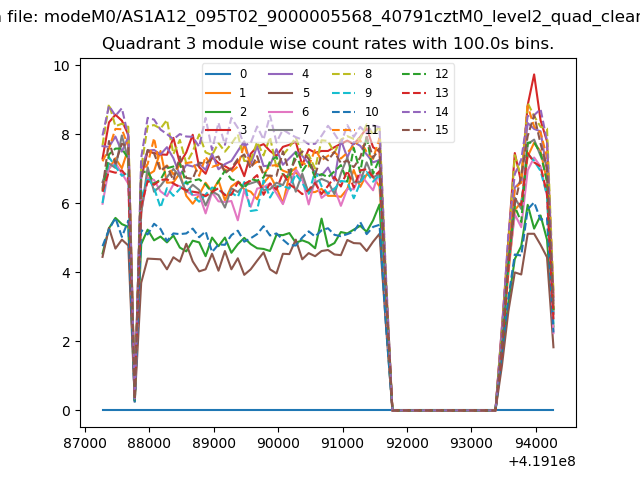

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

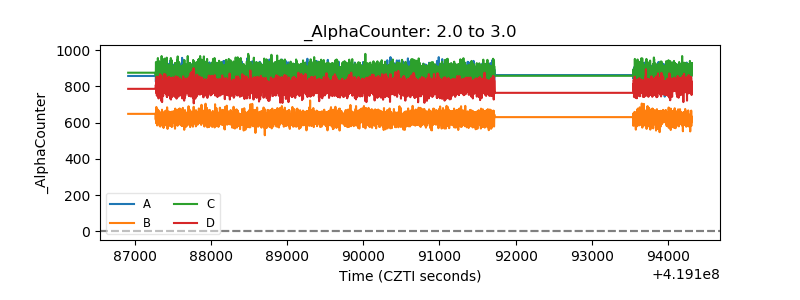

| Alpha Counter |  |

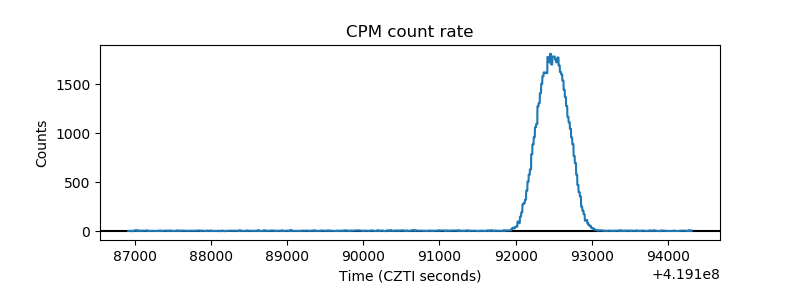

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

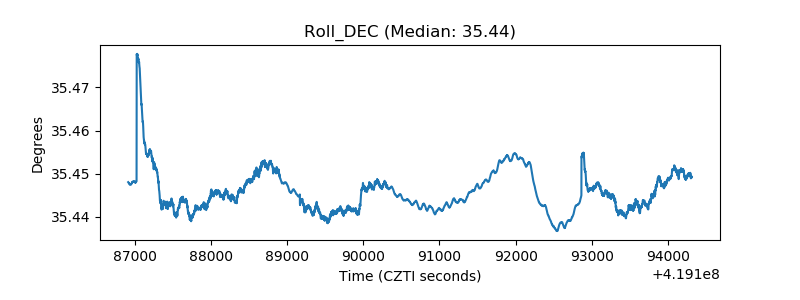

| _Roll_DEC |  |
| _Roll_RA |  |

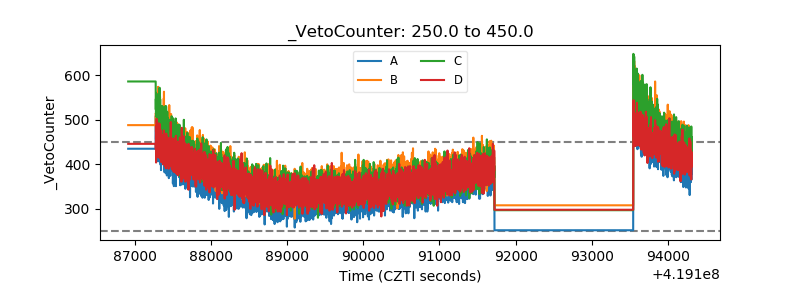

| Veto Counter |  |
