| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_099T03_9000005570_40808cztM0_level2.fits | modeM0/AS1A12_099T03_9000005570_40808cztM0_level2_quad_clean.evt |
| Size (bytes) | 285,946,560 | 87,557,760 |
| Size | 272.7 MB | 83.5 MB |
| Events in quadrant A | 2,807,448 | 598,940 |
| Events in quadrant B | 2,333,677 | 622,674 |
| Events in quadrant C | 2,555,371 | 568,281 |
| Events in quadrant D | 2,509,823 | 521,385 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11312 | 3 |
| B | 0 | 9959 | 2 |
| C | 0 | 10449 | 2 |
| D | 0 | 10858 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 98 | 0 |
| B | 0 | 98 | 0 |
| C | 0 | 98 | 0 |
| D | 0 | 98 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33 | 0 |
| B | 0 | 33 | 0 |
| C | 0 | 33 | 0 |
| D | 0 | 34 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4851 | 25 | 0.515358% |
| B | 4851 | 12 | 0.247372% |
| C | 4851 | 55 | 1.133787% |
| D | 4851 | 58 | 1.195630% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6974 | 4852 | 11 | 11 | 0.16% | 0.23% |  |
| B | 6974 | 4852 | 4 | 4 | 0.06% | 0.08% |  |
| C | 6974 | 4852 | 54 | 54 | 0.77% | 1.11% |  |
| D | 6974 | 4852 | 47 | 47 | 0.67% | 0.97% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 469306 | 4035.2 | 565 | 556 | 116.2 |
| A | 13 | 248 | 137947 | 1182.72 | 565 | 556 | 116.2 |
| A | 2 | 79 | 9800 | 79.58 | 565 | 556 | 116.2 |
| B | 5 | 255 | 58032 | 532.54 | 567 | 555 | 107.9 |
| B | 4 | 171 | 21235 | 191.61 | 567 | 555 | 107.9 |
| B | 12 | 111 | 13522 | 120.14 | 567 | 555 | 107.9 |
| C | 15 | 214 | 209535 | 1643.67 | 548 | 552 | 127.1 |
| C | 0 | 10 | 186663 | 1463.78 | 548 | 552 | 127.1 |
| C | 12 | 249 | 10907 | 81.44 | 548 | 552 | 127.1 |
| D | 12 | 233 | 90692 | 673.6 | 542 | 525 | 133.9 |
| D | 1 | 47 | 82537 | 612.68 | 542 | 525 | 133.9 |
| D | 2 | 249 | 74484 | 552.52 | 542 | 525 | 133.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |

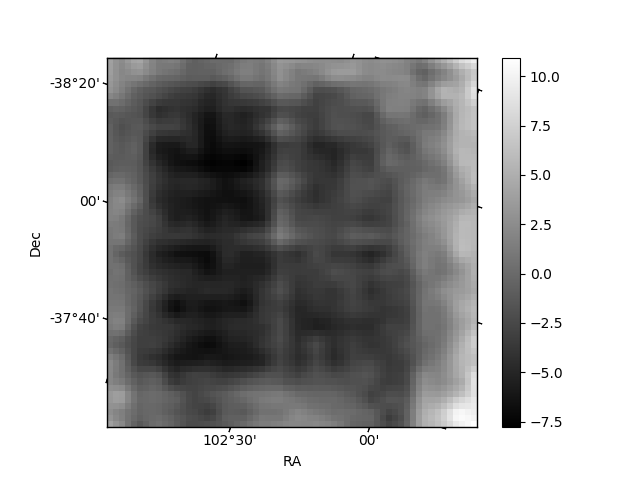

Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

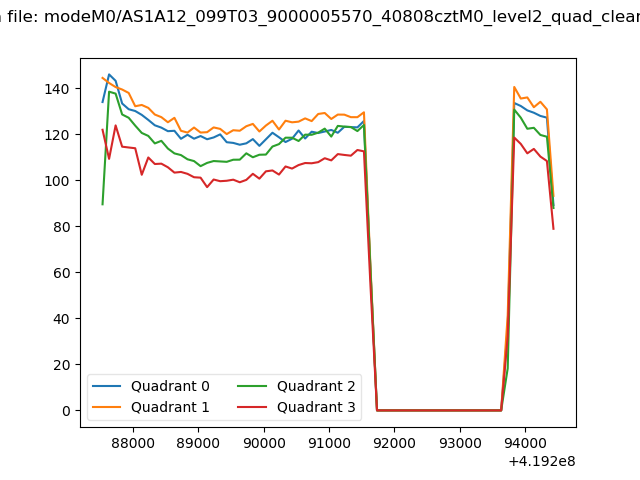

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

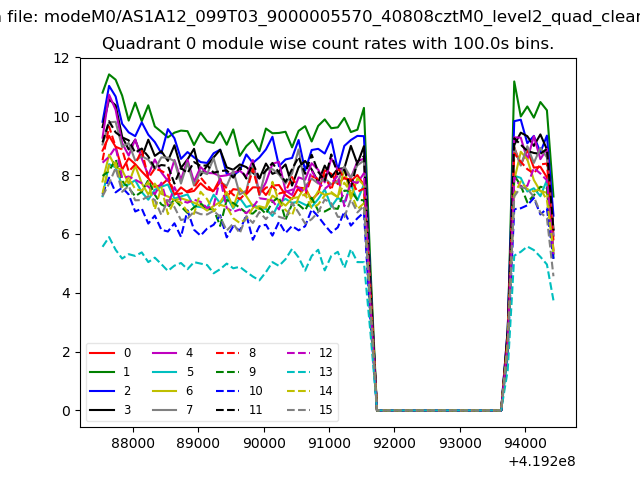

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

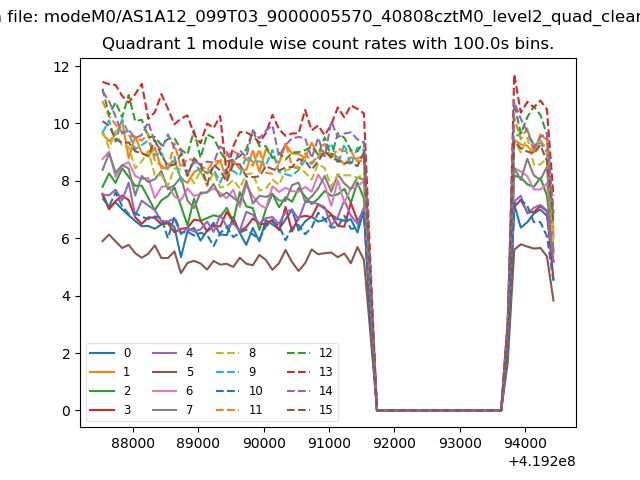

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

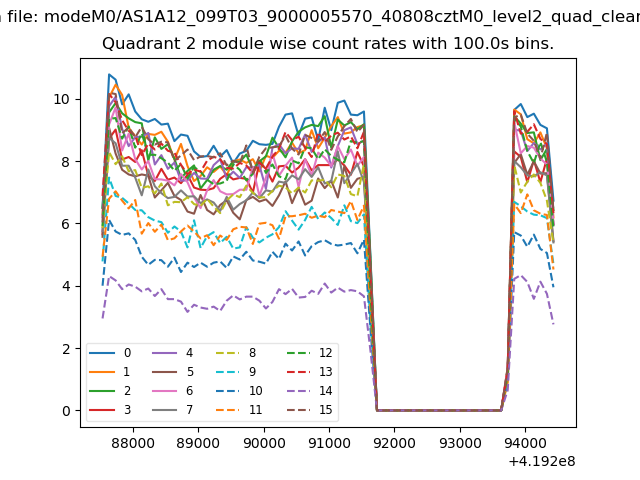

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

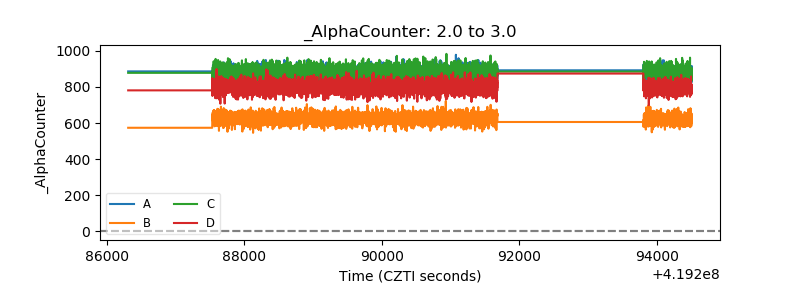

| Alpha Counter |  |

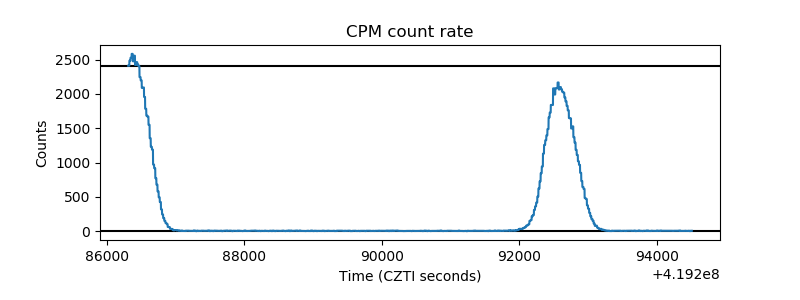

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

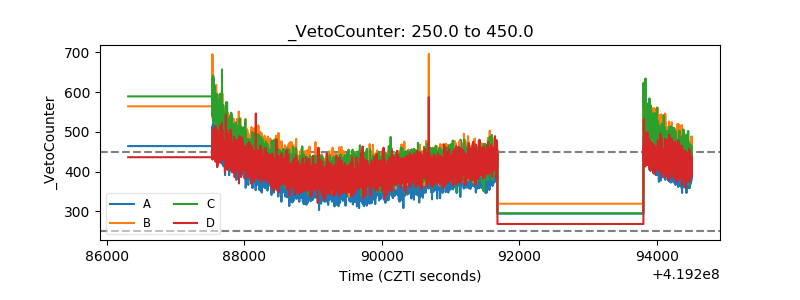

| Veto Counter |  |
