| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_099T03_9000005570_40814cztM0_level2.fits | modeM0/AS1A12_099T03_9000005570_40814cztM0_level2_quad_clean.evt |
| Size (bytes) | 362,442,240 | 96,503,040 |
| Size | 345.7 MB | 92.0 MB |
| Events in quadrant A | 3,683,725 | 628,166 |
| Events in quadrant B | 2,769,716 | 666,122 |
| Events in quadrant C | 2,860,999 | 634,897 |
| Events in quadrant D | 3,640,395 | 578,716 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14472 | 4 |
| B | 0 | 12313 | 2 |
| C | 0 | 12199 | 2 |
| D | 0 | 14978 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5927 | 204 | 3.441876% |
| B | 5928 | 27 | 0.455466% |
| C | 5928 | 33 | 0.556680% |
| D | 5928 | 146 | 2.462888% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7210 | 5929 | 175 | 175 | 2.43% | 2.95% |  |
| B | 7210 | 5929 | 14 | 14 | 0.19% | 0.24% |  |
| C | 7210 | 5929 | 26 | 26 | 0.36% | 0.44% |  |
| D | 7210 | 5929 | 152 | 152 | 2.11% | 2.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 549772 | 4138.07 | 647 | 634 | 132.7 |
| A | 6 | 10 | 286803 | 2156.45 | 647 | 634 | 132.7 |
| A | 13 | 248 | 269174 | 2023.6 | 647 | 634 | 132.7 |
| B | 0 | 190 | 98881 | 775.03 | 651 | 633 | 126.8 |
| B | 7 | 202 | 81793 | 640.23 | 651 | 633 | 126.8 |
| B | 12 | 111 | 16251 | 123.2 | 651 | 633 | 126.8 |
| C | 15 | 214 | 255028 | 1700.72 | 639 | 644 | 149.6 |
| C | 0 | 10 | 59816 | 395.6 | 639 | 644 | 149.6 |
| C | 14 | 254 | 39796 | 261.76 | 639 | 644 | 149.6 |
| D | 2 | 153 | 533953 | 3412.87 | 635 | 615 | 156.3 |
| D | 2 | 249 | 332913 | 2126.4 | 635 | 615 | 156.3 |
| D | 12 | 233 | 204156 | 1302.47 | 635 | 615 | 156.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

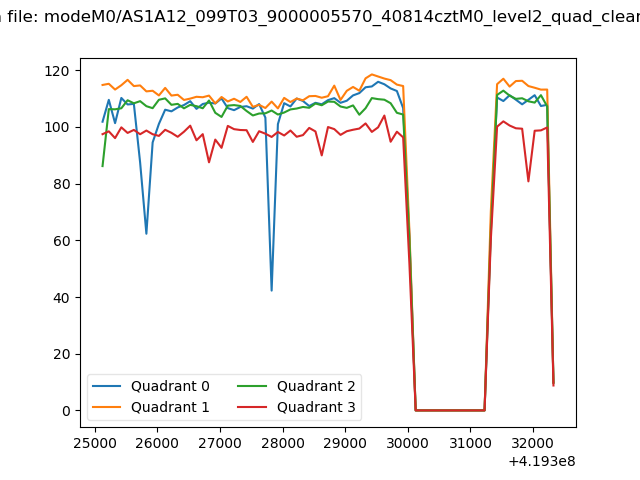

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

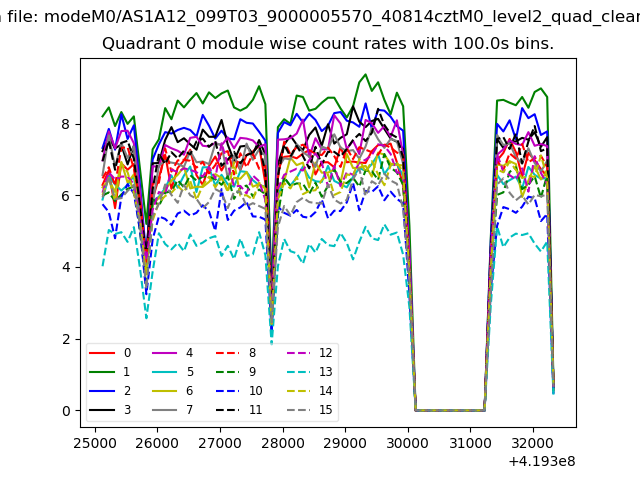

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

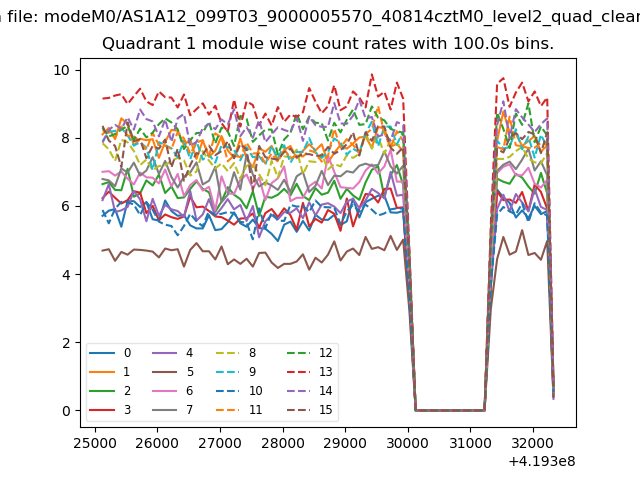

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

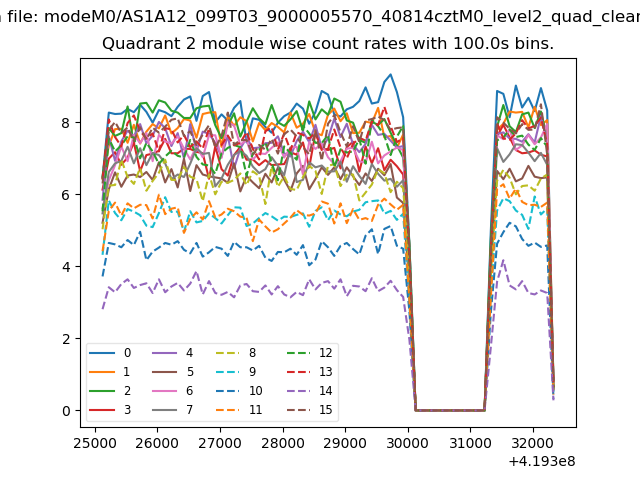

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

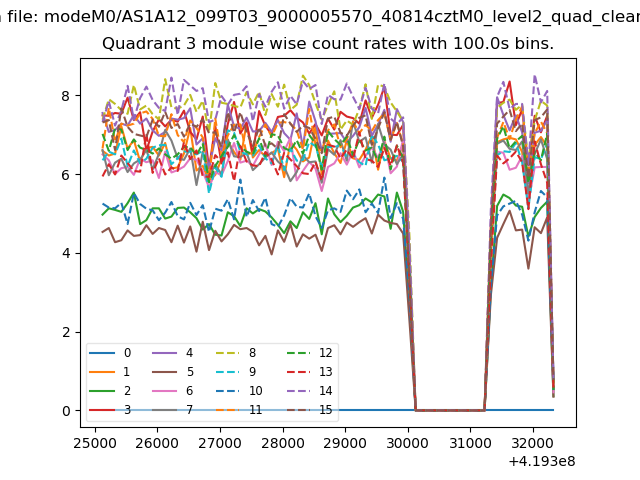

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

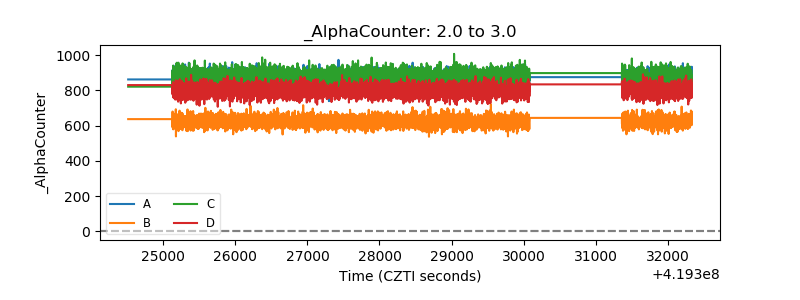

| Alpha Counter |  |

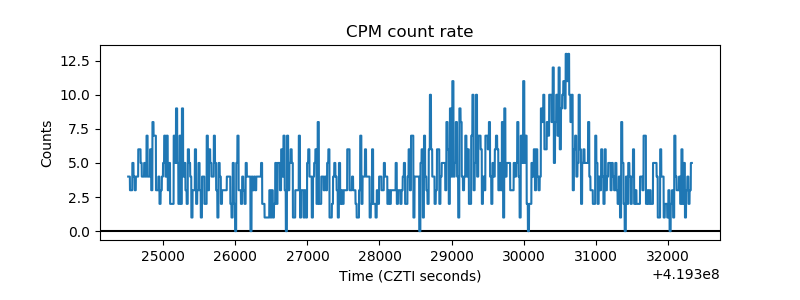

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

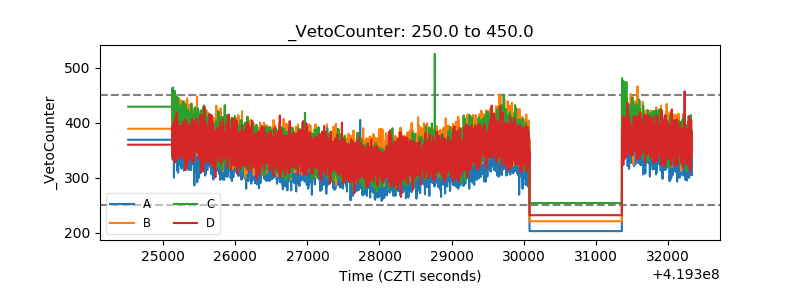

| Veto Counter |  |
