| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_097T01_9000005574_40865cztM0_level2.fits | modeM0/AS1A12_097T01_9000005574_40865cztM0_level2_quad_clean.evt |
| Size (bytes) | 396,495,360 | 84,818,880 |
| Size | 378.1 MB | 80.9 MB |
| Events in quadrant A | 3,344,174 | 587,481 |
| Events in quadrant B | 4,164,946 | 551,800 |
| Events in quadrant C | 3,311,550 | 554,034 |
| Events in quadrant D | 3,465,624 | 523,069 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 25 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13272 | 3 |
| B | 0 | 15796 | 2 |
| C | 0 | 12910 | 2 |
| D | 0 | 13747 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5021 | 36 | 0.716989% |
| B | 5021 | 672 | 13.383788% |
| C | 5021 | 290 | 5.775742% |
| D | 5021 | 87 | 1.732723% |

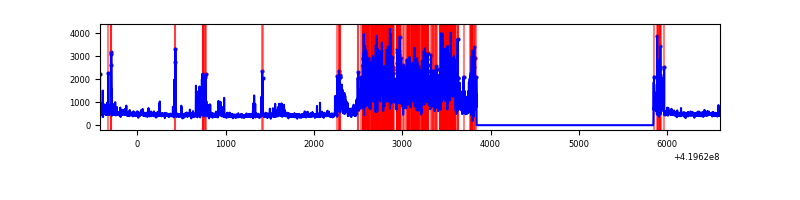

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7024 | 5022 | 26 | 26 | 0.37% | 0.52% |  |
| B | 7024 | 5022 | 422 | 422 | 6.01% | 8.40% |  |
| C | 7024 | 5022 | 238 | 238 | 3.39% | 4.74% |  |
| D | 7024 | 5022 | 79 | 79 | 1.12% | 1.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 498228 | 4251.97 | 565 | 555 | 117.0 |
| A | 6 | 10 | 433155 | 3696.01 | 565 | 555 | 117.0 |
| A | 13 | 248 | 140355 | 1194.41 | 565 | 555 | 117.0 |
| B | 4 | 171 | 1935679 | 18296.68 | 546 | 531 | 105.8 |
| B | 4 | 81 | 25580 | 236.84 | 546 | 531 | 105.8 |
| B | 7 | 202 | 22891 | 211.41 | 546 | 531 | 105.8 |
| C | 14 | 254 | 768450 | 6051.27 | 539 | 543 | 126.9 |
| C | 15 | 214 | 206841 | 1625.67 | 539 | 543 | 126.9 |
| C | 0 | 10 | 200280 | 1573.97 | 539 | 543 | 126.9 |
| D | 12 | 79 | 886691 | 6579.02 | 546 | 531 | 134.7 |
| D | 13 | 249 | 266050 | 1971.26 | 546 | 531 | 134.7 |
| D | 1 | 47 | 44027 | 322.92 | 546 | 531 | 134.7 |

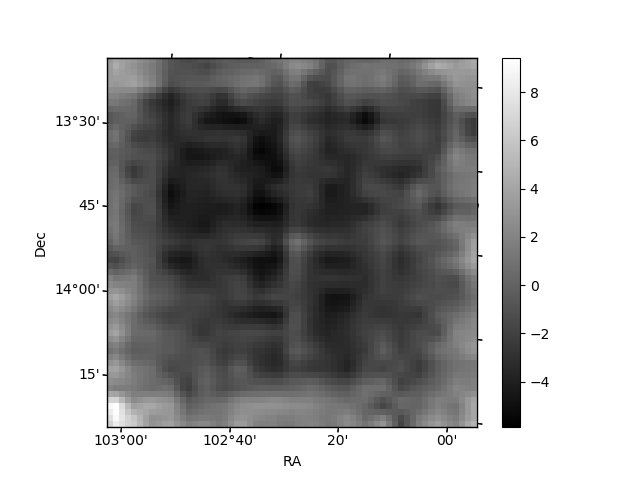

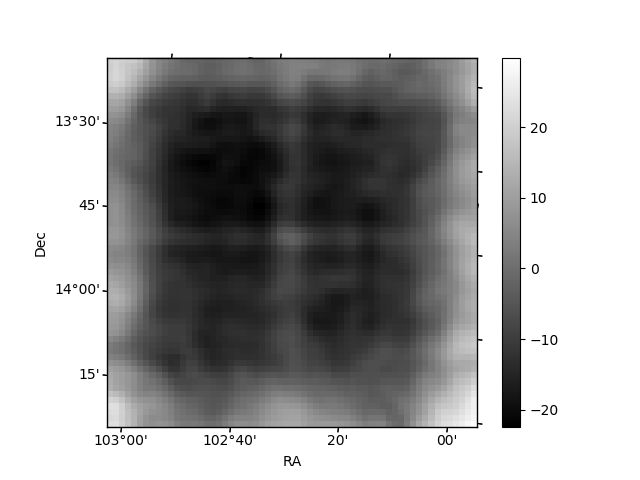

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

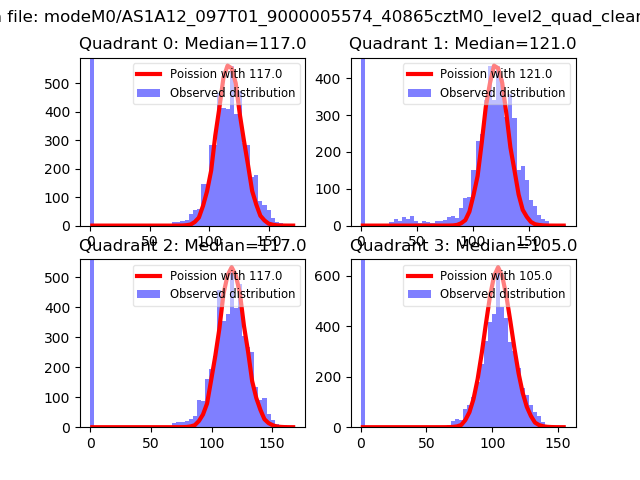

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

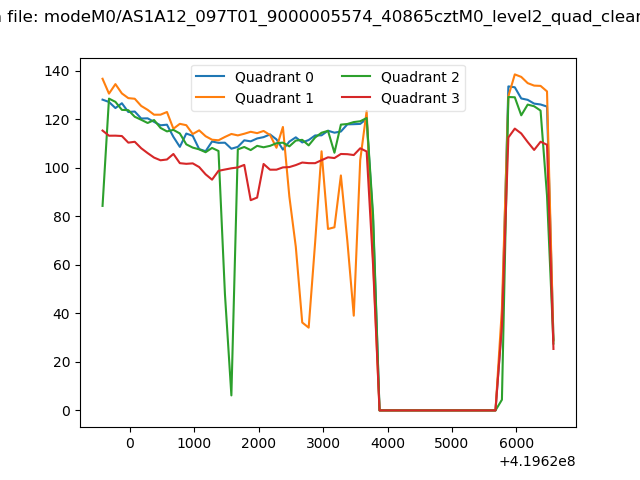

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

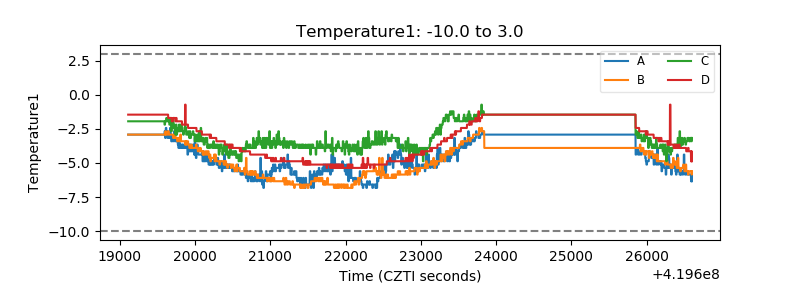

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

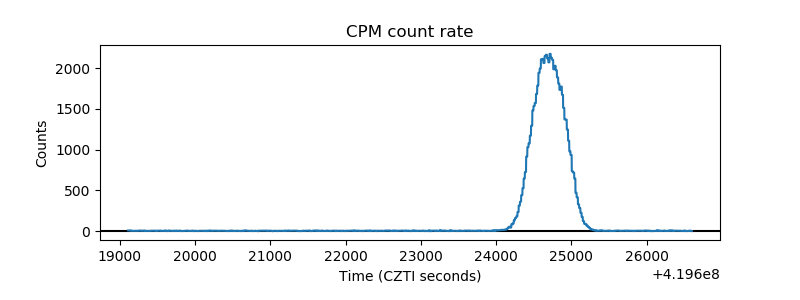

| _CPM_Rate |  |
| CZT Counter |  |

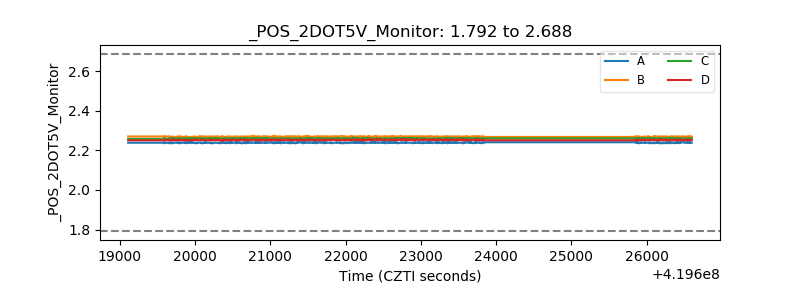

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
