| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_052T04_9000005582_40933cztM0_level2.fits | modeM0/AS1A12_052T04_9000005582_40933cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,051,075,520 | 311,808,960 |
| Size | 1.9 GB | 297.4 MB |
| Events in quadrant A | 10,820,808 | 2,560,809 |
| Events in quadrant B | 9,753,237 | 2,484,767 |
| Events in quadrant C | 38,677,538 | 895,019 |
| Events in quadrant D | 15,087,247 | 2,088,302 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 67 | 0 |
| B | 0 | 67 | 0 |
| C | 0 | 67 | 0 |
| D | 0 | 68 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 414 | 0 |
| B | 0 | 414 | 0 |
| C | 0 | 414 | 0 |
| D | 0 | 414 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 44613 | 6 |
| B | 0 | 43846 | 5 |
| C | 0 | 128426 | 5 |
| D | 0 | 59108 | 5 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 20504 | 31 | 0.151190% |
| B | 20504 | 104 | 0.507218% |
| C | 20504 | 12490 | 60.914943% |
| D | 20504 | 1575 | 7.681428% |

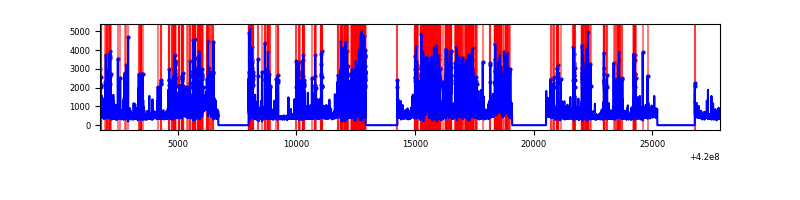

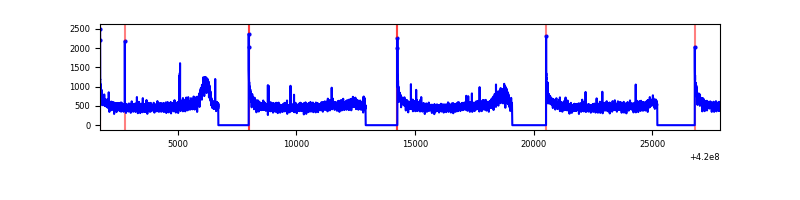

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 26143 | 20508 | 9 | 9 | 0.03% | 0.04% |  |
| B | 26143 | 20508 | 59 | 59 | 0.23% | 0.29% |  |
| C | 26143 | 20506 | 11709 | 11709 | 44.79% | 57.10% |  |
| D | 26143 | 20508 | 1329 | 1329 | 5.08% | 6.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1700201 | 3564.83 | 2343 | 2299 | 476.3 |
| A | 2 | 79 | 52632 | 105.68 | 2343 | 2299 | 476.3 |
| A | 13 | 254 | 28967 | 55.99 | 2343 | 2299 | 476.3 |
| B | 5 | 255 | 720199 | 1639.97 | 2273 | 2207 | 437.8 |
| B | 12 | 111 | 54636 | 119.75 | 2273 | 2207 | 437.8 |
| B | 11 | 111 | 50870 | 111.15 | 2273 | 2207 | 437.8 |
| C | 0 | 239 | 32997923 | 112035.7 | 1276 | 1286 | 294.5 |
| C | 15 | 214 | 522565 | 1769.93 | 1276 | 1286 | 294.5 |
| C | 0 | 10 | 123008 | 413.29 | 1276 | 1286 | 294.5 |
| D | 13 | 249 | 2031556 | 3756.58 | 2202 | 2142 | 540.2 |
| D | 2 | 249 | 1772836 | 3277.68 | 2202 | 2142 | 540.2 |
| D | 1 | 47 | 858023 | 1584.29 | 2202 | 2142 | 540.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

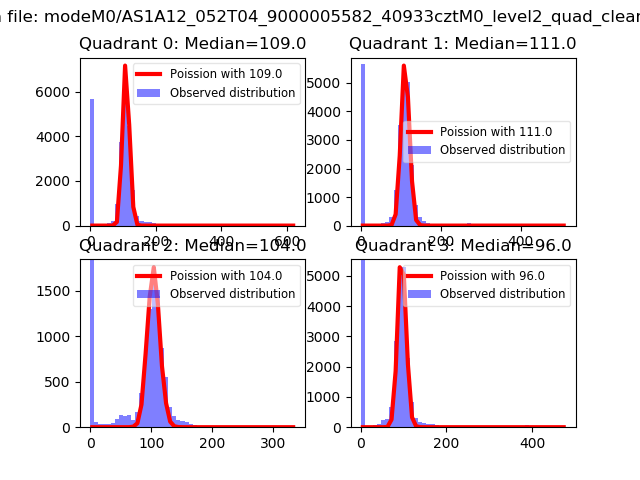

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

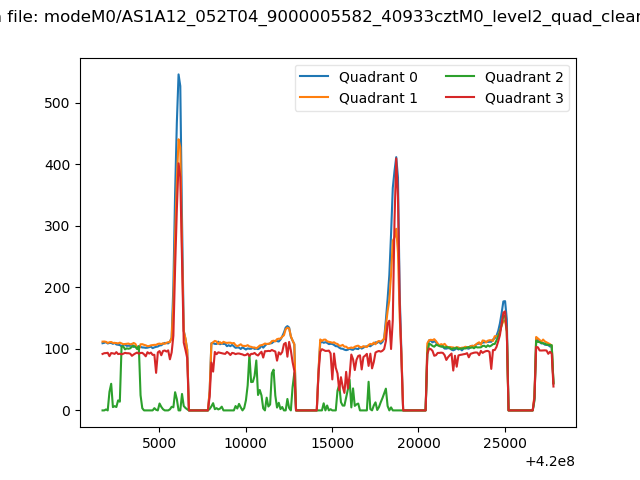

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

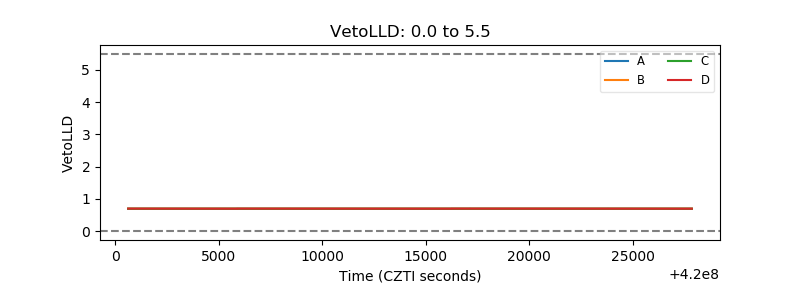

| Veto LLD |  |

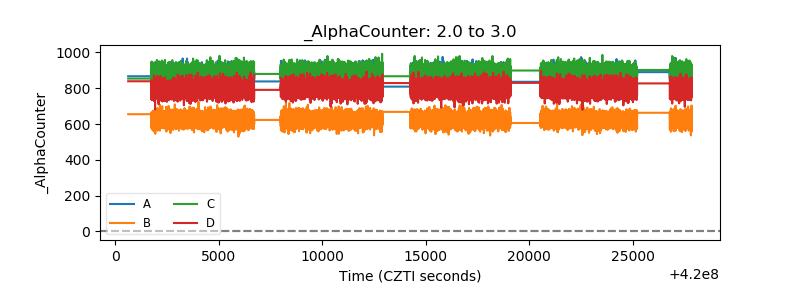

| Alpha Counter |  |

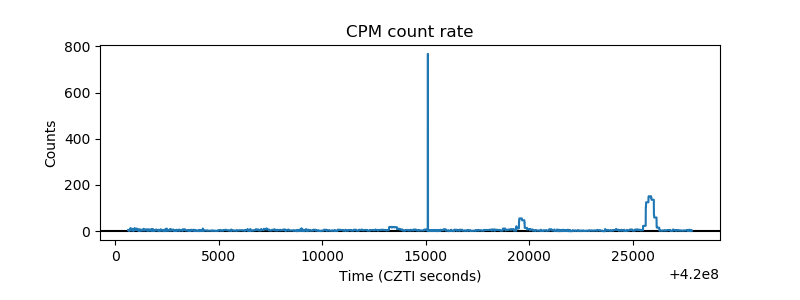

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

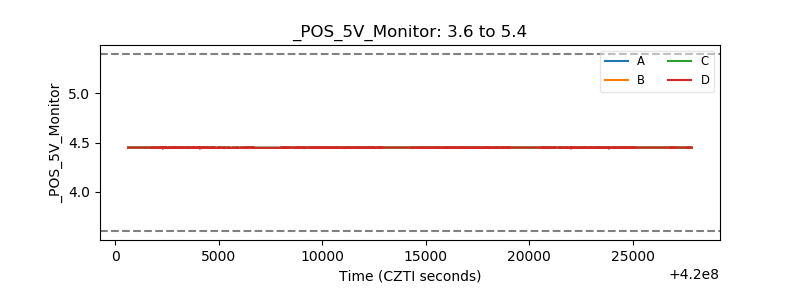

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
