| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_029T02_9000005590_41024cztM0_level2.fits | modeM0/AS1A12_029T02_9000005590_41024cztM0_level2_quad_clean.evt |
| Size (bytes) | 329,281,920 | 96,376,320 |
| Size | 314.0 MB | 91.9 MB |
| Events in quadrant A | 3,111,638 | 664,245 |
| Events in quadrant B | 2,490,843 | 681,395 |
| Events in quadrant C | 2,817,659 | 634,299 |
| Events in quadrant D | 3,352,100 | 564,468 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12535 | 3 |
| B | 0 | 10775 | 2 |
| C | 0 | 11388 | 2 |
| D | 0 | 13531 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 33 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5348 | 12 | 0.224383% |
| B | 5348 | 6 | 0.112191% |
| C | 5348 | 25 | 0.467464% |
| D | 5348 | 291 | 5.441286% |

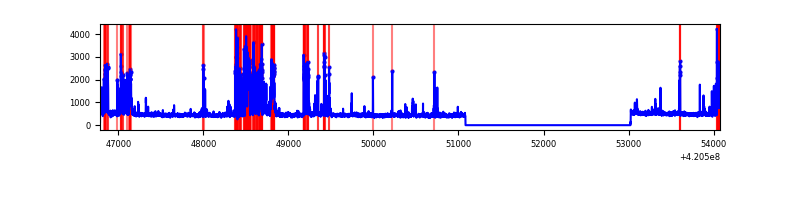

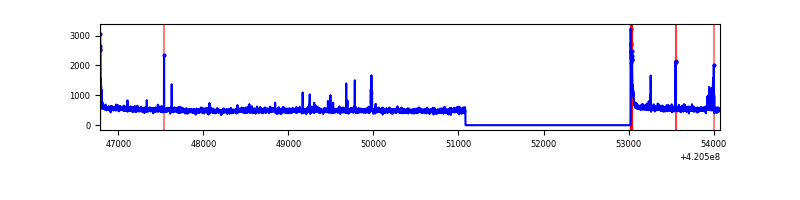

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

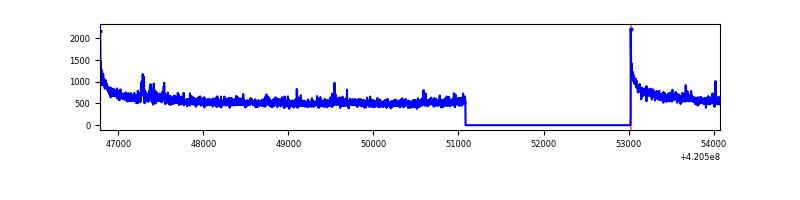

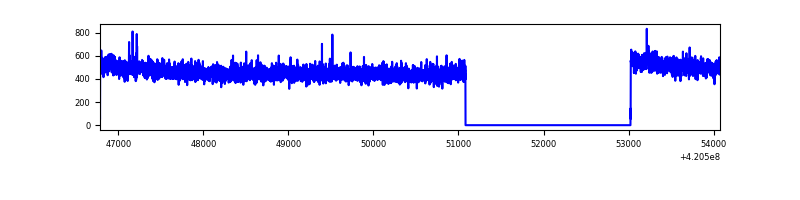

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7290 | 5349 | 2 | 2 | 0.03% | 0.04% |  |
| B | 7290 | 5349 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7290 | 5349 | 22 | 22 | 0.30% | 0.41% |  |
| D | 7290 | 5349 | 222 | 222 | 3.05% | 4.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 507132 | 3938.55 | 638 | 625 | 128.6 |
| A | 12 | 189 | 131688 | 1019.13 | 638 | 625 | 128.6 |
| A | 13 | 254 | 8103 | 58.15 | 638 | 625 | 128.6 |
| B | 12 | 111 | 15122 | 120.56 | 631 | 616 | 120.3 |
| B | 11 | 111 | 14068 | 111.8 | 631 | 616 | 120.3 |
| B | 14 | 111 | 13633 | 108.18 | 631 | 616 | 120.3 |
| C | 15 | 214 | 233112 | 1621.52 | 619 | 624 | 143.4 |
| C | 0 | 10 | 72566 | 501.77 | 619 | 624 | 143.4 |
| C | 10 | 70 | 32266 | 220.69 | 619 | 624 | 143.4 |
| D | 13 | 249 | 845789 | 5737.5 | 604 | 587 | 147.3 |
| D | 9 | 19 | 85448 | 576.06 | 604 | 587 | 147.3 |
| D | 2 | 249 | 42384 | 283.73 | 604 | 587 | 147.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

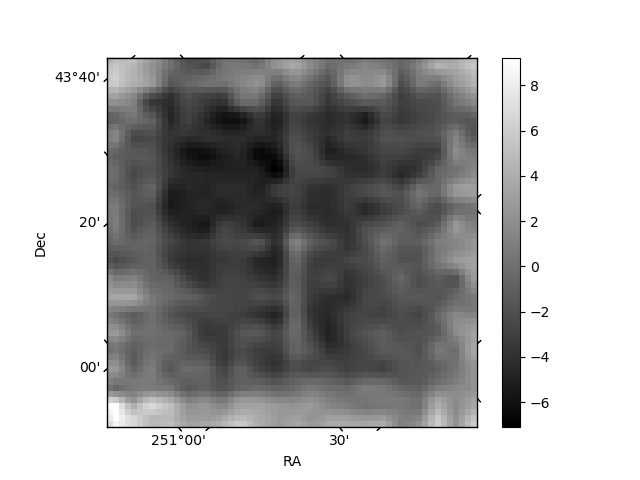

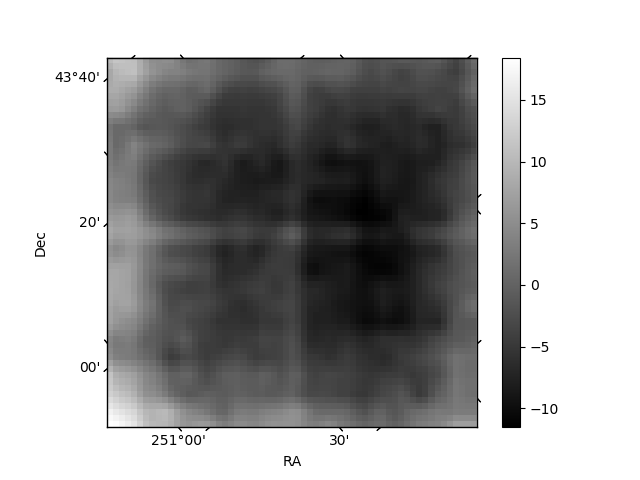

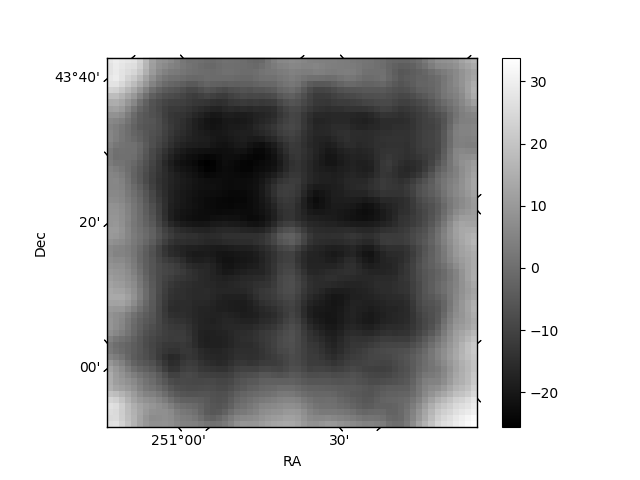

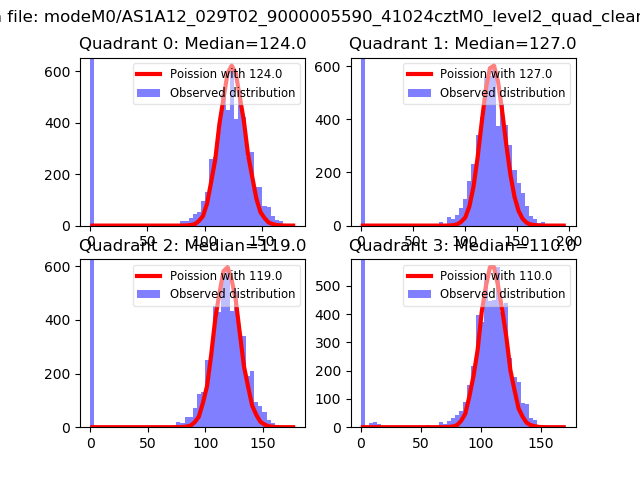

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

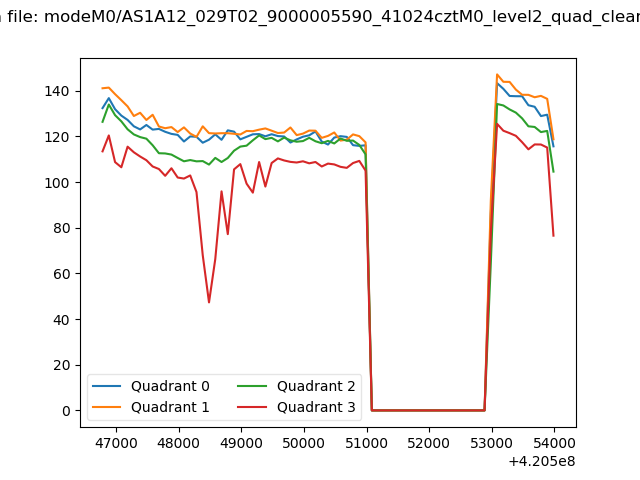

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

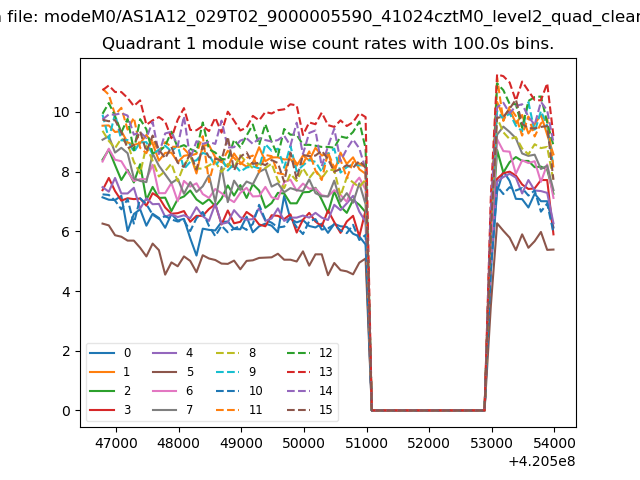

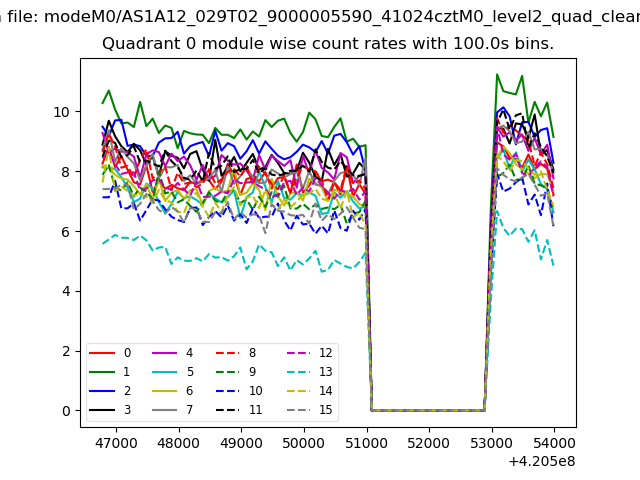

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

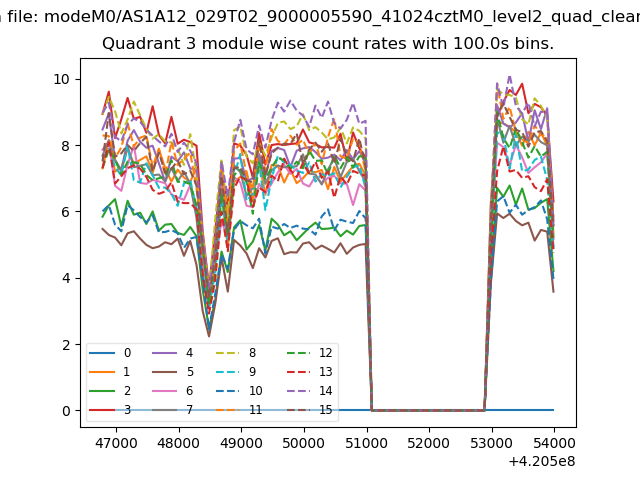

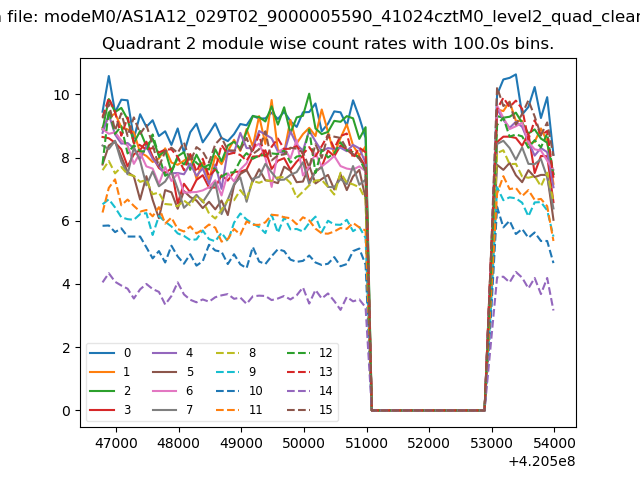

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

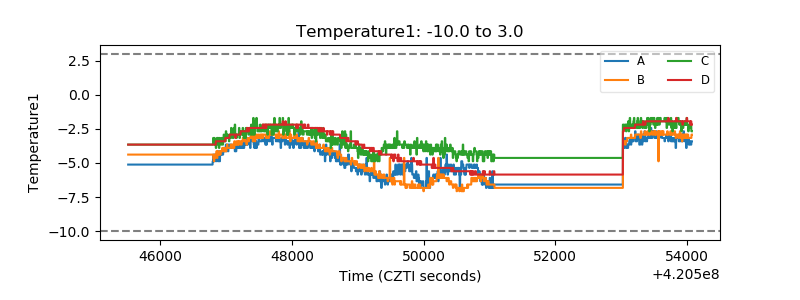

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

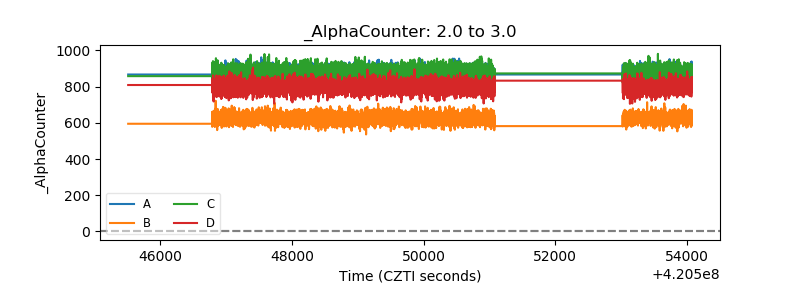

| Alpha Counter |  |

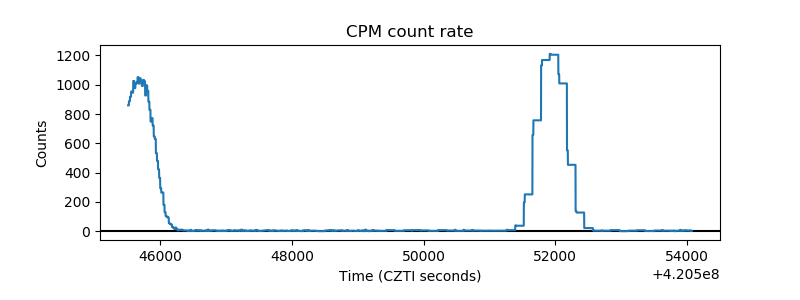

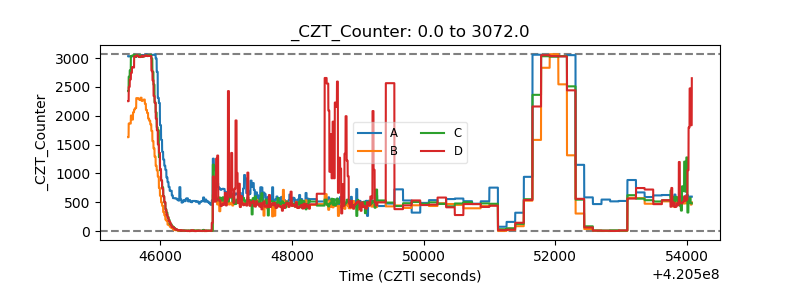

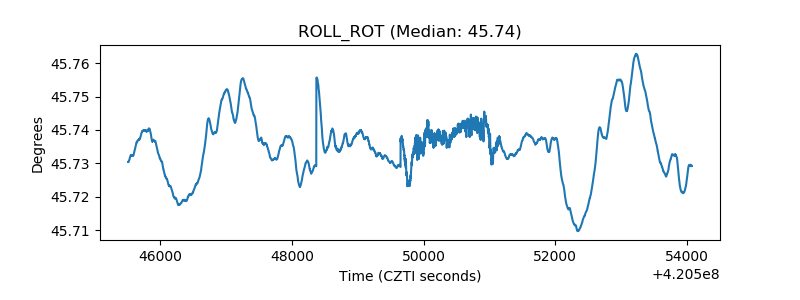

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

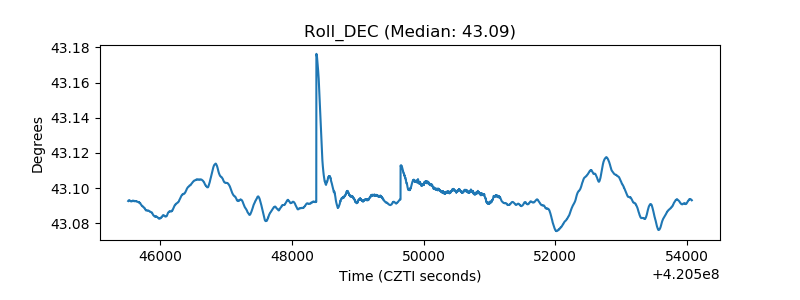

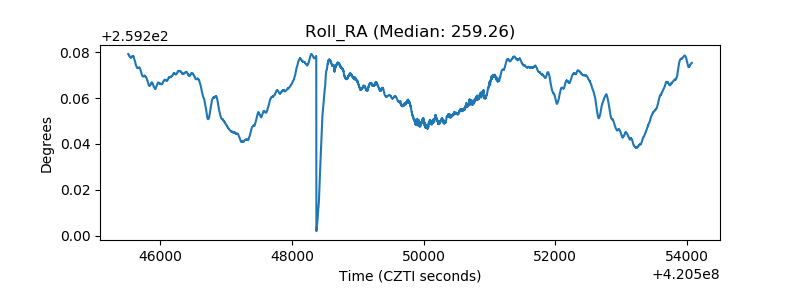

| _Roll_DEC |  |
| _Roll_RA |  |

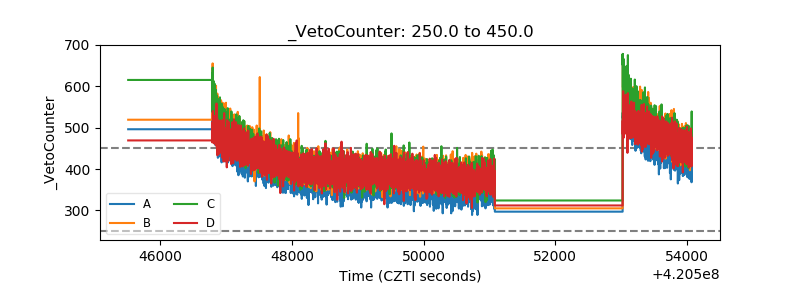

| Veto Counter |  |
