| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_029T02_9000005590_41031cztM0_level2.fits | modeM0/AS1A12_029T02_9000005590_41031cztM0_level2_quad_clean.evt |
| Size (bytes) | 378,224,640 | 112,394,880 |
| Size | 360.7 MB | 107.2 MB |
| Events in quadrant A | 3,517,571 | 744,707 |
| Events in quadrant B | 3,098,122 | 768,187 |
| Events in quadrant C | 3,322,495 | 741,622 |
| Events in quadrant D | 3,528,670 | 671,221 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14703 | 3 |
| B | 0 | 14033 | 4 |
| C | 0 | 14244 | 2 |
| D | 0 | 15613 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 27 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6855 | 17 | 0.247994% |
| B | 6854 | 18 | 0.262620% |
| C | 6855 | 13 | 0.189643% |
| D | 6855 | 159 | 2.319475% |

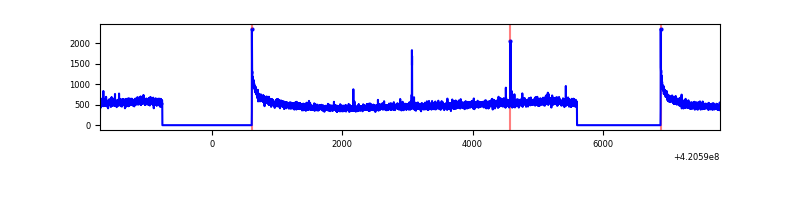

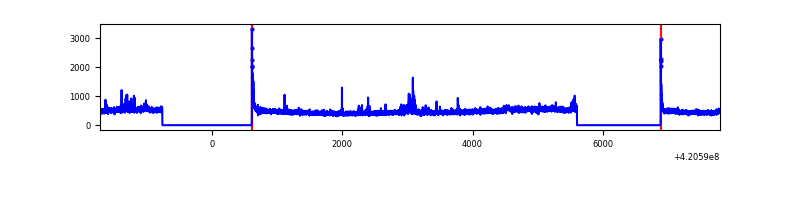

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9511 | 6857 | 3 | 3 | 0.03% | 0.04% |  |
| B | 9511 | 6857 | 0 | 0 | 0.00% | 0.00% |  |
| C | 9511 | 6857 | 9 | 9 | 0.09% | 0.13% |  |
| D | 9511 | 6857 | 117 | 117 | 1.23% | 1.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 576474 | 3719.11 | 755 | 739 | 154.8 |
| A | 13 | 254 | 9357 | 55.67 | 755 | 739 | 154.8 |
| A | 3 | 137 | 8656 | 51.14 | 755 | 739 | 154.8 |
| B | 0 | 229 | 98867 | 679.79 | 749 | 727 | 144.4 |
| B | 0 | 245 | 46417 | 316.48 | 749 | 727 | 144.4 |
| B | 12 | 111 | 19061 | 127.0 | 749 | 727 | 144.4 |
| C | 15 | 214 | 292385 | 1698.66 | 738 | 743 | 171.7 |
| C | 0 | 10 | 57989 | 333.43 | 738 | 743 | 171.7 |
| C | 12 | 249 | 46468 | 266.32 | 738 | 743 | 171.7 |
| D | 13 | 249 | 307151 | 1714.77 | 730 | 708 | 178.7 |
| D | 2 | 249 | 136523 | 759.98 | 730 | 708 | 178.7 |
| D | 12 | 0 | 110694 | 615.45 | 730 | 708 | 178.7 |

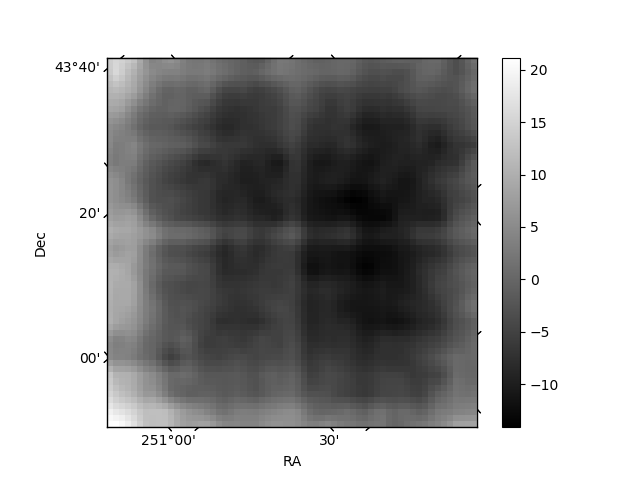

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

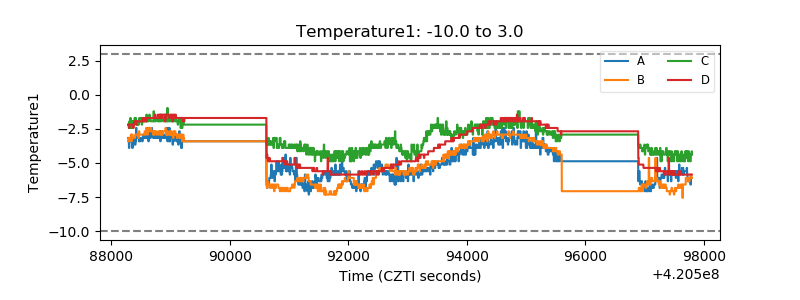

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

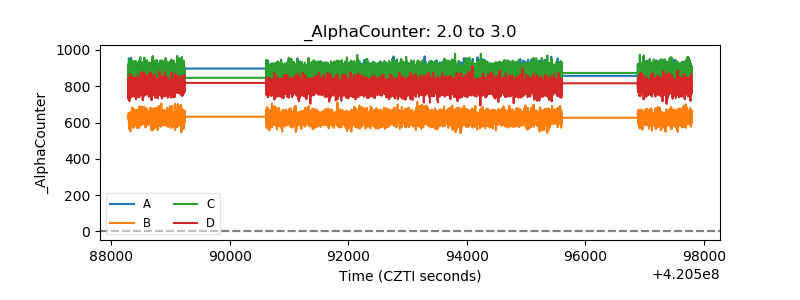

| Alpha Counter |  |

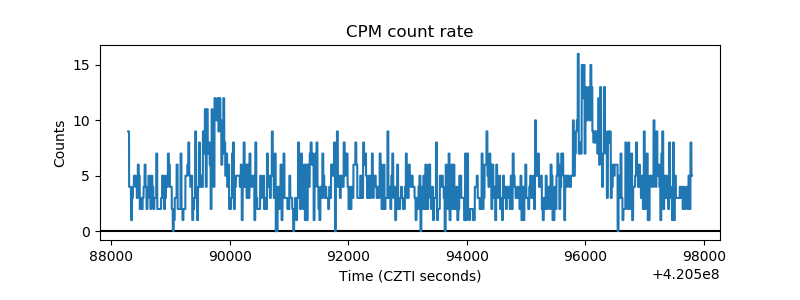

| _CPM_Rate |  |

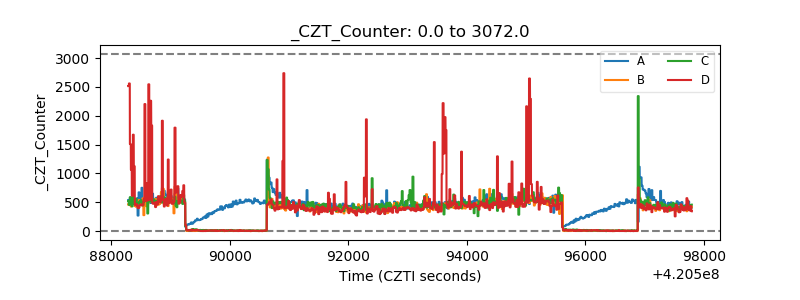

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

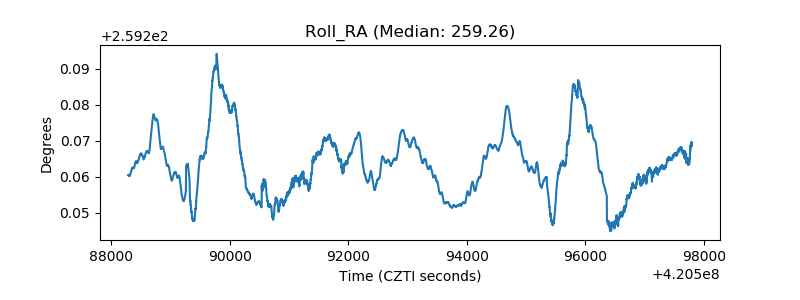

| _Roll_RA |  |
| Veto Counter |  |
