| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_042T01_9000005588_41009cztM0_level2.fits | modeM0/AS1A12_042T01_9000005588_41009cztM0_level2_quad_clean.evt |
| Size (bytes) | 323,366,400 | 94,057,920 |
| Size | 308.4 MB | 89.7 MB |
| Events in quadrant A | 2,923,831 | 641,907 |
| Events in quadrant B | 2,548,287 | 654,255 |
| Events in quadrant C | 2,966,691 | 611,446 |
| Events in quadrant D | 3,109,664 | 561,462 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11908 | 3 |
| B | 0 | 11207 | 2 |
| C | 0 | 12032 | 2 |
| D | 0 | 12886 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5409 | 6 | 0.110926% |
| B | 5409 | 16 | 0.295803% |
| C | 5409 | 13 | 0.240340% |
| D | 5409 | 110 | 2.033648% |

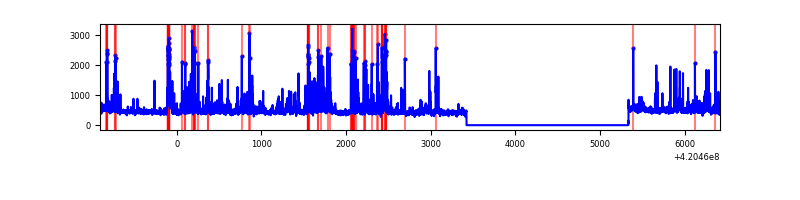

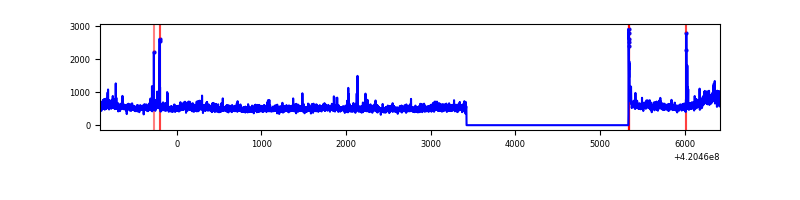

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7322 | 5410 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7322 | 5410 | 8 | 8 | 0.11% | 0.15% |  |
| C | 7322 | 5410 | 10 | 10 | 0.14% | 0.18% |  |
| D | 7322 | 5410 | 92 | 92 | 1.26% | 1.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 530875 | 4292.93 | 614 | 601 | 123.5 |
| A | 12 | 189 | 14928 | 115.98 | 614 | 601 | 123.5 |
| A | 13 | 254 | 8478 | 63.77 | 614 | 601 | 123.5 |
| B | 5 | 255 | 98464 | 846.66 | 606 | 590 | 115.6 |
| B | 0 | 186 | 50354 | 430.48 | 606 | 590 | 115.6 |
| B | 12 | 111 | 14146 | 117.27 | 606 | 590 | 115.6 |
| C | 15 | 214 | 234747 | 1718.25 | 593 | 595 | 136.3 |
| C | 10 | 70 | 171663 | 1255.33 | 593 | 595 | 136.3 |
| C | 3 | 233 | 140799 | 1028.84 | 593 | 595 | 136.3 |
| D | 2 | 249 | 298301 | 2053.25 | 594 | 576 | 145.0 |
| D | 13 | 249 | 125665 | 862.67 | 594 | 576 | 145.0 |
| D | 12 | 233 | 105746 | 725.3 | 594 | 576 | 145.0 |

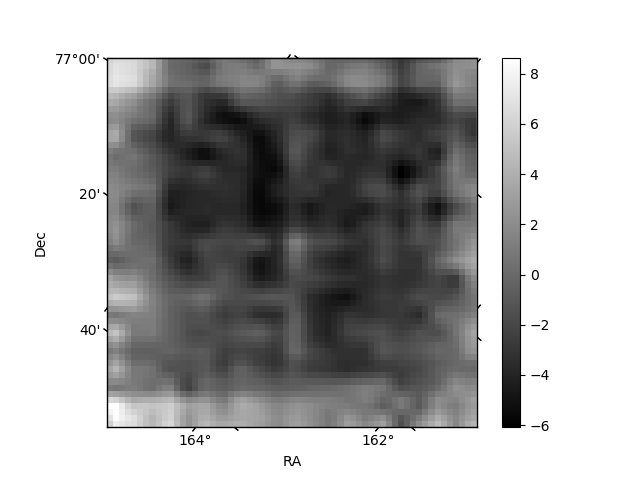

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

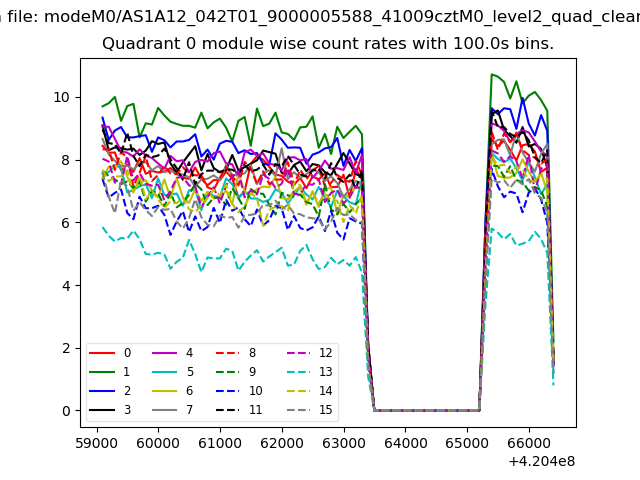

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

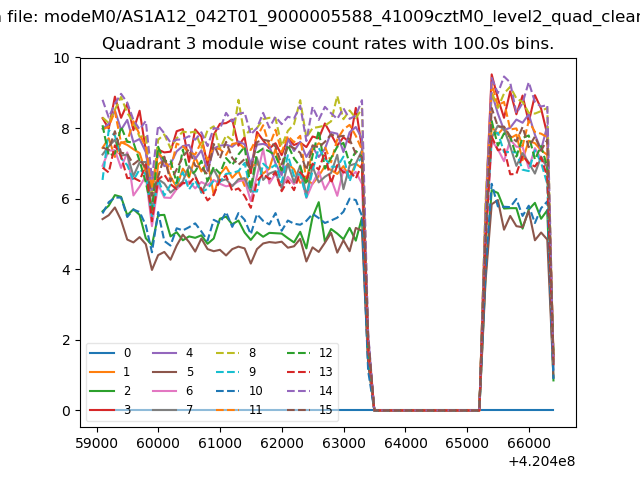

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

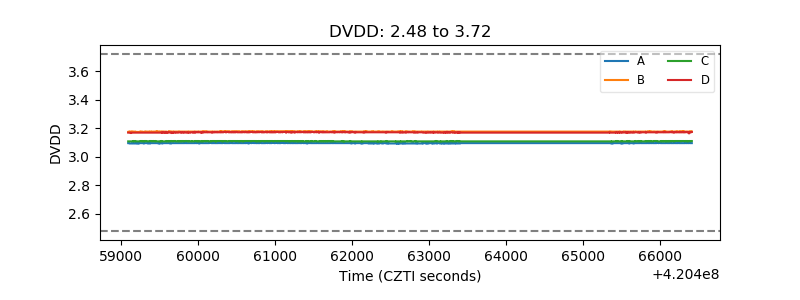

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

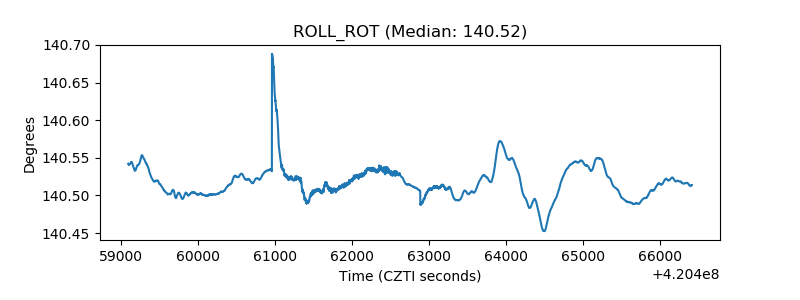

| _ROLL_ROT |  |
| _Roll_DEC |  |

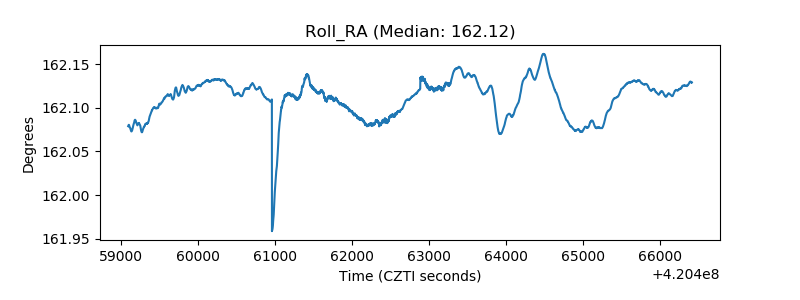

| _Roll_RA |  |
| Veto Counter |  |
