| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_052T04_9000005602_41131cztM0_level2.fits | modeM0/AS1A12_052T04_9000005602_41131cztM0_level2_quad_clean.evt |
| Size (bytes) | 363,841,920 | 91,293,120 |
| Size | 347.0 MB | 87.1 MB |
| Events in quadrant A | 2,988,433 | 627,038 |
| Events in quadrant B | 3,614,979 | 593,710 |
| Events in quadrant C | 2,785,603 | 597,536 |
| Events in quadrant D | 3,641,394 | 553,098 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12334 | 3 |
| B | 0 | 14664 | 2 |
| C | 0 | 11886 | 2 |
| D | 0 | 14505 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 28 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5621 | 15 | 0.266856% |
| B | 5621 | 420 | 7.471980% |
| C | 5621 | 61 | 1.085216% |
| D | 5621 | 159 | 2.828678% |

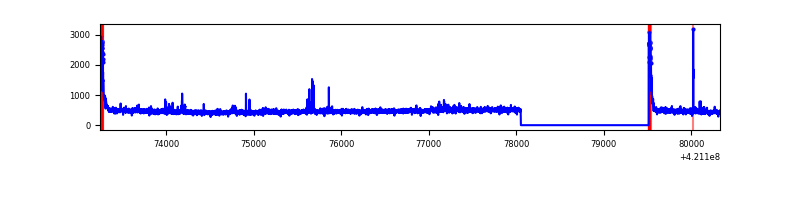

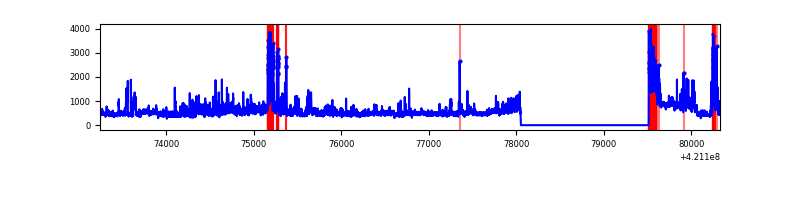

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7083 | 5622 | 4 | 4 | 0.06% | 0.07% |  |
| B | 7083 | 5622 | 290 | 290 | 4.09% | 5.16% |  |
| C | 7083 | 5622 | 51 | 51 | 0.72% | 0.91% |  |
| D | 7083 | 5622 | 143 | 143 | 2.02% | 2.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 531053 | 4249.74 | 611 | 598 | 124.8 |
| A | 12 | 189 | 81413 | 647.45 | 611 | 598 | 124.8 |
| A | 13 | 254 | 9156 | 68.56 | 611 | 598 | 124.8 |
| B | 0 | 245 | 611242 | 5251.15 | 595 | 578 | 116.3 |
| B | 0 | 186 | 610748 | 5246.91 | 595 | 578 | 116.3 |
| B | 0 | 190 | 26395 | 222.0 | 595 | 578 | 116.3 |
| C | 15 | 214 | 241671 | 1754.41 | 592 | 596 | 137.4 |
| C | 0 | 10 | 167195 | 1212.41 | 592 | 596 | 137.4 |
| C | 9 | 54 | 24995 | 177.56 | 592 | 596 | 137.4 |
| D | 2 | 16 | 891632 | 6131.49 | 591 | 574 | 145.3 |
| D | 13 | 249 | 232347 | 1594.86 | 591 | 574 | 145.3 |
| D | 2 | 249 | 159140 | 1091.11 | 591 | 574 | 145.3 |

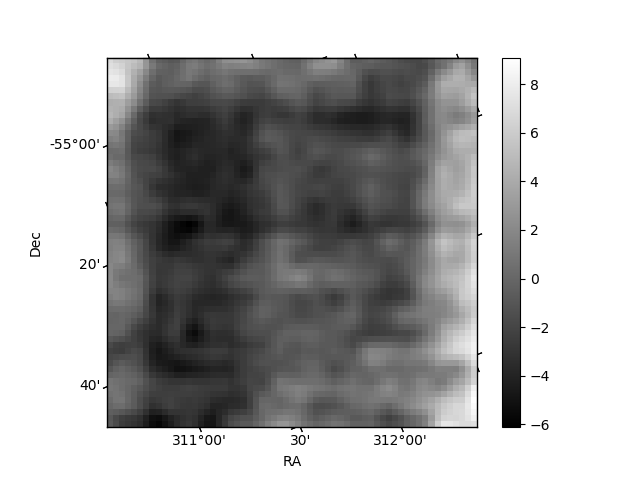

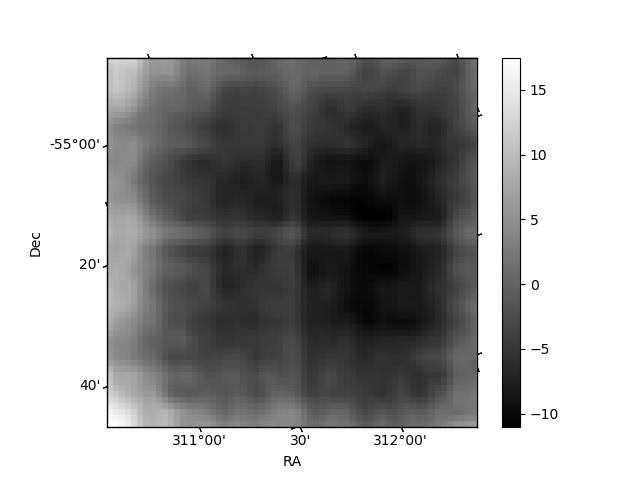

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

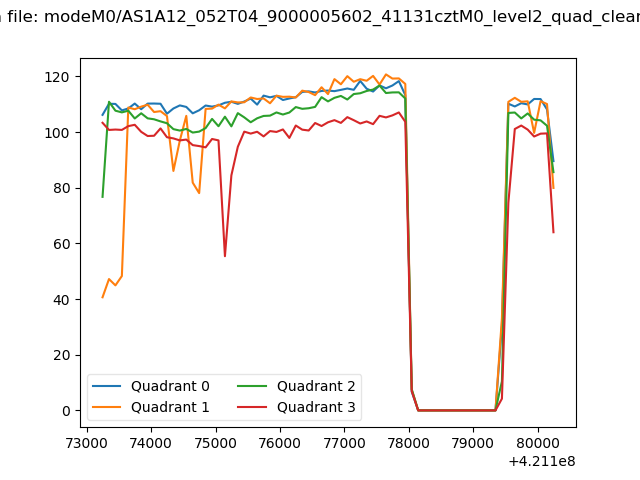

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

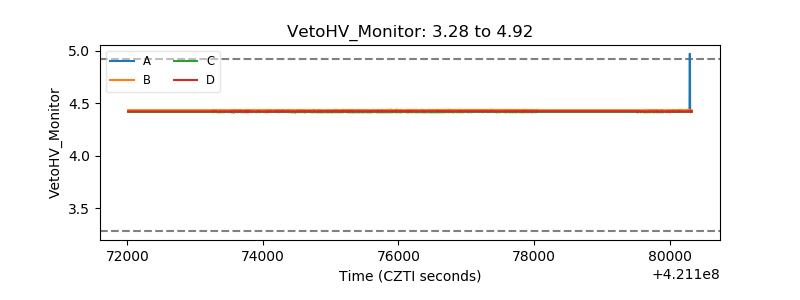

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

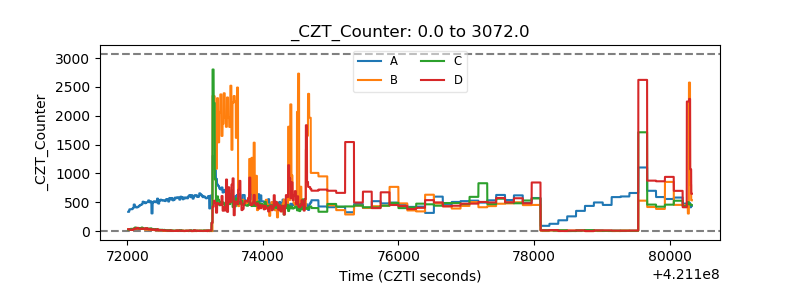

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

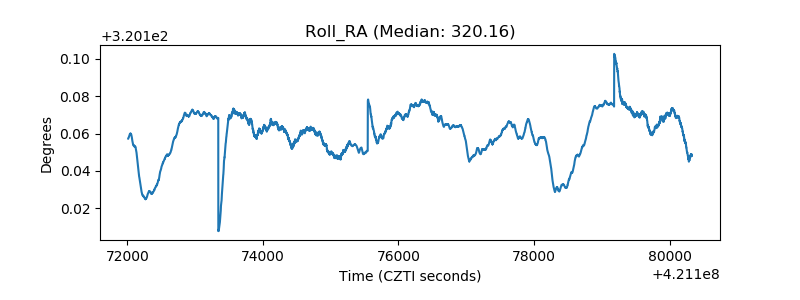

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
