| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_052T04_9000005638_41261cztM0_level2.fits | modeM0/AS1A12_052T04_9000005638_41261cztM0_level2_quad_clean.evt |
| Size (bytes) | 416,540,160 | 90,334,080 |
| Size | 397.2 MB | 86.1 MB |
| Events in quadrant A | 3,205,824 | 627,127 |
| Events in quadrant B | 3,255,069 | 620,356 |
| Events in quadrant C | 2,988,418 | 602,978 |
| Events in quadrant D | 5,525,727 | 485,765 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 23 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12960 | 3 |
| B | 0 | 13762 | 2 |
| C | 0 | 12538 | 2 |
| D | 0 | 20364 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5705 | 17 | 0.297984% |
| B | 5705 | 170 | 2.979842% |
| C | 5705 | 119 | 2.085890% |
| D | 5705 | 1000 | 17.528484% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7258 | 5706 | 6 | 6 | 0.08% | 0.11% |  |
| B | 7258 | 5706 | 145 | 145 | 2.00% | 2.54% |  |
| C | 7258 | 5706 | 112 | 112 | 1.54% | 1.96% |  |
| D | 7258 | 5706 | 940 | 940 | 12.95% | 16.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 555161 | 4351.93 | 618 | 604 | 127.4 |
| A | 6 | 10 | 208573 | 1632.05 | 618 | 604 | 127.4 |
| A | 12 | 189 | 42910 | 332.0 | 618 | 604 | 127.4 |
| B | 0 | 186 | 760497 | 6460.72 | 606 | 590 | 117.6 |
| B | 0 | 245 | 69403 | 585.05 | 606 | 590 | 117.6 |
| B | 5 | 255 | 30034 | 250.33 | 606 | 590 | 117.6 |
| C | 0 | 10 | 327945 | 2337.26 | 598 | 600 | 140.1 |
| C | 15 | 214 | 244598 | 1742.16 | 598 | 600 | 140.1 |
| C | 9 | 54 | 69348 | 490.86 | 598 | 600 | 140.1 |
| D | 1 | 52 | 2783692 | 21132.93 | 539 | 523 | 131.7 |
| D | 5 | 222 | 250608 | 1898.92 | 539 | 523 | 131.7 |
| D | 13 | 249 | 205002 | 1552.63 | 539 | 523 | 131.7 |

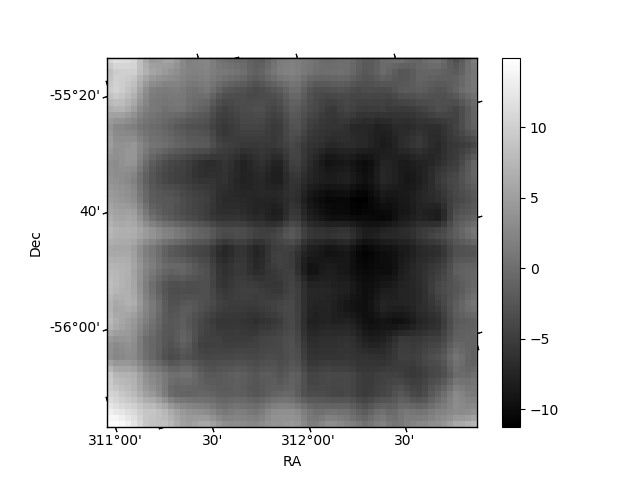

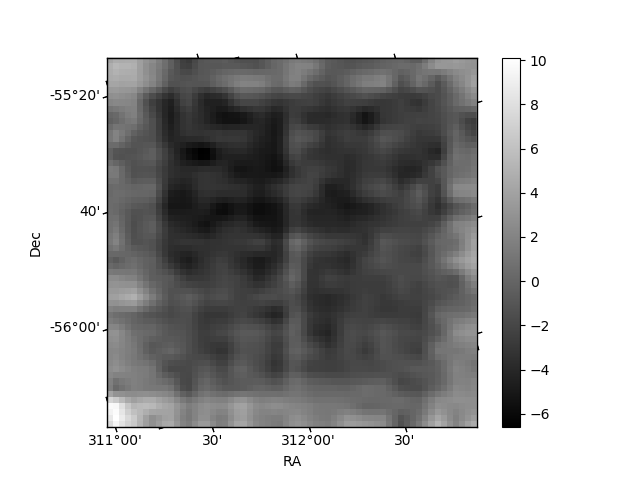

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

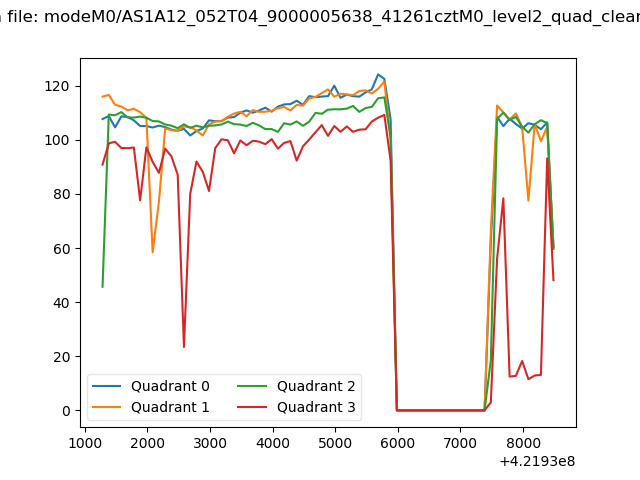

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

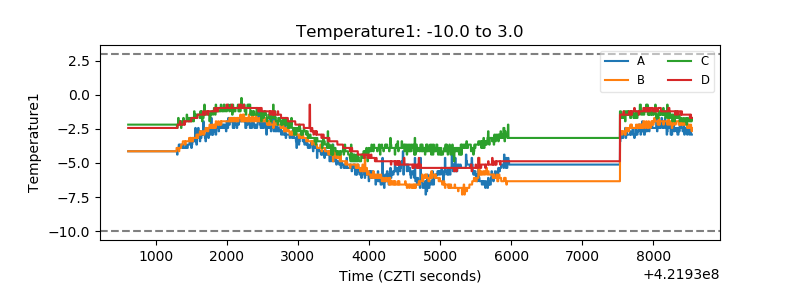

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

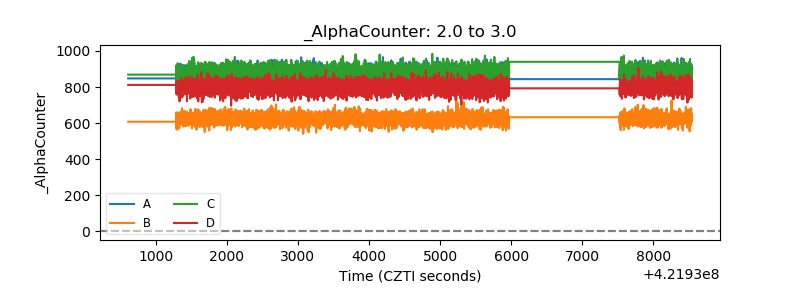

| Alpha Counter |  |

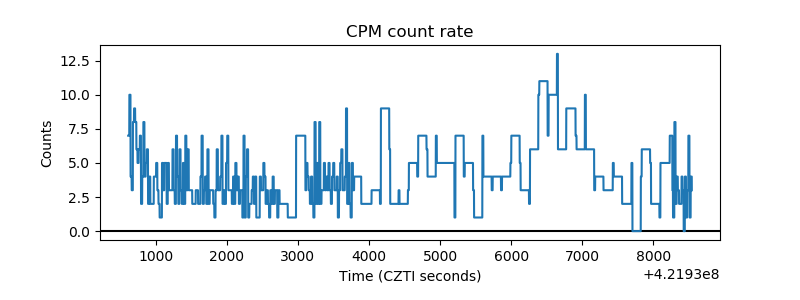

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

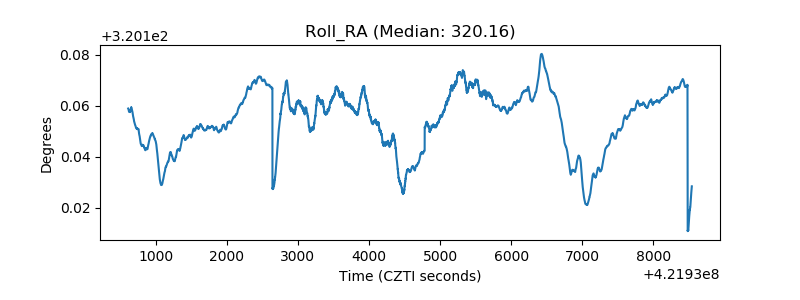

| _Roll_RA |  |
| Veto Counter |  |
