| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_100T01_9000005668_41461cztM0_level2.fits | modeM0/AS1T05_100T01_9000005668_41461cztM0_level2_quad_clean.evt |
| Size (bytes) | 47,975,040 | 11,162,880 |
| Size | 45.8 MB | 10.6 MB |
| Events in quadrant A | 417,653 | 78,307 |
| Events in quadrant B | 302,048 | 81,093 |
| Events in quadrant C | 633,825 | 60,757 |
| Events in quadrant D | 370,439 | 67,004 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1671 | 1 |
| B | 0 | 1289 | 1 |
| C | 0 | 2267 | 1 |
| D | 0 | 1529 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 624 | 3 | 0.480769% |
| B | 624 | 1 | 0.160256% |
| C | 624 | 127 | 20.352564% |
| D | 624 | 33 | 5.288462% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

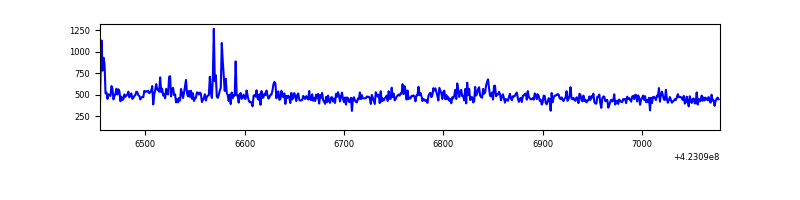

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 624 | 624 | 2 | 2 | 0.32% | 0.32% |  |
| B | 624 | 624 | 0 | 0 | 0.00% | 0.00% |  |
| C | 624 | 624 | 125 | 125 | 20.03% | 20.03% |  |
| D | 624 | 624 | 23 | 23 | 3.69% | 3.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 127884 | 7744.23 | 70 | 69 | 16.5 |
| A | 2 | 79 | 12896 | 777.18 | 70 | 69 | 16.5 |
| A | 10 | 67 | 1511 | 87.37 | 70 | 69 | 16.5 |
| B | 0 | 190 | 17388 | 1073.82 | 71 | 70 | 16.1 |
| B | 12 | 111 | 1738 | 103.43 | 71 | 70 | 16.1 |
| B | 11 | 111 | 1531 | 90.59 | 71 | 70 | 16.1 |
| C | 0 | 10 | 318388 | 19704.83 | 61 | 61 | 16.2 |
| C | 9 | 54 | 38148 | 2357.63 | 61 | 61 | 16.2 |
| C | 15 | 214 | 27807 | 1717.51 | 61 | 61 | 16.2 |
| D | 13 | 249 | 74698 | 4018.91 | 67 | 64 | 18.6 |
| D | 10 | 199 | 21516 | 1155.15 | 67 | 64 | 18.6 |
| D | 2 | 249 | 7450 | 397.72 | 67 | 64 | 18.6 |

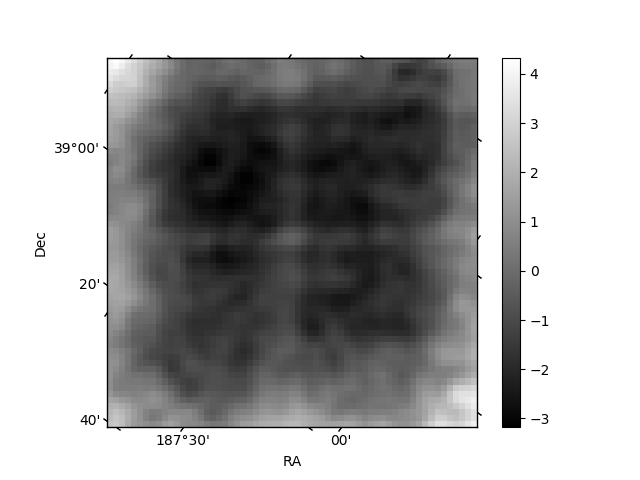

Histogram calculated using DETX and DETY for each event in the final _common_clean file

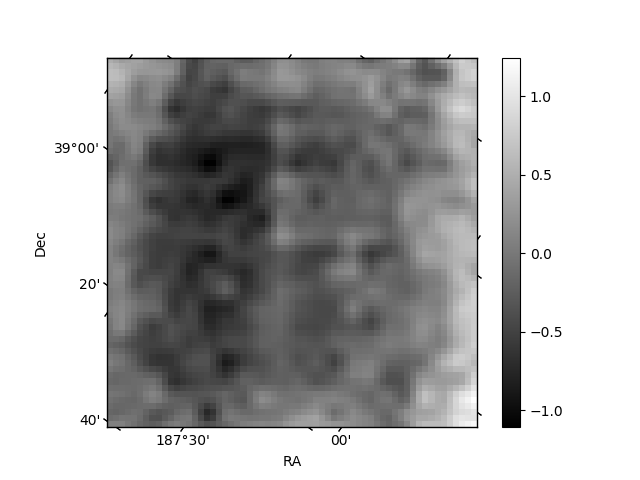

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

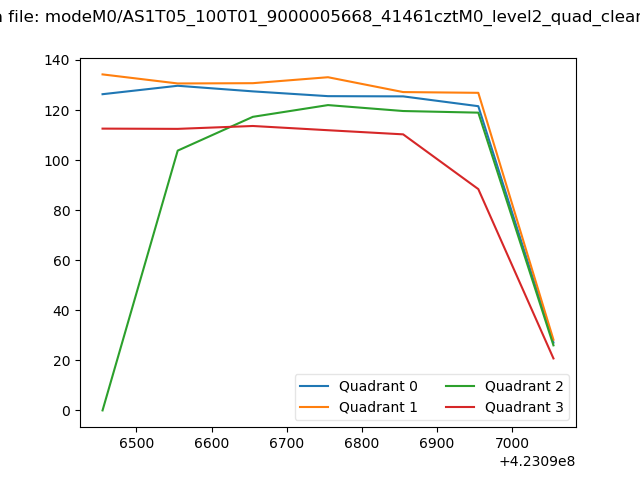

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

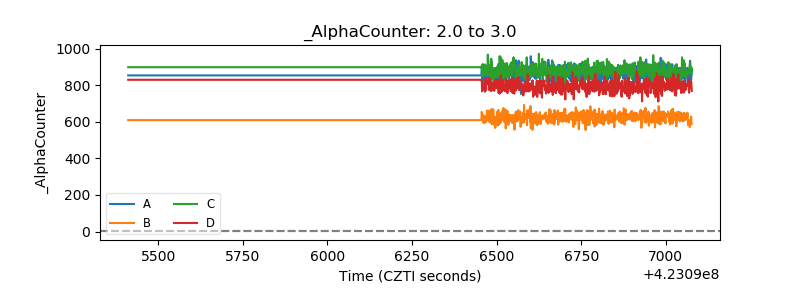

| Alpha Counter |  |

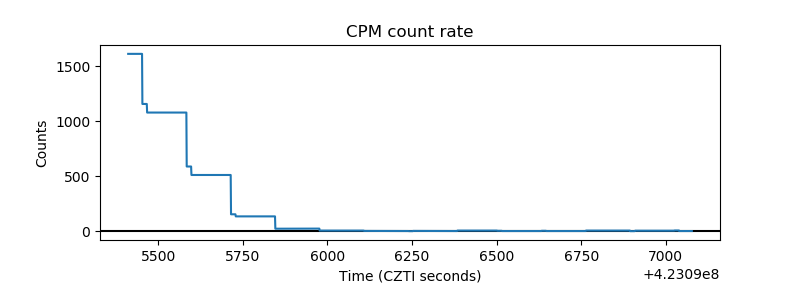

| _CPM_Rate |  |
| CZT Counter |  |

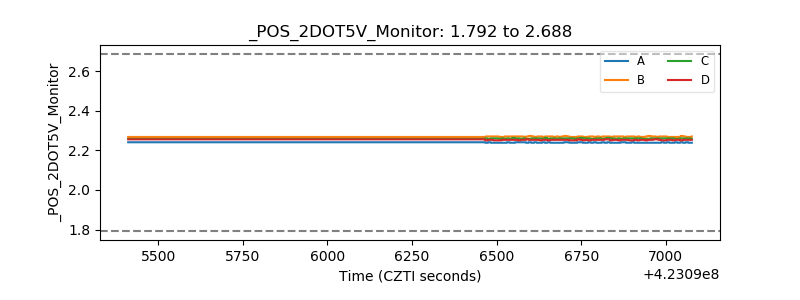

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

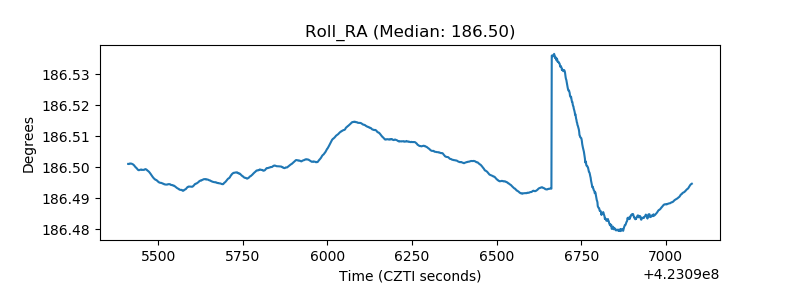

| _Roll_RA |  |
| Veto Counter |  |
