| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_014T01_9000005674_41477cztM0_level2.fits | modeM0/AS1A12_014T01_9000005674_41477cztM0_level2_quad_clean.evt |
| Size (bytes) | 334,699,200 | 83,836,800 |
| Size | 319.2 MB | 80.0 MB |
| Events in quadrant A | 2,759,121 | 563,101 |
| Events in quadrant B | 2,463,721 | 581,532 |
| Events in quadrant C | 3,366,642 | 524,763 |
| Events in quadrant D | 3,393,285 | 503,776 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 37 | 0 |
| B | 0 | 37 | 0 |
| C | 0 | 37 | 0 |
| D | 0 | 38 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11363 | 3 |
| B | 0 | 11148 | 2 |
| C | 0 | 13404 | 2 |
| D | 0 | 13842 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5216 | 17 | 0.325920% |
| B | 5216 | 41 | 0.786043% |
| C | 5216 | 367 | 7.036043% |
| D | 5216 | 156 | 2.990798% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7219 | 5217 | 13 | 13 | 0.18% | 0.25% |  |
| B | 7219 | 5217 | 28 | 28 | 0.39% | 0.54% |  |
| C | 7219 | 5217 | 339 | 339 | 4.70% | 6.50% |  |
| D | 7219 | 5217 | 147 | 147 | 2.04% | 2.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 534509 | 4699.7 | 551 | 539 | 113.6 |
| A | 2 | 79 | 76957 | 672.59 | 551 | 539 | 113.6 |
| A | 13 | 248 | 9949 | 82.82 | 551 | 539 | 113.6 |
| B | 5 | 255 | 220531 | 2083.68 | 551 | 535 | 105.6 |
| B | 0 | 190 | 26132 | 242.44 | 551 | 535 | 105.6 |
| B | 0 | 245 | 17952 | 164.96 | 551 | 535 | 105.6 |
| C | 0 | 10 | 717582 | 6009.86 | 515 | 518 | 119.3 |
| C | 4 | 254 | 397715 | 3328.99 | 515 | 518 | 119.3 |
| C | 15 | 214 | 213244 | 1782.9 | 515 | 518 | 119.3 |
| D | 12 | 16 | 418839 | 3182.43 | 529 | 513 | 131.4 |
| D | 1 | 52 | 310957 | 2361.71 | 529 | 513 | 131.4 |
| D | 13 | 249 | 205301 | 1557.93 | 529 | 513 | 131.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

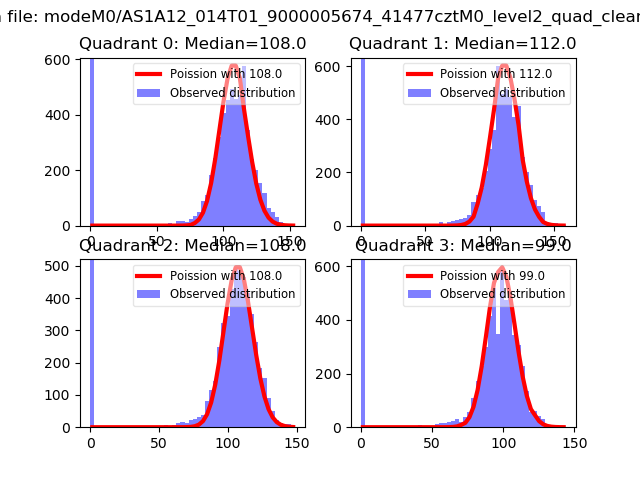

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

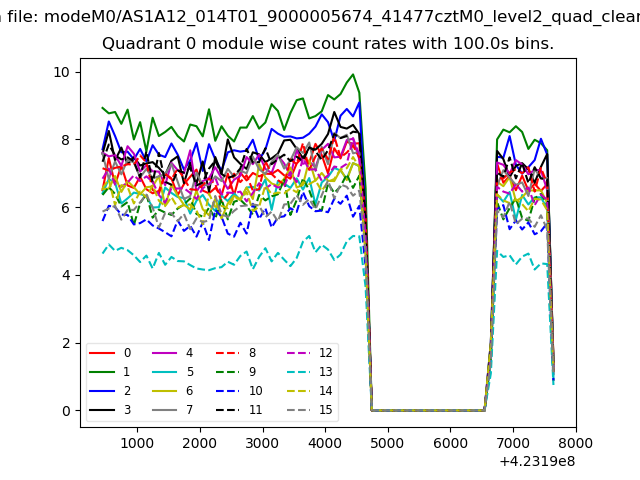

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

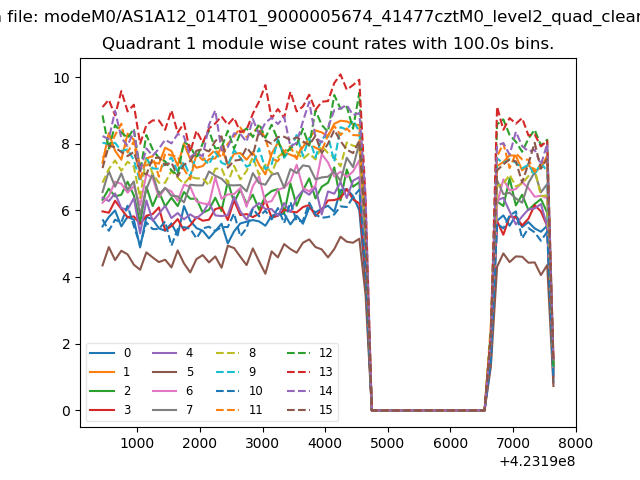

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

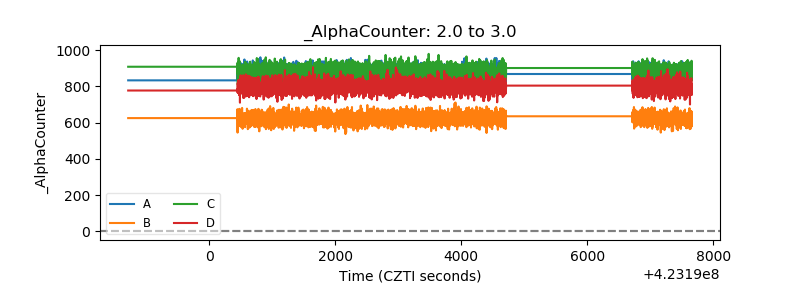

| Alpha Counter |  |

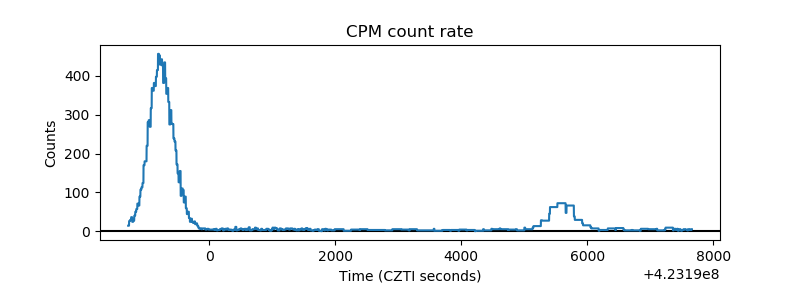

| _CPM_Rate |  |
| CZT Counter |  |

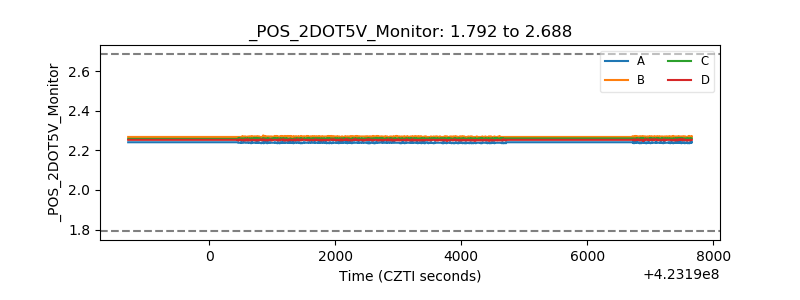

| +2.5 Volts monitor |  |

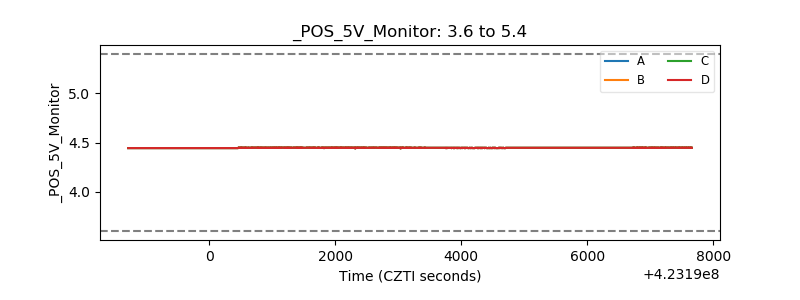

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

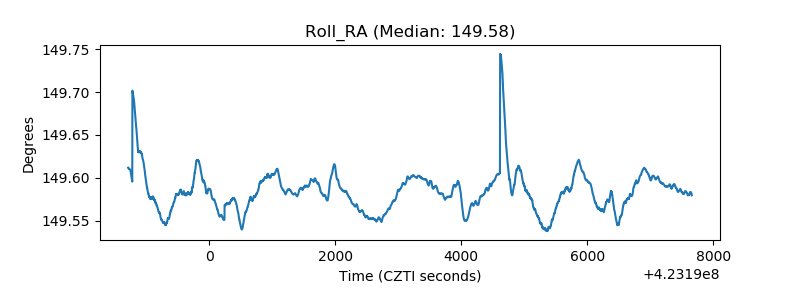

| _Roll_RA |  |
| Veto Counter |  |
