| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T10_9000005678_41589cztM0_level2.fits | modeM0/AS1C07_001T10_9000005678_41589cztM0_level2_quad_clean.evt |
| Size (bytes) | 326,471,040 | 92,502,720 |
| Size | 311.3 MB | 88.2 MB |
| Events in quadrant A | 2,936,486 | 632,736 |
| Events in quadrant B | 2,793,414 | 645,211 |
| Events in quadrant C | 2,911,165 | 597,803 |
| Events in quadrant D | 3,042,756 | 564,544 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12080 | 2 |
| B | 0 | 11857 | 2 |
| C | 0 | 11755 | 2 |
| D | 0 | 12570 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5145 | 17 | 0.330418% |
| B | 5145 | 10 | 0.194363% |
| C | 5145 | 185 | 3.595724% |
| D | 5145 | 127 | 2.468416% |

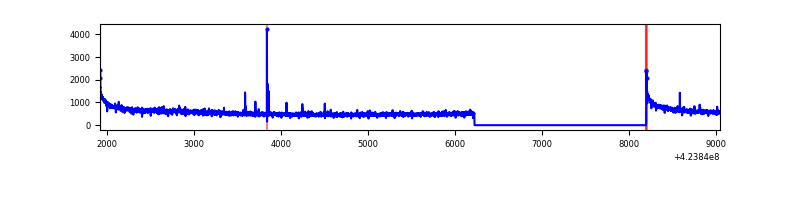

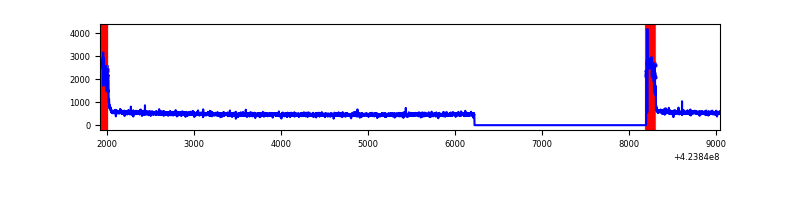

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7117 | 5146 | 6 | 6 | 0.08% | 0.12% |  |
| B | 7117 | 5146 | 5 | 5 | 0.07% | 0.10% |  |
| C | 7117 | 5146 | 162 | 162 | 2.28% | 3.15% |  |
| D | 7117 | 5146 | 100 | 100 | 1.41% | 1.94% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 567427 | 4769.13 | 587 | 577 | 118.9 |
| A | 15 | 223 | 64188 | 535.18 | 587 | 577 | 118.9 |
| A | 2 | 79 | 22535 | 184.74 | 587 | 577 | 118.9 |
| B | 0 | 186 | 314984 | 2843.84 | 586 | 571 | 110.6 |
| B | 0 | 190 | 37688 | 335.72 | 586 | 571 | 110.6 |
| B | 15 | 35 | 34632 | 308.08 | 586 | 571 | 110.6 |
| C | 0 | 10 | 454538 | 3424.59 | 571 | 574 | 132.6 |
| C | 15 | 214 | 223036 | 1678.2 | 571 | 574 | 132.6 |
| C | 0 | 15 | 4943 | 32.96 | 571 | 574 | 132.6 |
| D | 2 | 249 | 263194 | 1859.65 | 579 | 563 | 141.2 |
| D | 10 | 199 | 239475 | 1691.7 | 579 | 563 | 141.2 |
| D | 13 | 249 | 98606 | 694.23 | 579 | 563 | 141.2 |

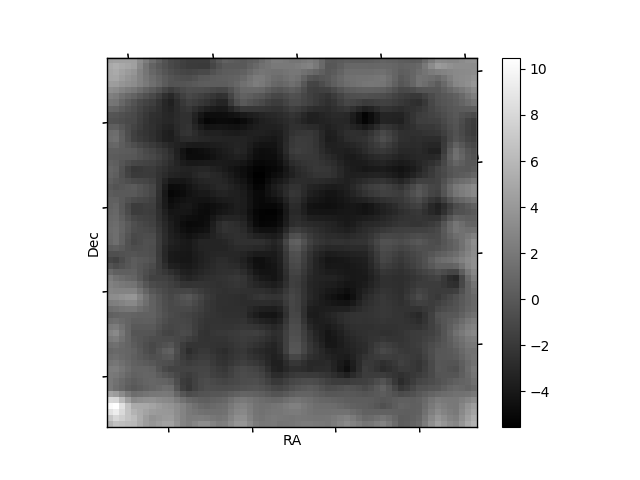

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

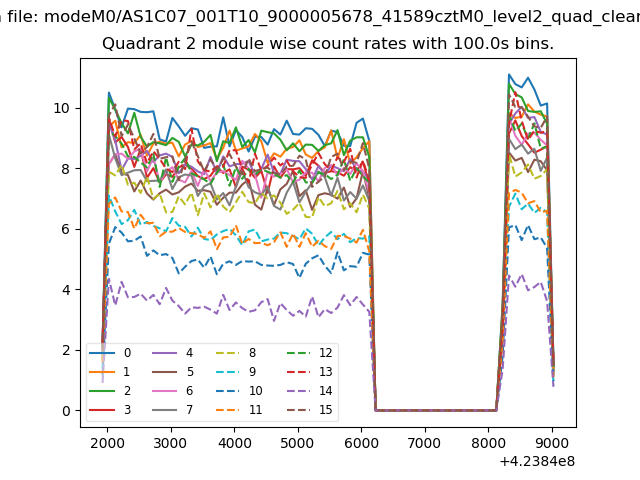

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

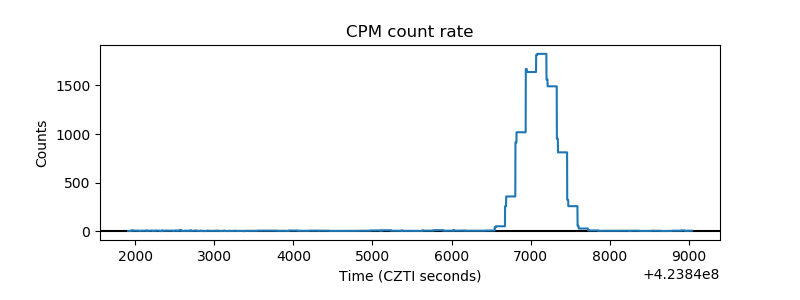

| _CPM_Rate |  |

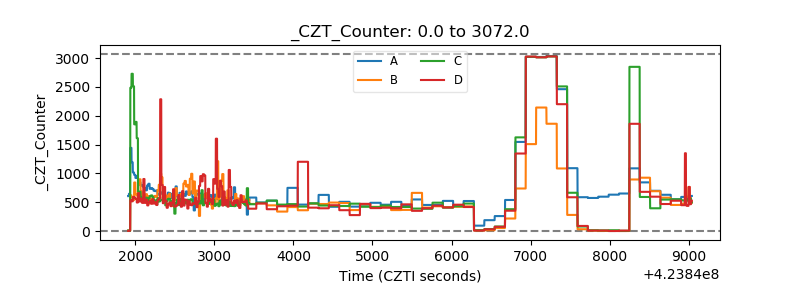

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

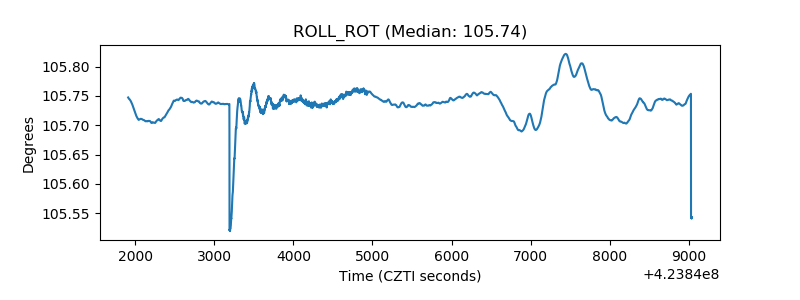

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
