| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_117T01_9000005684_41668cztM0_level2.fits | modeM0/AS1T05_117T01_9000005684_41668cztM0_level2_quad_clean.evt |
| Size (bytes) | 351,319,680 | 95,532,480 |
| Size | 335.0 MB | 91.1 MB |
| Events in quadrant A | 3,060,540 | 637,817 |
| Events in quadrant B | 2,650,237 | 652,557 |
| Events in quadrant C | 2,927,585 | 627,238 |
| Events in quadrant D | 3,901,096 | 557,561 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 25 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12775 | 2 |
| B | 0 | 12294 | 2 |
| C | 0 | 12647 | 2 |
| D | 0 | 16062 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5971 | 9 | 0.150729% |
| B | 5971 | 10 | 0.167476% |
| C | 5971 | 66 | 1.105342% |
| D | 5971 | 342 | 5.727684% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7284 | 5972 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7284 | 5972 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7284 | 5972 | 71 | 71 | 0.97% | 1.19% |  |
| D | 7284 | 5972 | 319 | 319 | 4.38% | 5.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 565847 | 4287.52 | 639 | 624 | 131.8 |
| A | 13 | 248 | 10422 | 74.32 | 639 | 624 | 131.8 |
| A | 2 | 79 | 9002 | 63.55 | 639 | 624 | 131.8 |
| B | 0 | 190 | 70117 | 560.24 | 637 | 619 | 124.1 |
| B | 5 | 255 | 39268 | 311.56 | 637 | 619 | 124.1 |
| B | 12 | 111 | 16254 | 126.04 | 637 | 619 | 124.1 |
| C | 15 | 214 | 243157 | 1666.49 | 625 | 627 | 145.5 |
| C | 0 | 10 | 225349 | 1544.12 | 625 | 627 | 145.5 |
| C | 14 | 17 | 9420 | 60.42 | 625 | 627 | 145.5 |
| D | 2 | 249 | 940801 | 6242.08 | 611 | 592 | 150.6 |
| D | 13 | 249 | 463399 | 3072.59 | 611 | 592 | 150.6 |
| D | 12 | 6 | 81873 | 539.63 | 611 | 592 | 150.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

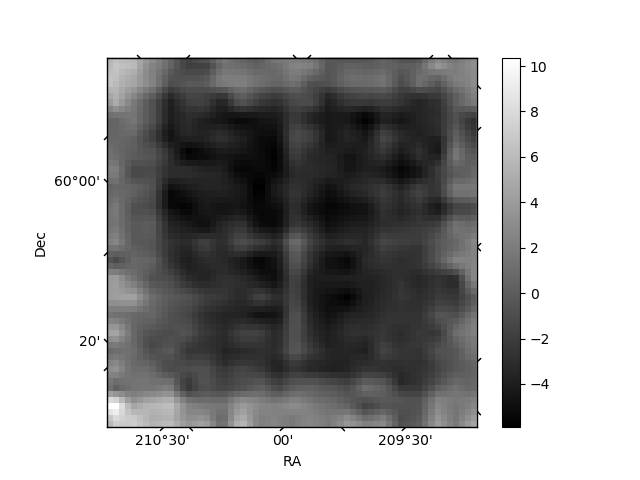

| Quadrant A |  |
 |

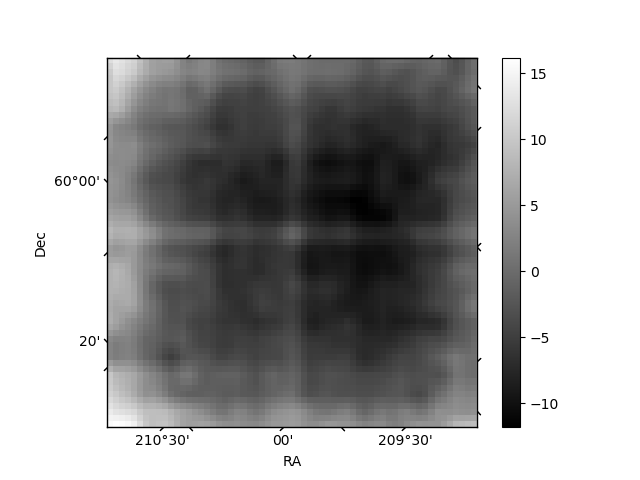

Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

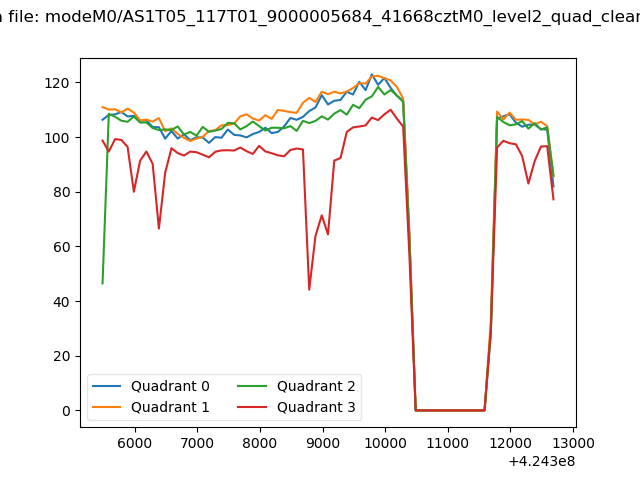

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

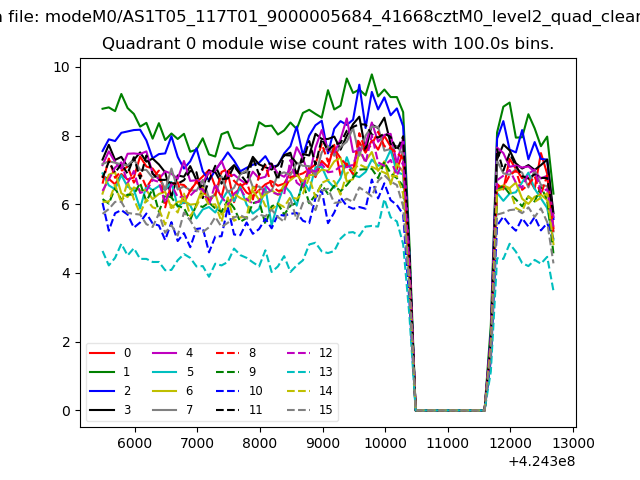

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

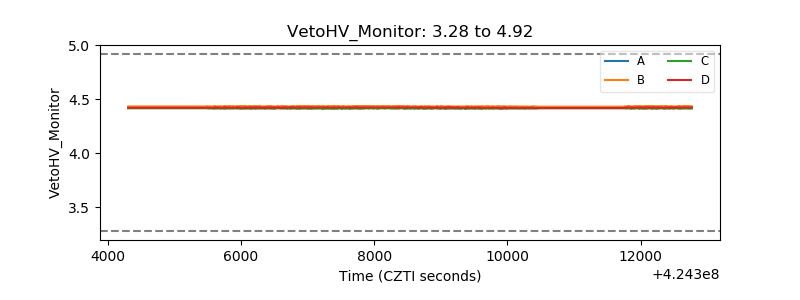

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

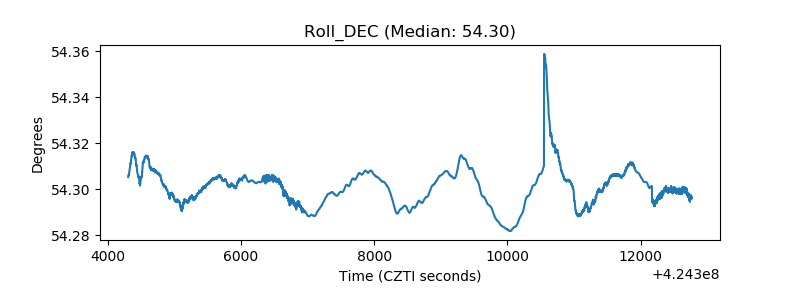

| _Roll_DEC |  |

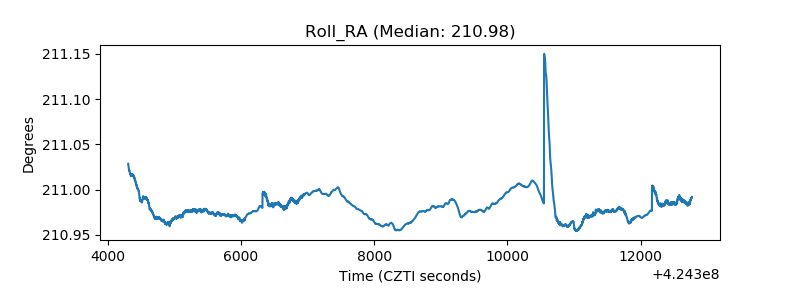

| _Roll_RA |  |

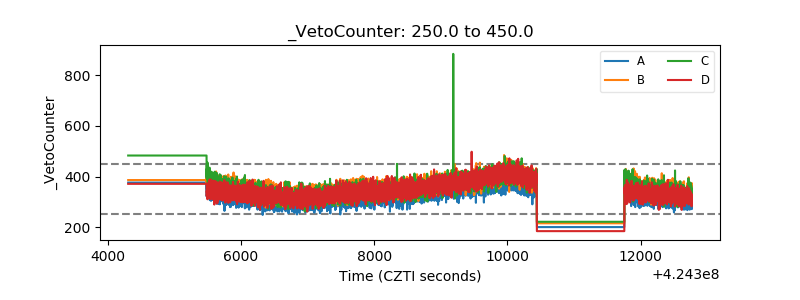

| Veto Counter |  |
