| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_093T02_9000005704_41813cztM0_level2.fits | modeM0/AS1A12_093T02_9000005704_41813cztM0_level2_quad_clean.evt |
| Size (bytes) | 369,285,120 | 94,440,960 |
| Size | 352.2 MB | 90.1 MB |
| Events in quadrant A | 3,780,764 | 628,469 |
| Events in quadrant B | 2,722,474 | 651,267 |
| Events in quadrant C | 3,442,254 | 597,337 |
| Events in quadrant D | 3,263,569 | 569,076 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14928 | 2 |
| B | 0 | 12258 | 2 |
| C | 0 | 13967 | 2 |
| D | 0 | 14017 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5918 | 112 | 1.892531% |
| B | 5917 | 12 | 0.202805% |
| C | 5917 | 231 | 3.904005% |
| D | 5917 | 153 | 2.585770% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

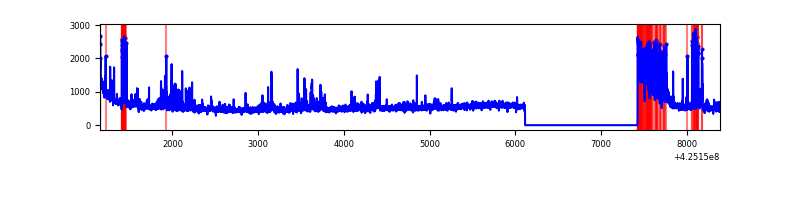

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7231 | 5919 | 109 | 109 | 1.51% | 1.84% |  |
| B | 7229 | 5916 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7229 | 5916 | 231 | 231 | 3.20% | 3.90% |  |
| D | 7229 | 5917 | 136 | 136 | 1.88% | 2.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 24 | 595201 | 4497.13 | 639 | 625 | 132.2 |
| A | 10 | 83 | 586295 | 4429.77 | 639 | 625 | 132.2 |
| A | 12 | 189 | 43805 | 326.6 | 639 | 625 | 132.2 |
| B | 4 | 171 | 151935 | 1192.98 | 639 | 620 | 126.8 |
| B | 0 | 183 | 29559 | 228.16 | 639 | 620 | 126.8 |
| B | 12 | 111 | 15966 | 120.99 | 639 | 620 | 126.8 |
| C | 0 | 10 | 800056 | 5568.71 | 608 | 611 | 143.6 |
| C | 15 | 214 | 232131 | 1612.7 | 608 | 611 | 143.6 |
| C | 15 | 159 | 34586 | 236.66 | 608 | 611 | 143.6 |
| D | 2 | 249 | 343195 | 2231.27 | 619 | 601 | 153.5 |
| D | 13 | 249 | 300660 | 1954.24 | 619 | 601 | 153.5 |
| D | 12 | 79 | 99970 | 647.17 | 619 | 601 | 153.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

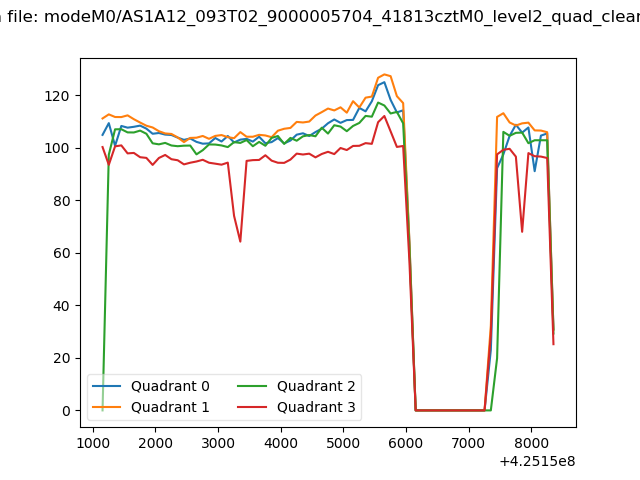

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

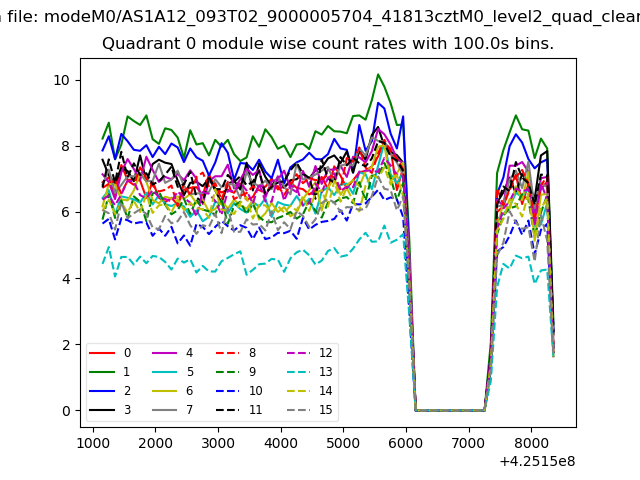

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

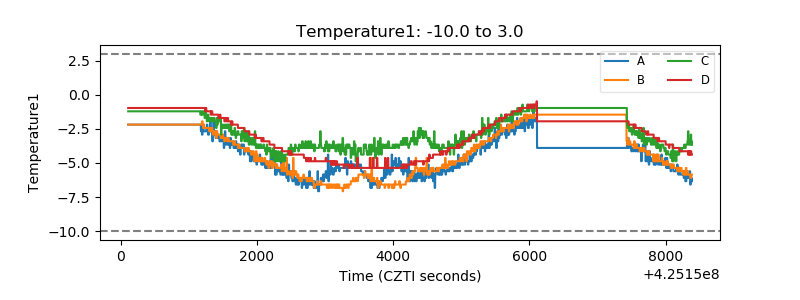

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

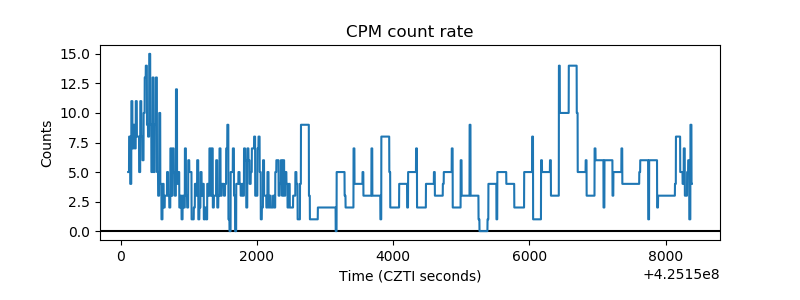

| _CPM_Rate |  |

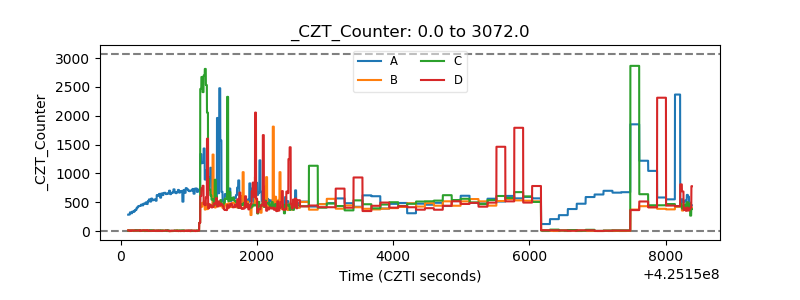

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

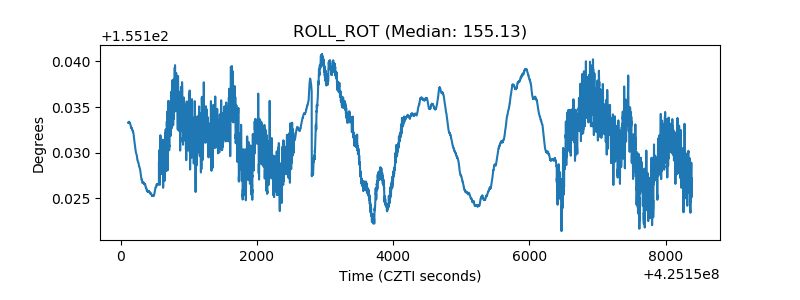

| _ROLL_ROT |  |
| _Roll_DEC |  |

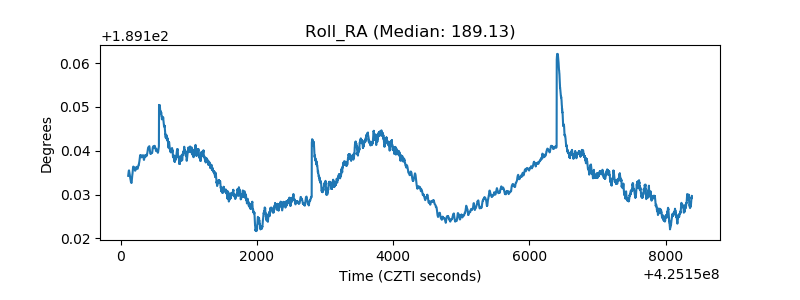

| _Roll_RA |  |
| Veto Counter |  |
