| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T11_9000005710_41852cztM0_level2.fits | modeM0/AS1C07_001T11_9000005710_41852cztM0_level2_quad_clean.evt |
| Size (bytes) | 377,856,000 | 84,870,720 |
| Size | 360.4 MB | 80.9 MB |
| Events in quadrant A | 3,650,341 | 584,897 |
| Events in quadrant B | 2,541,692 | 604,882 |
| Events in quadrant C | 3,223,237 | 550,090 |
| Events in quadrant D | 4,193,809 | 489,405 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 98 | 0 |
| D | 0 | 98 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13900 | 1 |
| B | 0 | 10739 | 1 |
| C | 0 | 12427 | 2 |
| D | 0 | 15748 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4857 | 175 | 3.603047% |
| B | 4857 | 67 | 1.379452% |
| C | 4857 | 240 | 4.941322% |
| D | 4857 | 509 | 10.479720% |

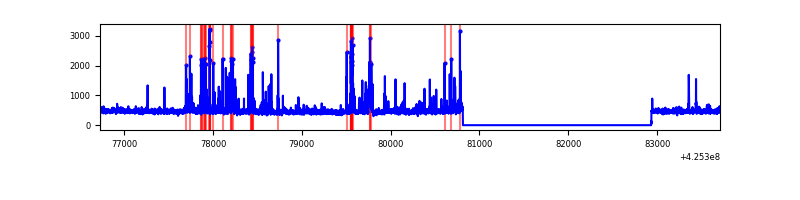

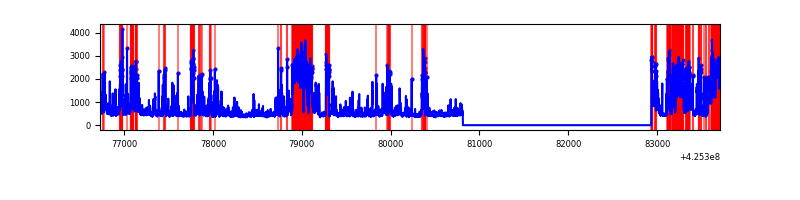

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6979 | 4858 | 119 | 119 | 1.71% | 2.45% |  |
| B | 6979 | 4858 | 45 | 45 | 0.64% | 0.93% |  |
| C | 6979 | 4858 | 243 | 243 | 3.48% | 5.00% |  |
| D | 6979 | 4858 | 501 | 501 | 7.18% | 10.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 24 | 1002633 | 8924.48 | 551 | 540 | 112.3 |
| A | 10 | 83 | 490086 | 4359.82 | 551 | 540 | 112.3 |
| A | 13 | 254 | 8328 | 69.36 | 551 | 540 | 112.3 |
| B | 5 | 255 | 355460 | 3440.59 | 546 | 533 | 103.2 |
| B | 15 | 35 | 14291 | 133.37 | 546 | 533 | 103.2 |
| B | 12 | 111 | 12311 | 114.17 | 546 | 533 | 103.2 |
| C | 0 | 10 | 996849 | 8334.17 | 520 | 523 | 119.5 |
| C | 15 | 214 | 192327 | 1604.42 | 520 | 523 | 119.5 |
| C | 13 | 61 | 3520 | 25.07 | 520 | 523 | 119.5 |
| D | 12 | 79 | 869433 | 6833.3 | 522 | 508 | 127.2 |
| D | 2 | 249 | 698089 | 5485.84 | 522 | 508 | 127.2 |
| D | 13 | 249 | 474799 | 3729.87 | 522 | 508 | 127.2 |

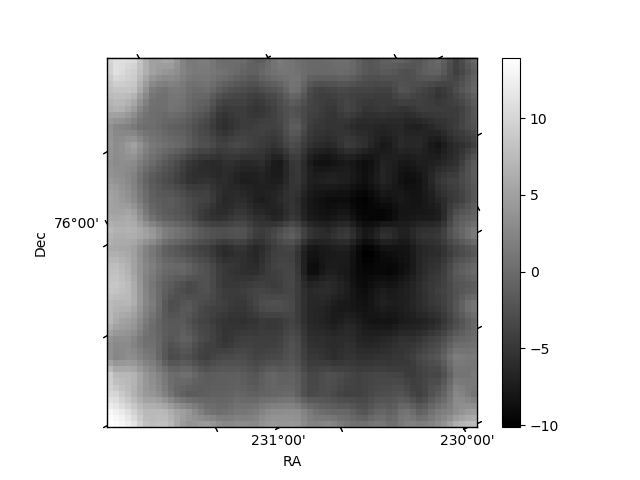

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

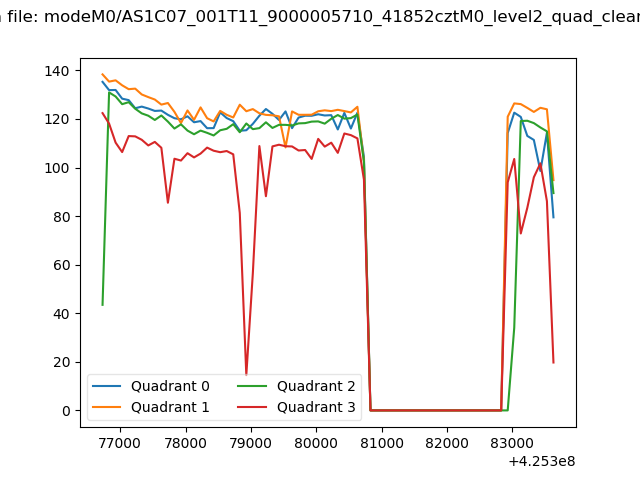

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

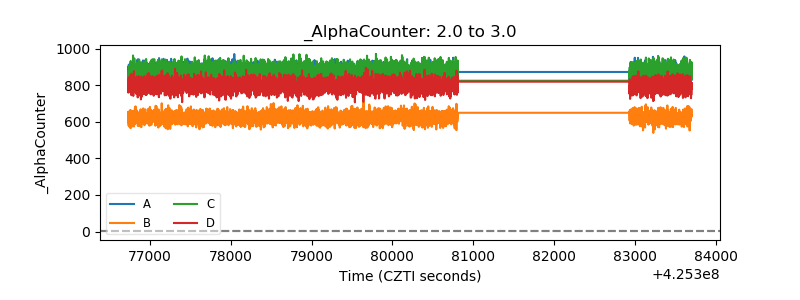

| Alpha Counter |  |

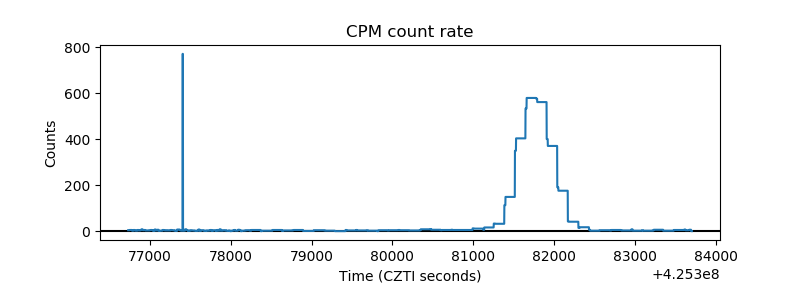

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

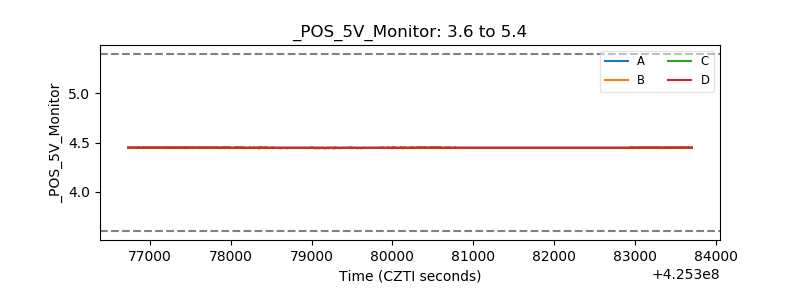

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

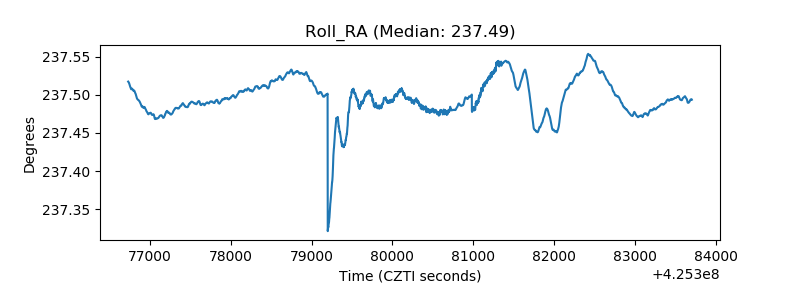

| _Roll_RA |  |
| Veto Counter |  |
