| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T11_9000005710_41864cztM0_level2.fits | modeM0/AS1C07_001T11_9000005710_41864cztM0_level2_quad_clean.evt |
| Size (bytes) | 339,888,960 | 85,996,800 |
| Size | 324.1 MB | 82.0 MB |
| Events in quadrant A | 3,469,513 | 577,521 |
| Events in quadrant B | 2,507,095 | 596,651 |
| Events in quadrant C | 2,798,238 | 558,886 |
| Events in quadrant D | 3,410,097 | 514,193 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13544 | 2 |
| B | 0 | 11044 | 1 |
| C | 0 | 11349 | 1 |
| D | 0 | 13605 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5091 | 151 | 2.966018% |
| B | 5091 | 90 | 1.767826% |
| C | 5091 | 129 | 2.533883% |
| D | 5091 | 206 | 4.046356% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

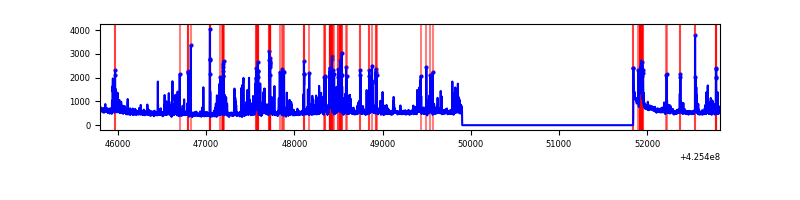

| A | 7032 | 5092 | 121 | 121 | 1.72% | 2.38% |  |
| B | 7032 | 5092 | 49 | 49 | 0.70% | 0.96% |  |
| C | 7032 | 5092 | 127 | 127 | 1.81% | 2.49% |  |
| D | 7032 | 5092 | 207 | 207 | 2.94% | 4.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 24 | 830563 | 7281.65 | 556 | 544 | 114.0 |
| A | 10 | 83 | 465706 | 4080.81 | 556 | 544 | 114.0 |
| A | 13 | 248 | 14211 | 119.9 | 556 | 544 | 114.0 |
| B | 15 | 85 | 167133 | 1580.69 | 555 | 540 | 105.4 |
| B | 0 | 245 | 74657 | 703.25 | 555 | 540 | 105.4 |
| B | 15 | 35 | 42735 | 400.36 | 555 | 540 | 105.4 |
| C | 0 | 10 | 524585 | 4286.07 | 530 | 535 | 122.3 |
| C | 15 | 214 | 202811 | 1654.36 | 530 | 535 | 122.3 |
| C | 13 | 61 | 3557 | 24.72 | 530 | 535 | 122.3 |
| D | 12 | 79 | 389504 | 3053.74 | 530 | 515 | 127.4 |
| D | 1 | 47 | 356985 | 2798.45 | 530 | 515 | 127.4 |
| D | 13 | 249 | 215121 | 1684.75 | 530 | 515 | 127.4 |

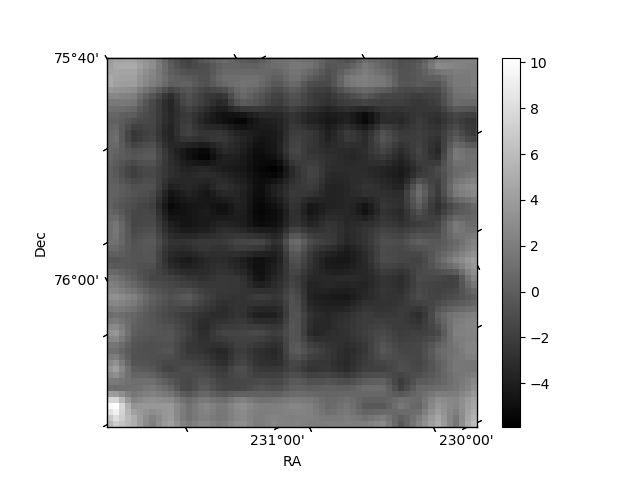

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

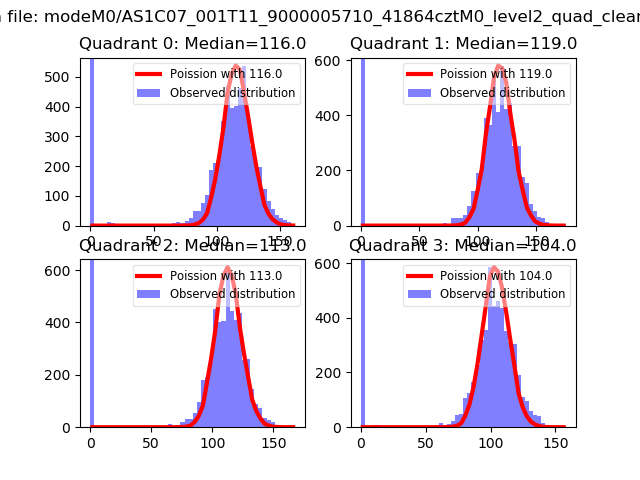

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

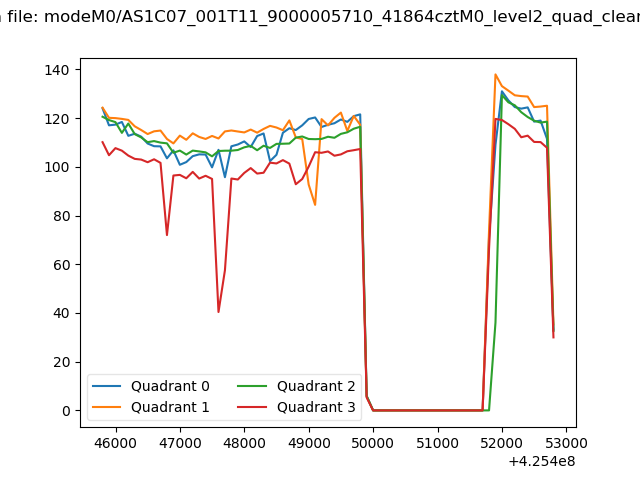

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

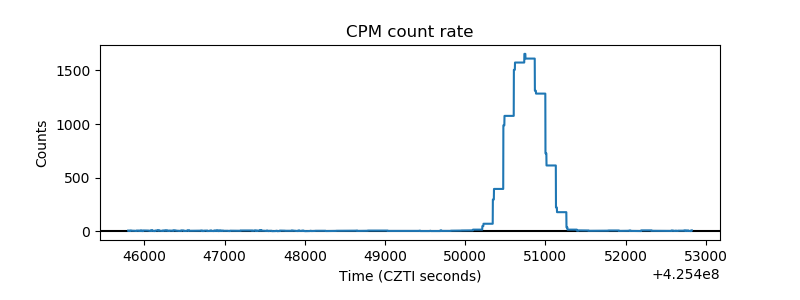

| _CPM_Rate |  |

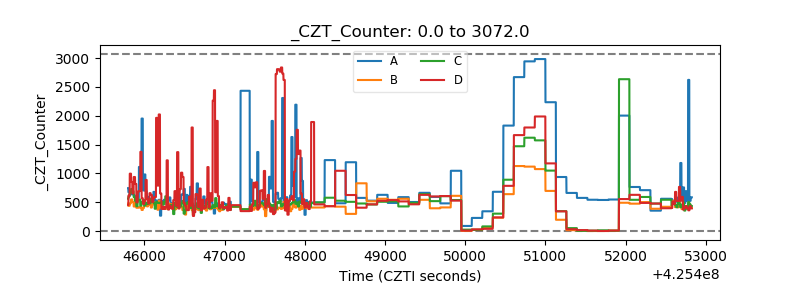

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

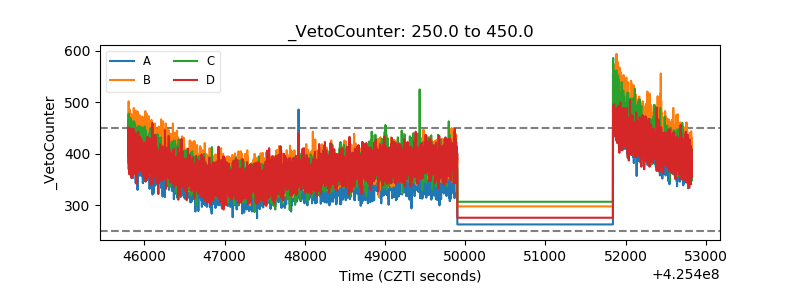

| Veto Counter |  |
