| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_099T01_9000005716_41911cztM0_level2.fits | modeM0/AS1A12_099T01_9000005716_41911cztM0_level2_quad_clean.evt |
| Size (bytes) | 625,400,640 | 67,464,000 |
| Size | 596.4 MB | 64.3 MB |
| Events in quadrant A | 3,520,607 | 558,182 |
| Events in quadrant B | 2,338,674 | 596,945 |
| Events in quadrant C | 3,115,019 | 540,952 |
| Events in quadrant D | 13,791,141 | 117 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 28 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13497 | 2 |
| B | 0 | 10253 | 2 |
| C | 0 | 12163 | 2 |
| D | 0 | 43938 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4945 | 217 | 4.388271% |
| B | 4945 | 17 | 0.343782% |
| C | 4945 | 298 | 6.026289% |
| D | 4945 | 4944 | 99.979778% |

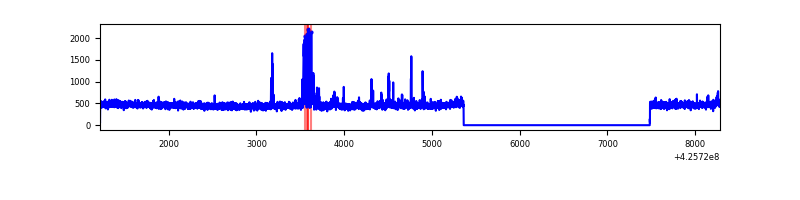

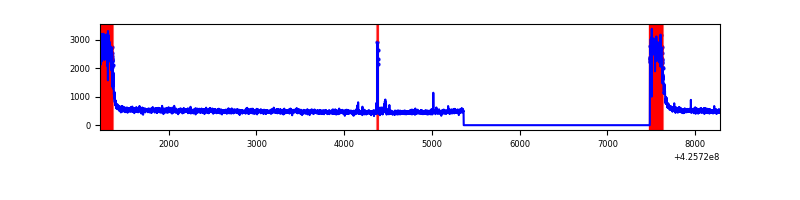

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7069 | 4946 | 160 | 160 | 2.26% | 3.23% |  |
| B | 7069 | 4946 | 5 | 5 | 0.07% | 0.10% |  |
| C | 7069 | 4946 | 284 | 284 | 4.02% | 5.74% |  |
| D | 7069 | 4946 | 4609 | 4609 | 65.20% | 93.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 24 | 881435 | 7869.21 | 550 | 540 | 111.9 |
| A | 10 | 83 | 498083 | 4444.65 | 550 | 540 | 111.9 |
| A | 13 | 6 | 6712 | 55.14 | 550 | 540 | 111.9 |
| B | 5 | 255 | 108152 | 1000.21 | 556 | 539 | 107.6 |
| B | 0 | 245 | 24326 | 221.09 | 556 | 539 | 107.6 |
| B | 12 | 111 | 13438 | 119.89 | 556 | 539 | 107.6 |
| C | 0 | 10 | 835114 | 6871.74 | 524 | 528 | 121.5 |
| C | 15 | 214 | 192776 | 1582.91 | 524 | 528 | 121.5 |
| C | 0 | 15 | 22920 | 184.37 | 524 | 528 | 121.5 |
| D | 12 | 79 | 13302147 | 502434.6 | 103 | 100 | 26.5 |
| D | 13 | 249 | 29164 | 1097.78 | 103 | 100 | 26.5 |
| D | 12 | 6 | 20472 | 769.48 | 103 | 100 | 26.5 |

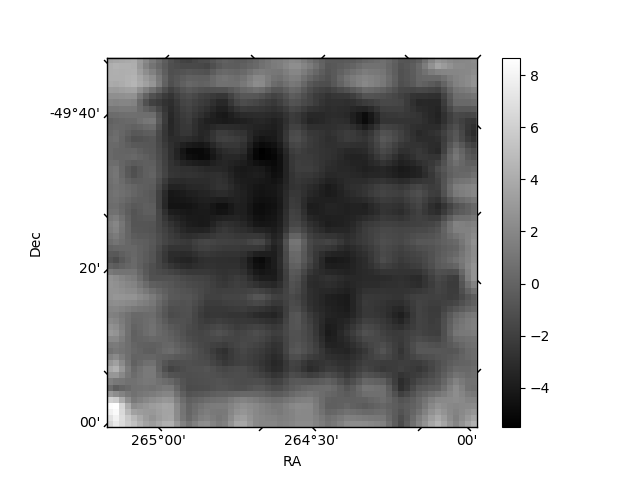

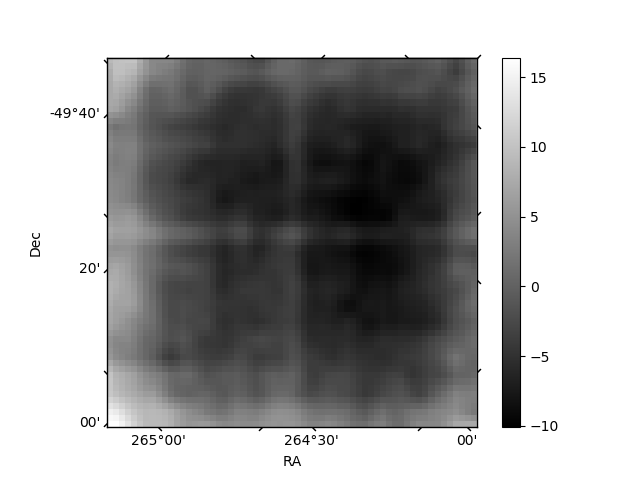

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

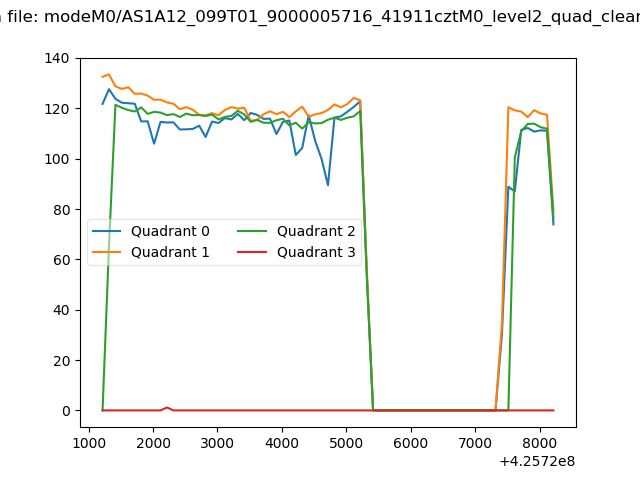

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

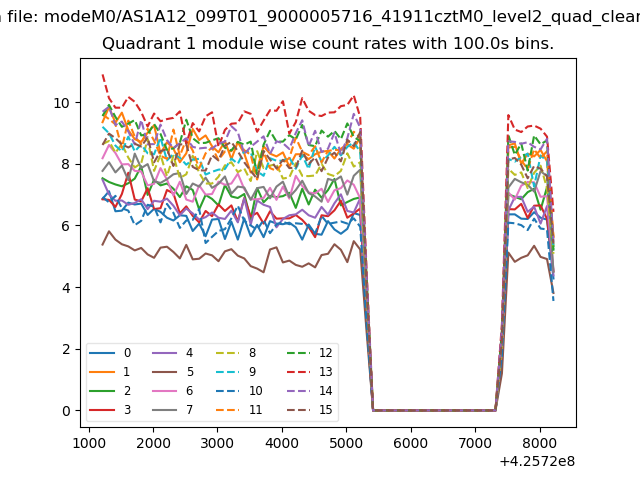

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

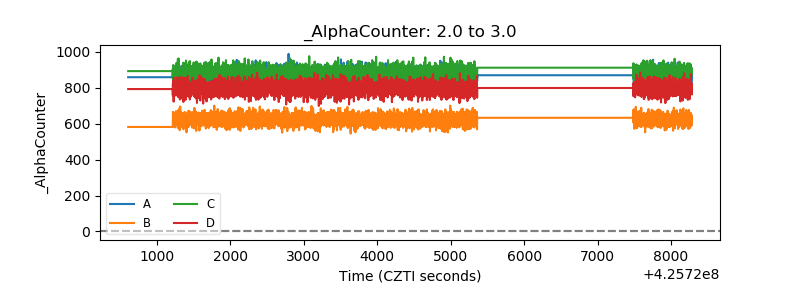

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
