| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_099T01_9000005716_41913cztM0_level2.fits | modeM0/AS1A12_099T01_9000005716_41913cztM0_level2_quad_clean.evt |
| Size (bytes) | 624,905,280 | 79,686,720 |
| Size | 596.0 MB | 76.0 MB |
| Events in quadrant A | 3,244,115 | 625,727 |
| Events in quadrant B | 2,690,417 | 643,306 |
| Events in quadrant C | 3,322,411 | 592,925 |
| Events in quadrant D | 13,431,578 | 151,631 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34 | 0 |
| B | 0 | 34 | 0 |
| C | 0 | 34 | 0 |
| D | 0 | 34 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13106 | 2 |
| B | 0 | 11643 | 2 |
| C | 0 | 13468 | 2 |
| D | 0 | 43455 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5702 | 46 | 0.806734% |
| B | 5702 | 12 | 0.210452% |
| C | 5703 | 269 | 4.716816% |
| D | 5703 | 4385 | 76.889356% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

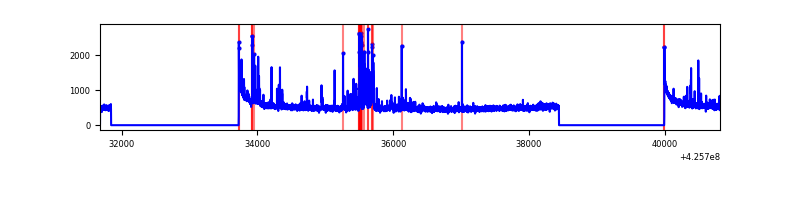

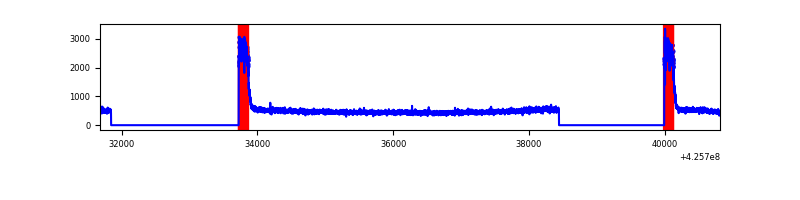

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9135 | 5704 | 32 | 32 | 0.35% | 0.56% |  |
| B | 9135 | 5704 | 4 | 4 | 0.04% | 0.07% |  |
| C | 9136 | 5705 | 264 | 264 | 2.89% | 4.63% |  |
| D | 9136 | 5705 | 4175 | 4175 | 45.70% | 73.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 559787 | 4363.66 | 620 | 606 | 128.1 |
| A | 14 | 24 | 270061 | 2102.74 | 620 | 606 | 128.1 |
| A | 3 | 1 | 12494 | 92.77 | 620 | 606 | 128.1 |
| B | 7 | 202 | 163295 | 1361.4 | 616 | 598 | 119.5 |
| B | 0 | 190 | 38471 | 316.91 | 616 | 598 | 119.5 |
| B | 0 | 245 | 22420 | 182.6 | 616 | 598 | 119.5 |
| C | 0 | 10 | 779675 | 5615.09 | 586 | 588 | 138.7 |
| C | 15 | 214 | 223875 | 1609.29 | 586 | 588 | 138.7 |
| C | 0 | 15 | 34372 | 243.49 | 586 | 588 | 138.7 |
| D | 12 | 79 | 12134855 | 168469.0 | 288 | 280 | 72.0 |
| D | 13 | 249 | 78754 | 1089.48 | 288 | 280 | 72.0 |
| D | 12 | 6 | 49364 | 681.45 | 288 | 280 | 72.0 |

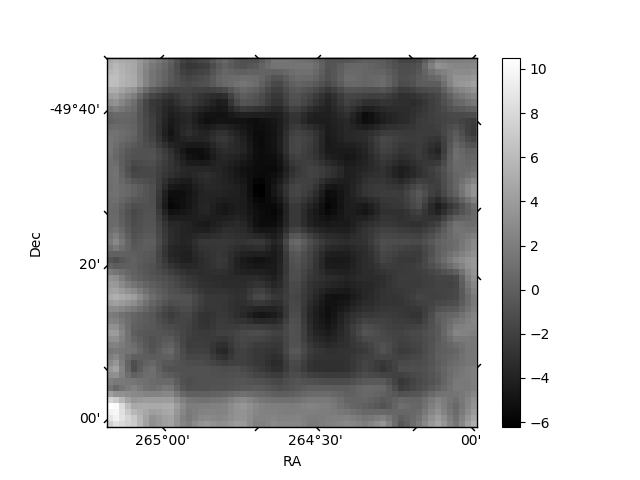

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

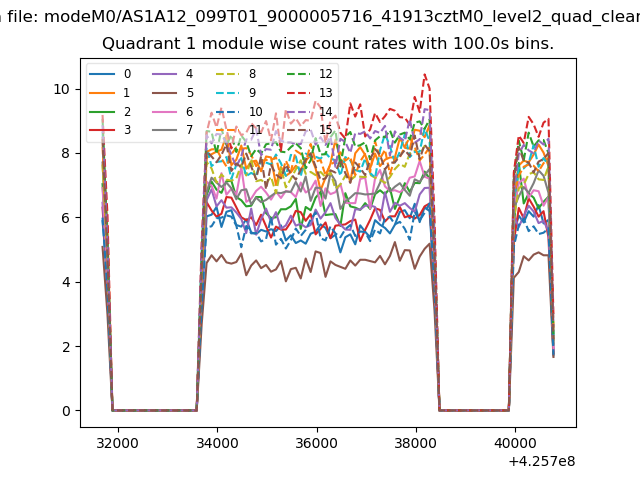

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

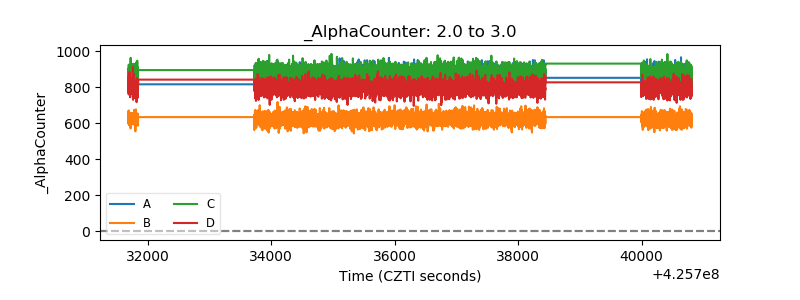

| Alpha Counter |  |

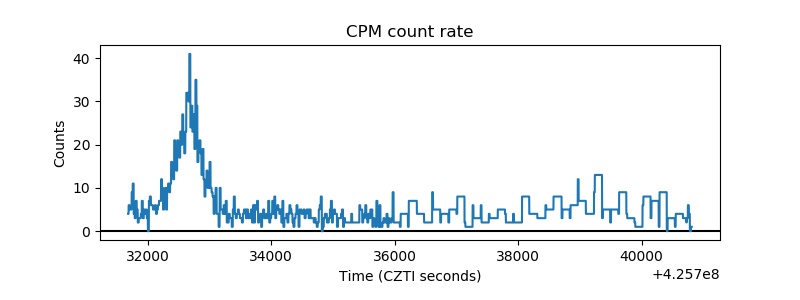

| _CPM_Rate |  |

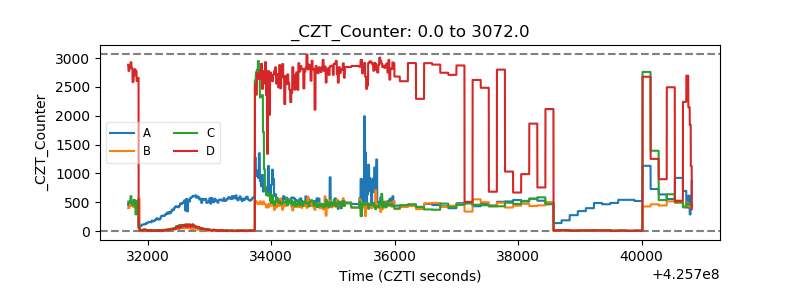

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

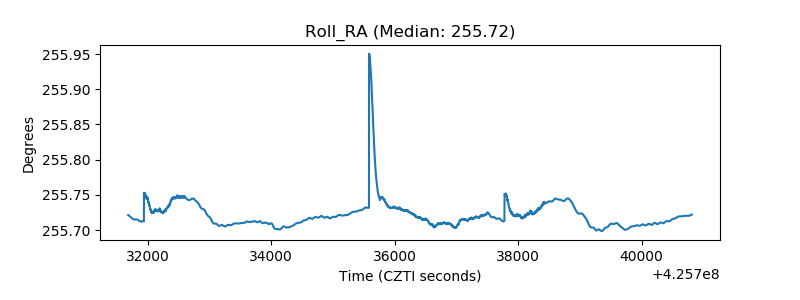

| _Roll_RA |  |
| Veto Counter |  |
