| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_118T01_9000005718_41919cztM0_level2.fits | modeM0/AS1T05_118T01_9000005718_41919cztM0_level2_quad_clean.evt |
| Size (bytes) | 644,544,000 | 71,372,160 |
| Size | 614.7 MB | 68.1 MB |
| Events in quadrant A | 3,202,263 | 575,567 |
| Events in quadrant B | 2,665,170 | 597,163 |
| Events in quadrant C | 3,080,489 | 559,950 |
| Events in quadrant D | 14,487,115 | 46,534 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 31 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13036 | 3 |
| B | 0 | 11910 | 2 |
| C | 0 | 12649 | 2 |
| D | 0 | 46284 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5448 | 91 | 1.670338% |
| B | 5448 | 34 | 0.624082% |
| C | 5448 | 220 | 4.038179% |
| D | 5448 | 5076 | 93.171806% |

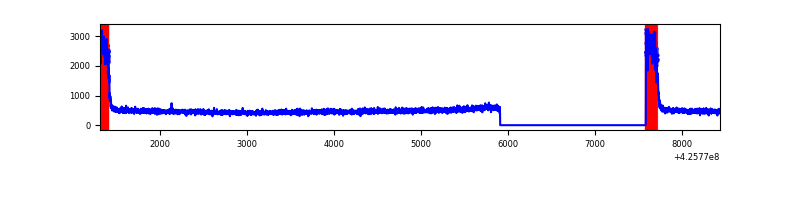

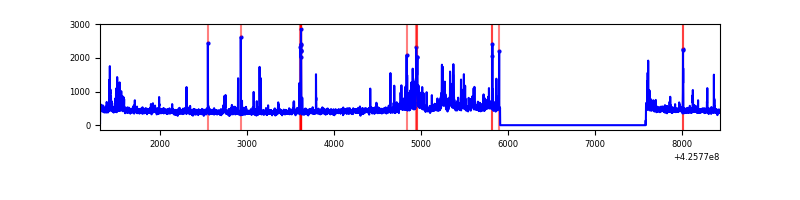

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7122 | 5449 | 69 | 69 | 0.97% | 1.27% |  |
| B | 7122 | 5449 | 19 | 19 | 0.27% | 0.35% |  |
| C | 7122 | 5449 | 217 | 217 | 3.05% | 3.98% |  |
| D | 7122 | 5449 | 4956 | 4956 | 69.59% | 90.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 549639 | 4631.18 | 578 | 566 | 118.6 |
| A | 14 | 24 | 372004 | 3132.91 | 578 | 566 | 118.6 |
| A | 2 | 79 | 20327 | 166.67 | 578 | 566 | 118.6 |
| B | 12 | 0 | 142855 | 1263.28 | 581 | 567 | 112.6 |
| B | 5 | 255 | 83901 | 739.87 | 581 | 567 | 112.6 |
| B | 0 | 190 | 52059 | 457.16 | 581 | 567 | 112.6 |
| C | 0 | 10 | 655878 | 4948.98 | 558 | 560 | 132.4 |
| C | 15 | 214 | 216037 | 1627.29 | 558 | 560 | 132.4 |
| C | 0 | 15 | 33295 | 247.22 | 558 | 560 | 132.4 |
| D | 12 | 79 | 13397925 | 272578.47 | 191 | 184 | 49.2 |
| D | 13 | 249 | 143823 | 2922.35 | 191 | 184 | 49.2 |
| D | 2 | 249 | 76190 | 1546.35 | 191 | 184 | 49.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

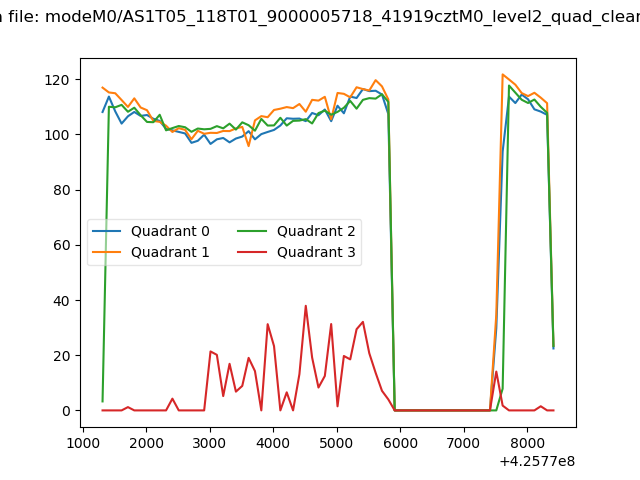

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

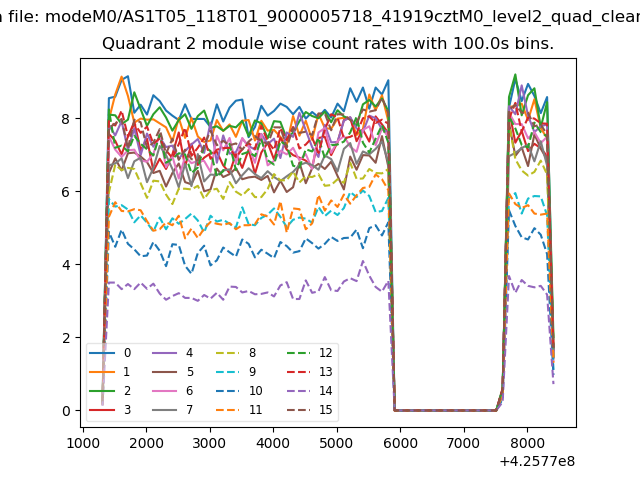

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

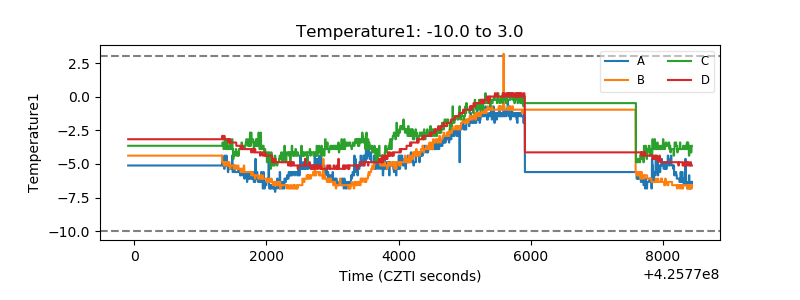

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

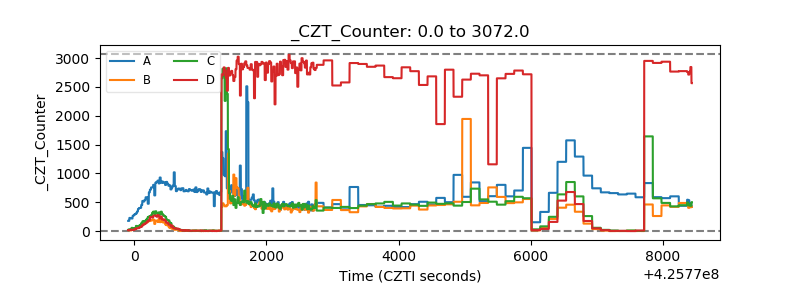

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

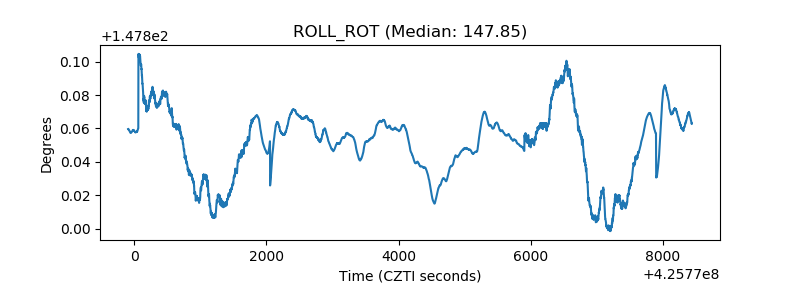

| _ROLL_ROT |  |

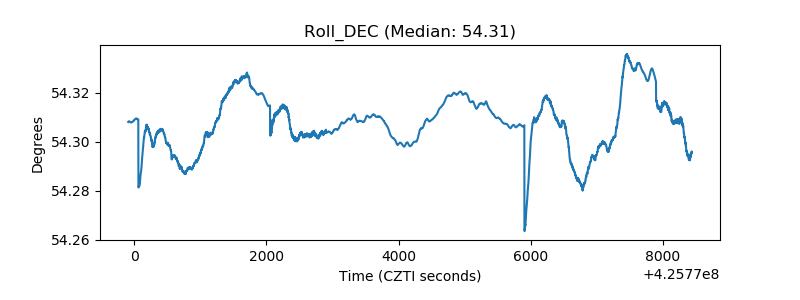

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
