| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_104T01_9000005728_41972cztM0_level2.fits | modeM0/AS1A12_104T01_9000005728_41972cztM0_level2_quad_clean.evt |
| Size (bytes) | 324,961,920 | 97,240,320 |
| Size | 309.9 MB | 92.7 MB |
| Events in quadrant A | 3,116,061 | 650,150 |
| Events in quadrant B | 2,572,318 | 666,807 |
| Events in quadrant C | 2,729,679 | 633,170 |
| Events in quadrant D | 3,148,668 | 579,904 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12849 | 3 |
| B | 0 | 11939 | 2 |
| C | 0 | 11888 | 2 |
| D | 0 | 13616 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29 | 0 |
| B | 0 | 29 | 0 |
| C | 0 | 29 | 0 |
| D | 0 | 29 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5932 | 19 | 0.320297% |
| B | 5932 | 8 | 0.134862% |
| C | 5932 | 2 | 0.033715% |
| D | 5932 | 89 | 1.500337% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8798 | 5934 | 7 | 7 | 0.08% | 0.12% |  |
| B | 8798 | 5934 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8798 | 5934 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8798 | 5934 | 72 | 72 | 0.82% | 1.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 571391 | 4302.65 | 647 | 634 | 132.7 |
| A | 2 | 79 | 34546 | 255.65 | 647 | 634 | 132.7 |
| A | 3 | 137 | 7184 | 49.38 | 647 | 634 | 132.7 |
| B | 0 | 190 | 37905 | 301.53 | 640 | 623 | 123.6 |
| B | 12 | 111 | 15977 | 124.18 | 640 | 623 | 123.6 |
| B | 11 | 111 | 15075 | 116.89 | 640 | 623 | 123.6 |
| C | 15 | 214 | 260837 | 1762.43 | 630 | 634 | 147.6 |
| C | 8 | 79 | 10266 | 65.24 | 630 | 634 | 147.6 |
| C | 13 | 61 | 4065 | 23.24 | 630 | 634 | 147.6 |
| D | 13 | 249 | 360454 | 2327.76 | 627 | 607 | 154.6 |
| D | 10 | 199 | 95759 | 615.52 | 627 | 607 | 154.6 |
| D | 2 | 137 | 76061 | 488.09 | 627 | 607 | 154.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

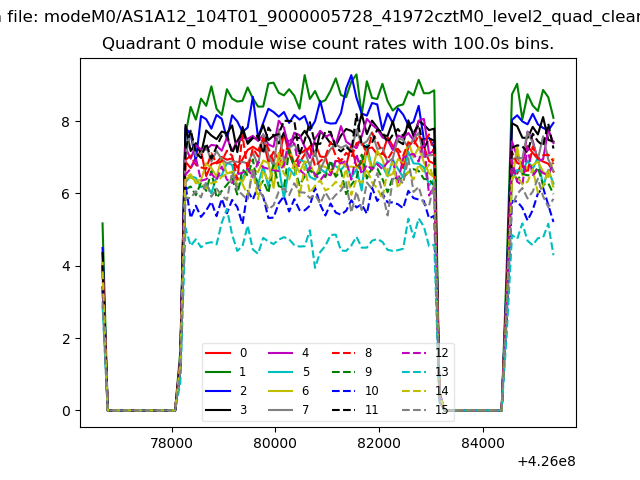

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

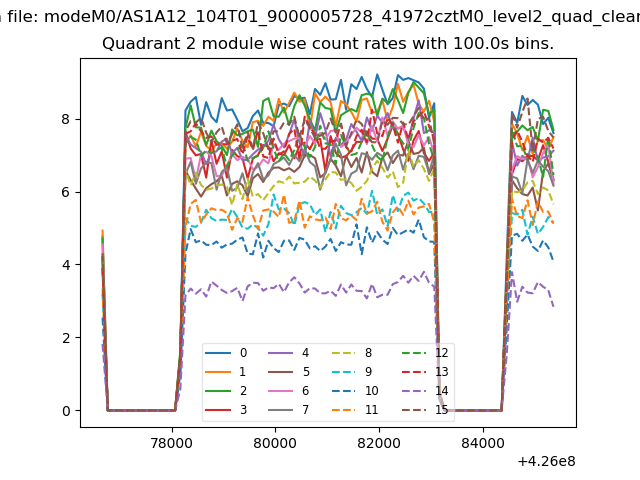

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

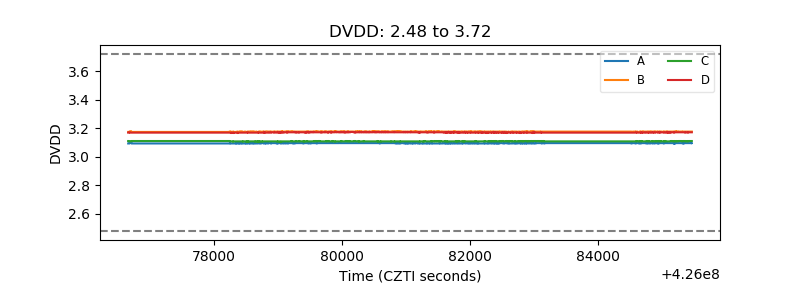

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

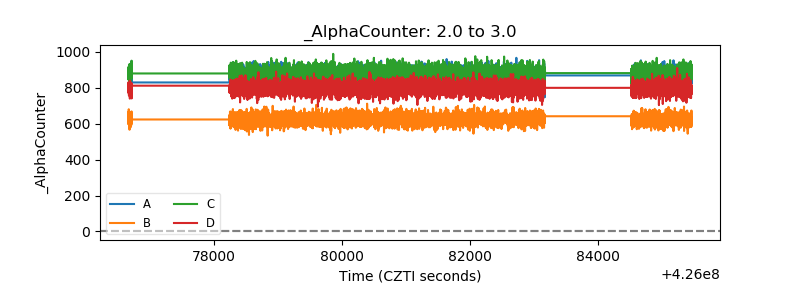

| Alpha Counter |  |
| _CPM_Rate |  |

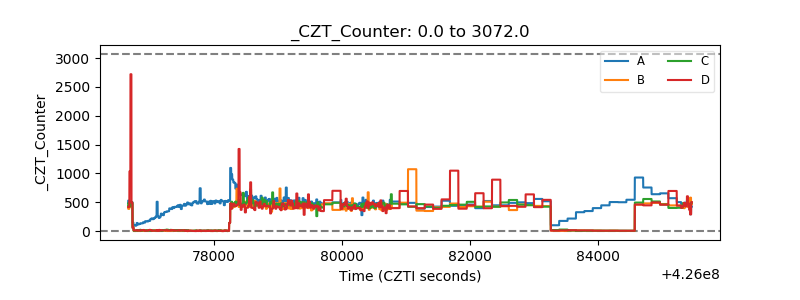

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
