| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_132T01_9000005730_41991cztM0_level2.fits | modeM0/AS1T05_132T01_9000005730_41991cztM0_level2_quad_clean.evt |
| Size (bytes) | 46,333,440 | 7,142,400 |
| Size | 44.2 MB | 6.8 MB |
| Events in quadrant A | 226,586 | 50,869 |
| Events in quadrant B | 240,367 | 51,293 |
| Events in quadrant C | 211,835 | 49,724 |
| Events in quadrant D | 996,935 | 24,467 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 931 | 0 |
| B | 0 | 1040 | 0 |
| C | 0 | 926 | 0 |
| D | 0 | 3275 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 461 | 0 | 0.000000% |
| B | 461 | 6 | 1.301518% |
| C | 461 | 0 | 0.000000% |
| D | 460 | 247 | 53.695652% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 461 | 461 | 0 | 0 | 0.00% | 0.00% |  |
| B | 461 | 461 | 5 | 5 | 1.08% | 1.08% |  |
| C | 461 | 461 | 0 | 0 | 0.00% | 0.00% |  |
| D | 460 | 460 | 296 | 296 | 64.35% | 64.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 38852 | 3155.01 | 48 | 47 | 12.3 |
| A | 15 | 223 | 958 | 74.07 | 48 | 47 | 12.3 |
| A | 13 | 6 | 894 | 68.86 | 48 | 47 | 12.3 |
| B | 5 | 255 | 43243 | 3675.73 | 48 | 46 | 11.8 |
| B | 0 | 190 | 5609 | 473.37 | 48 | 46 | 11.8 |
| B | 0 | 156 | 1354 | 111.3 | 48 | 46 | 11.8 |
| C | 15 | 214 | 19211 | 1445.76 | 49 | 49 | 13.3 |
| C | 0 | 207 | 826 | 58.62 | 49 | 49 | 13.3 |
| C | 8 | 229 | 360 | 23.46 | 49 | 49 | 13.3 |
| D | 1 | 52 | 515047 | 42369.28 | 40 | 38 | 12.2 |
| D | 2 | 249 | 315872 | 25983.35 | 40 | 38 | 12.2 |
| D | 10 | 199 | 3391 | 275.85 | 40 | 38 | 12.2 |

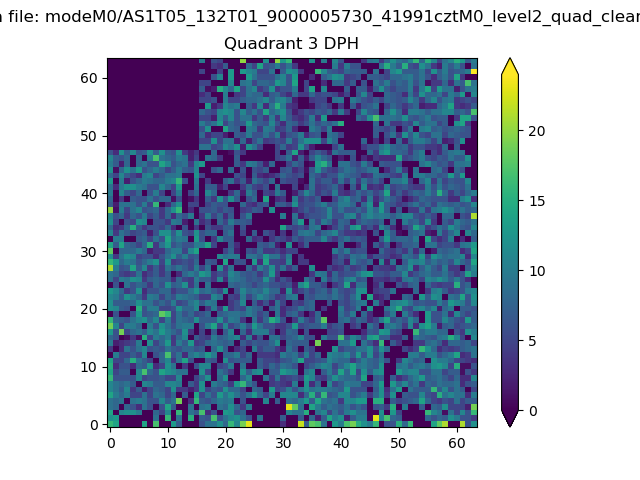

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

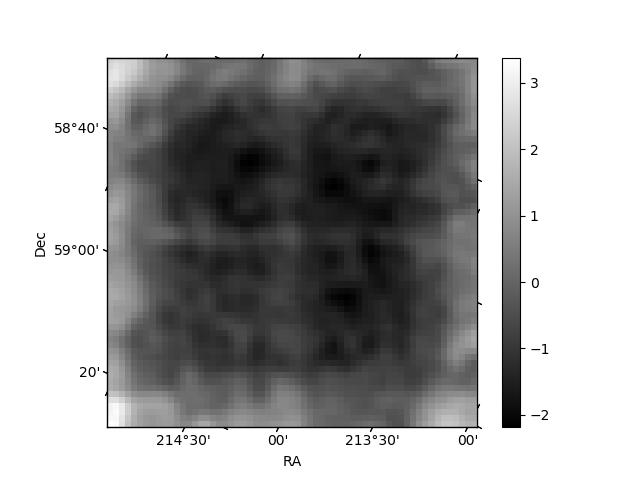

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

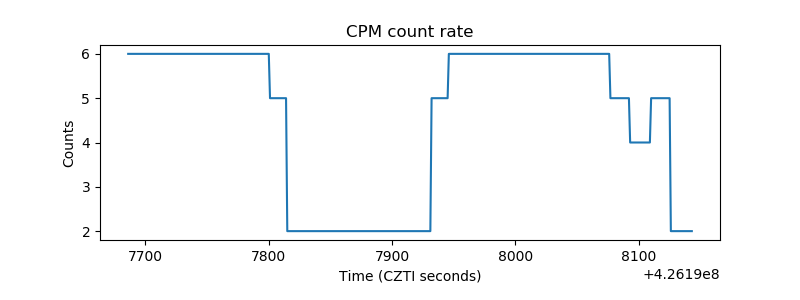

| _CPM_Rate |  |

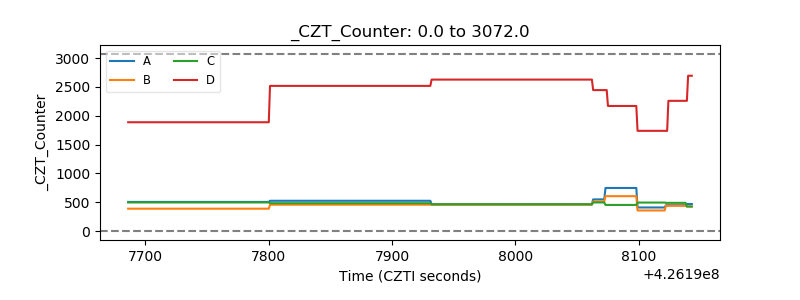

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

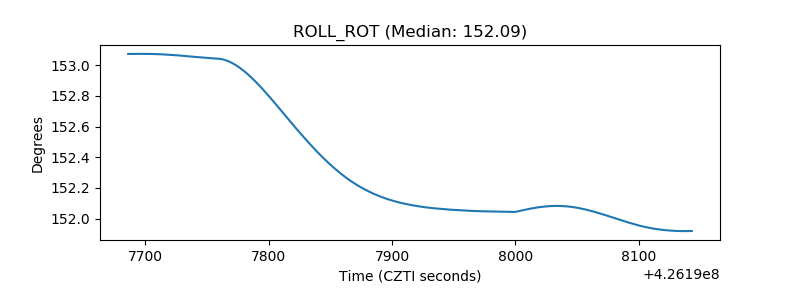

| _ROLL_ROT |  |

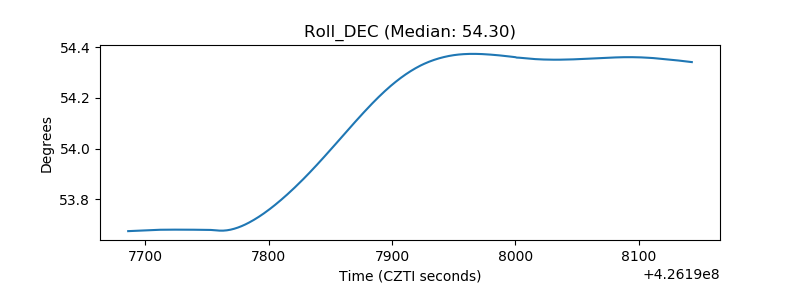

| _Roll_DEC |  |

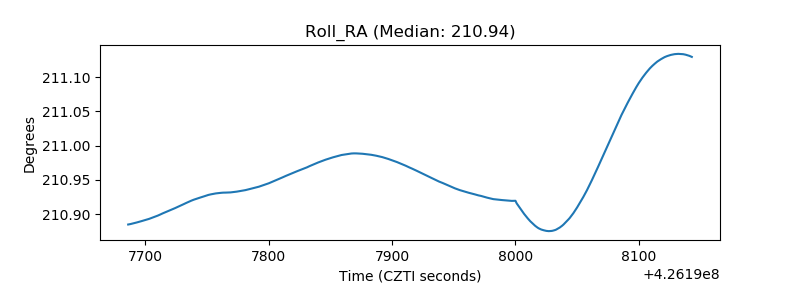

| _Roll_RA |  |
| Veto Counter |  |
