| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_037T01_9000005736_42029cztM0_level2.fits | modeM0/AS1A12_037T01_9000005736_42029cztM0_level2_quad_clean.evt |
| Size (bytes) | 333,288,000 | 90,489,600 |
| Size | 317.8 MB | 86.3 MB |
| Events in quadrant A | 3,992,772 | 583,454 |
| Events in quadrant B | 2,713,166 | 624,721 |
| Events in quadrant C | 2,569,598 | 596,036 |
| Events in quadrant D | 2,629,159 | 547,607 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15299 | 3 |
| B | 0 | 11729 | 2 |
| C | 0 | 11158 | 2 |
| D | 0 | 11864 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 27 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5551 | 292 | 5.260313% |
| B | 5551 | 20 | 0.360295% |
| C | 5551 | 5 | 0.090074% |
| D | 5551 | 20 | 0.360295% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7104 | 5552 | 225 | 225 | 3.17% | 4.05% |  |
| B | 7104 | 5552 | 11 | 11 | 0.15% | 0.20% |  |
| C | 7104 | 5552 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7104 | 5552 | 25 | 25 | 0.35% | 0.45% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 801937 | 6379.33 | 603 | 589 | 125.6 |
| A | 10 | 83 | 565948 | 4500.68 | 603 | 589 | 125.6 |
| A | 15 | 222 | 139700 | 1107.43 | 603 | 589 | 125.6 |
| B | 0 | 190 | 133059 | 1109.41 | 609 | 592 | 119.4 |
| B | 5 | 255 | 113483 | 945.46 | 609 | 592 | 119.4 |
| B | 3 | 112 | 30704 | 252.19 | 609 | 592 | 119.4 |
| C | 15 | 214 | 233851 | 1653.82 | 597 | 599 | 141.0 |
| C | 15 | 111 | 7131 | 46.31 | 597 | 599 | 141.0 |
| C | 13 | 61 | 3952 | 23.77 | 597 | 599 | 141.0 |
| D | 13 | 249 | 93549 | 626.24 | 599 | 580 | 148.5 |
| D | 12 | 6 | 62405 | 416.45 | 599 | 580 | 148.5 |
| D | 12 | 218 | 58020 | 386.91 | 599 | 580 | 148.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

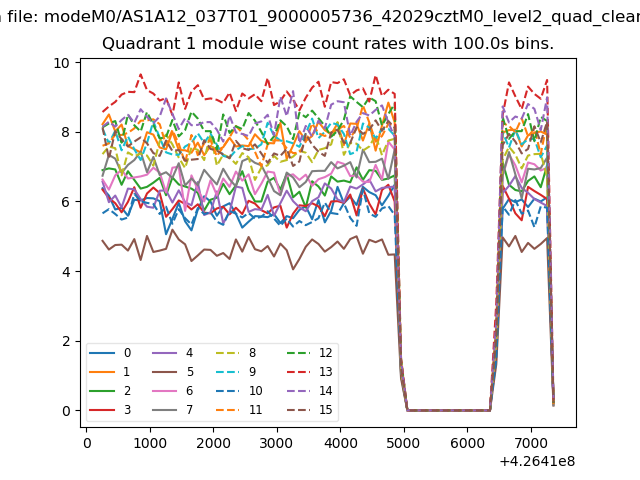

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

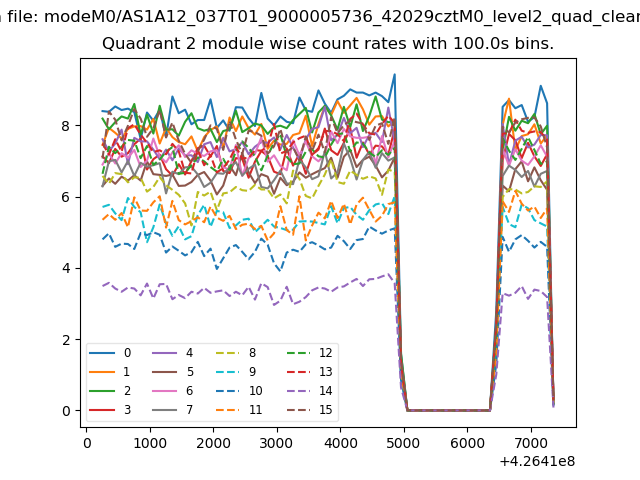

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
