| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_999T99_9000005772_42308cztM0_level2.fits | modeM0/AS1P01_999T99_9000005772_42308cztM0_level2_quad_clean.evt |
| Size (bytes) | 405,959,040 | 114,721,920 |
| Size | 387.2 MB | 109.4 MB |
| Events in quadrant A | 3,708,805 | 756,889 |
| Events in quadrant B | 3,276,855 | 773,432 |
| Events in quadrant C | 3,334,781 | 750,675 |
| Events in quadrant D | 4,144,358 | 688,951 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15375 | 2 |
| B | 0 | 15064 | 2 |
| C | 0 | 14840 | 2 |
| D | 0 | 17688 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7228 | 12 | 0.166021% |
| B | 7228 | 28 | 0.387382% |
| C | 7228 | 13 | 0.179856% |
| D | 7228 | 138 | 1.909242% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8541 | 7229 | 11 | 11 | 0.13% | 0.15% |  |
| B | 8541 | 7229 | 8 | 8 | 0.09% | 0.11% |  |
| C | 8541 | 7229 | 7 | 7 | 0.08% | 0.10% |  |
| D | 8541 | 7229 | 116 | 116 | 1.36% | 1.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 687605 | 4342.32 | 769 | 752 | 158.2 |
| A | 7 | 3 | 39962 | 247.89 | 769 | 752 | 158.2 |
| A | 3 | 137 | 8803 | 50.9 | 769 | 752 | 158.2 |
| B | 4 | 171 | 161622 | 1072.76 | 765 | 742 | 150.0 |
| B | 15 | 35 | 44634 | 292.67 | 765 | 742 | 150.0 |
| B | 0 | 245 | 34878 | 227.62 | 765 | 742 | 150.0 |
| C | 15 | 214 | 300089 | 1720.34 | 749 | 754 | 174.0 |
| C | 15 | 159 | 85877 | 489.22 | 749 | 754 | 174.0 |
| C | 12 | 249 | 20308 | 112.38 | 749 | 754 | 174.0 |
| D | 1 | 52 | 640710 | 3552.26 | 744 | 721 | 180.2 |
| D | 12 | 6 | 248628 | 1376.01 | 744 | 721 | 180.2 |
| D | 12 | 233 | 193506 | 1070.05 | 744 | 721 | 180.2 |

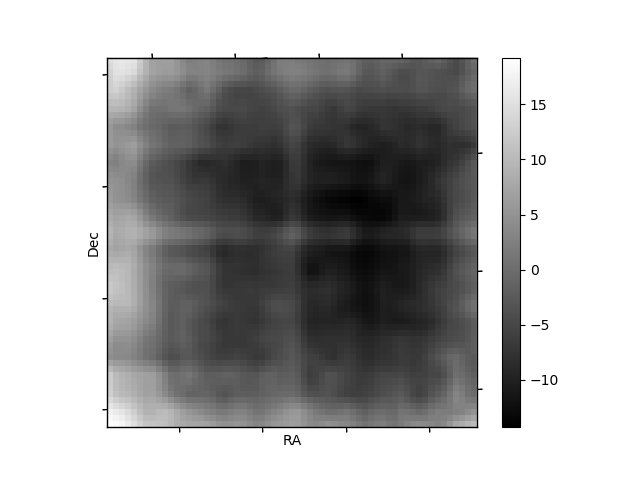

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

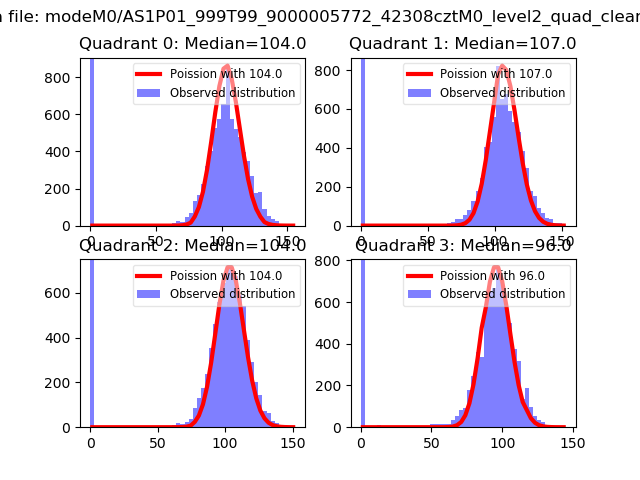

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

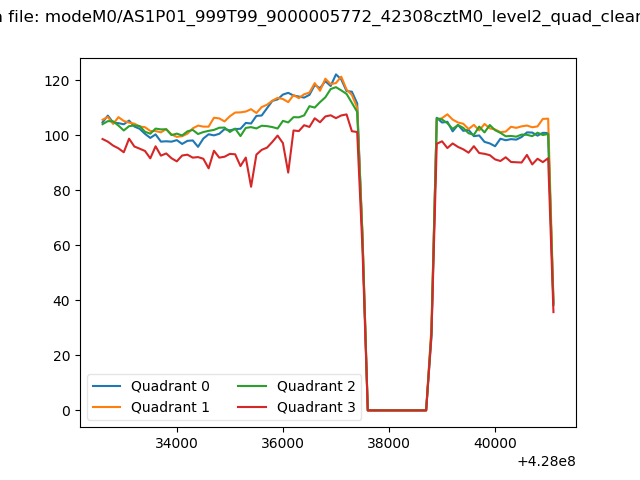

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

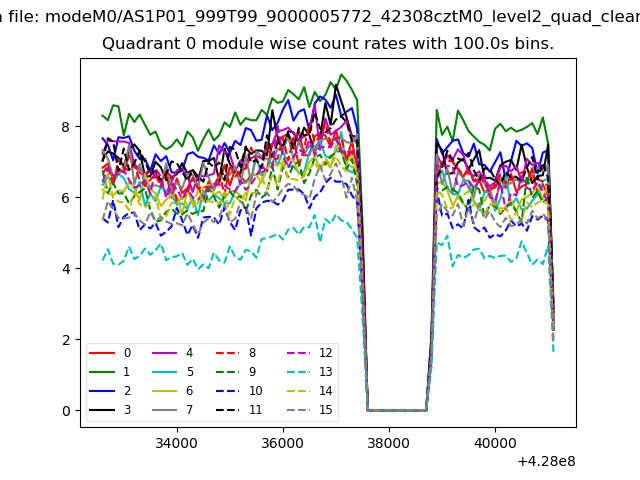

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

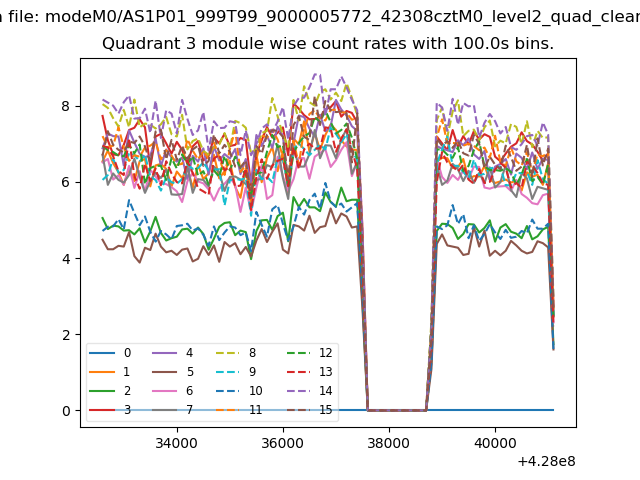

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

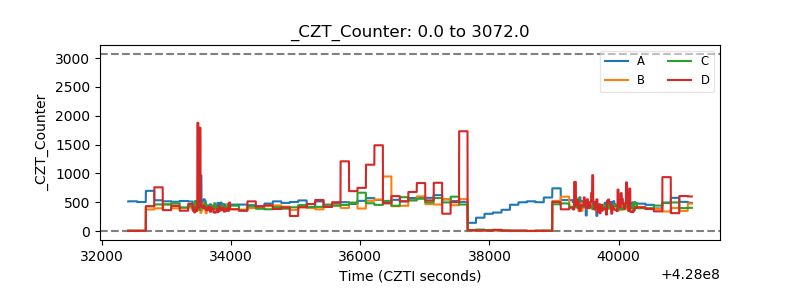

| CZT Counter |  |

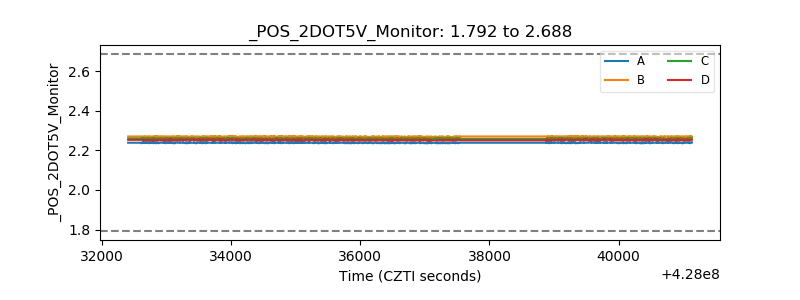

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

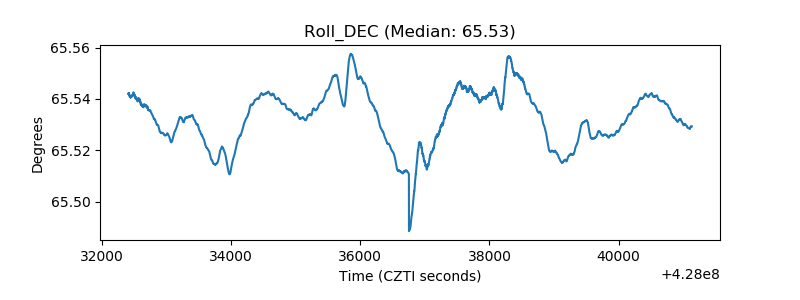

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
