| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_999T99_9000005772_42318cztM0_level2.fits | modeM0/AS1P01_999T99_9000005772_42318cztM0_level2_quad_clean.evt |
| Size (bytes) | 304,332,480 | 88,272,000 |
| Size | 290.2 MB | 84.2 MB |
| Events in quadrant A | 3,014,787 | 586,338 |
| Events in quadrant B | 2,501,216 | 594,983 |
| Events in quadrant C | 2,390,157 | 583,609 |
| Events in quadrant D | 2,941,582 | 532,314 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12428 | 2 |
| B | 0 | 11464 | 2 |
| C | 0 | 10737 | 2 |
| D | 0 | 12609 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 30 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5355 | 31 | 0.578898% |
| B | 5355 | 50 | 0.933707% |
| C | 5355 | 3 | 0.056022% |
| D | 5355 | 134 | 2.502334% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7148 | 5356 | 14 | 14 | 0.20% | 0.26% |  |
| B | 7148 | 5356 | 33 | 33 | 0.46% | 0.62% |  |
| C | 7148 | 5356 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7148 | 5356 | 122 | 122 | 1.71% | 2.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 546002 | 4795.54 | 557 | 545 | 113.7 |
| A | 15 | 223 | 254963 | 2236.79 | 557 | 545 | 113.7 |
| A | 15 | 252 | 38196 | 331.02 | 557 | 545 | 113.7 |
| B | 5 | 172 | 157863 | 1457.54 | 556 | 539 | 107.9 |
| B | 3 | 112 | 74844 | 688.4 | 556 | 539 | 107.9 |
| B | 15 | 35 | 31869 | 290.25 | 556 | 539 | 107.9 |
| C | 15 | 214 | 224114 | 1735.41 | 554 | 558 | 128.8 |
| C | 12 | 249 | 4340 | 29.36 | 554 | 558 | 128.8 |
| C | 13 | 61 | 3699 | 24.38 | 554 | 558 | 128.8 |
| D | 12 | 6 | 260515 | 1956.57 | 544 | 529 | 132.9 |
| D | 2 | 249 | 191494 | 1437.14 | 544 | 529 | 132.9 |
| D | 13 | 249 | 166361 | 1248.0 | 544 | 529 | 132.9 |

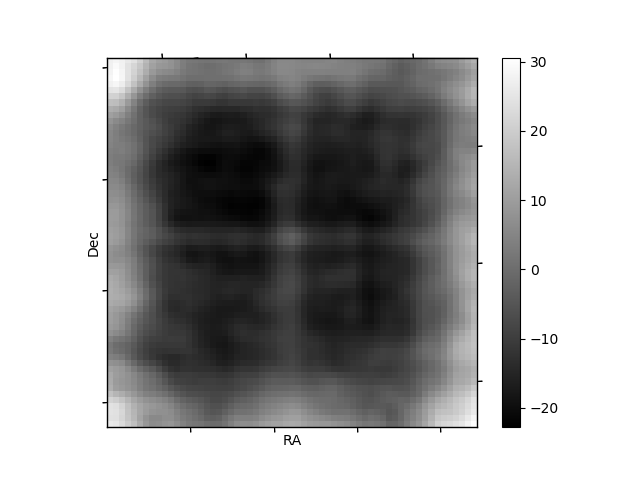

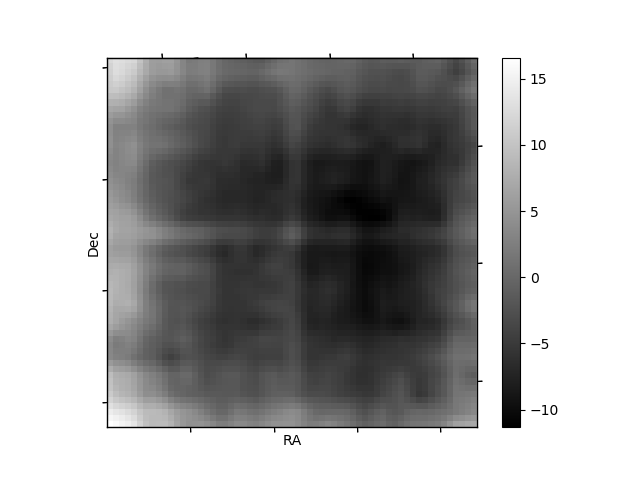

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

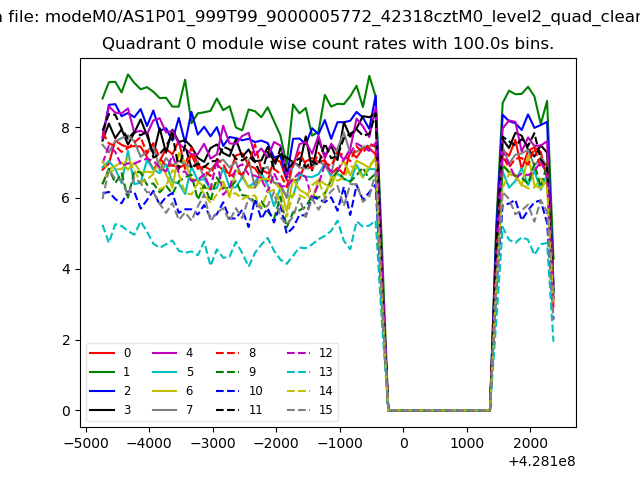

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

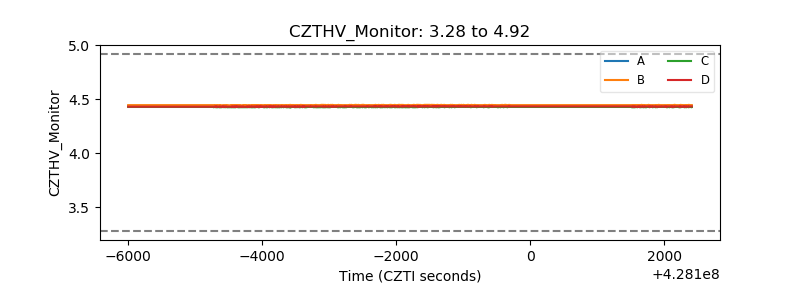

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

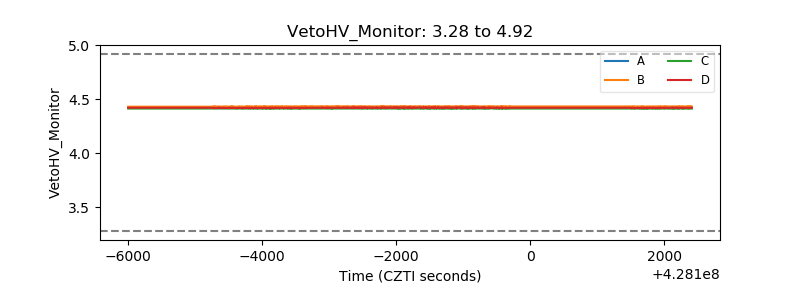

| Veto HV Monitor |  |

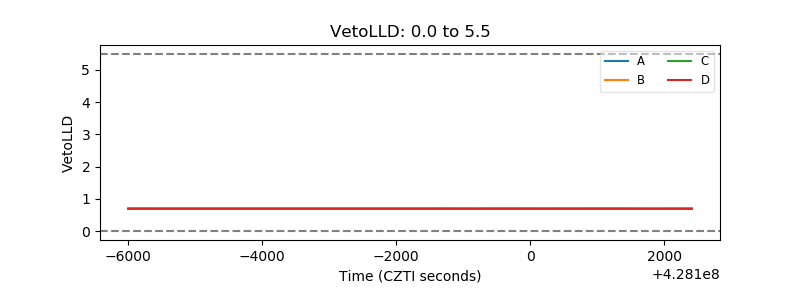

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

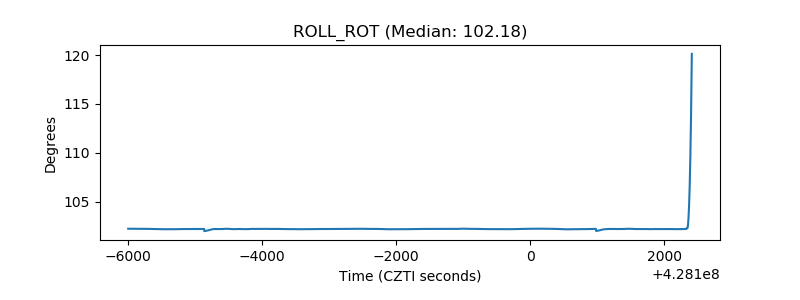

| _ROLL_ROT |  |
| _Roll_DEC |  |

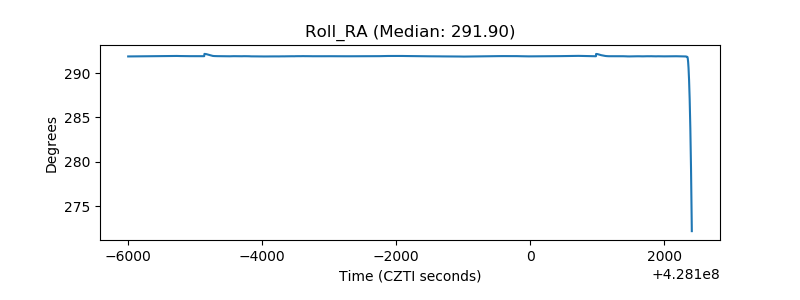

| _Roll_RA |  |
| Veto Counter |  |
