| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_088T25_9000005770_42193cztM0_level2.fits | modeM0/AS1A12_088T25_9000005770_42193cztM0_level2_quad_clean.evt |
| Size (bytes) | 803,885,760 | 219,165,120 |
| Size | 766.6 MB | 209.0 MB |
| Events in quadrant A | 7,683,618 | 1,445,853 |
| Events in quadrant B | 6,537,957 | 1,517,060 |
| Events in quadrant C | 6,321,480 | 1,436,618 |
| Events in quadrant D | 8,147,121 | 1,284,973 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30801 | 3 |
| B | 0 | 28901 | 3 |
| C | 0 | 27637 | 3 |
| D | 0 | 34018 | 6 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 39 | 0 |
| B | 0 | 39 | 0 |
| C | 0 | 39 | 0 |
| D | 0 | 39 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 284 | 0 |
| B | 0 | 284 | 0 |
| C | 0 | 284 | 0 |
| D | 0 | 284 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 13762 | 191 | 1.387880% |
| B | 13762 | 45 | 0.326987% |
| C | 13763 | 9 | 0.065393% |
| D | 13761 | 373 | 2.710559% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 17761 | 13765 | 149 | 149 | 0.84% | 1.08% |  |
| B | 17761 | 13765 | 24 | 24 | 0.14% | 0.17% |  |
| C | 17762 | 13766 | 0 | 0 | 0.00% | 0.00% |  |
| D | 17762 | 13765 | 349 | 349 | 1.96% | 2.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1207256 | 3915.46 | 1503 | 1471 | 308.0 |
| A | 13 | 248 | 598300 | 1938.04 | 1503 | 1471 | 308.0 |
| A | 15 | 223 | 54306 | 171.57 | 1503 | 1471 | 308.0 |
| B | 5 | 255 | 300226 | 1023.48 | 1499 | 1456 | 291.9 |
| B | 0 | 229 | 205142 | 697.75 | 1499 | 1456 | 291.9 |
| B | 15 | 35 | 97359 | 328.53 | 1499 | 1456 | 291.9 |
| C | 15 | 214 | 568786 | 1664.98 | 1466 | 1475 | 340.7 |
| C | 15 | 159 | 23350 | 64.2 | 1466 | 1475 | 340.7 |
| C | 13 | 61 | 9887 | 24.69 | 1466 | 1475 | 340.7 |
| D | 1 | 52 | 959710 | 2694.23 | 1451 | 1405 | 355.7 |
| D | 12 | 6 | 337874 | 945.97 | 1451 | 1405 | 355.7 |
| D | 13 | 249 | 236541 | 661.07 | 1451 | 1405 | 355.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

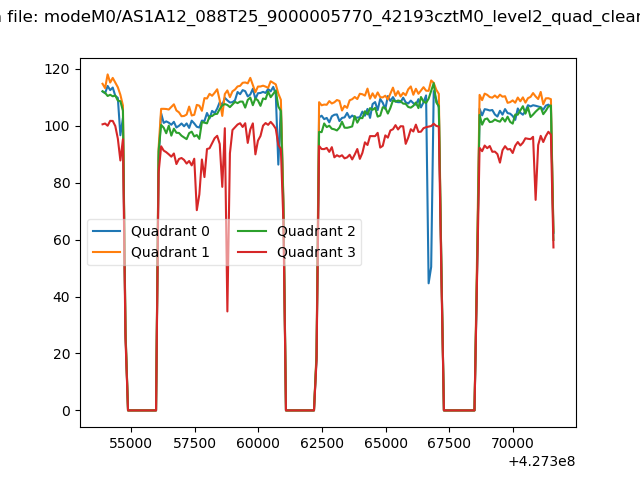

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

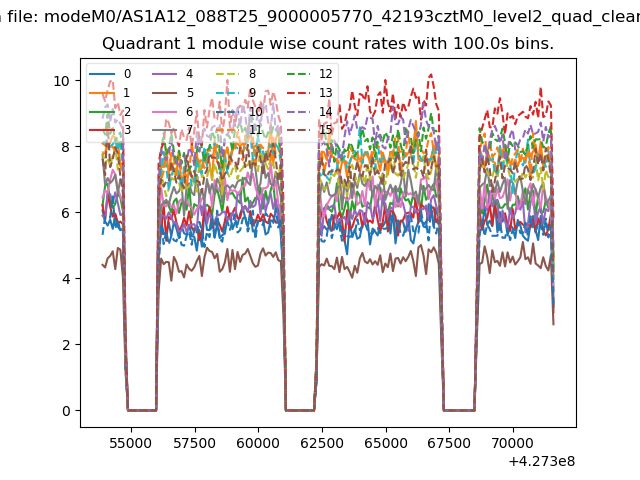

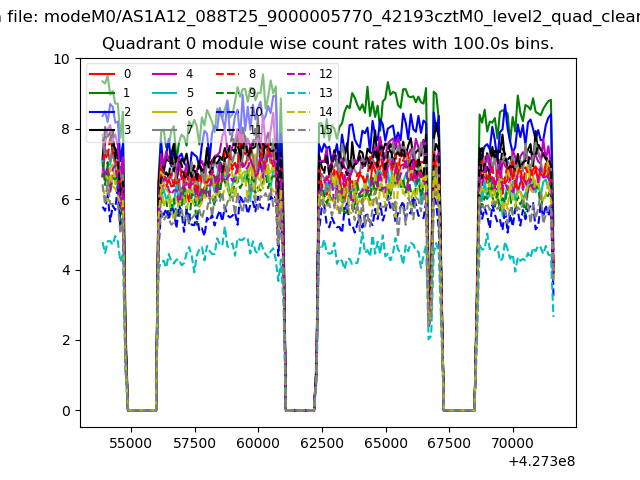

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

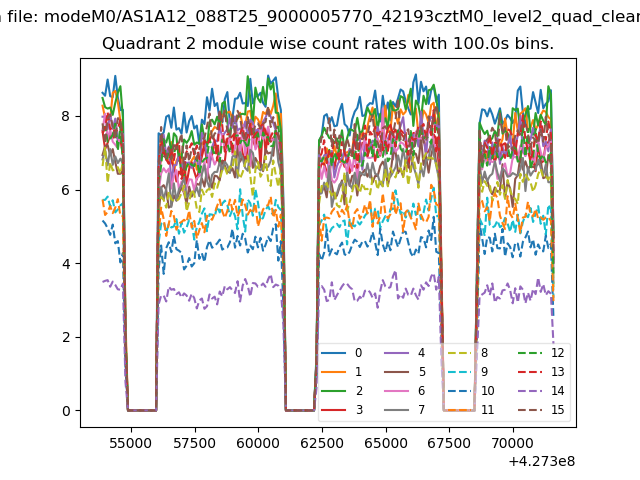

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

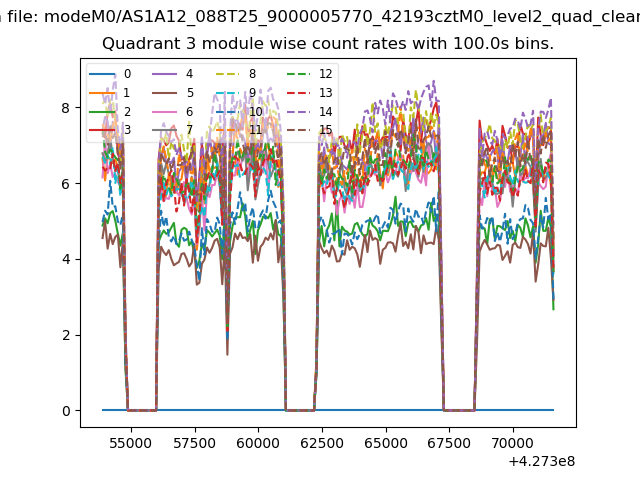

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

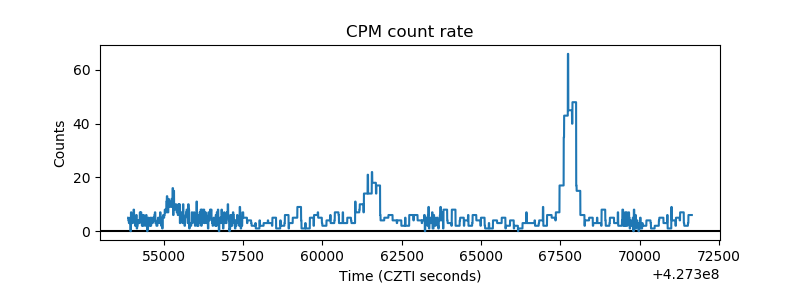

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

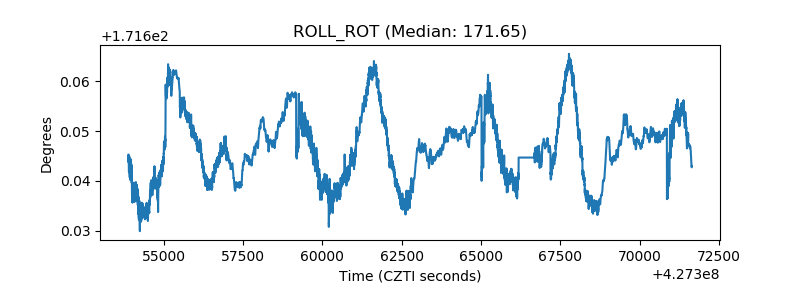

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

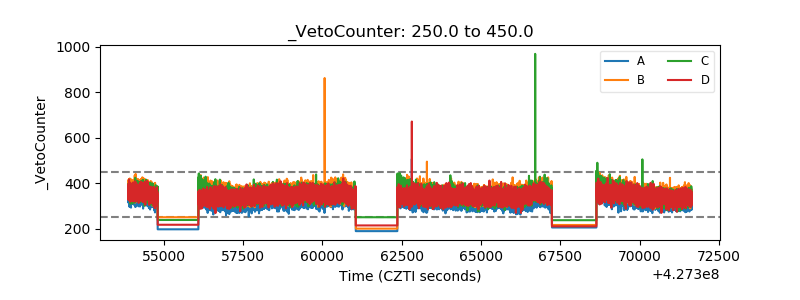

| Veto Counter |  |
