| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_102T01_9000005794_42319cztM0_level2.fits | modeM0/AS1A12_102T01_9000005794_42319cztM0_level2_quad_clean.evt |
| Size (bytes) | 39,669,120 | 8,976,960 |
| Size | 37.8 MB | 8.6 MB |
| Events in quadrant A | 518,232 | 59,081 |
| Events in quadrant B | 298,541 | 58,306 |
| Events in quadrant C | 252,544 | 57,675 |
| Events in quadrant D | 354,132 | 51,713 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1914 | 1 |
| B | 0 | 1267 | 1 |
| C | 0 | 1072 | 1 |
| D | 0 | 1431 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 534 | 7 | 1.310861% |
| B | 534 | 23 | 4.307116% |
| C | 534 | 2 | 0.374532% |
| D | 534 | 33 | 6.179775% |

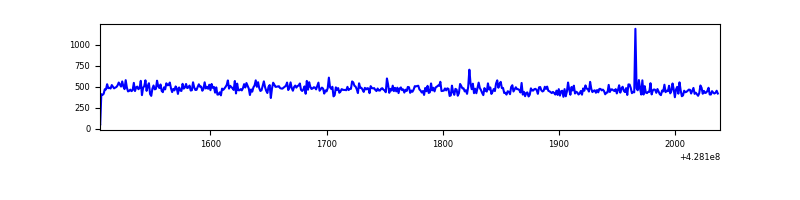

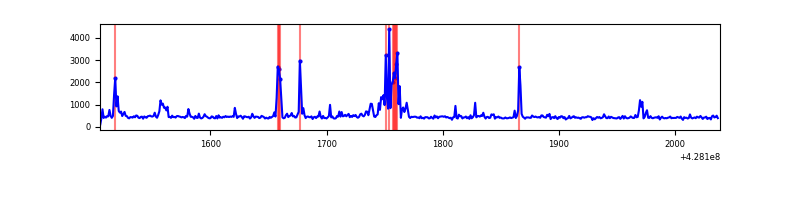

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 534 | 534 | 1 | 1 | 0.19% | 0.19% |  |
| B | 534 | 534 | 13 | 13 | 2.43% | 2.43% |  |
| C | 534 | 534 | 0 | 0 | 0.00% | 0.00% |  |
| D | 534 | 534 | 22 | 22 | 4.12% | 4.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 162617 | 12172.91 | 56 | 54 | 13.4 |
| A | 10 | 83 | 131522 | 9844.48 | 56 | 54 | 13.4 |
| A | 13 | 248 | 3073 | 226.07 | 56 | 54 | 13.4 |
| B | 3 | 112 | 41610 | 3194.91 | 55 | 54 | 13.0 |
| B | 15 | 35 | 20165 | 1546.17 | 55 | 54 | 13.0 |
| B | 4 | 81 | 7237 | 552.24 | 55 | 54 | 13.0 |
| C | 15 | 214 | 27825 | 1840.48 | 57 | 57 | 15.1 |
| C | 13 | 61 | 360 | 20.08 | 57 | 57 | 15.1 |
| C | 7 | 247 | 307 | 16.57 | 57 | 57 | 15.1 |
| D | 13 | 249 | 93672 | 6173.81 | 55 | 53 | 15.2 |
| D | 1 | 52 | 30520 | 2009.18 | 55 | 53 | 15.2 |
| D | 9 | 19 | 11062 | 726.0 | 55 | 53 | 15.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

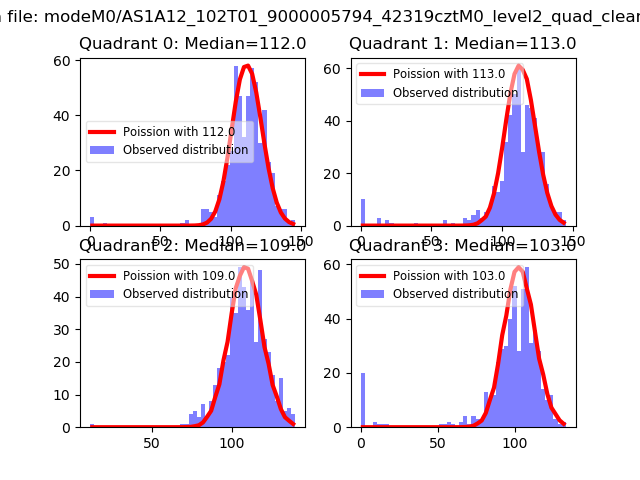

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

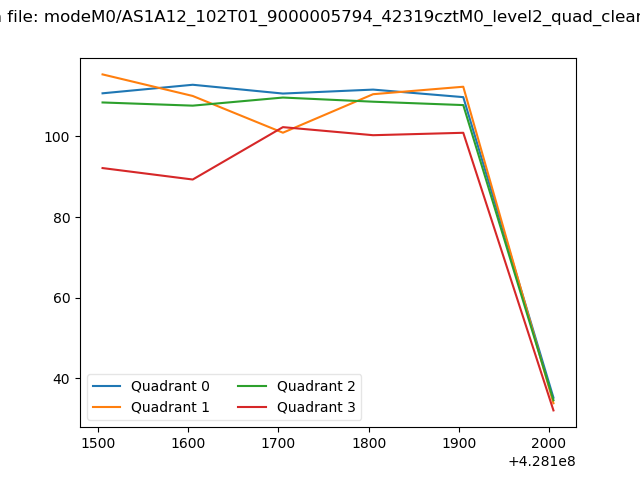

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

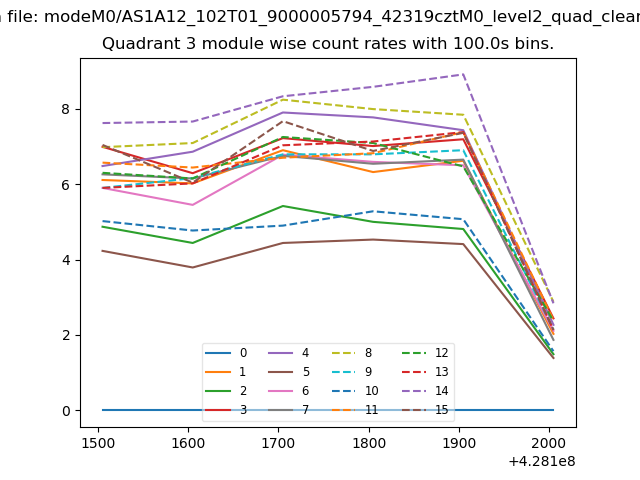

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

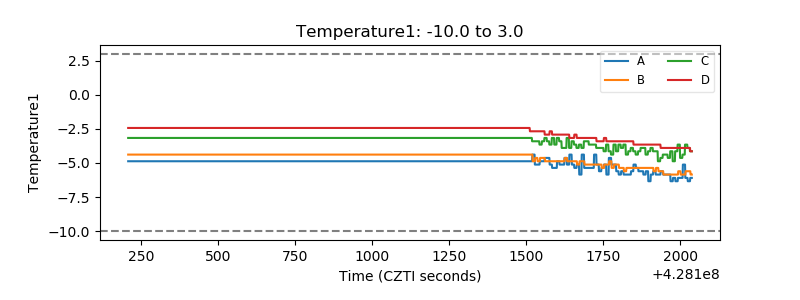

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

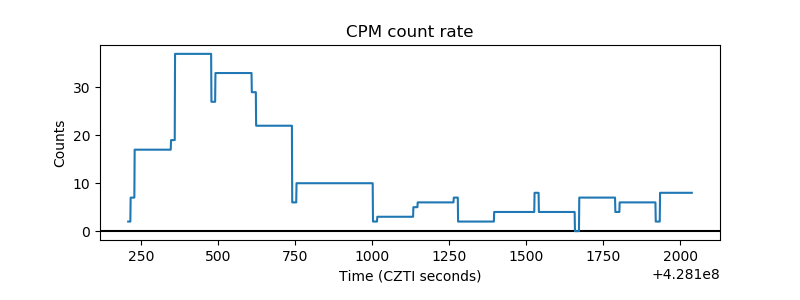

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

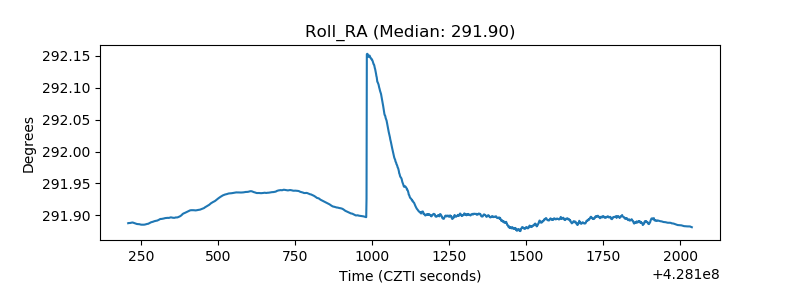

| _Roll_RA |  |
| Veto Counter |  |
