| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T10_9000005796_42341cztM0_level2.fits | modeM0/AS1C07_001T10_9000005796_42341cztM0_level2_quad_clean.evt |
| Size (bytes) | 314,936,640 | 89,369,280 |
| Size | 300.3 MB | 85.2 MB |
| Events in quadrant A | 2,913,128 | 601,127 |
| Events in quadrant B | 2,528,964 | 607,884 |
| Events in quadrant C | 2,489,469 | 583,797 |
| Events in quadrant D | 3,311,722 | 540,740 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11769 | 2 |
| B | 0 | 11148 | 2 |
| C | 0 | 10741 | 2 |
| D | 0 | 13411 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 28 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5321 | 14 | 0.263108% |
| B | 5321 | 20 | 0.375869% |
| C | 5321 | 3 | 0.056380% |
| D | 5320 | 98 | 1.842105% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7114 | 5322 | 6 | 6 | 0.08% | 0.11% |  |
| B | 7114 | 5322 | 10 | 10 | 0.14% | 0.19% |  |
| C | 7114 | 5322 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7113 | 5321 | 95 | 95 | 1.34% | 1.79% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 588164 | 4869.88 | 587 | 575 | 120.7 |
| A | 10 | 255 | 14356 | 114.22 | 587 | 575 | 120.7 |
| A | 13 | 248 | 12830 | 101.57 | 587 | 575 | 120.7 |
| B | 0 | 230 | 43235 | 384.51 | 579 | 563 | 111.0 |
| B | 15 | 36 | 43003 | 382.42 | 579 | 563 | 111.0 |
| B | 12 | 0 | 33915 | 300.53 | 579 | 563 | 111.0 |
| C | 15 | 214 | 228101 | 1717.17 | 568 | 573 | 132.5 |
| C | 9 | 54 | 32344 | 239.78 | 568 | 573 | 132.5 |
| C | 15 | 111 | 7097 | 49.24 | 568 | 573 | 132.5 |
| D | 1 | 52 | 383863 | 2751.93 | 569 | 553 | 139.3 |
| D | 5 | 222 | 217217 | 1555.52 | 569 | 553 | 139.3 |
| D | 13 | 249 | 97134 | 693.39 | 569 | 553 | 139.3 |

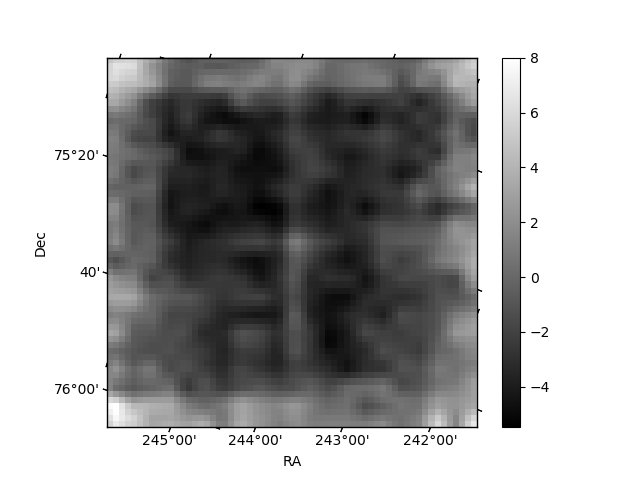

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

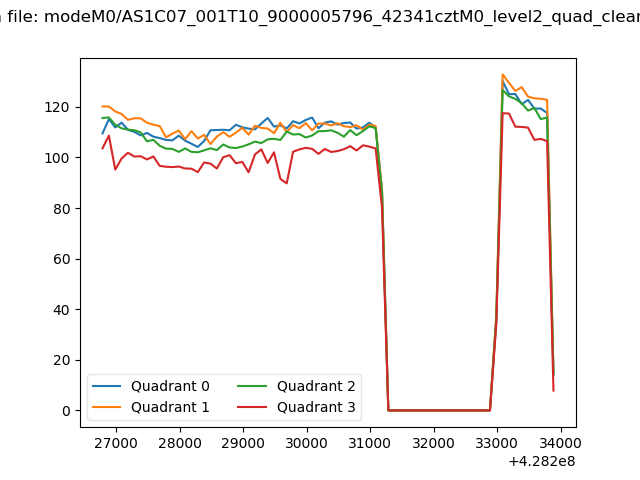

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

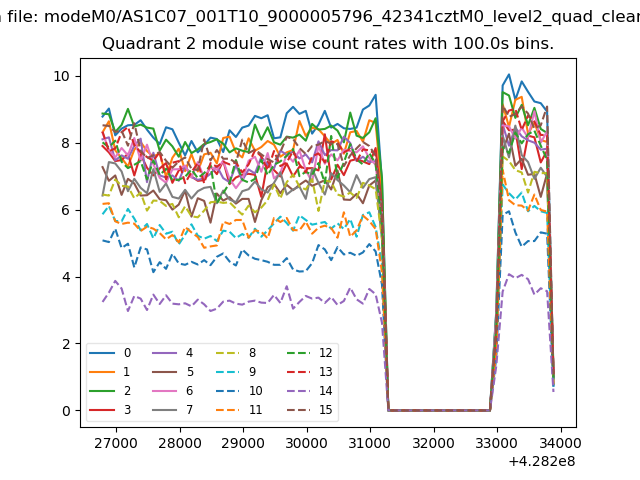

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

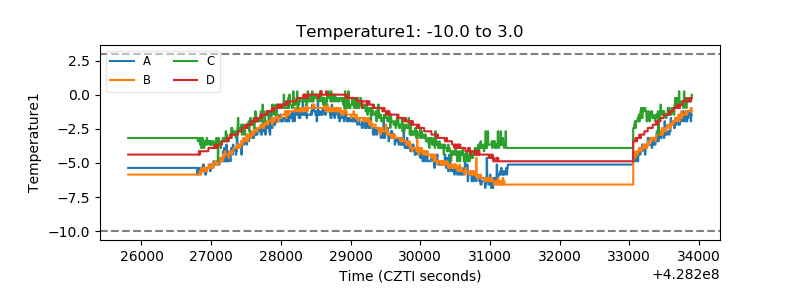

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

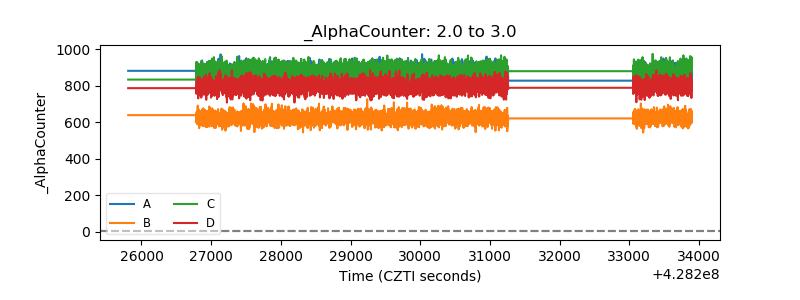

| Alpha Counter |  |

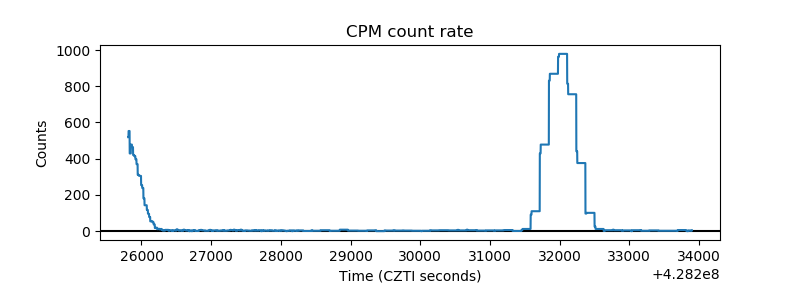

| _CPM_Rate |  |

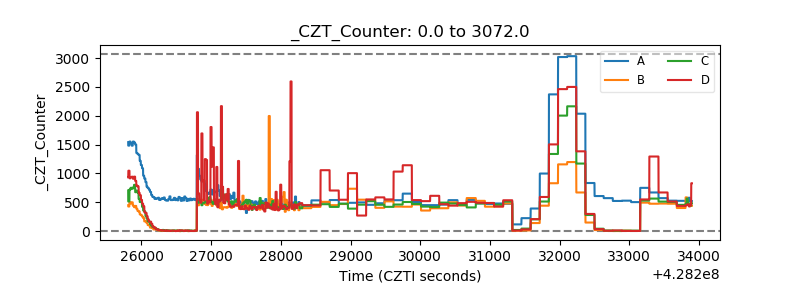

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

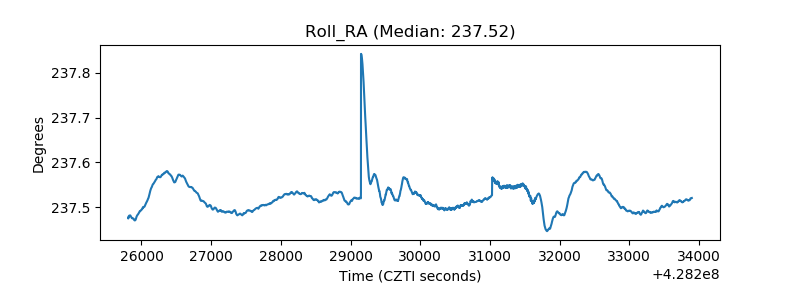

| _Roll_RA |  |
| Veto Counter |  |
