| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_102T01_9000005798_42353cztM0_level2.fits | modeM0/AS1A12_102T01_9000005798_42353cztM0_level2_quad_clean.evt |
| Size (bytes) | 337,055,040 | 92,191,680 |
| Size | 321.4 MB | 87.9 MB |
| Events in quadrant A | 3,037,183 | 610,500 |
| Events in quadrant B | 2,613,624 | 628,050 |
| Events in quadrant C | 2,616,939 | 606,018 |
| Events in quadrant D | 3,762,461 | 545,922 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12348 | 2 |
| B | 0 | 11874 | 2 |
| C | 0 | 11501 | 2 |
| D | 0 | 15112 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5730 | 10 | 0.174520% |
| B | 5731 | 23 | 0.401326% |
| C | 5731 | 3 | 0.052347% |
| D | 5731 | 213 | 3.716629% |

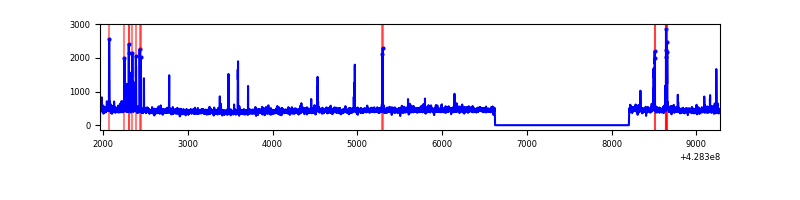

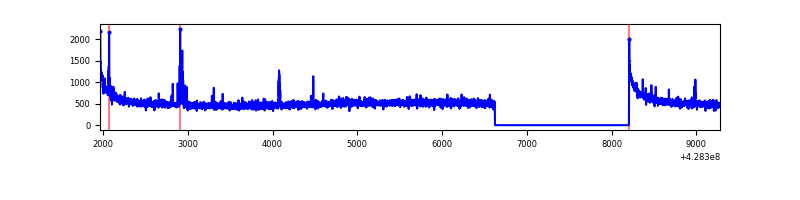

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7312 | 5731 | 4 | 4 | 0.05% | 0.07% |  |
| B | 7313 | 5732 | 17 | 17 | 0.23% | 0.30% |  |
| C | 7313 | 5732 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7313 | 5732 | 201 | 201 | 2.75% | 3.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 574975 | 4465.78 | 622 | 609 | 128.6 |
| A | 13 | 248 | 41335 | 316.65 | 622 | 609 | 128.6 |
| A | 7 | 3 | 16648 | 124.71 | 622 | 609 | 128.6 |
| B | 5 | 172 | 88310 | 730.46 | 615 | 597 | 120.1 |
| B | 3 | 112 | 49314 | 405.71 | 615 | 597 | 120.1 |
| B | 12 | 111 | 15481 | 123.95 | 615 | 597 | 120.1 |
| C | 15 | 214 | 242267 | 1706.9 | 604 | 607 | 141.6 |
| C | 7 | 247 | 12220 | 82.03 | 604 | 607 | 141.6 |
| C | 15 | 111 | 4441 | 27.08 | 604 | 607 | 141.6 |
| D | 12 | 6 | 449175 | 3076.12 | 596 | 579 | 145.8 |
| D | 1 | 52 | 259411 | 1774.87 | 596 | 579 | 145.8 |
| D | 5 | 222 | 245360 | 1678.52 | 596 | 579 | 145.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

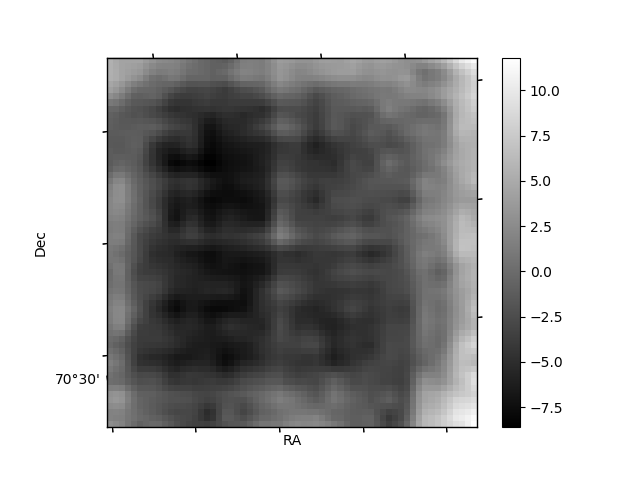

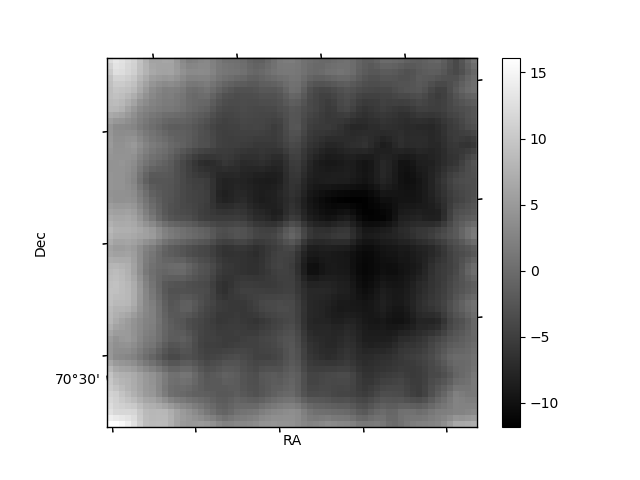

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

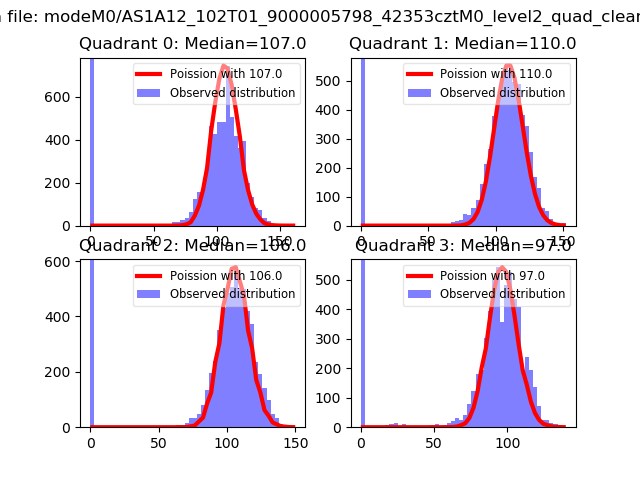

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

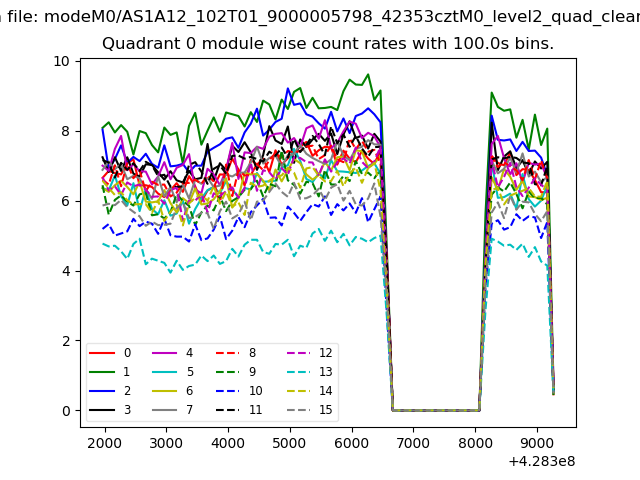

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

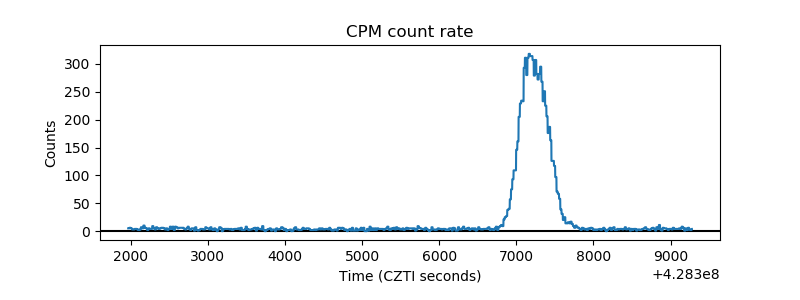

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

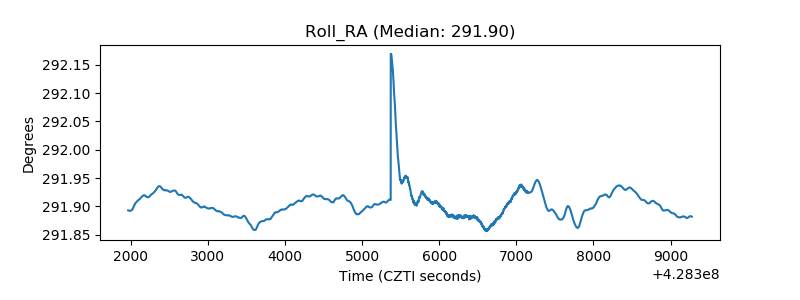

| _Roll_RA |  |
| Veto Counter |  |
