| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C06_010T01_9000005800_42381cztM0_level2.fits | modeM0/AS1C06_010T01_9000005800_42381cztM0_level2_quad_clean.evt |
| Size (bytes) | 936,129,600 | 252,331,200 |
| Size | 892.8 MB | 240.6 MB |
| Events in quadrant A | 8,354,036 | 1,677,576 |
| Events in quadrant B | 7,606,998 | 1,691,645 |
| Events in quadrant C | 8,317,444 | 1,646,821 |
| Events in quadrant D | 9,136,085 | 1,521,356 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 53 | 0 |
| B | 0 | 53 | 0 |
| C | 0 | 53 | 0 |
| D | 0 | 53 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34999 | 4 |
| B | 0 | 34471 | 4 |
| C | 0 | 35494 | 9 |
| D | 0 | 39255 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 330 | 0 |
| B | 0 | 330 | 0 |
| C | 0 | 330 | 0 |
| D | 0 | 330 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15969 | 38 | 0.237961% |
| B | 15969 | 188 | 1.177281% |
| C | 15969 | 270 | 1.690776% |
| D | 15969 | 556 | 3.481746% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

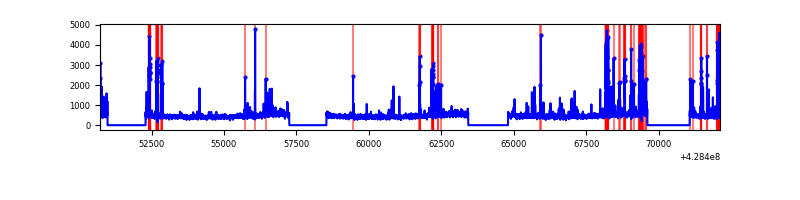

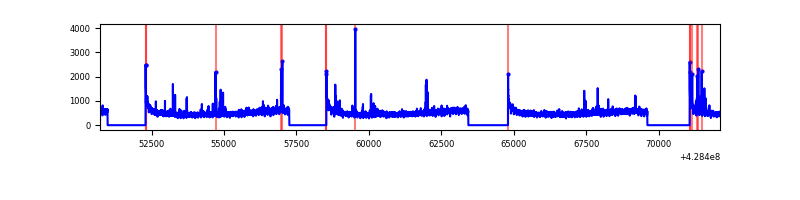

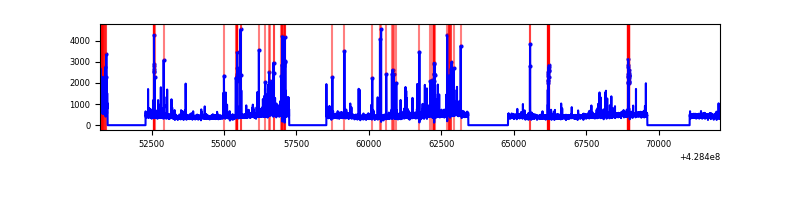

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 21400 | 15973 | 15 | 15 | 0.07% | 0.09% |  |
| B | 21400 | 15973 | 112 | 112 | 0.52% | 0.70% |  |
| C | 21400 | 15973 | 178 | 178 | 0.83% | 1.11% |  |
| D | 21400 | 15973 | 410 | 410 | 1.92% | 2.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1540714 | 4409.81 | 1707 | 1670 | 349.0 |
| A | 13 | 248 | 131161 | 371.03 | 1707 | 1670 | 349.0 |
| A | 7 | 3 | 41288 | 113.52 | 1707 | 1670 | 349.0 |
| B | 4 | 81 | 245657 | 757.83 | 1685 | 1636 | 322.0 |
| B | 15 | 36 | 175205 | 539.04 | 1685 | 1636 | 322.0 |
| B | 5 | 255 | 119453 | 365.89 | 1685 | 1636 | 322.0 |
| C | 14 | 254 | 960767 | 2516.86 | 1651 | 1665 | 381.1 |
| C | 15 | 214 | 659017 | 1725.01 | 1651 | 1665 | 381.1 |
| C | 8 | 79 | 70623 | 180.96 | 1651 | 1665 | 381.1 |
| D | 12 | 233 | 643377 | 1597.01 | 1652 | 1606 | 401.9 |
| D | 13 | 171 | 373643 | 925.79 | 1652 | 1606 | 401.9 |
| D | 2 | 249 | 329538 | 816.04 | 1652 | 1606 | 401.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

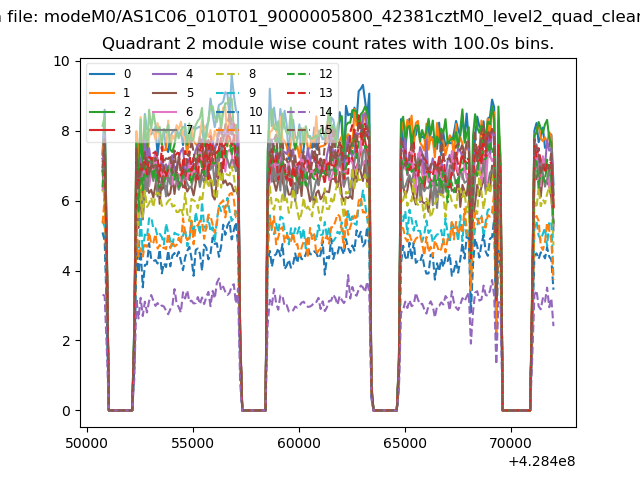

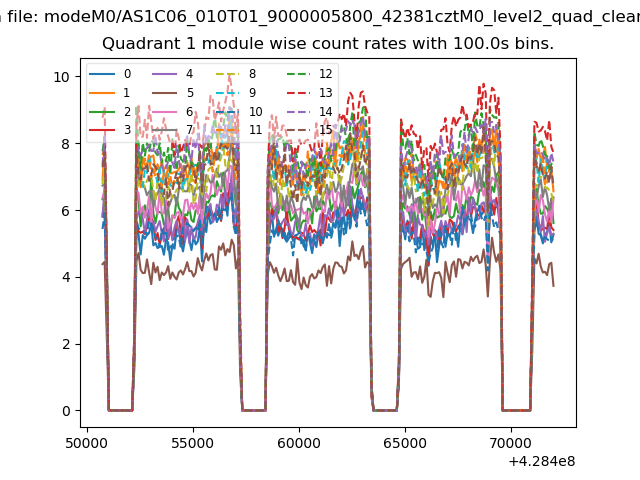

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

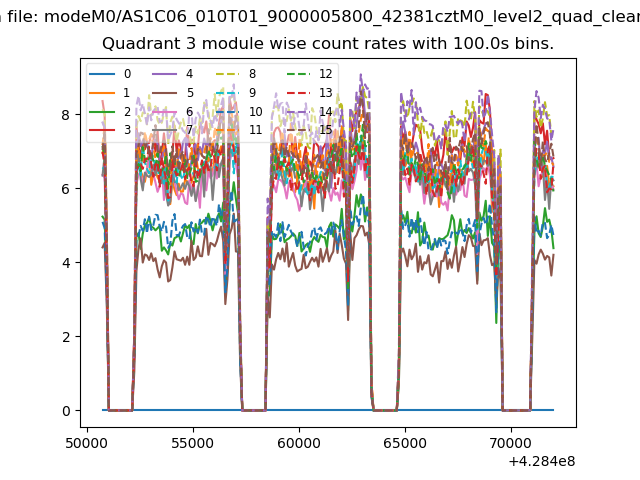

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

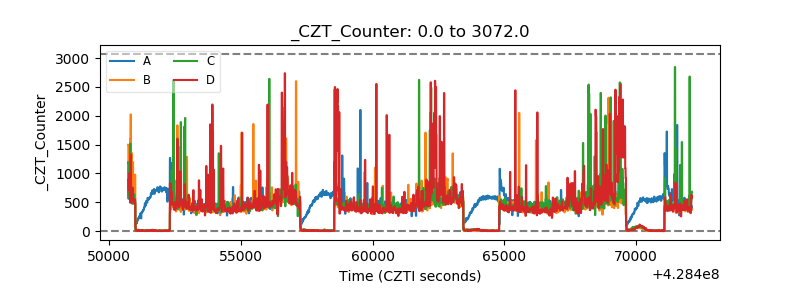

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

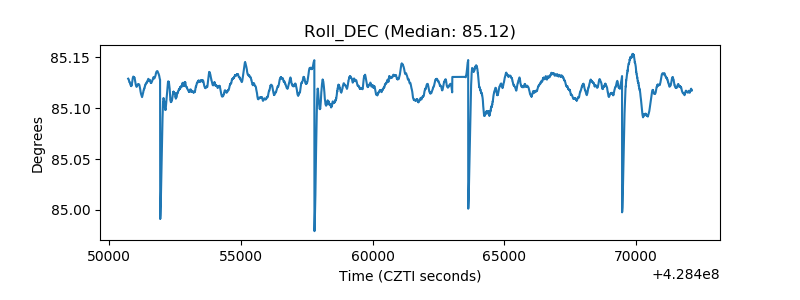

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
