| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T10_9000005806_42439cztM0_level2.fits | modeM0/AS1C07_001T10_9000005806_42439cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,122,880,320 | 233,591,040 |
| Size | 1.0 GB | 222.8 MB |
| Events in quadrant A | 8,091,539 | 1,646,678 |
| Events in quadrant B | 14,495,228 | 1,236,105 |
| Events in quadrant C | 7,584,639 | 1,620,598 |
| Events in quadrant D | 10,178,919 | 1,487,640 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 49 | 0 |
| B | 0 | 50 | 0 |
| C | 0 | 50 | 0 |
| D | 0 | 50 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 318 | 0 |
| B | 0 | 318 | 0 |
| C | 0 | 318 | 0 |
| D | 0 | 318 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34010 | 4 |
| B | 0 | 54862 | 5 |
| C | 0 | 33107 | 4 |
| D | 0 | 41769 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15677 | 27 | 0.172227% |
| B | 15676 | 3825 | 24.400357% |
| C | 15676 | 160 | 1.020669% |
| D | 15676 | 573 | 3.655269% |

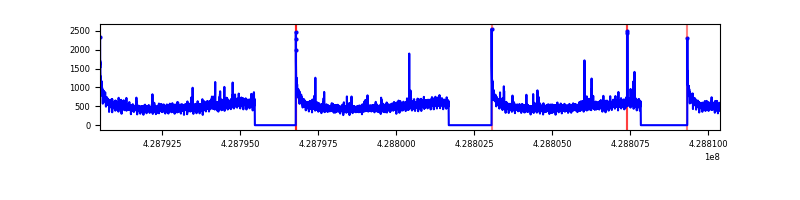

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19856 | 15680 | 8 | 8 | 0.04% | 0.05% |  |
| B | 19855 | 15678 | 3244 | 3244 | 16.34% | 20.69% |  |
| C | 19855 | 15679 | 122 | 122 | 0.61% | 0.78% |  |
| D | 19855 | 15679 | 452 | 452 | 2.28% | 2.88% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1490662 | 4389.31 | 1668 | 1632 | 339.2 |
| A | 2 | 79 | 46881 | 133.38 | 1668 | 1632 | 339.2 |
| A | 13 | 6 | 45221 | 128.49 | 1668 | 1632 | 339.2 |
| B | 0 | 186 | 8372364 | 31740.21 | 1380 | 1341 | 263.7 |
| B | 5 | 255 | 261921 | 988.03 | 1380 | 1341 | 263.7 |
| B | 3 | 112 | 237150 | 894.11 | 1380 | 1341 | 263.7 |
| C | 15 | 214 | 642797 | 1707.79 | 1620 | 1629 | 375.4 |
| C | 14 | 32 | 308855 | 818.31 | 1620 | 1629 | 375.4 |
| C | 14 | 254 | 175921 | 464.24 | 1620 | 1629 | 375.4 |
| D | 1 | 52 | 1394464 | 3559.16 | 1615 | 1569 | 391.4 |
| D | 2 | 16 | 465706 | 1185.98 | 1615 | 1569 | 391.4 |
| D | 13 | 171 | 444136 | 1130.86 | 1615 | 1569 | 391.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

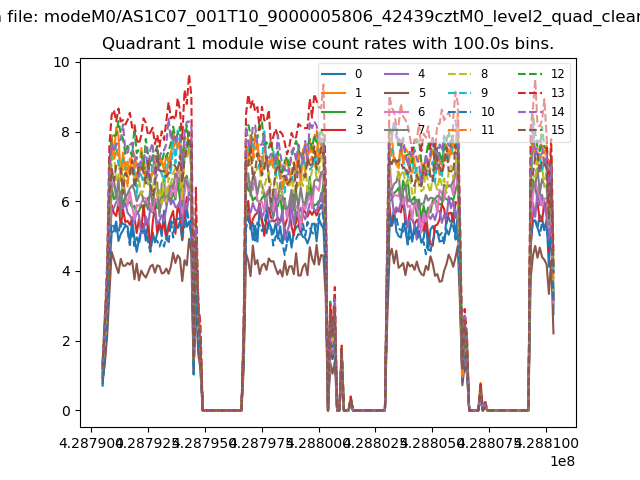

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

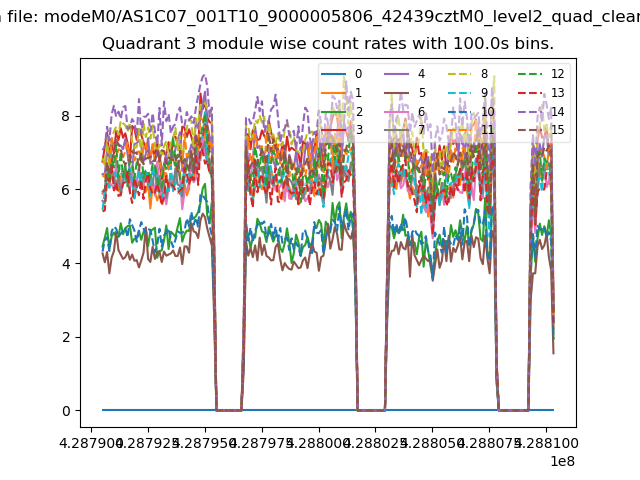

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

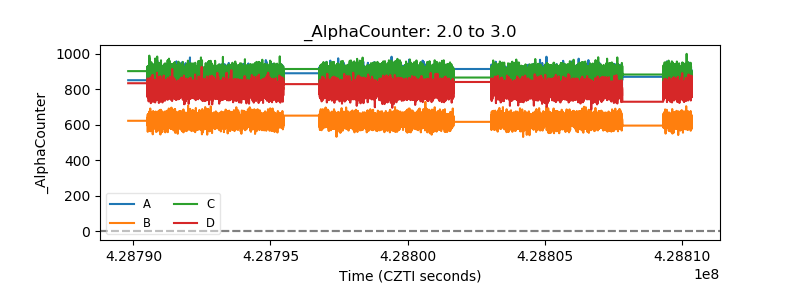

| Alpha Counter |  |

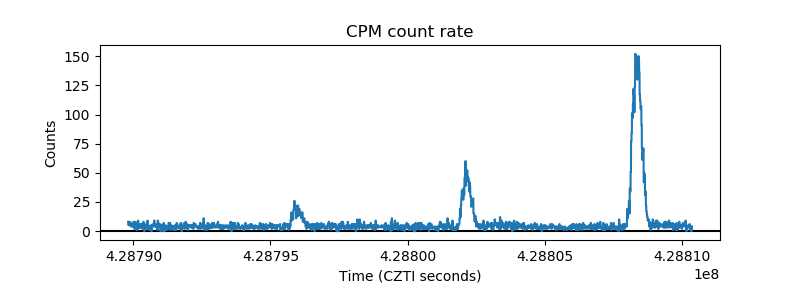

| _CPM_Rate |  |

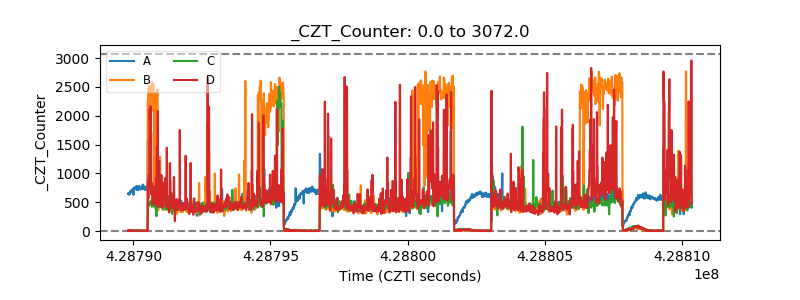

| CZT Counter |  |

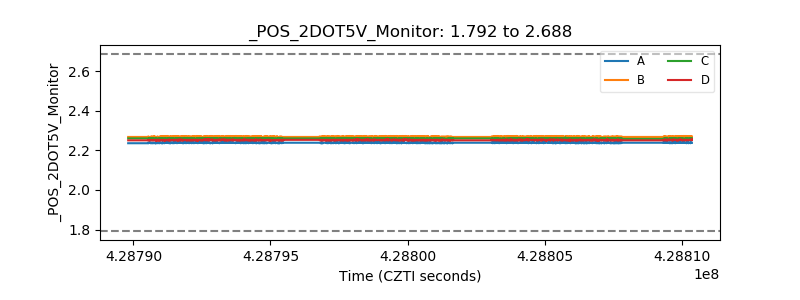

| +2.5 Volts monitor |  |

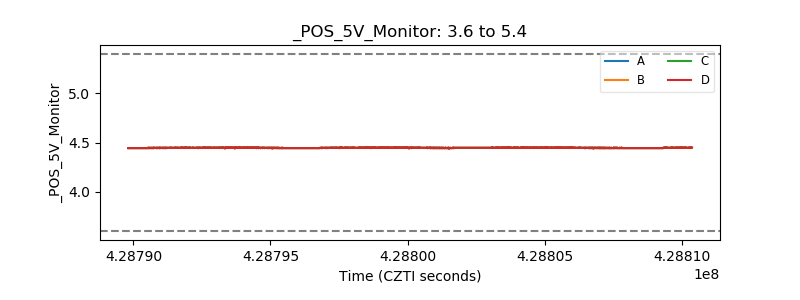

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
