| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T10_9000005806_42455cztM0_level2.fits | modeM0/AS1C07_001T10_9000005806_42455cztM0_level2_quad_clean.evt |
| Size (bytes) | 537,405,120 | 85,023,360 |
| Size | 512.5 MB | 81.1 MB |
| Events in quadrant A | 3,055,447 | 631,398 |
| Events in quadrant B | 6,258,872 | 425,157 |
| Events in quadrant C | 2,868,027 | 614,682 |
| Events in quadrant D | 7,261,140 | 498,614 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 32 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12579 | 2 |
| B | 0 | 22894 | 2 |
| C | 0 | 12317 | 2 |
| D | 0 | 25597 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5782 | 12 | 0.207541% |
| B | 5783 | 1885 | 32.595539% |
| C | 5783 | 41 | 0.708975% |
| D | 5783 | 1188 | 20.542971% |

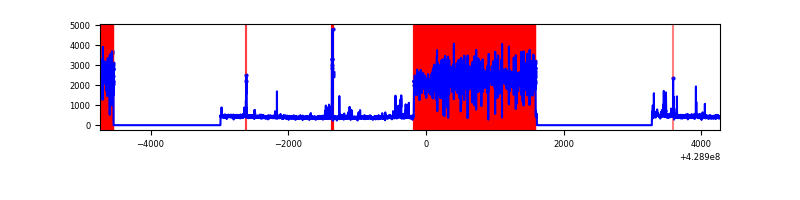

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9008 | 5784 | 2 | 2 | 0.02% | 0.03% |  |
| B | 9009 | 5785 | 1661 | 1661 | 18.44% | 28.71% |  |
| C | 9009 | 5785 | 34 | 34 | 0.38% | 0.59% |  |
| D | 9009 | 5785 | 1074 | 1074 | 11.92% | 18.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 606351 | 4719.06 | 622 | 608 | 128.4 |
| A | 12 | 189 | 15919 | 119.28 | 622 | 608 | 128.4 |
| A | 13 | 248 | 15399 | 115.23 | 622 | 608 | 128.4 |
| B | 0 | 186 | 4136384 | 43803.45 | 487 | 473 | 94.4 |
| B | 5 | 255 | 94952 | 1000.63 | 487 | 473 | 94.4 |
| B | 5 | 172 | 64120 | 674.09 | 487 | 473 | 94.4 |
| C | 14 | 254 | 268948 | 1902.35 | 602 | 605 | 141.1 |
| C | 15 | 214 | 240640 | 1701.66 | 602 | 605 | 141.1 |
| C | 15 | 111 | 9003 | 59.54 | 602 | 605 | 141.1 |
| D | 1 | 52 | 3825376 | 27514.78 | 565 | 548 | 139.0 |
| D | 12 | 6 | 322499 | 2316.03 | 565 | 548 | 139.0 |
| D | 2 | 16 | 319508 | 2294.51 | 565 | 548 | 139.0 |

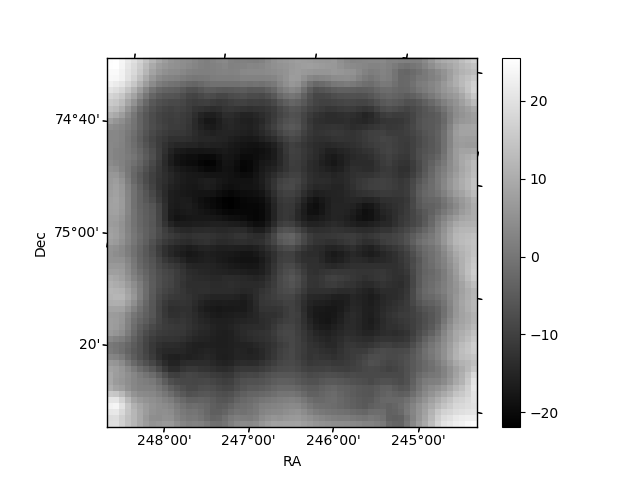

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

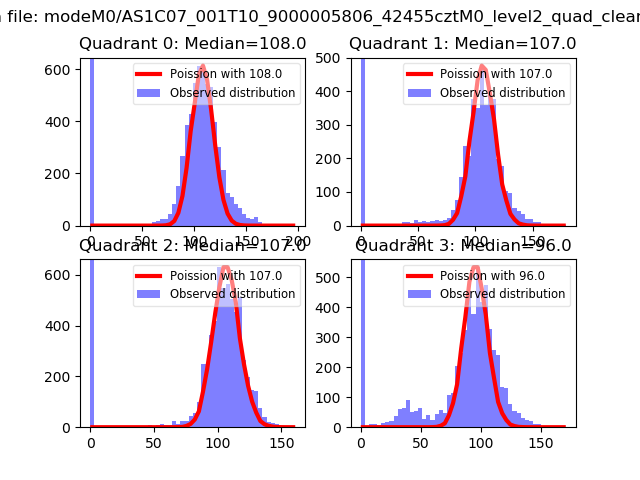

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

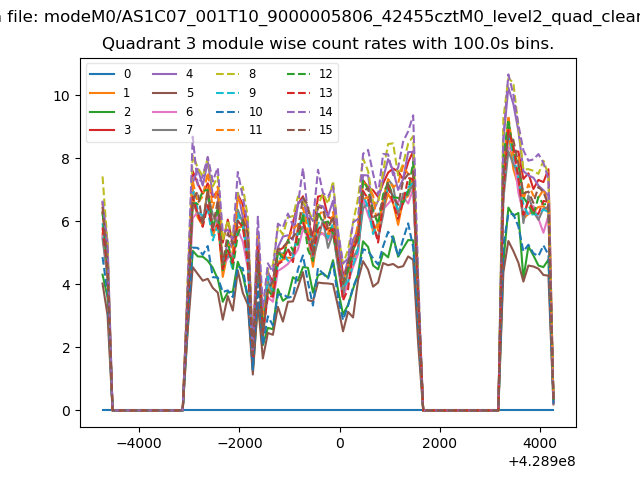

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

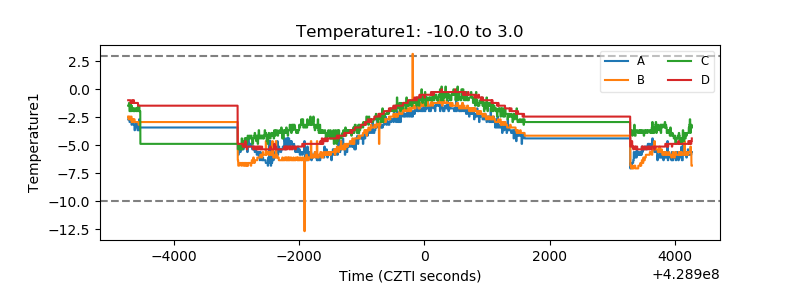

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

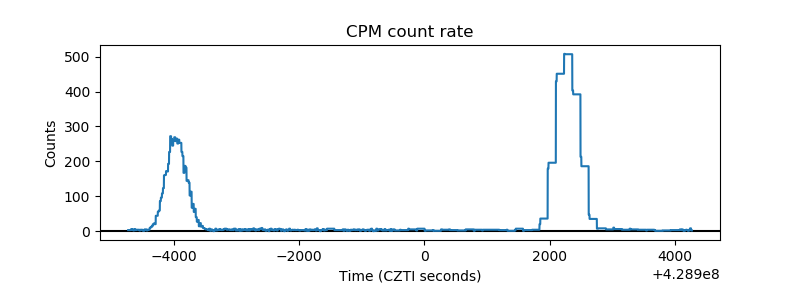

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

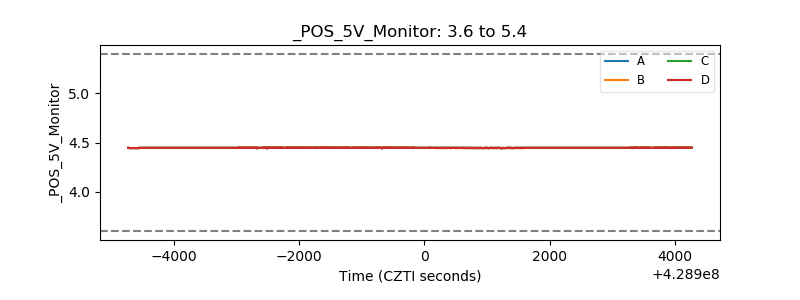

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

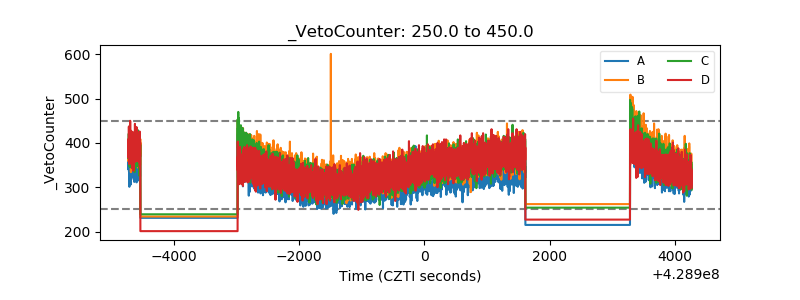

| Veto Counter |  |
