| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T10_9000005806_42500cztM0_level2.fits | modeM0/AS1C07_001T10_9000005806_42500cztM0_level2_quad_clean.evt |
| Size (bytes) | 315,624,960 | 88,666,560 |
| Size | 301.0 MB | 84.6 MB |
| Events in quadrant A | 3,001,599 | 589,918 |
| Events in quadrant B | 2,441,479 | 597,773 |
| Events in quadrant C | 2,600,612 | 579,356 |
| Events in quadrant D | 3,212,366 | 533,890 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12299 | 2 |
| B | 0 | 11344 | 2 |
| C | 0 | 11347 | 2 |
| D | 0 | 13653 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5483 | 35 | 0.638337% |
| B | 5483 | 18 | 0.328287% |
| C | 5483 | 3 | 0.054715% |
| D | 5483 | 153 | 2.790443% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7215 | 5484 | 22 | 22 | 0.30% | 0.40% |  |
| B | 7215 | 5484 | 10 | 10 | 0.14% | 0.18% |  |
| C | 7215 | 5484 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7215 | 5484 | 127 | 127 | 1.76% | 2.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 532187 | 4460.01 | 581 | 570 | 119.2 |
| A | 13 | 248 | 110961 | 926.13 | 581 | 570 | 119.2 |
| A | 12 | 189 | 91674 | 764.32 | 581 | 570 | 119.2 |
| B | 0 | 245 | 55268 | 495.83 | 574 | 559 | 110.3 |
| B | 5 | 172 | 46628 | 417.52 | 574 | 559 | 110.3 |
| B | 10 | 246 | 33979 | 302.89 | 574 | 559 | 110.3 |
| C | 15 | 214 | 231052 | 1735.84 | 564 | 566 | 132.8 |
| C | 0 | 239 | 140795 | 1056.09 | 564 | 566 | 132.8 |
| C | 9 | 54 | 14277 | 103.26 | 564 | 566 | 132.8 |
| D | 1 | 47 | 386235 | 2818.15 | 560 | 544 | 136.9 |
| D | 12 | 233 | 195014 | 1420.95 | 560 | 544 | 136.9 |
| D | 12 | 6 | 158823 | 1156.51 | 560 | 544 | 136.9 |

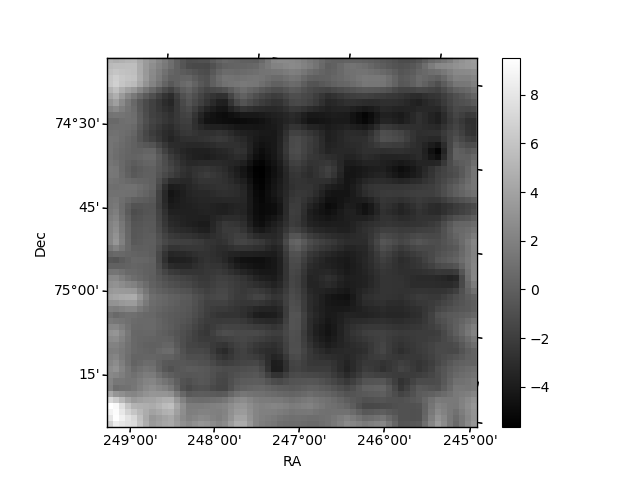

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

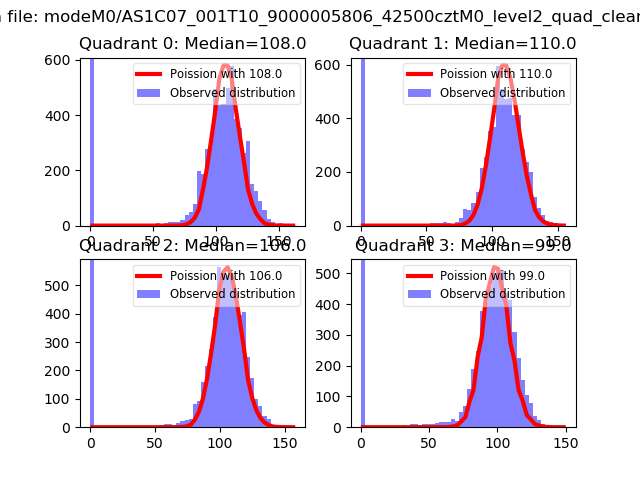

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

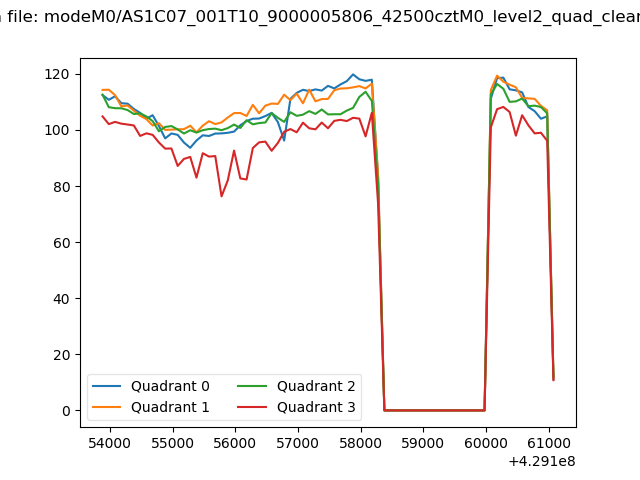

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

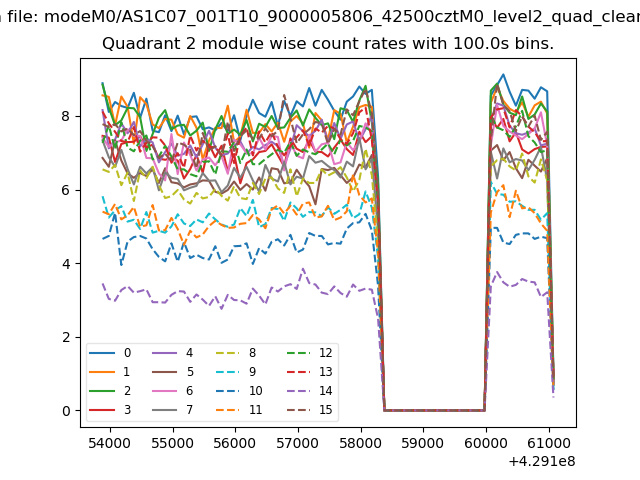

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

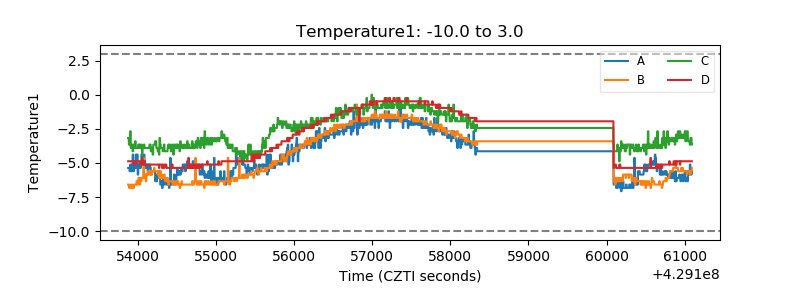

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

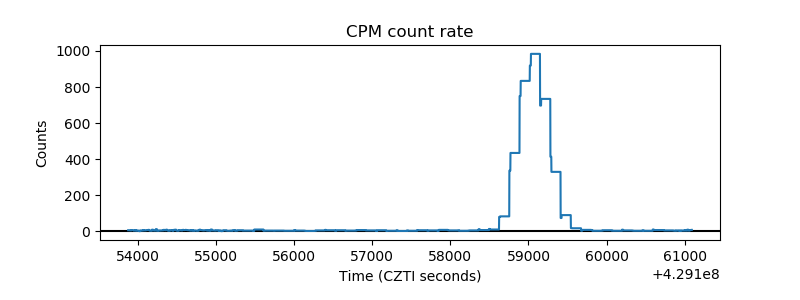

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

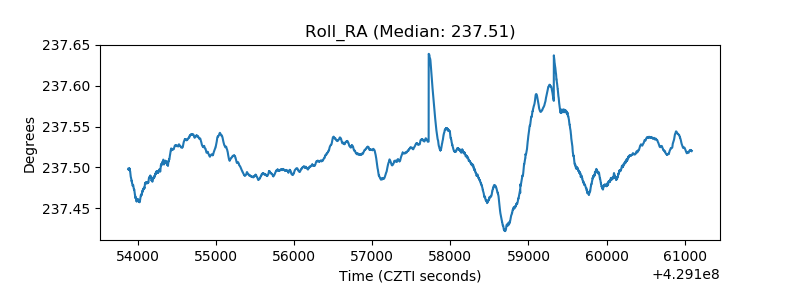

| _Roll_RA |  |
| Veto Counter |  |
