| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_061T07_9000005818_42595cztM0_level2.fits | modeM0/AS1A12_061T07_9000005818_42595cztM0_level2_quad_clean.evt |
| Size (bytes) | 348,920,640 | 94,976,640 |
| Size | 332.8 MB | 90.6 MB |
| Events in quadrant A | 3,183,169 | 631,846 |
| Events in quadrant B | 2,749,290 | 643,910 |
| Events in quadrant C | 2,776,800 | 627,707 |
| Events in quadrant D | 3,743,506 | 557,081 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12907 | 2 |
| B | 0 | 12355 | 2 |
| C | 0 | 12058 | 2 |
| D | 0 | 15336 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5945 | 9 | 0.151388% |
| B | 5945 | 37 | 0.622372% |
| C | 5945 | 12 | 0.201850% |
| D | 5945 | 259 | 4.356602% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7287 | 5946 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7287 | 5946 | 20 | 20 | 0.27% | 0.34% |  |
| C | 7287 | 5946 | 6 | 6 | 0.08% | 0.10% |  |
| D | 7287 | 5946 | 213 | 213 | 2.92% | 3.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 629230 | 4709.58 | 646 | 631 | 133.5 |
| A | 15 | 223 | 29457 | 215.97 | 646 | 631 | 133.5 |
| A | 13 | 248 | 25256 | 184.5 | 646 | 631 | 133.5 |
| B | 0 | 245 | 104159 | 831.1 | 639 | 619 | 124.6 |
| B | 15 | 85 | 38247 | 302.04 | 639 | 619 | 124.6 |
| B | 3 | 112 | 26238 | 205.64 | 639 | 619 | 124.6 |
| C | 15 | 214 | 248314 | 1683.88 | 631 | 636 | 147.1 |
| C | 4 | 254 | 28853 | 191.84 | 631 | 636 | 147.1 |
| C | 12 | 249 | 17411 | 114.05 | 631 | 636 | 147.1 |
| D | 2 | 249 | 565271 | 3716.15 | 621 | 602 | 151.9 |
| D | 12 | 233 | 347107 | 2280.39 | 621 | 602 | 151.9 |
| D | 1 | 47 | 230378 | 1512.18 | 621 | 602 | 151.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

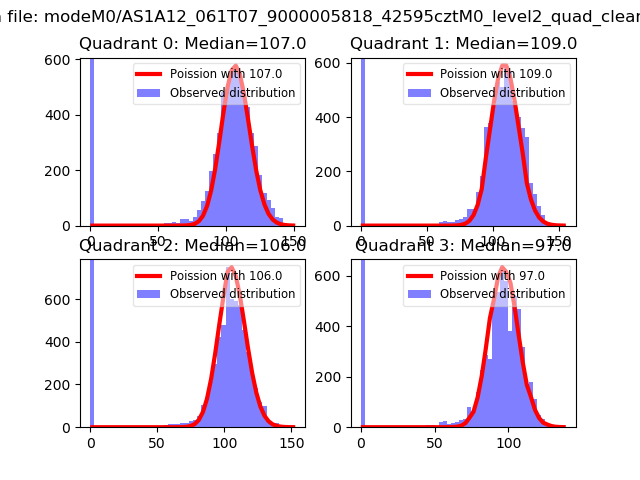

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

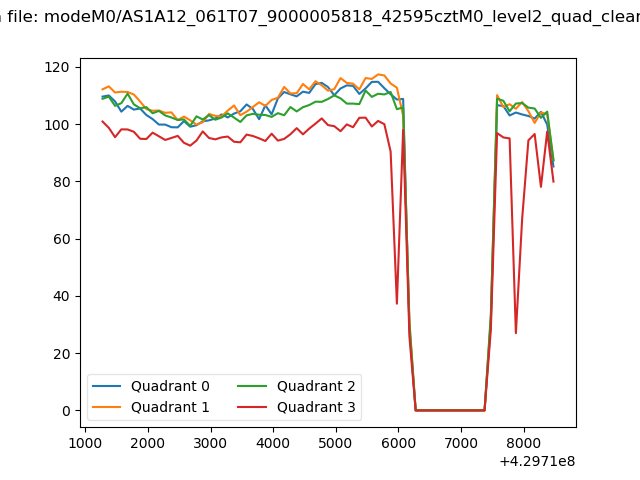

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

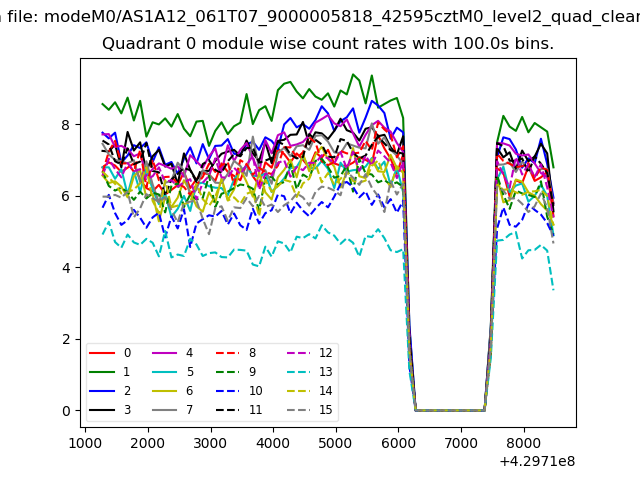

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

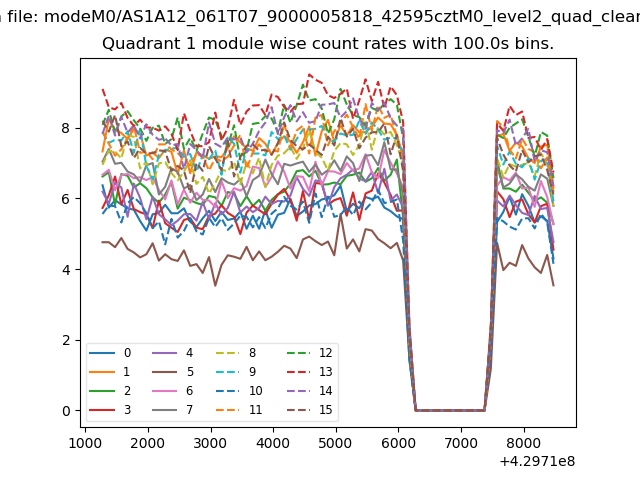

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

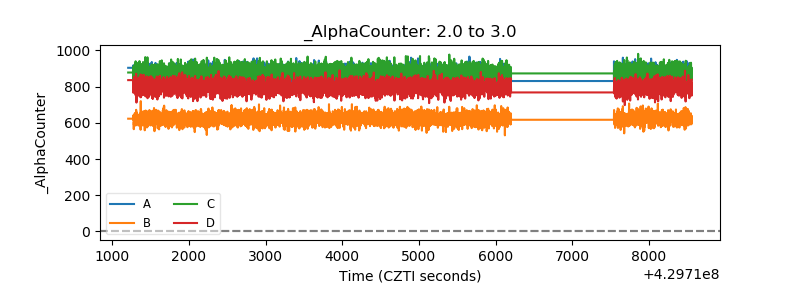

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

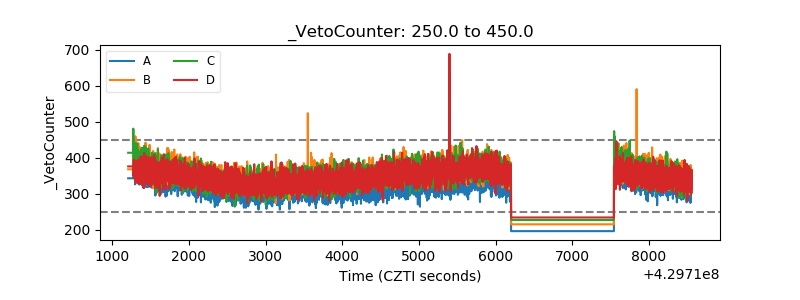

| Veto Counter |  |
