| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_061T07_9000005818_42602cztM0_level2.fits | modeM0/AS1A12_061T07_9000005818_42602cztM0_level2_quad_clean.evt |
| Size (bytes) | 305,291,520 | 88,951,680 |
| Size | 291.1 MB | 84.8 MB |
| Events in quadrant A | 2,823,439 | 597,022 |
| Events in quadrant B | 2,474,047 | 611,871 |
| Events in quadrant C | 2,530,457 | 586,834 |
| Events in quadrant D | 3,067,264 | 533,282 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11538 | 2 |
| B | 0 | 10898 | 2 |
| C | 0 | 10604 | 3 |
| D | 0 | 12617 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 32 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5203 | 15 | 0.288295% |
| B | 5203 | 30 | 0.576590% |
| C | 5202 | 3 | 0.057670% |
| D | 5202 | 95 | 1.826221% |

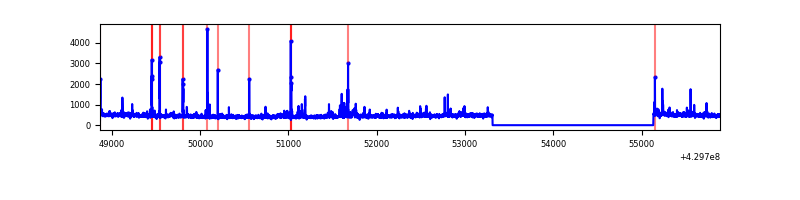

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7025 | 5204 | 5 | 5 | 0.07% | 0.10% |  |
| B | 7025 | 5204 | 16 | 16 | 0.23% | 0.31% |  |
| C | 7024 | 5203 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7024 | 5203 | 89 | 89 | 1.27% | 1.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 528358 | 4461.85 | 580 | 570 | 118.3 |
| A | 13 | 248 | 16818 | 137.36 | 580 | 570 | 118.3 |
| A | 15 | 237 | 16618 | 135.67 | 580 | 570 | 118.3 |
| B | 5 | 255 | 66593 | 590.03 | 577 | 560 | 111.9 |
| B | 5 | 172 | 65892 | 583.76 | 577 | 560 | 111.9 |
| B | 0 | 245 | 50913 | 449.92 | 577 | 560 | 111.9 |
| C | 15 | 214 | 233898 | 1745.89 | 574 | 579 | 133.6 |
| C | 9 | 54 | 18817 | 136.47 | 574 | 579 | 133.6 |
| C | 3 | 233 | 18477 | 133.93 | 574 | 579 | 133.6 |
| D | 2 | 249 | 350362 | 2512.51 | 567 | 549 | 139.2 |
| D | 1 | 52 | 324503 | 2326.78 | 567 | 549 | 139.2 |
| D | 13 | 249 | 115008 | 822.09 | 567 | 549 | 139.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

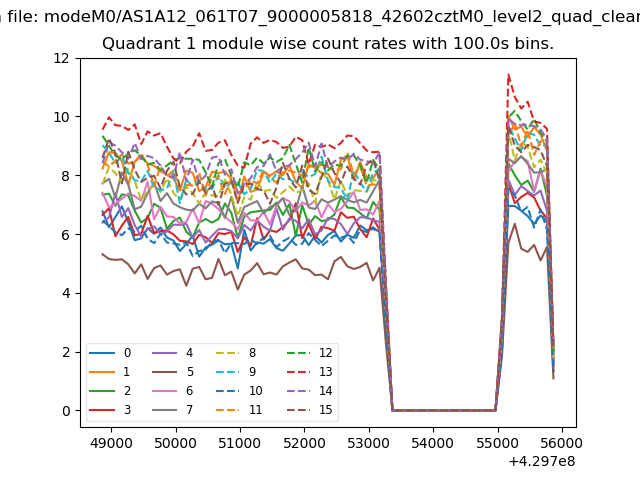

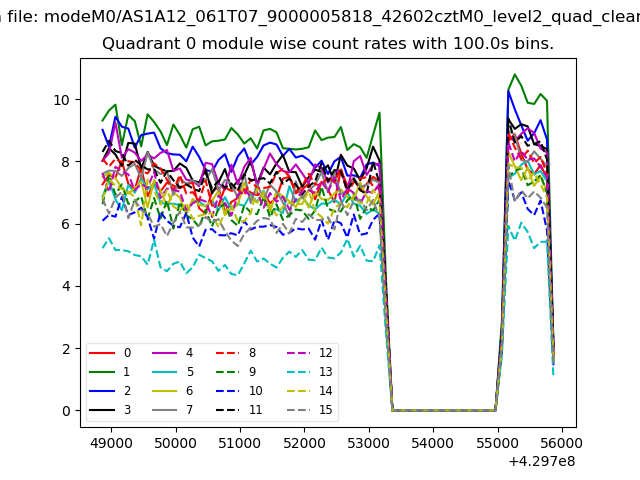

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

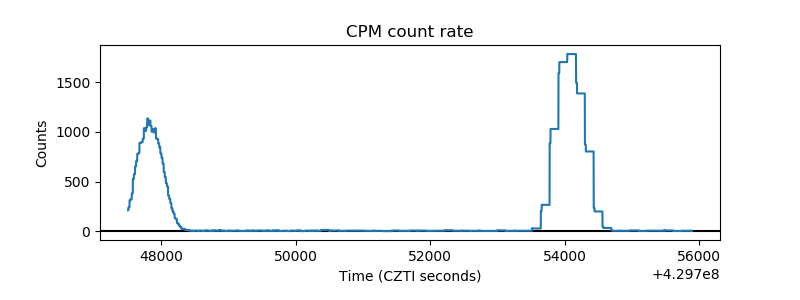

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

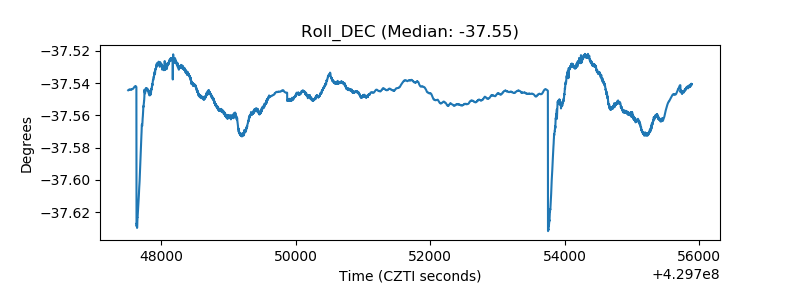

| _Roll_DEC |  |
| _Roll_RA |  |

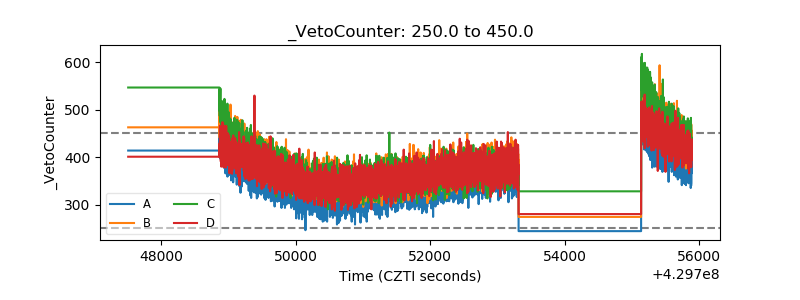

| Veto Counter |  |
