| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_013T01_9000005822_42704cztM0_level2.fits | modeM0/AS1A05_013T01_9000005822_42704cztM0_level2_quad_clean.evt |
| Size (bytes) | 285,278,400 | 88,842,240 |
| Size | 272.1 MB | 84.7 MB |
| Events in quadrant A | 2,789,366 | 603,292 |
| Events in quadrant B | 2,354,882 | 616,473 |
| Events in quadrant C | 2,494,020 | 578,146 |
| Events in quadrant D | 2,520,259 | 531,498 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11285 | 2 |
| B | 0 | 10499 | 2 |
| C | 0 | 10534 | 2 |
| D | 0 | 11163 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 29 | 0 |
| C | 0 | 29 | 0 |
| D | 0 | 29 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5145 | 13 | 0.252672% |
| B | 5145 | 16 | 0.310982% |
| C | 5145 | 6 | 0.116618% |
| D | 5145 | 44 | 0.855199% |

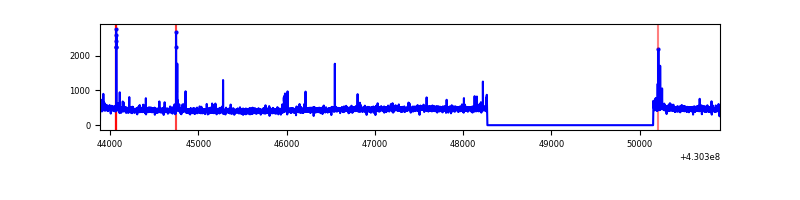

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7027 | 5146 | 5 | 5 | 0.07% | 0.10% |  |
| B | 7027 | 5146 | 8 | 8 | 0.11% | 0.16% |  |
| C | 7027 | 5146 | 3 | 3 | 0.04% | 0.06% |  |
| D | 7027 | 5146 | 32 | 32 | 0.46% | 0.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 533956 | 4470.78 | 579 | 568 | 119.3 |
| A | 13 | 248 | 7419 | 57.42 | 579 | 568 | 119.3 |
| A | 13 | 254 | 7366 | 56.98 | 579 | 568 | 119.3 |
| B | 5 | 255 | 60067 | 532.97 | 577 | 561 | 111.6 |
| B | 12 | 111 | 13984 | 120.22 | 577 | 561 | 111.6 |
| B | 11 | 111 | 12816 | 109.76 | 577 | 561 | 111.6 |
| C | 15 | 214 | 216194 | 1652.09 | 562 | 564 | 130.5 |
| C | 3 | 233 | 45422 | 343.69 | 562 | 564 | 130.5 |
| C | 14 | 254 | 25147 | 188.35 | 562 | 564 | 130.5 |
| D | 2 | 249 | 143649 | 1050.31 | 557 | 541 | 136.3 |
| D | 5 | 32 | 79833 | 581.94 | 557 | 541 | 136.3 |
| D | 1 | 52 | 36855 | 266.52 | 557 | 541 | 136.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

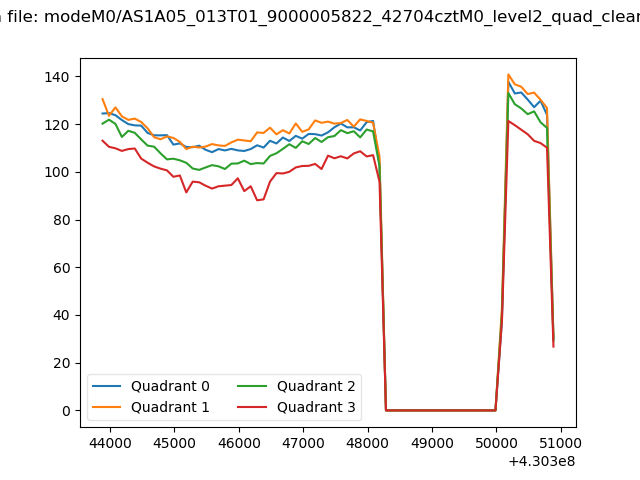

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

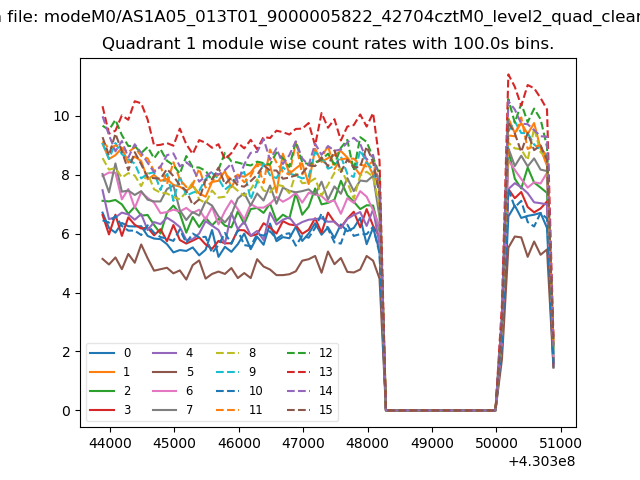

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

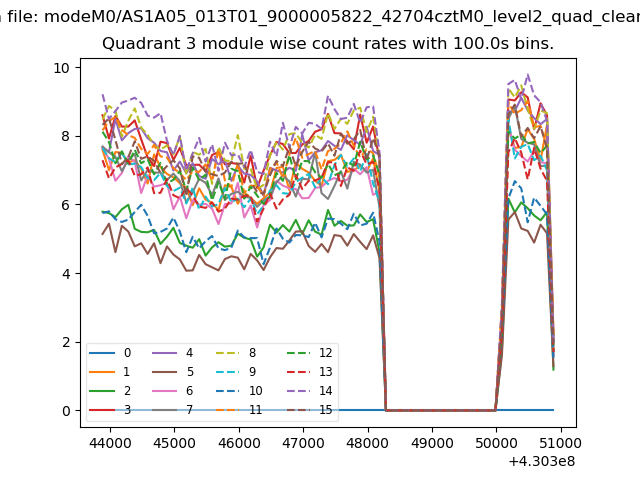

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

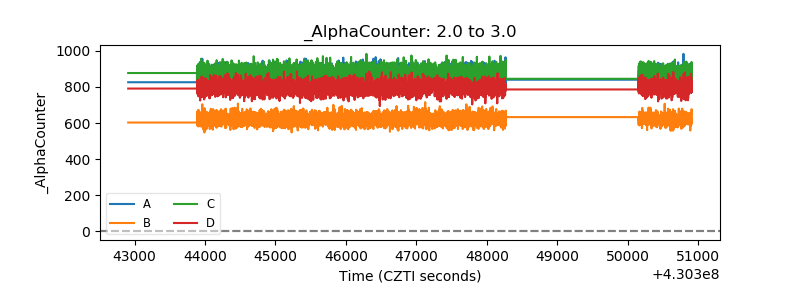

| Alpha Counter |  |

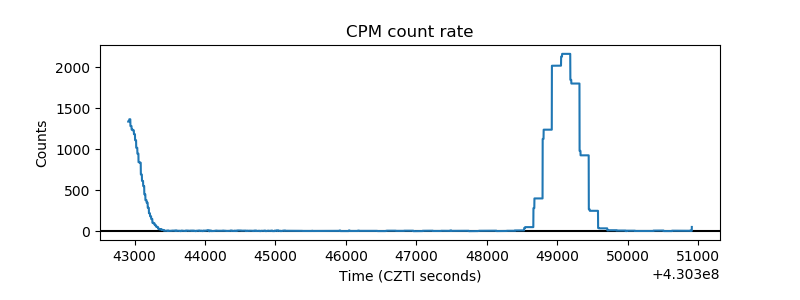

| _CPM_Rate |  |

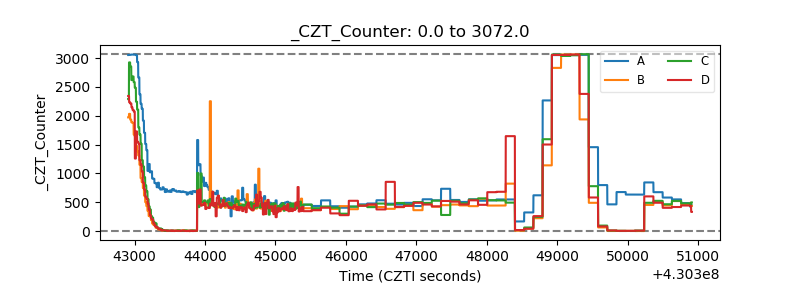

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

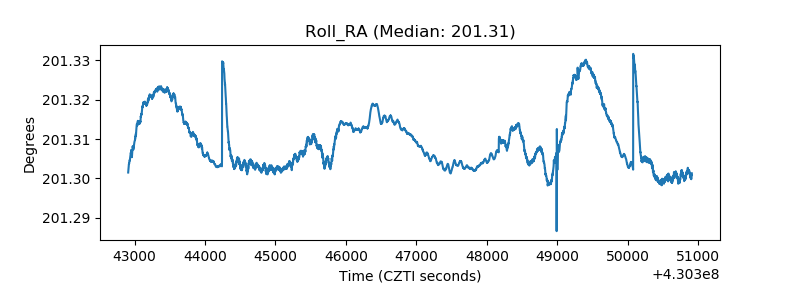

| _Roll_RA |  |
| Veto Counter |  |
