| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_013T01_9000005822_42768cztM0_level2.fits | modeM0/AS1A05_013T01_9000005822_42768cztM0_level2_quad_clean.evt |
| Size (bytes) | 355,849,920 | 95,019,840 |
| Size | 339.4 MB | 90.6 MB |
| Events in quadrant A | 3,761,536 | 626,386 |
| Events in quadrant B | 2,702,472 | 643,262 |
| Events in quadrant C | 2,977,572 | 632,028 |
| Events in quadrant D | 3,287,589 | 577,096 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14623 | 2 |
| B | 0 | 11944 | 1 |
| C | 0 | 12327 | 1 |
| D | 0 | 13740 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5690 | 167 | 2.934974% |
| B | 5691 | 24 | 0.421719% |
| C | 5691 | 44 | 0.773151% |
| D | 5691 | 136 | 2.389738% |

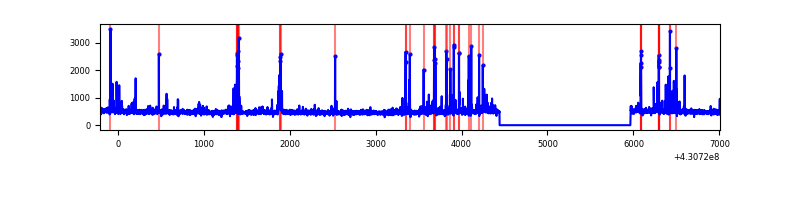

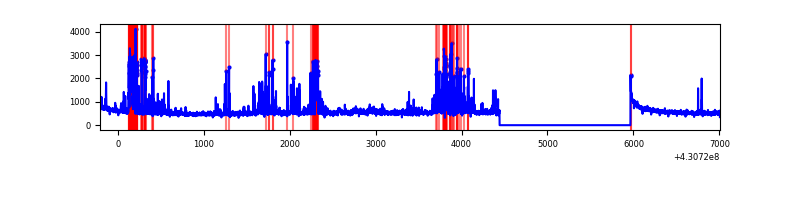

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7213 | 5691 | 147 | 147 | 2.04% | 2.58% |  |
| B | 7214 | 5692 | 12 | 12 | 0.17% | 0.21% |  |
| C | 7214 | 5692 | 44 | 44 | 0.61% | 0.77% |  |
| D | 7214 | 5692 | 145 | 145 | 2.01% | 2.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 547407 | 4234.32 | 629 | 618 | 129.1 |
| A | 13 | 248 | 489959 | 3789.45 | 629 | 618 | 129.1 |
| A | 15 | 223 | 205754 | 1588.57 | 629 | 618 | 129.1 |
| B | 15 | 35 | 104167 | 851.63 | 624 | 607 | 121.6 |
| B | 5 | 172 | 48126 | 390.77 | 624 | 607 | 121.6 |
| B | 0 | 230 | 26711 | 214.67 | 624 | 607 | 121.6 |
| C | 14 | 254 | 283384 | 1949.7 | 618 | 621 | 145.0 |
| C | 15 | 214 | 238187 | 1638.06 | 618 | 621 | 145.0 |
| C | 0 | 207 | 15640 | 103.56 | 618 | 621 | 145.0 |
| D | 5 | 171 | 318153 | 2097.3 | 618 | 600 | 151.4 |
| D | 2 | 249 | 248577 | 1637.78 | 618 | 600 | 151.4 |
| D | 12 | 233 | 94438 | 619.76 | 618 | 600 | 151.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

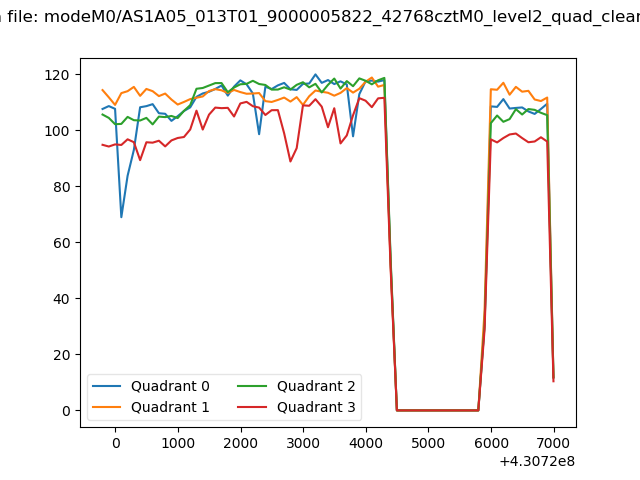

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

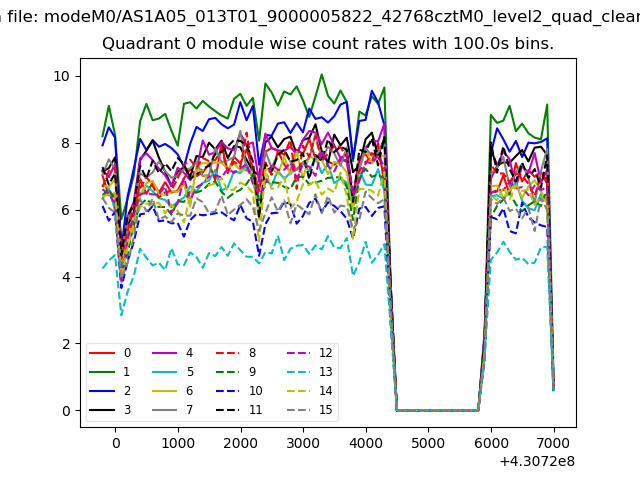

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

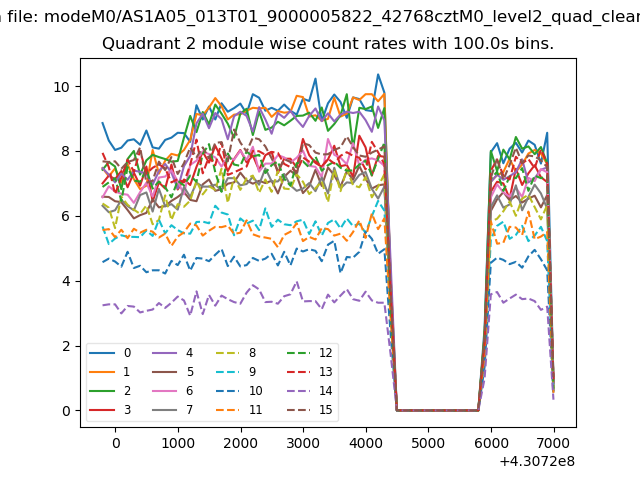

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

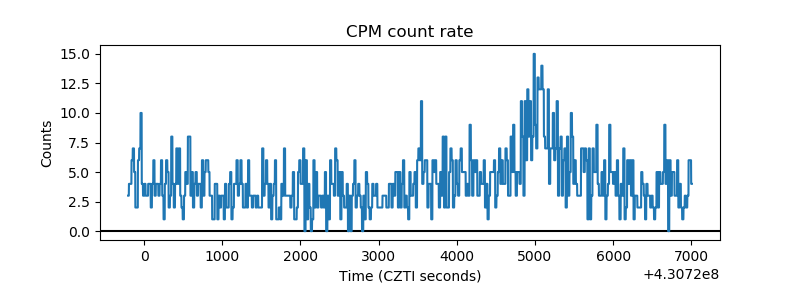

| _CPM_Rate |  |
| CZT Counter |  |

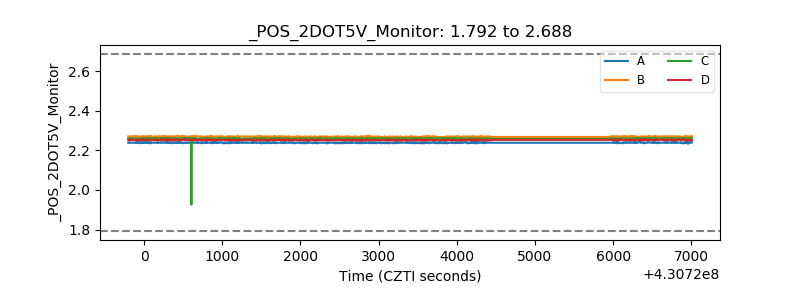

| +2.5 Volts monitor |  |

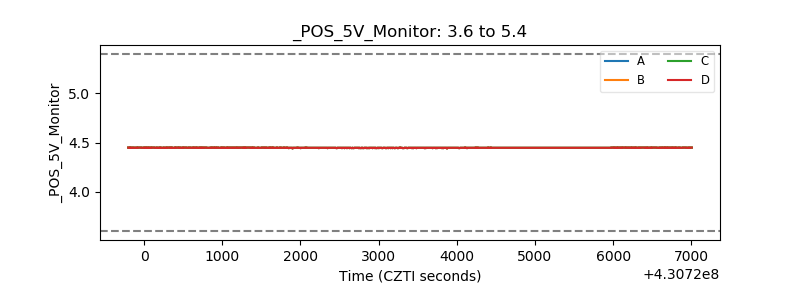

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
