| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T12_9000005826_42825cztM0_level2.fits | modeM0/AS1C07_001T12_9000005826_42825cztM0_level2_quad_clean.evt |
| Size (bytes) | 308,465,280 | 88,626,240 |
| Size | 294.2 MB | 84.5 MB |
| Events in quadrant A | 2,926,161 | 588,997 |
| Events in quadrant B | 2,430,861 | 603,941 |
| Events in quadrant C | 2,565,878 | 579,556 |
| Events in quadrant D | 3,069,702 | 529,148 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12077 | 2 |
| B | 0 | 11290 | 2 |
| C | 0 | 11350 | 2 |
| D | 0 | 13271 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33 | 0 |
| B | 0 | 34 | 0 |
| C | 0 | 34 | 0 |
| D | 0 | 34 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5459 | 21 | 0.384686% |
| B | 5459 | 24 | 0.439641% |
| C | 5459 | 31 | 0.567870% |
| D | 5459 | 147 | 2.692801% |

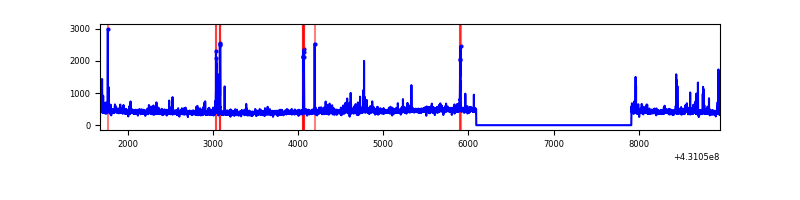

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7281 | 5460 | 15 | 15 | 0.21% | 0.27% |  |
| B | 7281 | 5460 | 16 | 16 | 0.22% | 0.29% |  |
| C | 7281 | 5460 | 22 | 22 | 0.30% | 0.40% |  |
| D | 7281 | 5460 | 142 | 142 | 1.95% | 2.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 614237 | 5229.05 | 571 | 558 | 117.4 |
| A | 15 | 237 | 29155 | 243.67 | 571 | 558 | 117.4 |
| A | 12 | 189 | 20725 | 171.84 | 571 | 558 | 117.4 |
| B | 5 | 255 | 60362 | 541.81 | 572 | 555 | 110.4 |
| B | 0 | 245 | 46709 | 418.12 | 572 | 555 | 110.4 |
| B | 15 | 54 | 20130 | 177.34 | 572 | 555 | 110.4 |
| C | 15 | 214 | 223279 | 1718.97 | 557 | 560 | 129.6 |
| C | 14 | 254 | 127534 | 980.0 | 557 | 560 | 129.6 |
| C | 3 | 233 | 23929 | 180.36 | 557 | 560 | 129.6 |
| D | 1 | 47 | 274733 | 2027.83 | 551 | 534 | 135.2 |
| D | 2 | 249 | 259571 | 1915.7 | 551 | 534 | 135.2 |
| D | 1 | 52 | 115804 | 852.48 | 551 | 534 | 135.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

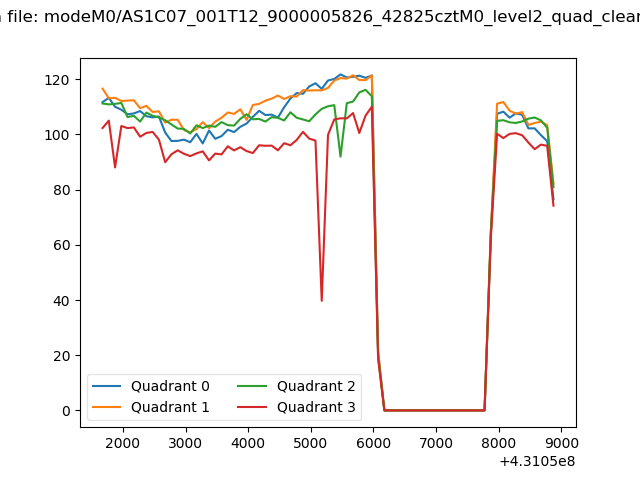

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

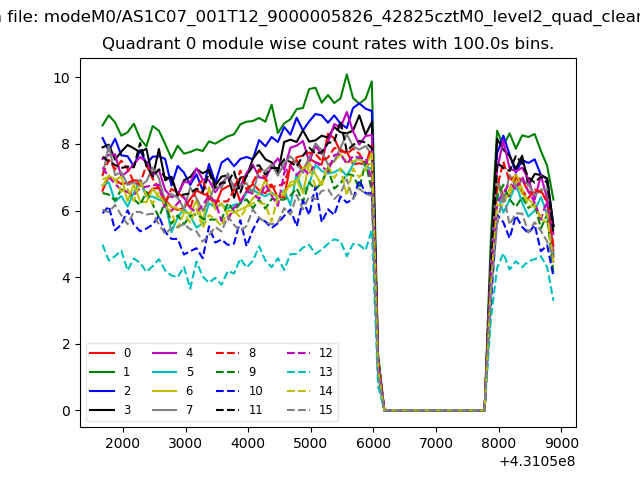

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

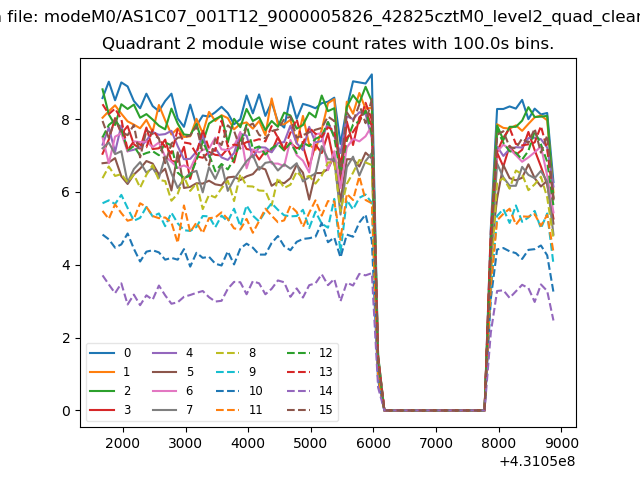

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

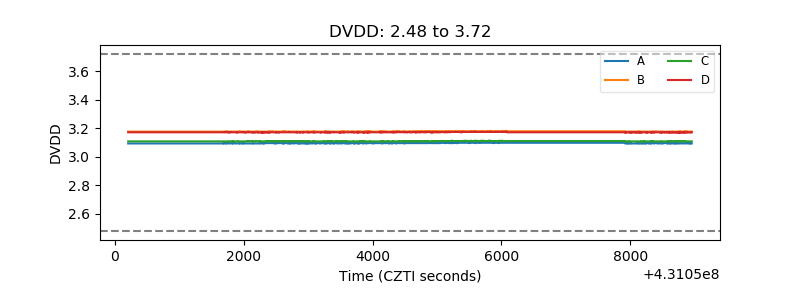

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

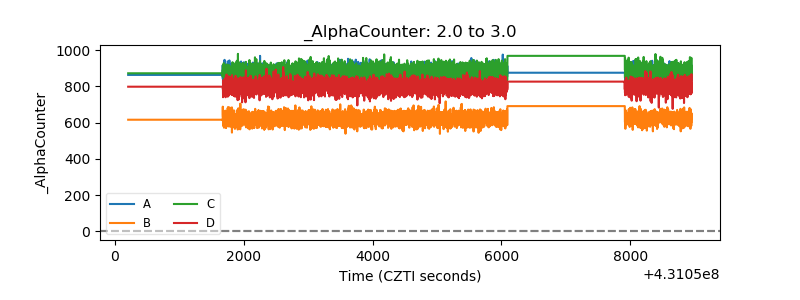

| Alpha Counter |  |

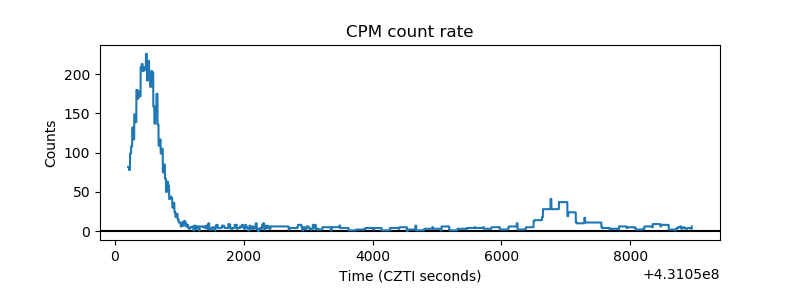

| _CPM_Rate |  |

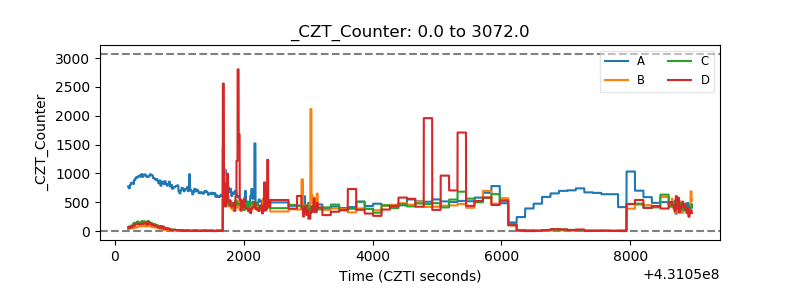

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
