| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_143T01_9000005830_42918cztM0_level2.fits | modeM0/AS1T05_143T01_9000005830_42918cztM0_level2_quad_clean.evt |
| Size (bytes) | 497,666,880 | 108,665,280 |
| Size | 474.6 MB | 103.6 MB |
| Events in quadrant A | 4,382,236 | 745,553 |
| Events in quadrant B | 4,915,405 | 727,587 |
| Events in quadrant C | 3,256,676 | 722,863 |
| Events in quadrant D | 5,336,835 | 617,987 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17018 | 2 |
| B | 0 | 19184 | 2 |
| C | 0 | 13974 | 2 |
| D | 0 | 20515 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31 | 0 |
| B | 0 | 31 | 0 |
| C | 0 | 31 | 0 |
| D | 0 | 31 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6832 | 162 | 2.371194% |
| B | 6833 | 519 | 7.595492% |
| C | 6833 | 6 | 0.087809% |
| D | 6833 | 633 | 9.263867% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9878 | 6834 | 142 | 142 | 1.44% | 2.08% |  |
| B | 9879 | 6835 | 332 | 332 | 3.36% | 4.86% |  |
| C | 9879 | 6835 | 1 | 1 | 0.01% | 0.01% |  |
| D | 9879 | 6835 | 629 | 629 | 6.37% | 9.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 686605 | 4468.44 | 750 | 734 | 153.5 |
| A | 15 | 237 | 681610 | 4435.89 | 750 | 734 | 153.5 |
| A | 15 | 222 | 69023 | 444.9 | 750 | 734 | 153.5 |
| B | 4 | 81 | 1963600 | 13635.93 | 732 | 712 | 143.9 |
| B | 4 | 171 | 31376 | 213.02 | 732 | 712 | 143.9 |
| B | 3 | 112 | 18311 | 122.26 | 732 | 712 | 143.9 |
| C | 15 | 214 | 276304 | 1607.28 | 733 | 737 | 171.4 |
| C | 8 | 79 | 60276 | 347.27 | 733 | 737 | 171.4 |
| C | 12 | 2 | 36622 | 209.3 | 733 | 737 | 171.4 |
| D | 12 | 233 | 1122192 | 6463.6 | 707 | 686 | 173.5 |
| D | 13 | 249 | 401650 | 2310.88 | 707 | 686 | 173.5 |
| D | 1 | 47 | 326587 | 1878.27 | 707 | 686 | 173.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

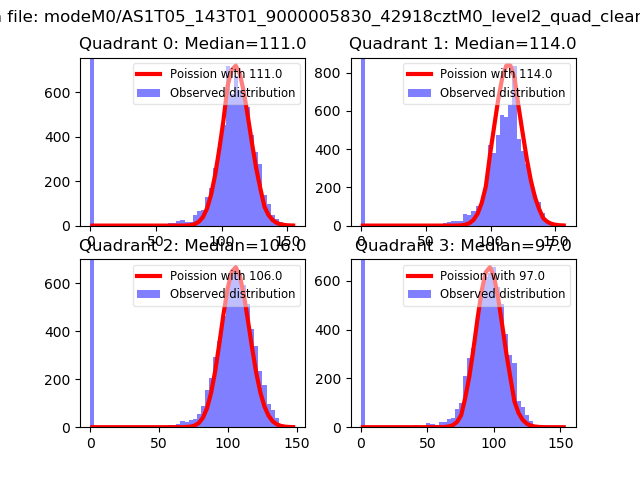

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

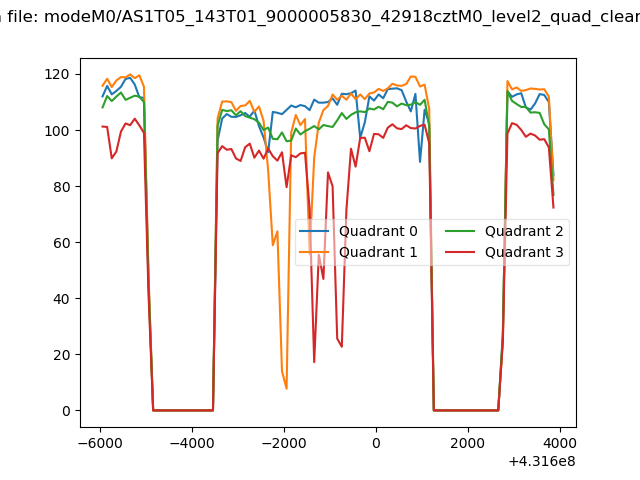

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

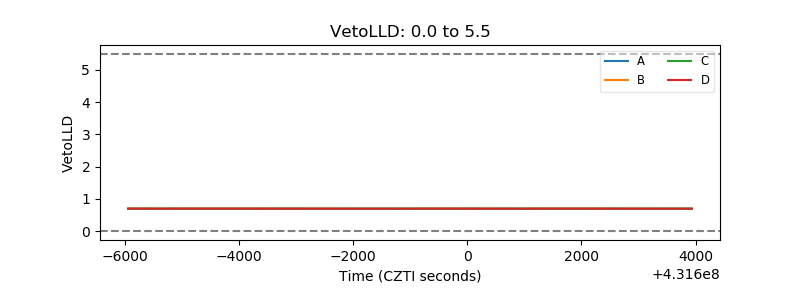

| Veto LLD |  |

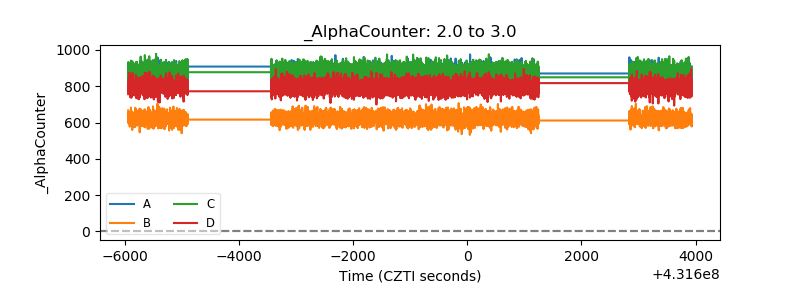

| Alpha Counter |  |

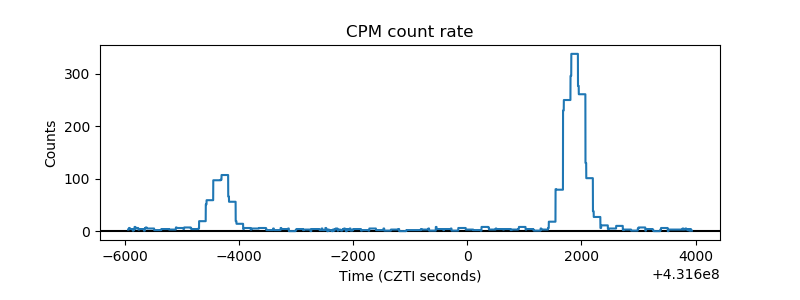

| _CPM_Rate |  |

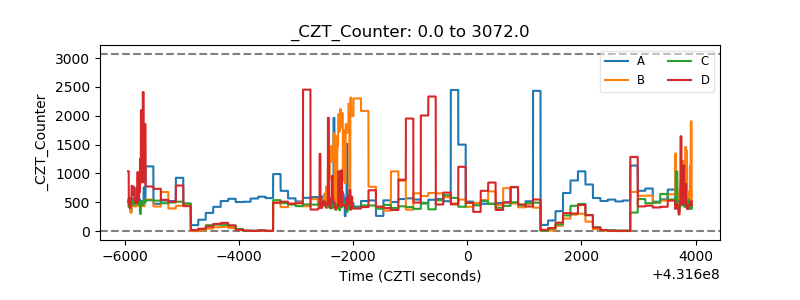

| CZT Counter |  |

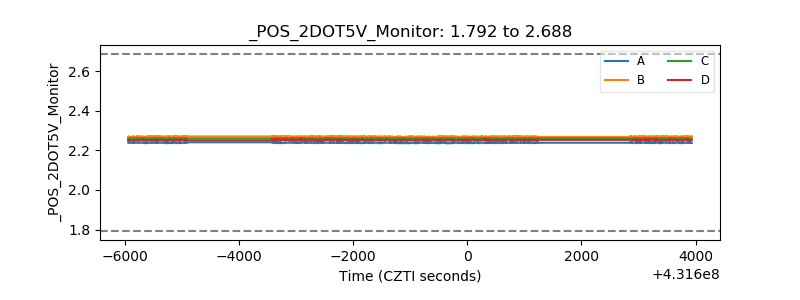

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
