| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_006T07_9000005852_43128cztM0_level2.fits | modeM0/AS1A09_006T07_9000005852_43128cztM0_level2_quad_clean.evt |
| Size (bytes) | 390,444,480 | 85,242,240 |
| Size | 372.4 MB | 81.3 MB |
| Events in quadrant A | 5,327,486 | 548,672 |
| Events in quadrant B | 2,982,235 | 598,822 |
| Events in quadrant C | 2,469,541 | 563,204 |
| Events in quadrant D | 3,277,455 | 512,787 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 27 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19441 | 2 |
| B | 0 | 12282 | 2 |
| C | 0 | 10382 | 2 |
| D | 0 | 13146 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5097 | 547 | 10.731803% |
| B | 5097 | 50 | 0.980969% |
| C | 5097 | 3 | 0.058858% |
| D | 5097 | 129 | 2.530901% |

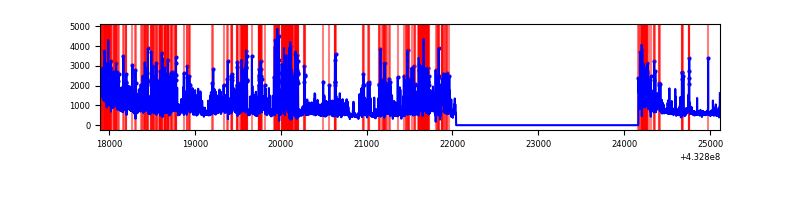

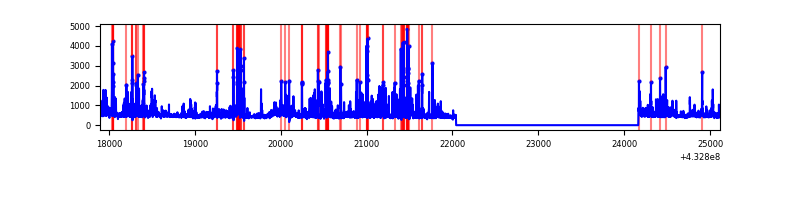

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7220 | 5098 | 402 | 402 | 5.57% | 7.89% |  |
| B | 7220 | 5098 | 14 | 14 | 0.19% | 0.27% |  |
| C | 7220 | 5098 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7220 | 5098 | 102 | 102 | 1.41% | 2.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 1892566 | 16482.14 | 560 | 549 | 114.8 |
| A | 10 | 83 | 572786 | 4984.99 | 560 | 549 | 114.8 |
| A | 15 | 237 | 434578 | 3781.01 | 560 | 549 | 114.8 |
| B | 0 | 186 | 531720 | 4724.5 | 574 | 560 | 112.4 |
| B | 0 | 229 | 85073 | 751.72 | 574 | 560 | 112.4 |
| B | 5 | 255 | 59555 | 524.74 | 574 | 560 | 112.4 |
| C | 15 | 214 | 214587 | 1628.06 | 561 | 565 | 131.5 |
| C | 0 | 239 | 30425 | 227.14 | 561 | 565 | 131.5 |
| C | 3 | 233 | 14124 | 103.14 | 561 | 565 | 131.5 |
| D | 1 | 52 | 842812 | 6110.66 | 559 | 544 | 137.8 |
| D | 13 | 249 | 162991 | 1178.55 | 559 | 544 | 137.8 |
| D | 13 | 171 | 51977 | 373.14 | 559 | 544 | 137.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

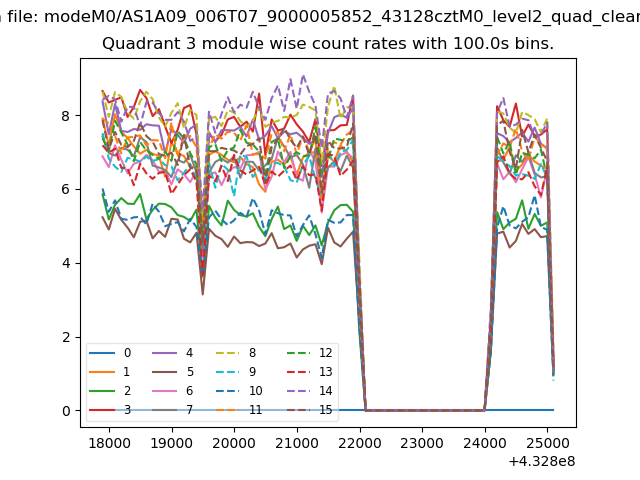

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

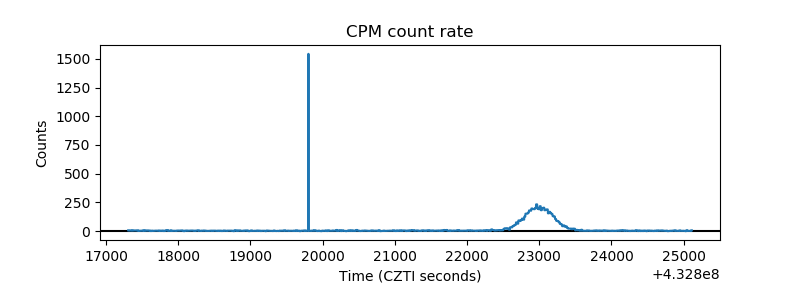

| _CPM_Rate |  |
| CZT Counter |  |

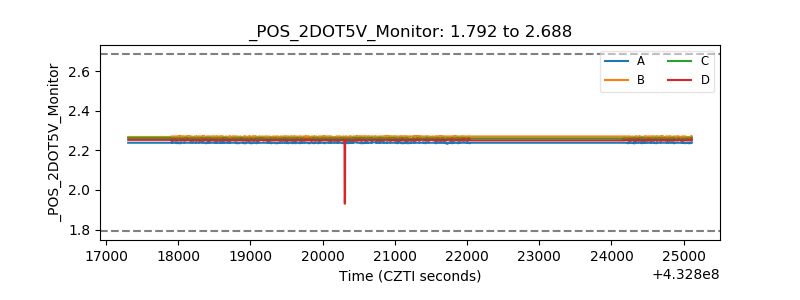

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

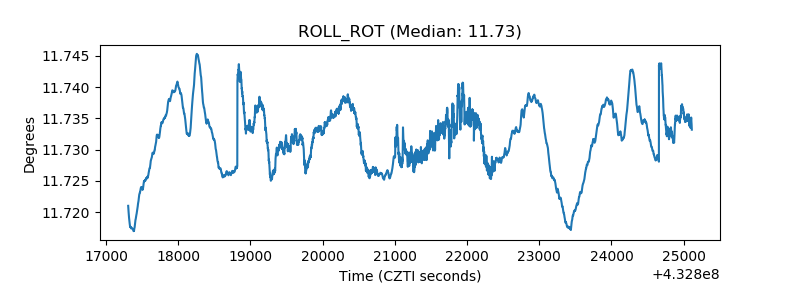

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

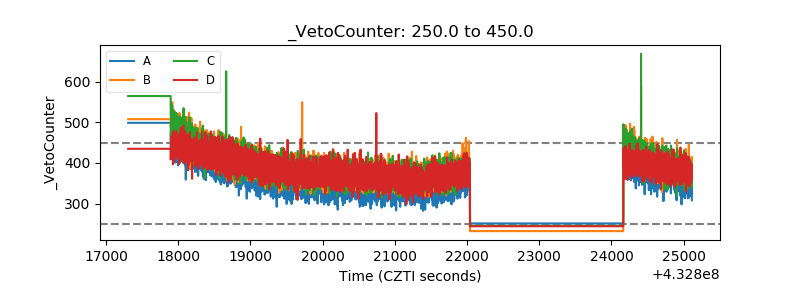

| Veto Counter |  |
