| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_036T17_9000005858_43215cztM0_level2.fits | modeM0/AS1A09_036T17_9000005858_43215cztM0_level2_quad_clean.evt |
| Size (bytes) | 336,715,200 | 85,599,360 |
| Size | 321.1 MB | 81.6 MB |
| Events in quadrant A | 3,692,668 | 560,074 |
| Events in quadrant B | 2,630,783 | 589,847 |
| Events in quadrant C | 2,417,364 | 568,351 |
| Events in quadrant D | 3,321,959 | 512,489 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14296 | 23 |
| B | 0 | 11051 | 5 |
| C | 0 | 10412 | 2 |
| D | 0 | 13366 | 5 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5150 | 204 | 3.961165% |
| B | 5152 | 41 | 0.795807% |
| C | 5154 | 5 | 0.097012% |
| D | 5151 | 172 | 3.339157% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7246 | 5154 | 143 | 143 | 1.97% | 2.77% |  |
| B | 7246 | 5154 | 20 | 20 | 0.28% | 0.39% |  |
| C | 7246 | 5155 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7246 | 5155 | 147 | 147 | 2.03% | 2.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 600262 | 5183.41 | 560 | 549 | 115.7 |
| A | 15 | 237 | 548886 | 4739.36 | 560 | 549 | 115.7 |
| A | 13 | 248 | 159846 | 1376.83 | 560 | 549 | 115.7 |
| B | 0 | 189 | 184001 | 1690.16 | 561 | 546 | 108.5 |
| B | 5 | 172 | 115366 | 1057.83 | 561 | 546 | 108.5 |
| B | 0 | 230 | 77869 | 712.37 | 561 | 546 | 108.5 |
| C | 15 | 214 | 219937 | 1668.38 | 554 | 560 | 131.5 |
| C | 14 | 254 | 30696 | 229.19 | 554 | 560 | 131.5 |
| C | 3 | 233 | 8028 | 56.79 | 554 | 560 | 131.5 |
| D | 1 | 52 | 743771 | 5448.23 | 551 | 535 | 136.4 |
| D | 2 | 249 | 185451 | 1355.51 | 551 | 535 | 136.4 |
| D | 13 | 249 | 94450 | 688.44 | 551 | 535 | 136.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

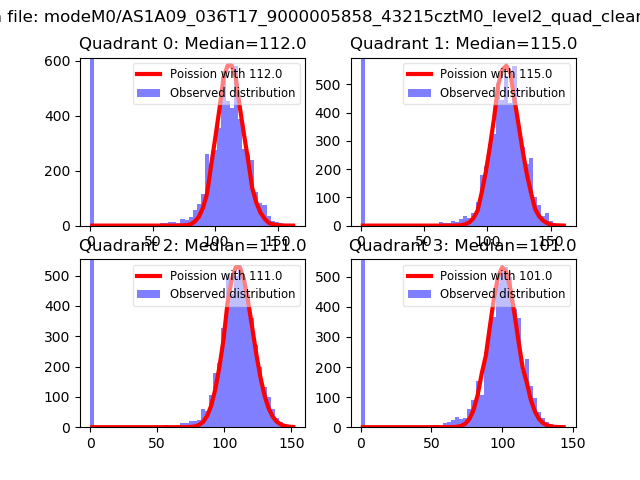

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
